Exoset load hook
Professional
Exoset load hook
Safety hook with fork and safety latch
Professional
Item Number: 1049546

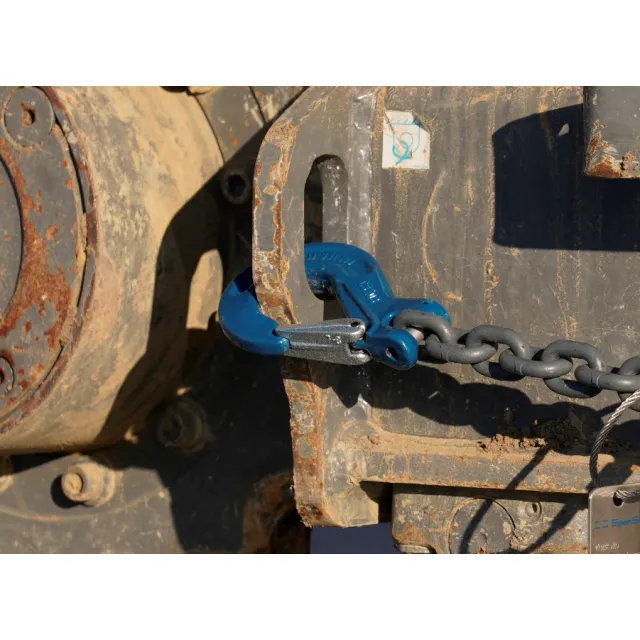

Exoset Clevis Sling Hook 4.0t 10mm
Exoset load hook with fork and safety catch, WLL 4t, 10mm
- Grade 100 with 25% higher load capacity than Grade 80
- With Safety latch
Select Model
Please contact customer service for purchase or more information
Steel grade 100
Made from steel grade 100 for enhanced strength and increased performance under extreme conditions.
+ 25% higher load capacity
Modular system
Easily replace individual parts
If parts become damaged, you do not have to replace the whole equipment. This minimises purchasing costs and increases safety.
Product Technical Information
-
Grade
100 -
Safety Factor
4:1 -
Norms
EN 1677 -
Temperature Range
-40° C to + 200° C -
Colour
Blue -
Main Material
Steel -
Connection Type
Clevis -
Hook Type
Safety Latch -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1
Variants information
| Item Number | Item Name | WLL kg | Weight Net | WLL t | Dimension L | Dimension G | Dimension H | Dimension B | Chain Diameter |
|---|---|---|---|---|---|---|---|---|---|
| 1049546 | Exoset Clevis Sling Hook 4.0t 10mm | 4000 kg | 1 kg | 4 t | 110 mm | 25 mm | 33 mm | 31 mm | 10 mm |
| 1049548 | Exoset Clevis Sling Hook 6.7t 13mm | 6700 kg | 1.7 kg | 6.7 t | 136 mm | 30 mm | 40 mm | 40 mm | 13 mm |
| 1051288 | Exoset Clevis Sling Hook 1.4t 6mm | 1400 kg | 0.25 kg | 1.4 t | 69 mm | 15 mm | 20 mm | 19 mm | 6 mm |
| 2000813 | Exoset Clevis Sling Hook 2.5t 8mm | 2500 kg | 0.5 kg | 2.5 t | 95 mm | 19 mm | 28 mm | 26 mm | 8 mm |
| 2000814 | Exoset Clevis Sling Hook 10t 16mm | 10000 kg | 3.2 kg | 10 t | 155 mm | 37 mm | 48 mm | 45 mm | 16 mm |
