Gladiator - All direction lifting clamps
Gladiator - All direction lifting clamps

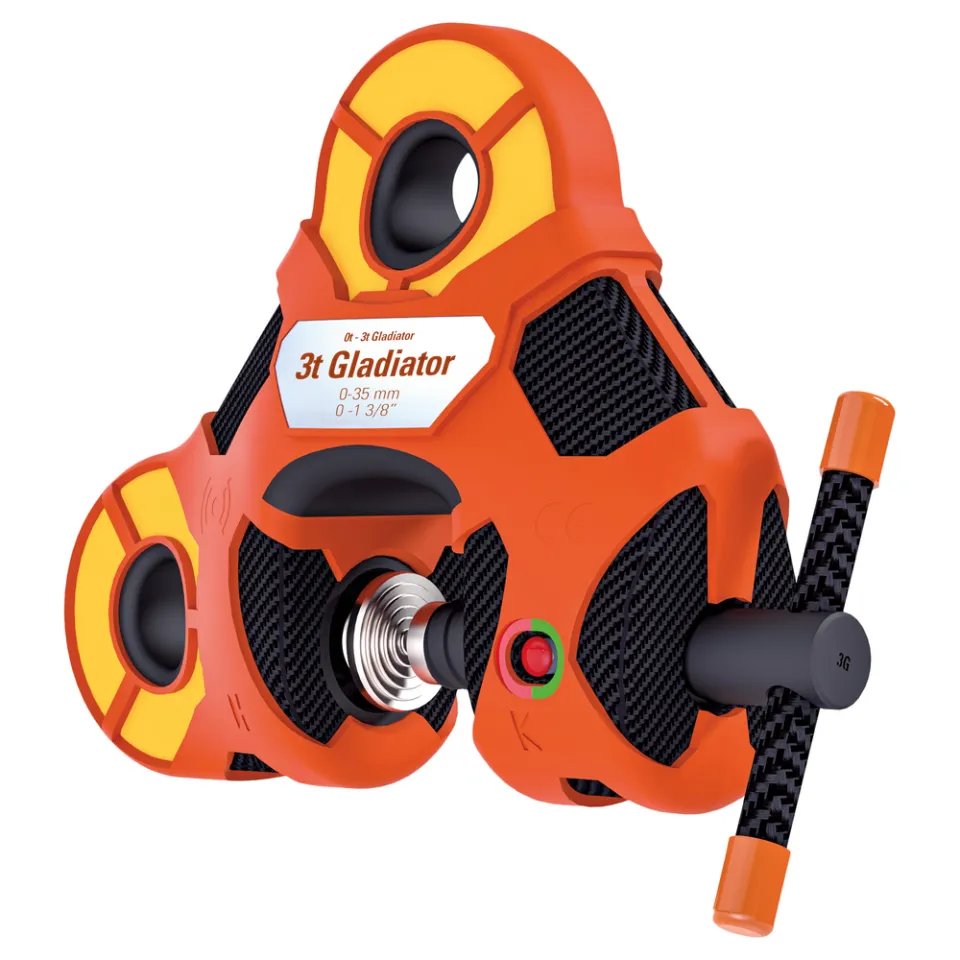

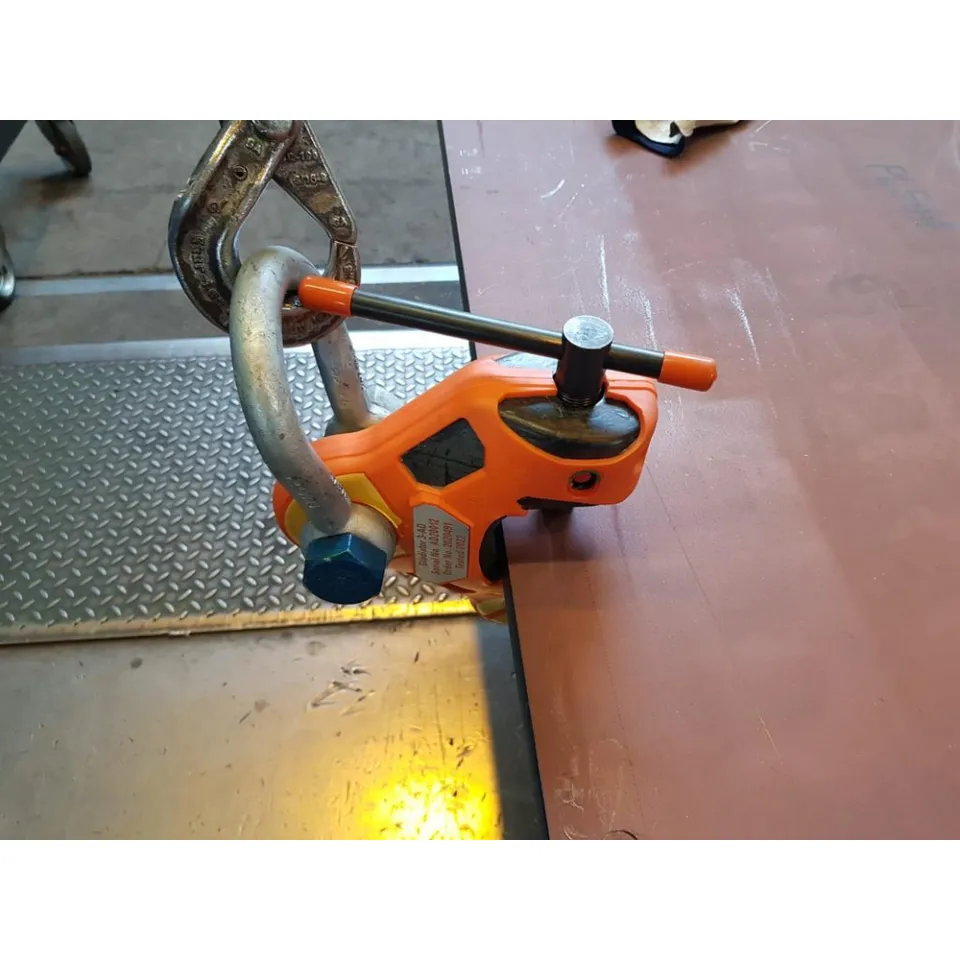

High performance safety lifting clamp – For lifting in any directions
- Ultra lightweight and incredibly strong body made from carbon fiber composites.
- Horizontal and vertical lifting – Equiped with a horizontal and vertical hoisting eye.
- Better grip on the clamp while attaching it to the plate.
- Maximum WLL indicator, positions so as clearly visible on both hoisting eyes.
- Fitted with a safe lifting indicator, which ensures sufficient clamping force.
Select Model
High Performance Lifting Equipment
Made of steel and carbon fibre composites
Using carbon fiber composites we can produce ultra lightweight equipment that are also incredibly strong, are corrosion-resistant and feature superb fatigue characteristics.

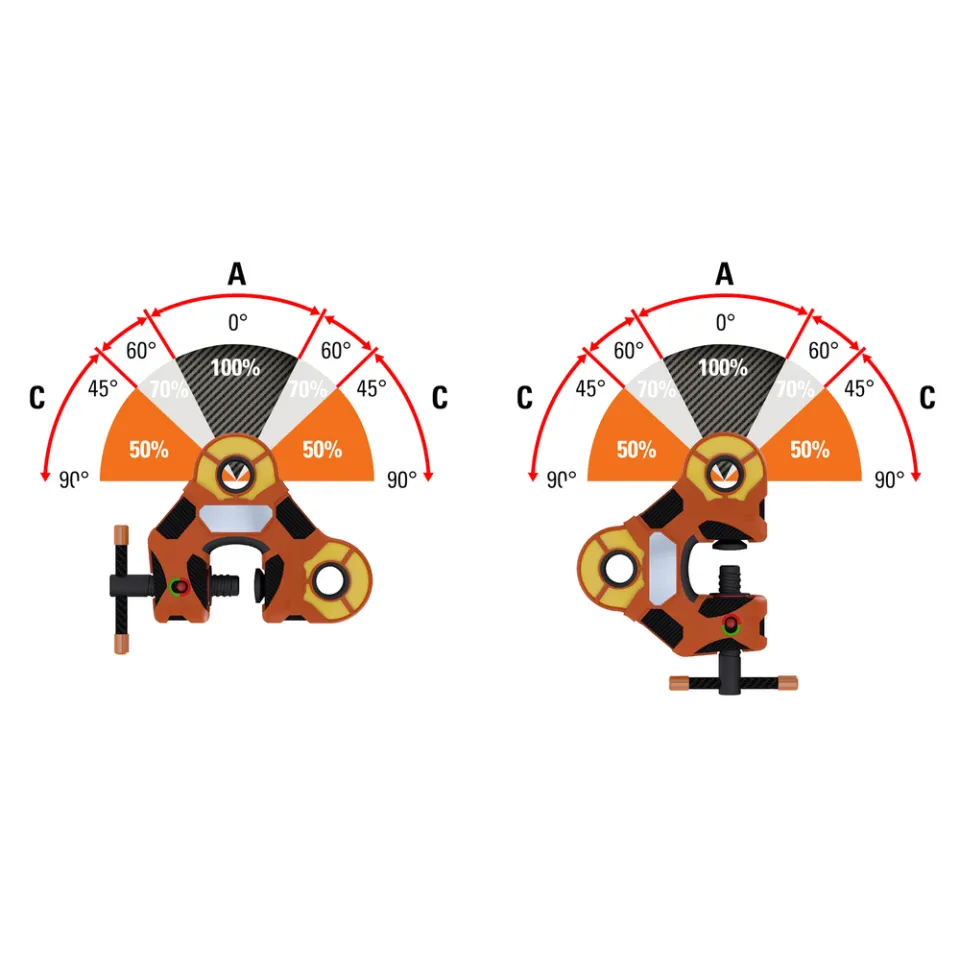

Horizontal and vertical use
Increased functionality
Equipment is tested for use in horizontal and vertical direction.
Safe lifting indicator
To ensure clamping force
When the safe lifting indicator is in the green area there is sufficient clamping force to perform a safe lift.
Lightweight
for simple and ergonomic handling
Increased comfort and handling of the equipment at the time of use.
Long service life
Increased cost-effectiveness
Products tested over longer duty cycles to offer a long life solution.
Modular system
Easily replace individual parts
If parts become damaged, you do not have to replace the whole equipment. This minimises purchasing costs and increases safety.
Gladiator - All direction lifting clamps

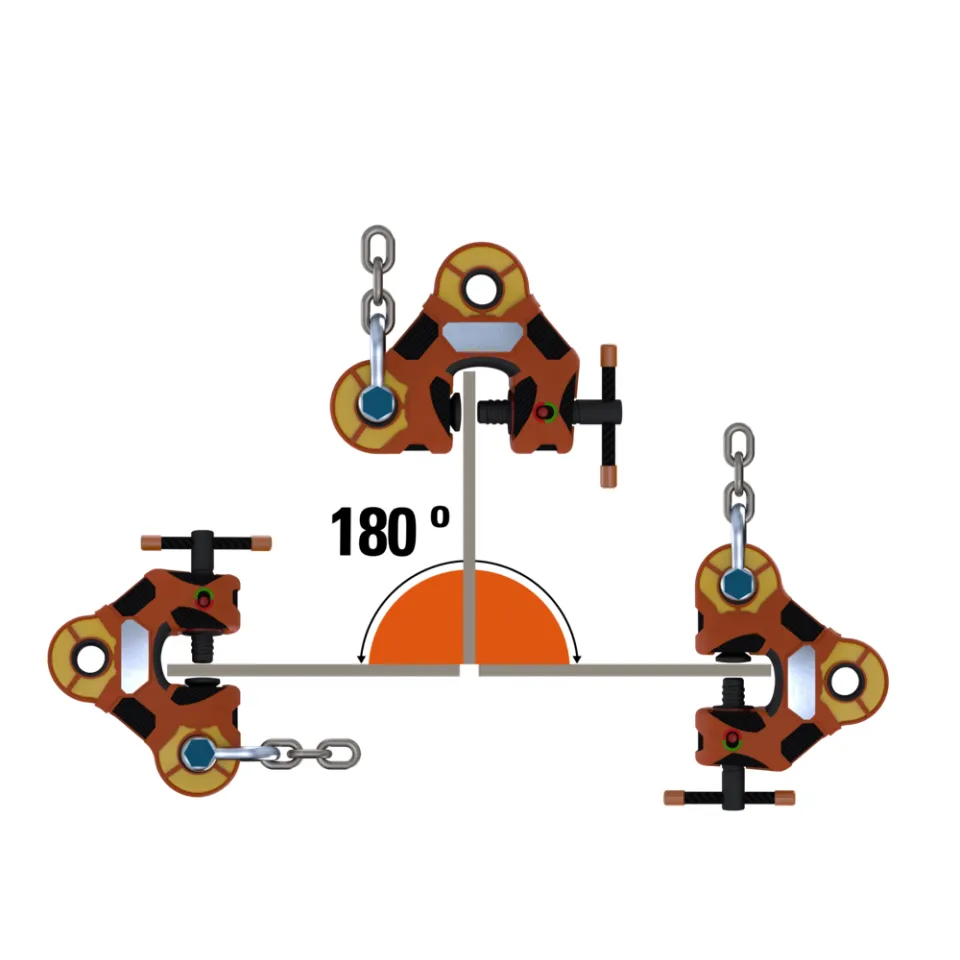

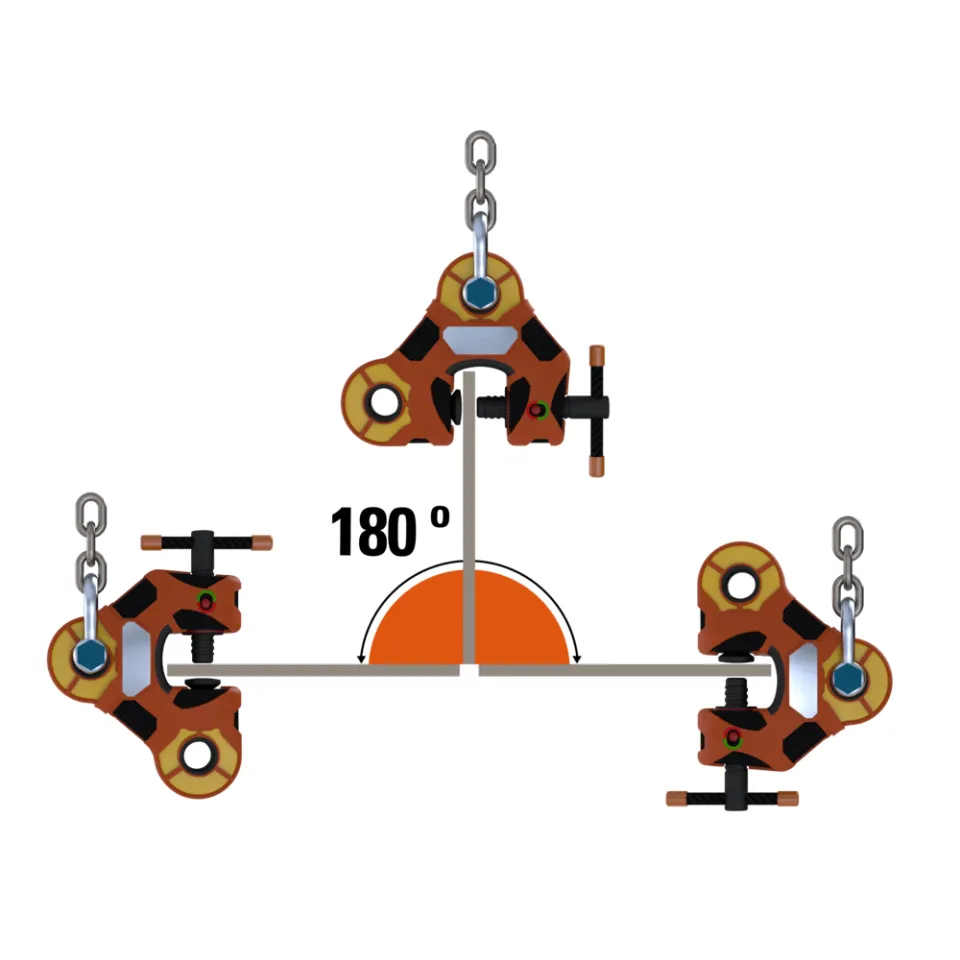

Lifting, turning (180°) Moving, horizontal and vertical transfer of sheet materials, plates, beams and fabrications. For materials:
Normal - Material maximum hardness of 37 HRC.
Stainless Steel - Material maximum hardness 37 HRC.
Hard - Material maximum hardness of 47 HRC (for example Hardox 400 and 500).
Non-marring - Scratch and impression-free. All kind of steel or stainless steel ( Please contact us for this option).
High Performance - Features
- Made from carbon fiber composite materials.
By using carbon fiber composites we can produce ultra lightweight lifting clamps that are also incredibly strong, are corrosion-resistant and feature superb fatigue characteristics. - Equiped with a horizontal and vertical hoisting eye.
Due to this construction, the clamps are suitable for lifting, turning (180°), moving and transfer of sheet materials, plates, beams and fabrications in horizontal and vertical position. - Fitted with a safe lifting indicator, which ensures complete safety.
When the clamp screw is tightened, the safe lifting indicator moves from the left (red) to the right (green) area. When the safe lifting indicator is in the green area there is sufficient clamping force to perform a safe lift. - Breaking Load Limit of 4x WLL.
- Tested in horizontal and vertical position; 2,000,000 load cycles.
- For use with materials with a surface hardness up to 364 HV and material tensile strength up to 1200N/mm2.
- No minimum WLL required
- Individually serialised .
Serial number and date of proof load test are marked on the body. - Instruction manual and test certificate included with each clamp.
- Service and repair manual available on request.
- All load-bearing parts are marked with a traceability code and the HPLE logo to guarantee the original, highest-quality HPLE parts.
- Individually proof tested to 2x the Working Load Limit with certification.
- RFID-equipped.
Gladiator AD Norms
- European Norm EN 13155
- USA Norm ASME B30.20, Design category B, Service class 4
- USA Norm ASME BTH – 1
- Australian Norm 4991
- European Machine Directive 2006/42/EC.
Product Technical Information
-
Norms
EN 13155 -
Temperature Range
-40°C/104°F - +80°C/176°F. -
Main Material
Carbon Fibre Composite -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1
Product downloads and manuals
Technical Drawings
Variants information

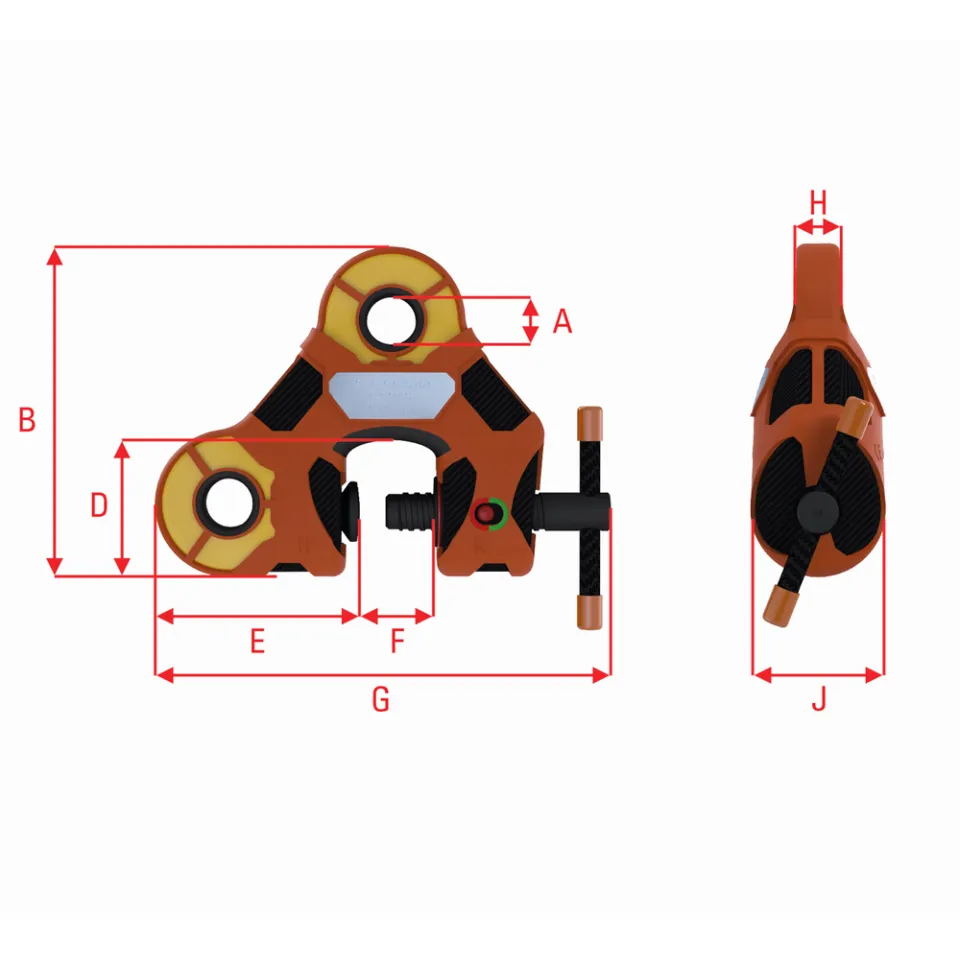

| Item Number | Item Name | WLL kg | Weight Net | WLL t | Dimension D | Dimension G | Dimension F | Dimension C | Dimension H | Dimension A | Dimension B | Dimension E | Colour | Jaw Opening Width | For Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2020491 | 3t AD Gladiator clamp | 3000 kg | 3.6 kg | 3 t | 126 | 32 | 263 | 96 | 80 | 30 | 203 | 62 | Yellow | 35 | Normal |
| 2020492 | 3t AD-H Gladiator clamp | 3000 kg | 3.6 kg | 3 t | 126 | 32 | 263 | 96 | 80 | 30 | 203 | 62 | Yellow | 35 | Hard |
| 2020493 | 3t AD-S Gladiator clamp | 3000 kg | 3.6 kg | 3 t | 126 | 32 | 263 | 96 | 80 | 30 | 203 | 62 | Yellow | 35 | Stainless Steel |
| 2020499 | 6t AD Gladiator clamp | 6000 kg | 9.7 kg | 6 t | 172 | 57 | 335 | 125 | 126 | 38 | 275 | 65 | Brown | 50 | Normal |
| 2020500 | 6t AD-H Gladiator clamp | 6000 kg | 9.7 kg | 6 t | 172 | 57 | 335 | 125 | 126 | 38 | 275 | 65 | Brown | 50 | Hard |
| 2020501 | 6t AD-S Gladiator clamp | 6000 kg | 9.7 kg | 6 t | 172 | 57 | 335 | 125 | 126 | 38 | 275 | 65 | Brown | 50 | Stainless Steel |
