Powerband Endless

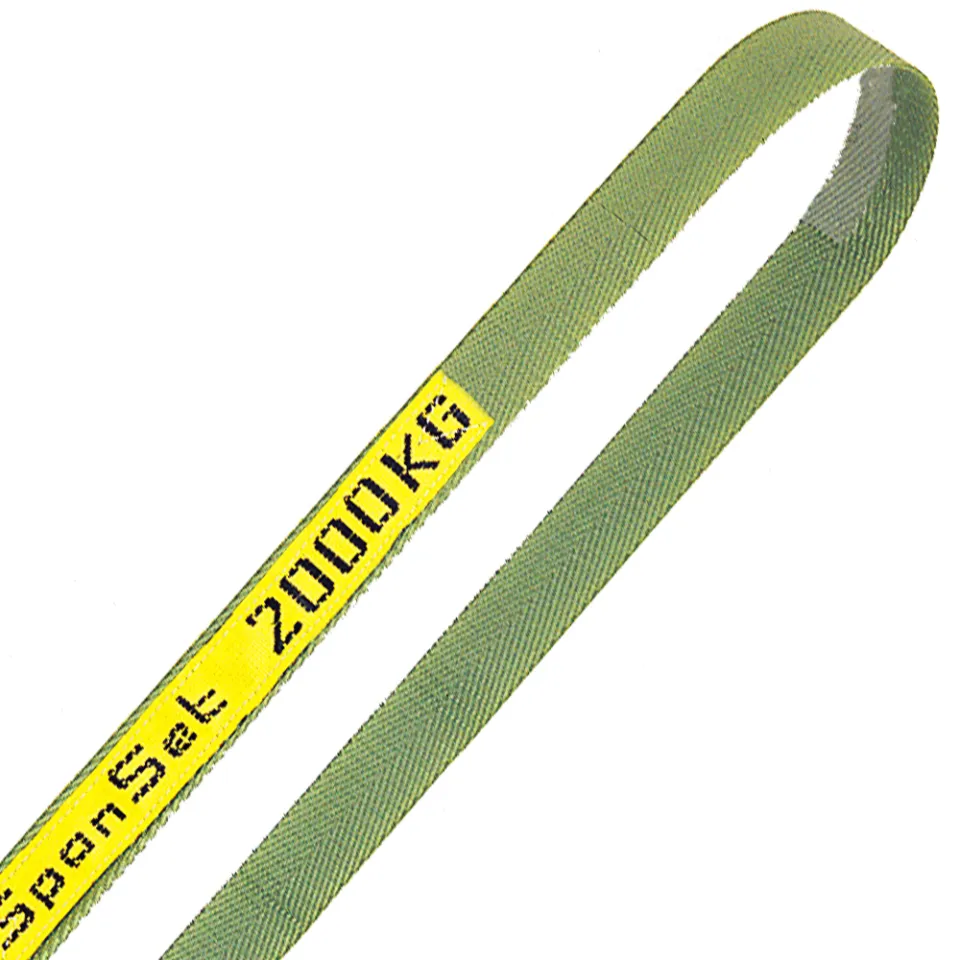

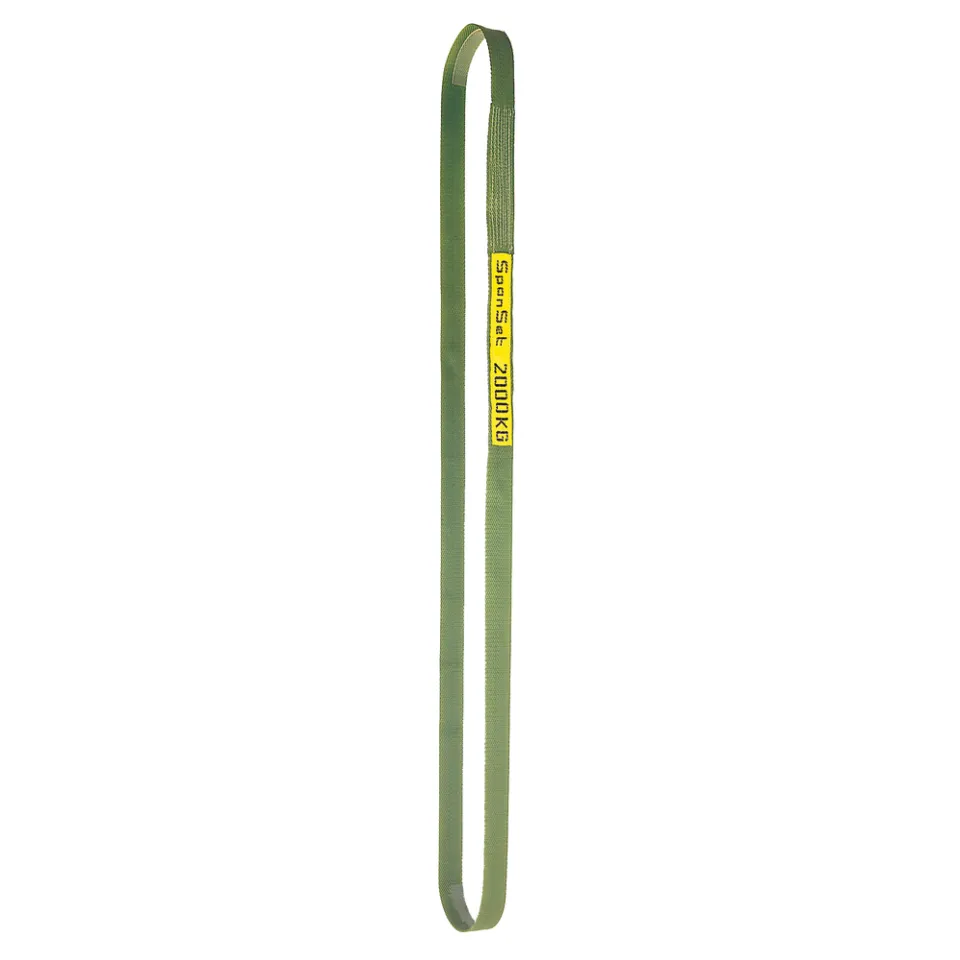

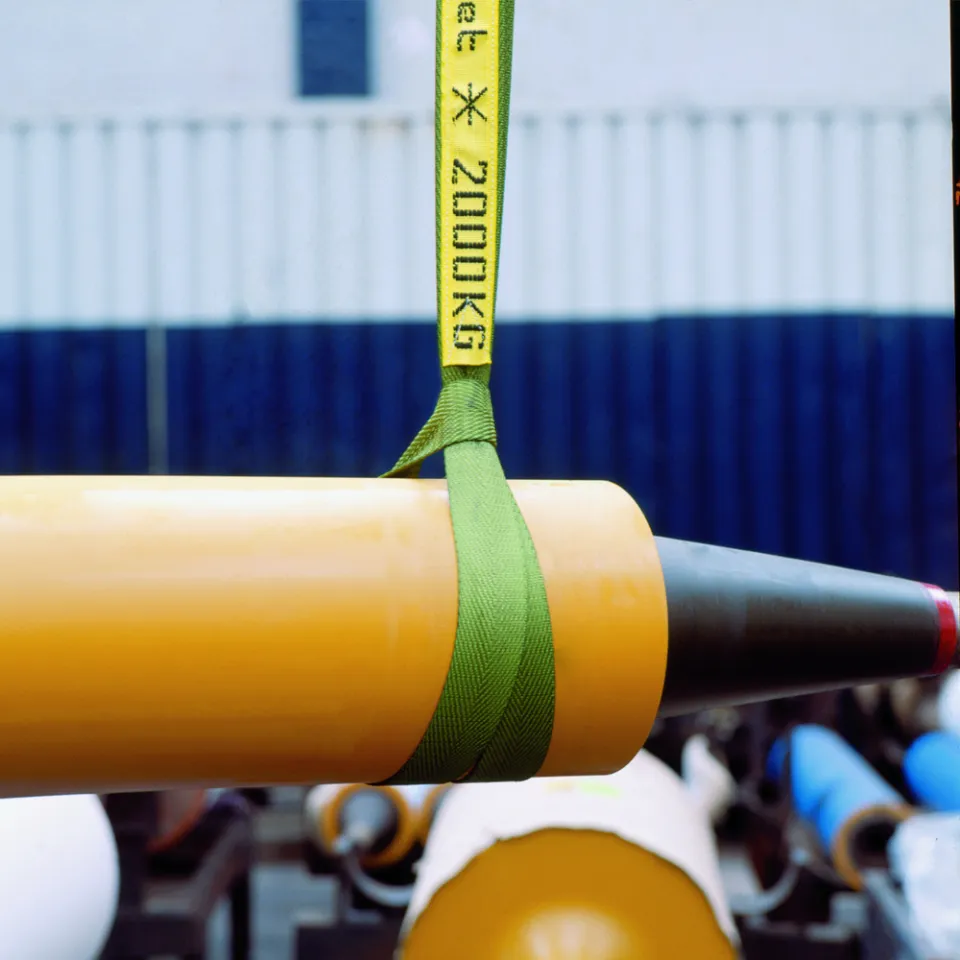

The webbing sling is made of a high-strength polyester fabric sewn end-to-end. It combines the advantages of a round sling and webbing: load-protecting contact surface, variable useful length and ideal for use in frequently changing applications. And the use with load or turning beams is also no problem. So that you can always keep an eye on the load-bearing capacity, a signal-coloured label with raised lettering is sewn onto the sling so that it cannot be lost. This holds even under the greatest loads and remains legible even in the heaviest dirt. The 1-layer power strap can carry up to 5 t in a straight pull.

Two layers for double lifting power

The PC webbing slings are made of high-strength polyester fabric in 2-ply endless stitching. Compared to the 1-ply webbing sling, this results in twice the lifting capacity with the same width. These slings can be manufactured in almost any length for a wide range of applications.

Product Technical Information

Temperature Range: -40°C bis +100°C
Packaging Unit (PU): pcs
Packaging Unit (PU) Content: 1

Product downloads and manuals

Flatsling Instruction Manual
(de de_CH en en_US es fr it nl pl)
Download

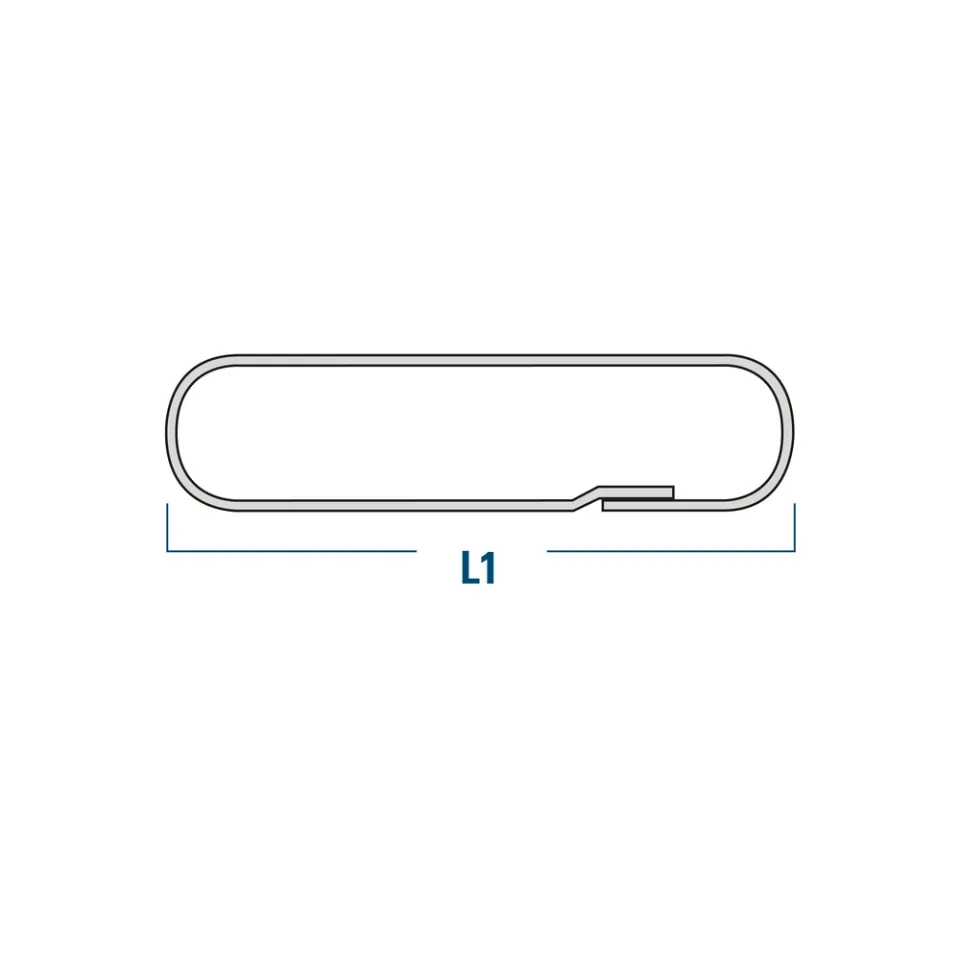

Technical Drawings

Variants information

Item Number	Item Name	WLL	Weight per Meter	Dimension L1 min	Dimension L1	Webbing Width B	Webbing Thickness	Belt Layers	Weight for 1m
2025051 SSDE ERP Code: D002429	Powerband endless 1ply 1000 1m	1000 kg	0.1 kg/m	0.5 m	1 m	30	2.8 mm	1	0.2 kg
2025052 SSDE ERP Code: D002430	Powerband endless 1ply 1000 1.5m	1000 kg	0.1 kg/m	0.5 m	1.5 m	30	2.8 mm	1	0.2 kg
2025053 SSDE ERP Code: D002432	Powerband endless 1ply 1000 2m	1000 kg	0.1 kg/m	0.5 m	2 m	30	2.8 mm	1	0.2 kg
2025054 SSDE ERP Code: D002434	Powerband endless 1ply 1000 3m	1000 kg	0.1 kg/m	0.5 m	3 m	30	2.8 mm	1	0.2 kg
2025055 SSDE ERP Code: D002435	Powerband endless 1ply 1000 4m	1000 kg	0.1 kg/m	0.5 m	4 m	30	2.8 mm	1	0.2 kg
2025056 SSDE ERP Code: D002737	Powerband endless 1ply 1000 5m	1000 kg	0.1 kg/m	0.5 m	5 m	30	2.8 mm	1	0.2 kg
2025057 SSDE ERP Code: D002439	Powerband endless 1ply 2000 1m	2000 kg	0.2 kg/m	1 m	1 m	60	2.8 mm	1	0.3 kg
2025058 SSDE ERP Code: D002442	Powerband endless 1ply 2000 1.5m	2000 kg	0.2 kg/m	1 m	1.5 m	60	2.8 mm	1	0.3 kg
2025059 SSDE ERP Code: D002443	Powerband endless 1ply 2000 2m	2000 kg	0.2 kg/m	1 m	2 m	60	2.8 mm	1	0.3 kg
2025060 SSDE ERP Code: D002445	Powerband endless 1ply 2000 3m	2000 kg	0.2 kg/m	1 m	3 m	60	2.8 mm	1	0.3 kg
2025061 SSDE ERP Code: D002447	Powerband endless 1ply 2000 4m	2000 kg	0.2 kg/m	1 m	4 m	60	2.8 mm	1	0.3 kg
2025062 SSDE ERP Code: D002448	Powerband endless 1ply 2000 5m	2000 kg	0.2 kg/m	1 m	5 m	60	2.8 mm	1	0.3 kg
2025063 SSDE ERP Code: D002450	Powerband endless 1ply 3000 1m	3000 kg	0.3 kg/m	1 m	1 m	90	0.4 mm	1	0.4 kg
2025064 SSDE ERP Code: D002452	Powerband endless 1ply 3000 1.5m	3000 kg	0.3 kg/m	1 m	1.5 m	90	0.4 mm	1	0.4 kg
2025065 SSDE ERP Code: D002454	Powerband endless 1ply 3000 2m	3000 kg	0.3 kg/m	1 m	2 m	90	0.4 mm	1	0.4 kg
2025066 SSDE ERP Code: D002455	Powerband endless 1ply 3000 3m	3000 kg	0.3 kg/m	1 m	3 m	90	0.4 mm	1	0.4 kg
2025067 SSDE ERP Code: D002457	Powerband endless 1ply 3000 4m	3000 kg	0.3 kg/m	1 m	4 m	90	0.4 mm	1	0.4 kg
2025068 SSDE ERP Code: D002459	Powerband endless 1ply 3000 5m	3000 kg	0.3 kg/m	1 m	5 m	90	0.4 mm	1	0.4 kg
2025069 SSDE ERP Code: D002463	Powerband endless 1ply 4000 1.5m	4000 kg		1.5 m	1.5 m	120	3.1 mm	1
2025070 SSDE ERP Code: D002464	Powerband endless 1ply 4000 2m	4000 kg		1.5 m	2 m	120	3.1 mm	1
2025071 SSDE ERP Code: D002465	Powerband endless 1ply 4000 3m	4000 kg		1.5 m	3 m	120	3.1 mm	1
2025072 SSDE ERP Code: D002466	Powerband endless 1ply 4000 4m	4000 kg		1.5 m	4 m	120	3.1 mm	1
2025073 SSDE ERP Code: D002467	Powerband endless 1ply 4000 5m	4000 kg		1.5 m	5 m	120	3.1 mm	1
2025074 SSDE ERP Code: D002468	Powerband endless 1ply 5000 1.5m	5000 kg	0.5 kg/m	1.5 m	1.5 m	150	3.2 mm	1	0.8 kg
2025075 SSDE ERP Code: D002470	Powerband endless 1ply 5000 2m	5000 kg	0.5 kg/m	1.5 m	2 m	150	3.2 mm	1	0.8 kg
2025076 SSDE ERP Code: D002471	Powerband endless 1ply 5000 3m	5000 kg	0.5 kg/m	1.5 m	3 m	150	3.2 mm	1	0.8 kg
2025077 SSDE ERP Code: D002472	Powerband endless 1ply 5000 4m	5000 kg	0.5 kg/m	1.5 m	4 m	150	3.2 mm	1	0.8 kg
2025078 SSDE ERP Code: D002474	Powerband endless 1ply 5000 5m	5000 kg	0.5 kg/m	1.5 m	5 m	150	3.2 mm	1	0.8 kg
2025079 SSDE ERP Code: D002476	Powerband endless 2ply 2000 1m	2000 kg	0.2 kg/m	1 m	1 m	30	5.6 mm	2	0.3 kg
2025080 SSDE ERP Code: D002479	Powerband endless 2ply 2000 1.5m	2000 kg	0.2 kg/m	1 m	1.5 m	30	5.6 mm	2	0.3 kg
2025081 SSDE ERP Code: D002481	Powerband endless 2ply 2000 2m	2000 kg	0.2 kg/m	1 m	2 m	30	5.6 mm	2	0.3 kg
2025082 SSDE ERP Code: D002483	Powerband endless 2ply 2000 3m	2000 kg	0.2 kg/m	1 m	3 m	30	5.6 mm	2	0.3 kg
2025083 SSDE ERP Code: D002485	Powerband endless 2ply 2000 4m	2000 kg	0.2 kg/m	1 m		30	5.6 mm	2	0.3 kg
2025084 SSDE ERP Code: D002486	Powerband endless 2ply 2000 5m	2000 kg	0.2 kg/m	1 m		30	5.6 mm	2	0.3 kg
2025085 SSDE ERP Code: D002489	Powerband endless 2ply 4000 1m	4000 kg	0.4 kg/m	0.5 m	1 m	60	5.6 mm	2	0.5 kg
2025086 SSDE ERP Code: D002491	Powerband endless 2ply 4000 1.5m	4000 kg	0.4 kg/m	0.5 m	1.5 m	60	5.6 mm	2	0.5 kg
2025087 SSDE ERP Code: D002492	Powerband endless 2ply 4000 2m	4000 kg	0.4 kg/m	0.5 m	2 m	60	5.6 mm	2	0.5 kg
2025088 SSDE ERP Code: D002494	Powerband endless 2ply 4000 3m	4000 kg	0.4 kg/m	0.5 m	3 m	60	5.6 mm	2	0.5 kg
2025089 SSDE ERP Code: D002495	Powerband endless 2ply 4000 4m	4000 kg	0.4 kg/m	0.5 m	4 m	60	5.6 mm	2	0.5 kg
2025090 SSDE ERP Code: D002497	Powerband endless 2ply 4000 5m	4000 kg	0.4 kg/m	0.5 m	5 m	60	5.6 mm	2	0.5 kg
2025091 SSDE ERP Code: D002499	Powerband endless 2ply 6000 1m	6000 kg	0.6 kg/m	0.7 m	1 m	90	6 mm	2	0.7 kg
2025092 SSDE ERP Code: D002501	Powerband endless 2ply 6000 1.5m	6000 kg	0.6 kg/m	0.7 m	1.5 m	90	6 mm	2	0.7 kg
2025093 SSDE ERP Code: D002503	Powerband endless 2ply 6000 2m	6000 kg	0.6 kg/m	0.7 m	2 m	90	6 mm	2	0.7 kg
2025094 SSDE ERP Code: D002505	Powerband endless 2ply 6000 3m	6000 kg	0.6 kg/m	0.7 m	3 m	90	6 mm	2	0.7 kg
2025095 SSDE ERP Code: D002506	Powerband endless 2ply 6000 4m	6000 kg	0.6 kg/m	0.7 m	4 m	90	6 mm	2	0.7 kg
2025096 SSDE ERP Code: D002508	Powerband endless 2ply 6000 5m	6000 kg	0.6 kg/m	0.7 m	5 m	90	6 mm	2	0.7 kg
2025131 SSDE ERP Code: D002510	Powerband endless 2ply 8000 1.5m	8000 kg	0.8 kg/m	1.5 m	1.5 m	120	6.2 mm	2	1 kg
2025132 SSDE ERP Code: D002511	Powerband endless 2ply 8000 2m	8000 kg	0.8 kg/m	1.5 m	2 m	120	6.2 mm	2	1 kg
2025133 SSDE ERP Code: D002513	Powerband endless 2ply 8000 3m	8000 kg	0.8 kg/m	1.5 m	3 m	120	6.2 mm	2	1 kg
2025134 SSDE ERP Code: D002515	Powerband endless 2ply 8000 4m	8000 kg	0.8 kg/m	1.5 m	4 m	120	6.2 mm	2	1 kg
2025135 SSDE ERP Code: D002517	Powerband endless 2ply 8000 5m	8000 kg	0.8 kg/m	1.5 m	5 m	120	6.2 mm	2	1 kg
2025136 SSDE ERP Code: D002519	Powerband endless 2ply 10000 1.5m	10000 kg	1 kg/m	1.5 m	1.5 m	150	6.4 mm	2	1.3 kg
2025137 SSDE ERP Code: D002521	Powerband endless 2ply 10000 2m	10000 kg	1 kg/m	1.5 m	2 m	150	6.4 mm	2	1.3 kg
2025138 SSDE ERP Code: D002523	Powerband endless 2ply 10000 3m	10000 kg	1 kg/m	1.5 m	3 m	150	6.4 mm	2	1.3 kg
2025139 SSDE ERP Code: D002525	Powerband endless 2ply 10000 4m	10000 kg	1 kg/m	1.5 m	4 m	150	6.4 mm	2	1.3 kg
2025140 SSDE ERP Code: D002527	Powerband endless 2ply 10000 5m	10000 kg	1 kg/m	1.5 m	5 m	150	6.4 mm	2	1.3 kg
