SupraPlus-X
EUR 40,60
VAT not included
SupraPlus-X
Robust and compact
Professional
EUR 40,60
VAT not included
No stock.
Available within 10-15 Days
Available within 10-15 Days
Item Number: 2025566
SSDE ERP Code: D082985
SupraPlus-X 1000 0.5m VE2
Roundsling WLL 1000kg, violet. Packaging Unit 2
- Compact design by reducing tube width
- High-performance fibre doubled in rib reinforcement
- Textile wire reinforcement in the hose cover

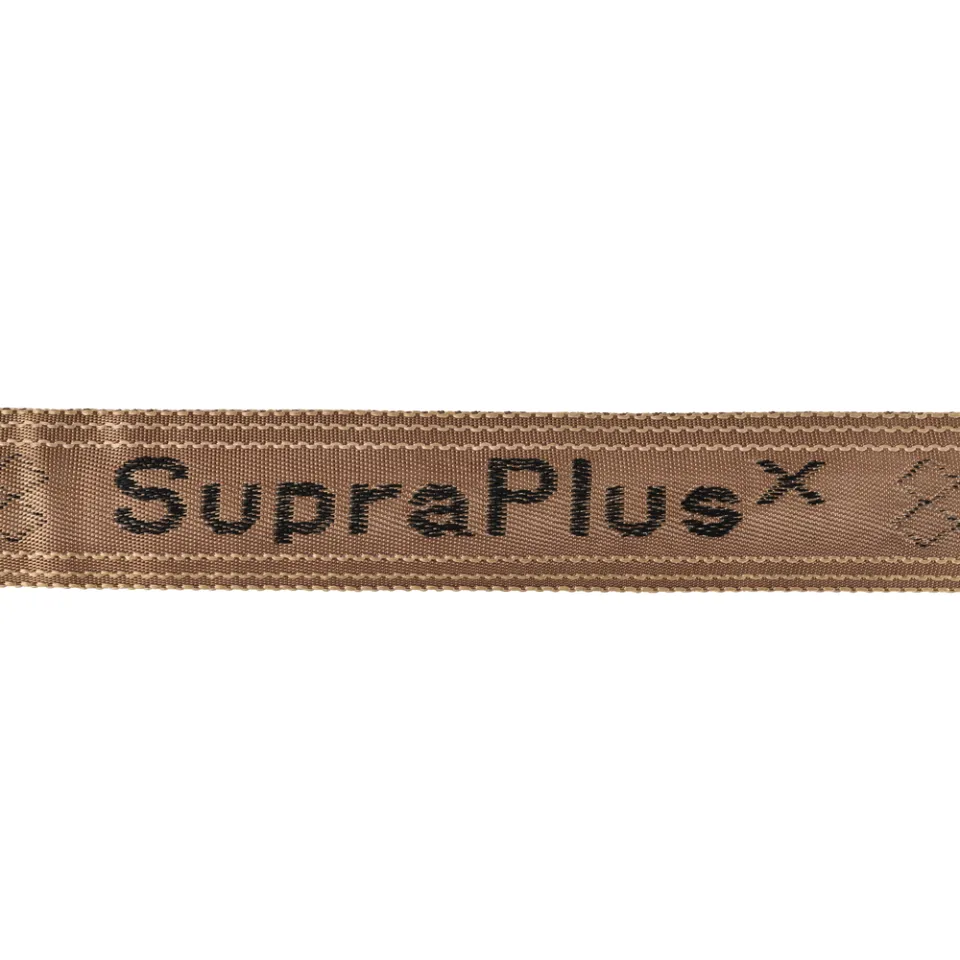

- Raised weave of the load capacity indication

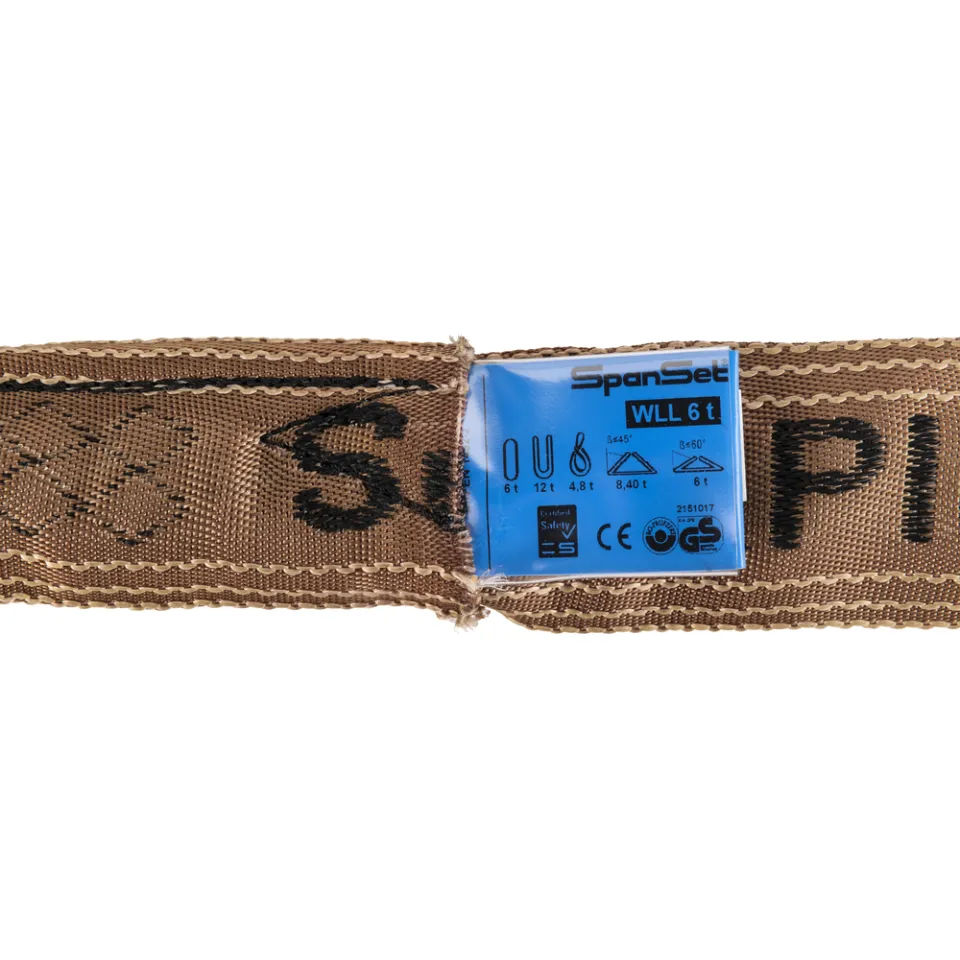

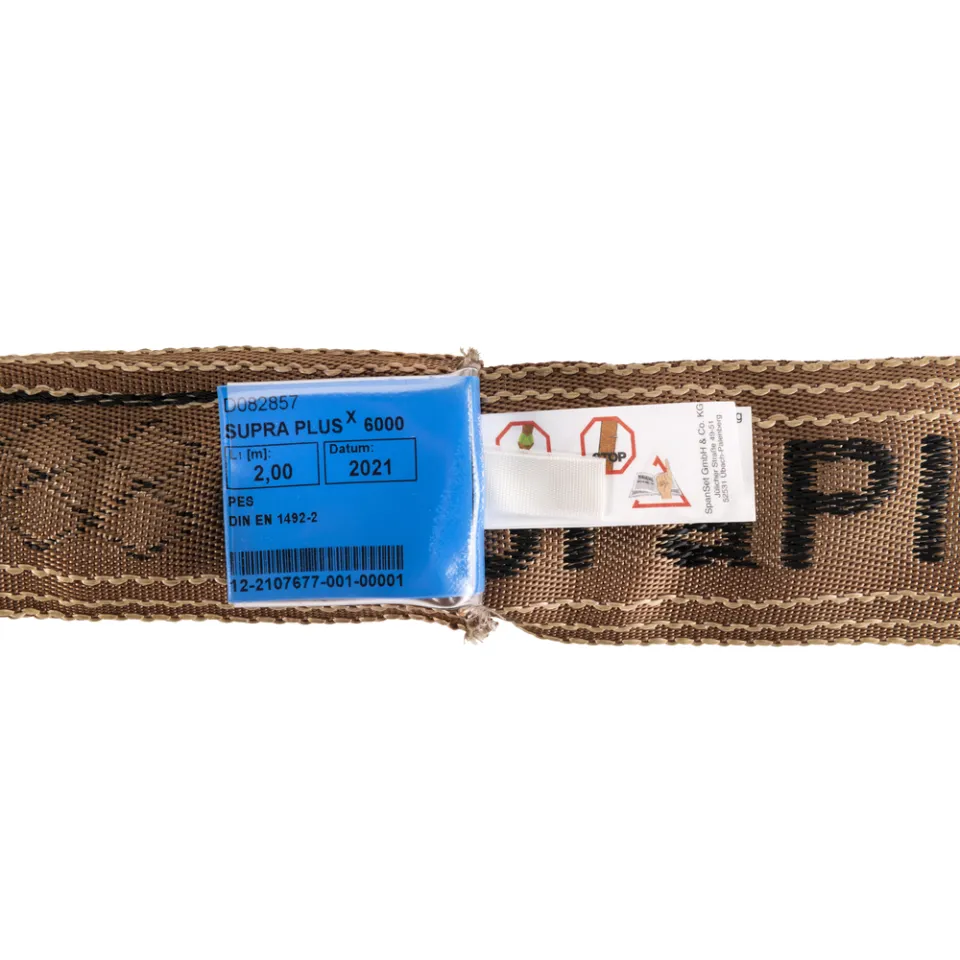

- Unique label - tear-resistant and protected
Select Model
EUR 40,60
VAT not included
No stock.
Available within 10-15 Days
Available within 10-15 Days
50 % increased tear resistance
Less wear, even under the toughest conditions.
The double proportion of high-performance fibre in the rib reinforcement offers improved abrasion and tear resistance.
Reduced hose width
Easy to handle and also fits into smaller hooks
Without any loss of load capacity. Overlapping of the slings is also effectively avoided due to the smaller width.
Textile fibre reinforcement
Longer service life
The textile filament woven into the outer sleeve offers reliable protection against tearing, reduces creasing and prevents further rupturing.
Safe, durable, light and easy to handle, the premium SupraPlus-X
Designed to be even more robust and compact than its predecessor,
+ 9 % reduced hose width
+ 50 % increased tear resistance
+ Textile wire reinforcement in the hose cover
And the SupraPlusX is not only GS-approved, but also meets the strict SpanSet factory standard. DNV was the godfather in the development of the factory standard and ensures its further development and internationalisation in annual audits for SpanSet's worldwide operations.
Product Technical Information
-
Safety Factor:
7:1
-
Temperature Range:
- 40 bis + 100°C
-
Dimension L1 max:
30 m
-
Label Protection:
Yes
-
Main Material:
Polyester
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
2
Technical Drawings
Variants information
| Item Number | Item Name | WLL | Contact Width Under Load | Weight per Meter | Weight Net | WLL | Dimension L1 min | Dimension L1 | Colour | Contact Thickness Under Load |
|---|---|---|---|---|---|---|---|---|---|---|
| 2025566
SSDE ERP Code: D082985 |
SupraPlus-X 1000 0.5m VE2 | 1000 kg | 39 mm | 0.3 kg/m | 0.3 kg | 1 t | 0.5 m | 0.5 m | Purple | 4 mm |
| 2025567
SSDE ERP Code: D082986 |
SupraPlus-X 1000 0.75m VE2 | 1000 kg | 39 mm | 0.3 kg/m | 0.44 kg | 1 t | 0.5 m | 0.75 m | Purple | 4 mm |
| 2025568
SSDE ERP Code: D082987 |
SupraPlus-X 1000 1m VE2 | 1000 kg | 39 mm | 0.3 kg/m | 0.6 kg | 1 t | 0.5 m | 1 m | Purple | 4 mm |
| 2025569
SSDE ERP Code: D082988 |
SupraPlus-X 1000 1.5m VE2 | 1000 kg | 39 mm | 0.3 kg/m | 0.9 kg | 1 t | 0.5 m | 1.5 m | Purple | 4 mm |
| 2025570
SSDE ERP Code: D082855 |
SupraPlus-X 1000 2m VE2 | 1000 kg | 39 mm | 0.3 kg/m | 1.2 kg | 1 t | 0.5 m | 2 m | Purple | 4 mm |
| 2025571
SSDE ERP Code: D082990 |
SupraPlus-X 1000 3m VE2 | 1000 kg | 39 mm | 0.3 kg/m | 1.8 kg | 1 t | 0.5 m | 3 m | Purple | 4 mm |
| 2025572
SSDE ERP Code: D082991 |
SupraPlus-X 1000 4m VE2 | 1000 kg | 39 mm | 0.3 kg/m | 2.4 kg | 1 t | 0.5 m | 4 m | Purple | 4 mm |
| 2025573
SSDE ERP Code: D082992 |
SupraPlus-X 1000 5m VE2 | 1000 kg | 39 mm | 0.3 kg/m | 3 kg | 1 t | 0.5 m | 5 m | Purple | 4 mm |
| 2025574
SSDE ERP Code: D082989 |
SupraPlus-X 1000 2.5m VE2 | 1000 kg | 39 mm | 0.3 kg/m | 1.5 kg | 1 t | 0.5 m | 2.5 m | Purple | 4 mm |
| 2025575
SSDE ERP Code: D082980 |
SupraPlus-X 500 0.5m VE2 | 500 kg | 38 mm | 0.2 kg/m | 0.2 kg | 0.5 t | 0.5 m | 0.5 m | Olive | 4 mm |
| 2025577
SSDE ERP Code: D082981 |
SupraPlus-X 500 0.75m VE2 | 500 kg | 38 mm | 0.2 kg/m | 0.3 kg | 0.5 t | 0.5 m | 0.75 m | Olive | 4 mm |
| 2025578
SSDE ERP Code: D086465 |
SupraPlus-X 500 1m VE2 | 500 kg | 38 mm | 0.2 kg/m | 0.4 kg | 0.5 t | 0.5 m | 1 m | Olive | 4 mm |
| 2025579
SSDE ERP Code: D082984 |
SupraPlus-X 500 1.5m VE2 | 500 kg | 38 mm | 0.2 kg/m | 0.6 kg | 0.5 t | 0.5 m | 1.5 m | Olive | 4 mm |
| 2025580
SSDE ERP Code: D082854 |
SupraPlus-X 500 2m VE2 | 500 kg | 38 mm | 0.2 kg/m | 0.8 kg | 0.5 t | 0.5 m | 2 m | Olive | 4 mm |
| 2025581
SSDE ERP Code: D082993 |
SupraPlus-X 2000 0.5m VE2 | 2000 kg | 40 mm | 0.5 kg/m | 0.5 kg | 2 t | 0.5 m | 0.5 m | Green | 8 mm |
| 2025582
SSDE ERP Code: D082994 |
SupraPlus-X 2000 0.75m VE2 | 2000 kg | 40 mm | 0.5 kg/m | 0.75 kg | 2 t | 0.5 m | 0.75 m | Green | 8 mm |
| 2025583
SSDE ERP Code: D082995 |
SupraPlus-X 2000 1m VE2 | 2000 kg | 40 mm | 0.5 kg/m | 1 kg | 2 t | 0.5 m | 1 m | Green | 8 mm |
| 2025584
SSDE ERP Code: D082996 |
SupraPlus-X 2000 1.5m VE2 | 2000 kg | 40 mm | 0.5 kg/m | 1.5 kg | 2 t | 0.5 m | 1.5 m | Green | 8 mm |
| 2025585
SSDE ERP Code: D082856 |
SupraPlus-X 2000 2m VE2 | 2000 kg | 40 mm | 0.5 kg/m | 2 kg | 2 t | 0.5 m | 2 m | Green | 8 mm |
| 2025586
SSDE ERP Code: D082997 |
SupraPlus-X 2000 2.5m VE2 | 2000 kg | 40 mm | 0.5 kg/m | 2.5 kg | 2 t | 0.5 m | 2.5 m | Green | 8 mm |
| 2025587
SSDE ERP Code: D082832 |
SupraPlus-X 2000 3m VE2 | 2000 kg | 40 mm | 0.5 kg/m | 3 kg | 2 t | 0.5 m | 3 m | Green | 8 mm |
| 2025588
SSDE ERP Code: D082998 |
SupraPlus-X 2000 4m VE2 | 2000 kg | 40 mm | 0.5 kg/m | 4 kg | 2 t | 0.5 m | 4 m | Green | 8 mm |
| 2025589
SSDE ERP Code: D082999 |
SupraPlus-X 2000 5m VE2 | 2000 kg | 40 mm | 0.5 kg/m | 5 kg | 2 t | 0.5 m | 5 m | Green | 8 mm |
| 2025590
SSDE ERP Code: D083000 |
SupraPlus-X 2000 6m VE2 | 2000 kg | 40 mm | 0.5 kg/m | 6 kg | 2 t | 0.5 m | 6 m | Green | 8 mm |
| 2025591
SSDE ERP Code: D083001 |
SupraPlus-X 3000 1m VE2 | 3000 kg | 48 mm | 0.6 kg/m | 1.2 kg | 3 t | 0.5 m | 1 m | Yellow | 8 mm |
| 2025592
SSDE ERP Code: D083002 |
SupraPlus-X 3000 1.5m VE2 | 3000 kg | 48 mm | 0.6 kg/m | 1.8 kg | 3 t | 0.5 m | 1.5 m | Yellow | 8 mm |
| 2025593
SSDE ERP Code: D082833 |
SupraPlus-X 3000 2m VE2 | 3000 kg | 48 mm | 0.6 kg/m | 2.4 kg | 3 t | 0.5 m | 2 m | Yellow | 8 mm |
| 2025594
SSDE ERP Code: D083003 |
SupraPlus-X 3000 2.5m VE2 | 3000 kg | 48 mm | 0.6 kg/m | 3 kg | 3 t | 0.5 m | 2.5 m | Yellow | 8 mm |
| 2025595
SSDE ERP Code: D083004 |
SupraPlus-X 3000 3m VE2 | 3000 kg | 48 mm | 0.6 kg/m | 3.6 kg | 3 t | 0.5 m | 3 m | Yellow | 8 mm |
| 2025596
SSDE ERP Code: D082817 |
SupraPlus-X 3000 4m VE2 | 3000 kg | 48 mm | 0.6 kg/m | 4.6 kg | 3 t | 0.5 m | 4 m | Yellow | 8 mm |
| 2025597
SSDE ERP Code: D083005 |
SupraPlus-X 3000 5m VE2 | 3000 kg | 48 mm | 0.6 kg/m | 6 kg | 3 t | 0.5 m | 5 m | Yellow | 8 mm |
| 2025598
SSDE ERP Code: D083006 |
SupraPlus-X 3000 6m VE2 | 3000 kg | 48 mm | 0.6 kg/m | 7.2 kg | 3 t | 0.5 m | 6 m | Yellow | 8 mm |
| 2025599
SSDE ERP Code: D082831 |
SupraPlus-X 4000 2m VE2 | 4000 kg | 54 mm | 0.8 kg/m | 3.2 kg | 4 t | 0.75 m | 2 m | Grey | 9 mm |
| 2025601
SSDE ERP Code: D083007 |
SupraPlus-X 4000 2.5m VE2 | 4000 kg | 54 mm | 0.8 kg/m | 4 kg | 4 t | 0.75 m | 2.5 m | Grey | 9 mm |
| 2025603
SSDE ERP Code: D083008 |
SupraPlus-X 4000 3m VE2 | 4000 kg | 54 mm | 0.8 kg/m | 4.6 kg | 4 t | 0.75 m | 3 m | Grey | 9 mm |
| 2025604
SSDE ERP Code: D083009 |
SupraPlus-X 4000 4m VE2 | 4000 kg | 54 mm | 0.8 kg/m | 6.4 kg | 4 t | 0.75 m | 4 m | Grey | 9 mm |
| 2025605
SSDE ERP Code: D083010 |
SupraPlus-X 4000 5m VE2 | 4000 kg | 54 mm | 0.8 kg/m | 8 kg | 4 t | 0.75 m | 5 m | Grey | 9 mm |
| 2025606
SSDE ERP Code: D083011 |
SupraPlus-X 4000 6m VE2 | 4000 kg | 54 mm | 0.8 kg/m | 9.6 kg | 4 t | 0.75 m | 6 m | Grey | 9 mm |
| 2025607
SSDE ERP Code: D082834 |
SupraPlus-X 5000 2m VE2 | 5000 kg | 59 mm | 1 kg/m | 4 kg | 5 t | 0.75 m | 2 m | Red | 11 mm |
| 2025608
SSDE ERP Code: D082835 |
SupraPlus-X 5000 3m VE2 | 5000 kg | 59 mm | 1 kg/m | 6 kg | 5 t | 0.75 m | 3 m | Red | 11 mm |
| 2025609
SSDE ERP Code: D082836 |
SupraPlus-X 5000 4m VE2 | 5000 kg | 59 mm | 1 kg/m | 8 kg | 5 t | 0.75 m | 4 m | Red | 11 mm |
| 2025610
SSDE ERP Code: D083012 |
SupraPlus-X 5000 5m VE2 | 5000 kg | 59 mm | 1 kg/m | 10 kg | 5 t | 0.75 m | 5 m | Red | 11 mm |
| 2025611
SSDE ERP Code: D083013 |
SupraPlus-X 5000 6m VE2 | 5000 kg | 59 mm | 1 kg/m | 12 kg | 5 t | 0.75 m | 6 m | Red | 11 mm |
