Alpha Anchor – The Innovative Fall Protection System for Ceiling Formworks
The Alpha Anchor fall protection system provides the solution for this requirement.
The mobile anchorage devices of the Alpha Anchor series enable safe working at fall edges, can be flexibly adapted to the specific situation, and are usable from a height of 2 meters. Depending on the model, they are approved for one or two users. All Alpha Anchor systems are easy to handle, which results in low training requirements for new users. The systems can be moved using a manual pallet truck or by crane with appropriate lifting equipment. The modular design also simplifies transportation and storage. Additionally, during the annual mandatory inspection, Alpha Anchor impresses with low costs since all components – except for the connection elements – can be inspected visually.
Your Benefits at a Glance
- 4 models to choose from to meet your specific requirements
- Suitable for 1 or 2 users (depending on the model)
- Usable from a fall height of 2 meters
- Modular design for easier transport and storage
- Freestanding, no connection to the ground required
Which Model Supports You Best in Your Work?
Choose from the following models:
- Alpha Anchor-B for single users with an additional rescue function
- Alpha Anchor-L for 1 or 2 users with a horizontal lifeline
- Alpha Anchor-D for maximum flexibility and overhead protection options
- Alpha Anchor-W for single users as a permanently installed anchorage device
The Models at a Glance

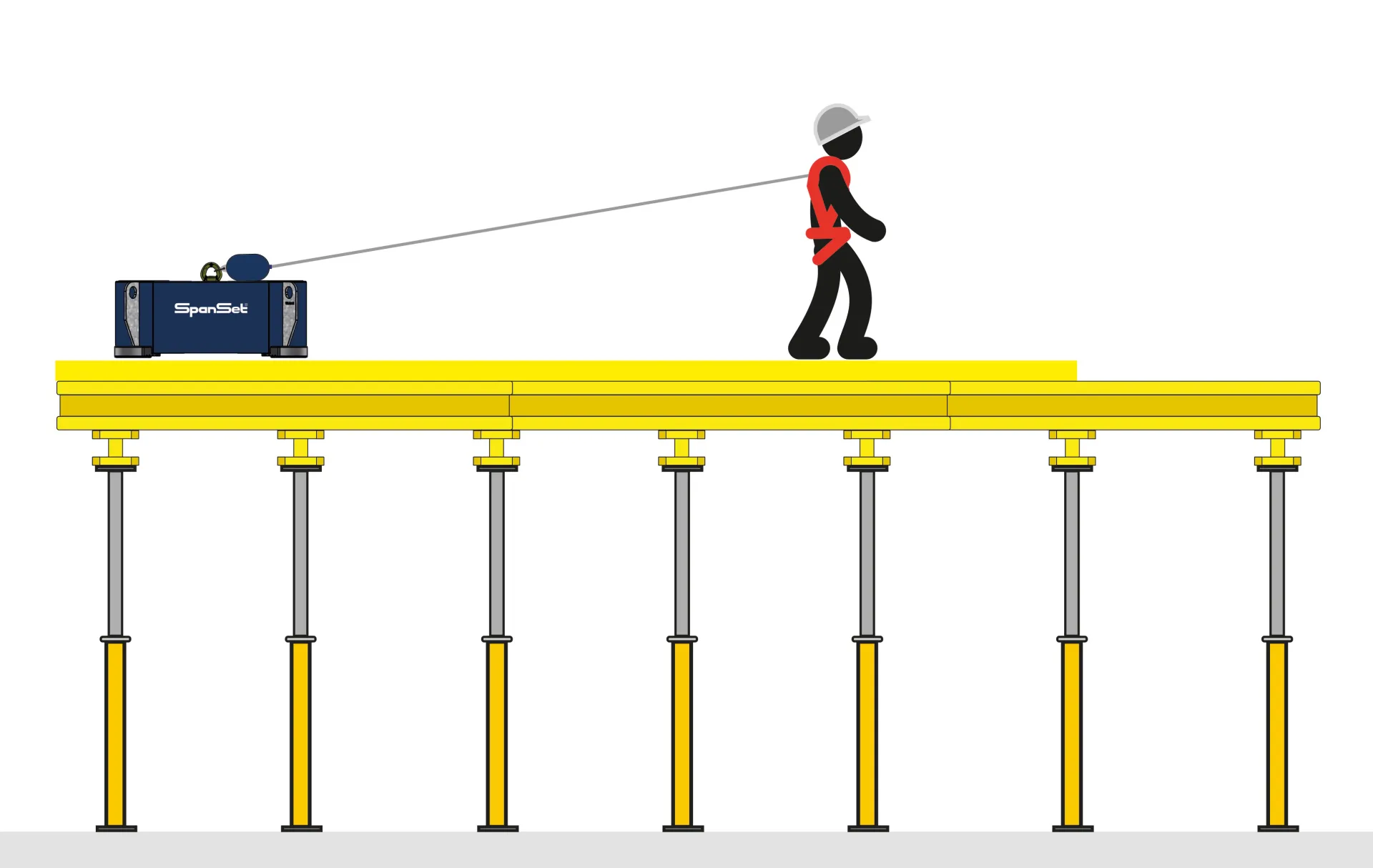

Alpha Anchor-B
- The mobile anchorage device Alpha Anchor-B can be used as a freestanding anchorage point in combination with a certified connecting device according to EN 360 or EN 358.
- It can also be used as a rescue system.
For one user
Alpha Anchor-L
- In the Alpha Anchor-L system, a horizontal lifeline serves as the anchorage point for one or two users.
- The system is held in place by two base anchorage points and their secure attachment at an appropriate distance.
- The base anchorage points are positioned at the desired distance (maximum distance 16 meters) and secured with steel nails. A horizontal lifeline is then tensioned between them.
- After attaching a special fall protection device, the user(s) can move freely and safely along the entire length of the lifeline.

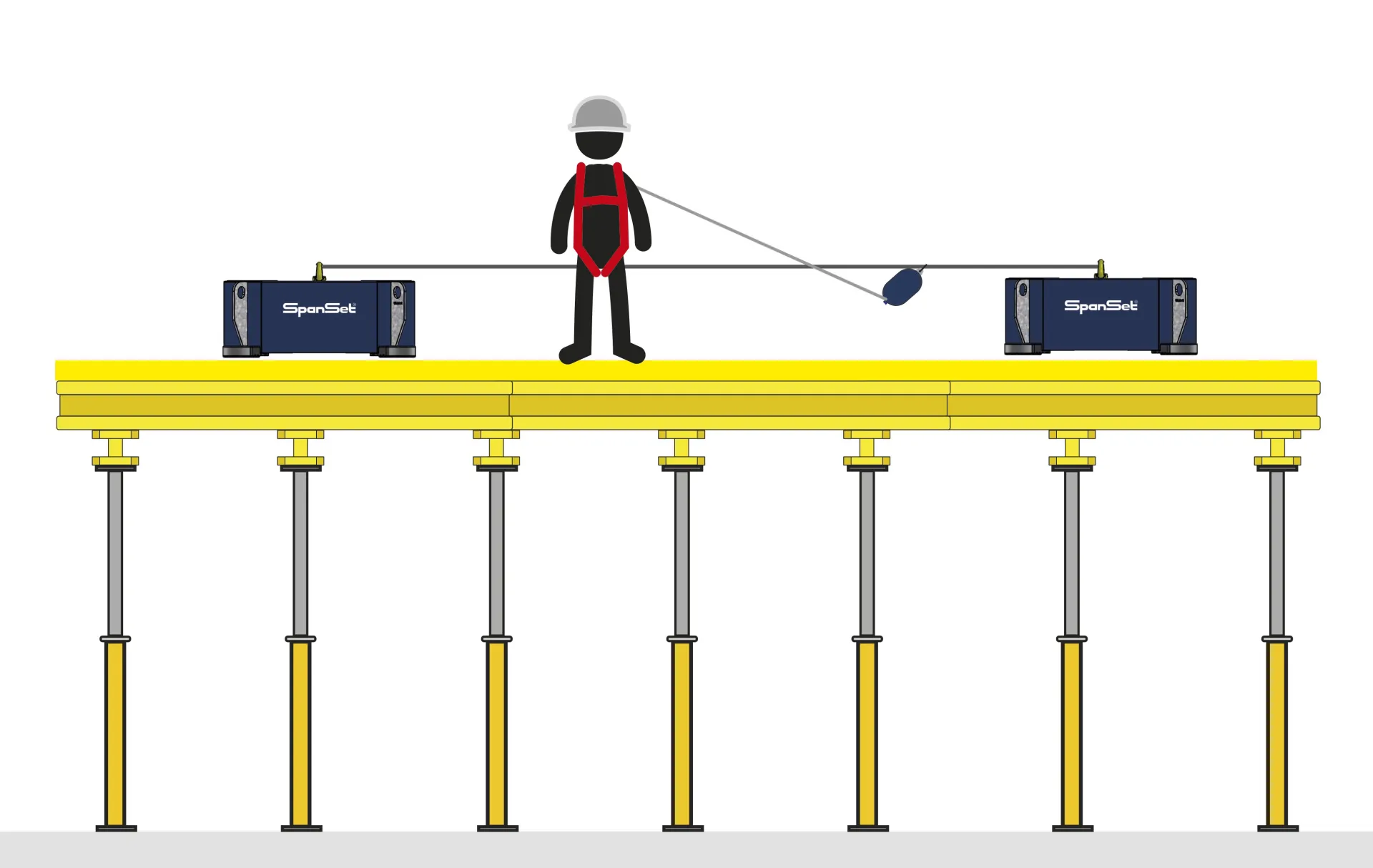

For one user

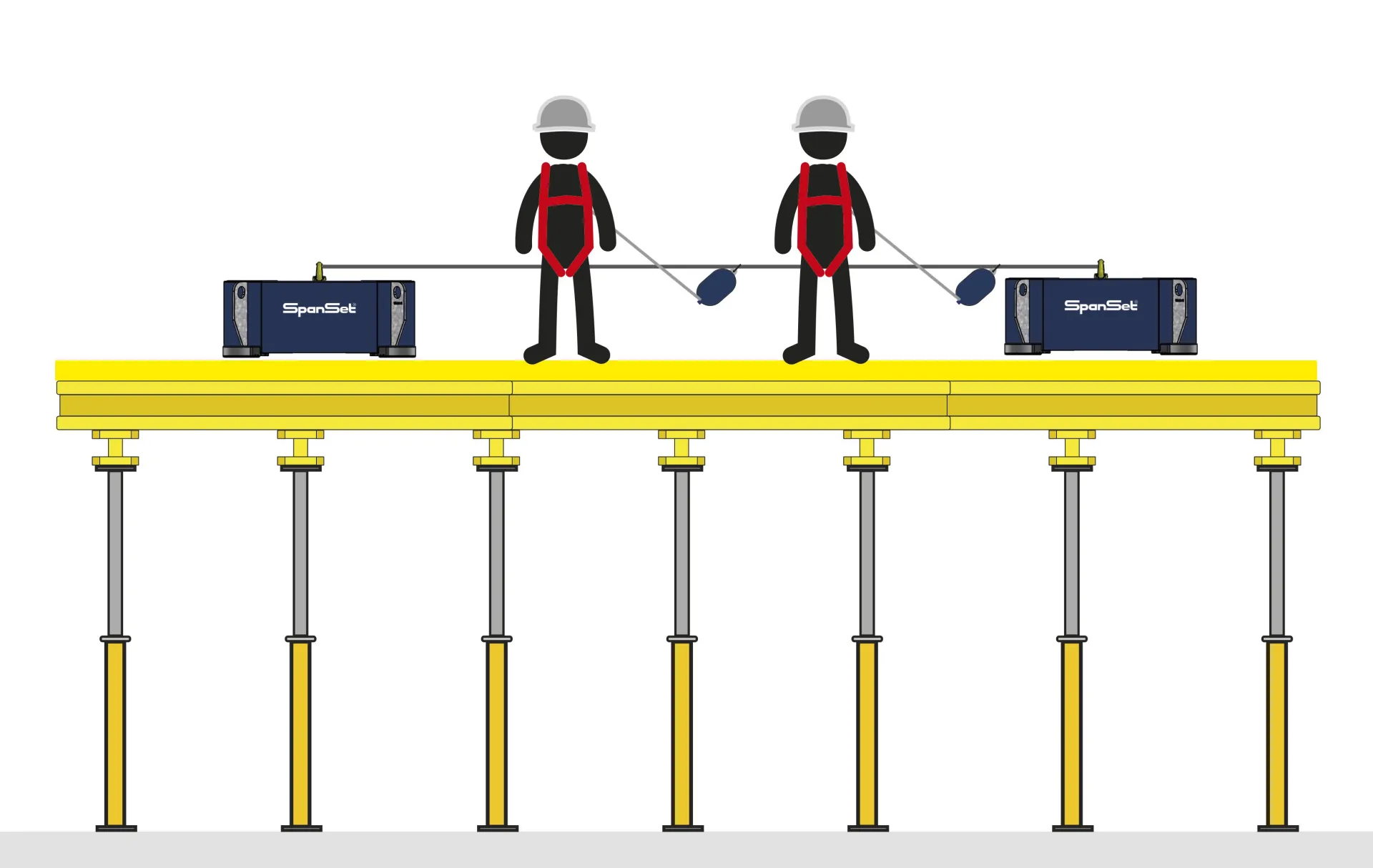

For two users
Alpha Anchor-D
- Together with edge-tested fall protection devices and safety harnesses, the Alpha Anchor-D is an easy-to-use mobile anchorage device.
- The system requires very little crane time and can be easily transported and stored.
- The lightweight davit arm (AA-DAV) can be moved by just one person and allows users to secure themselves overhead.
- It can be used freestanding, requires no connection to the ground, and can also be used as a rescue system.

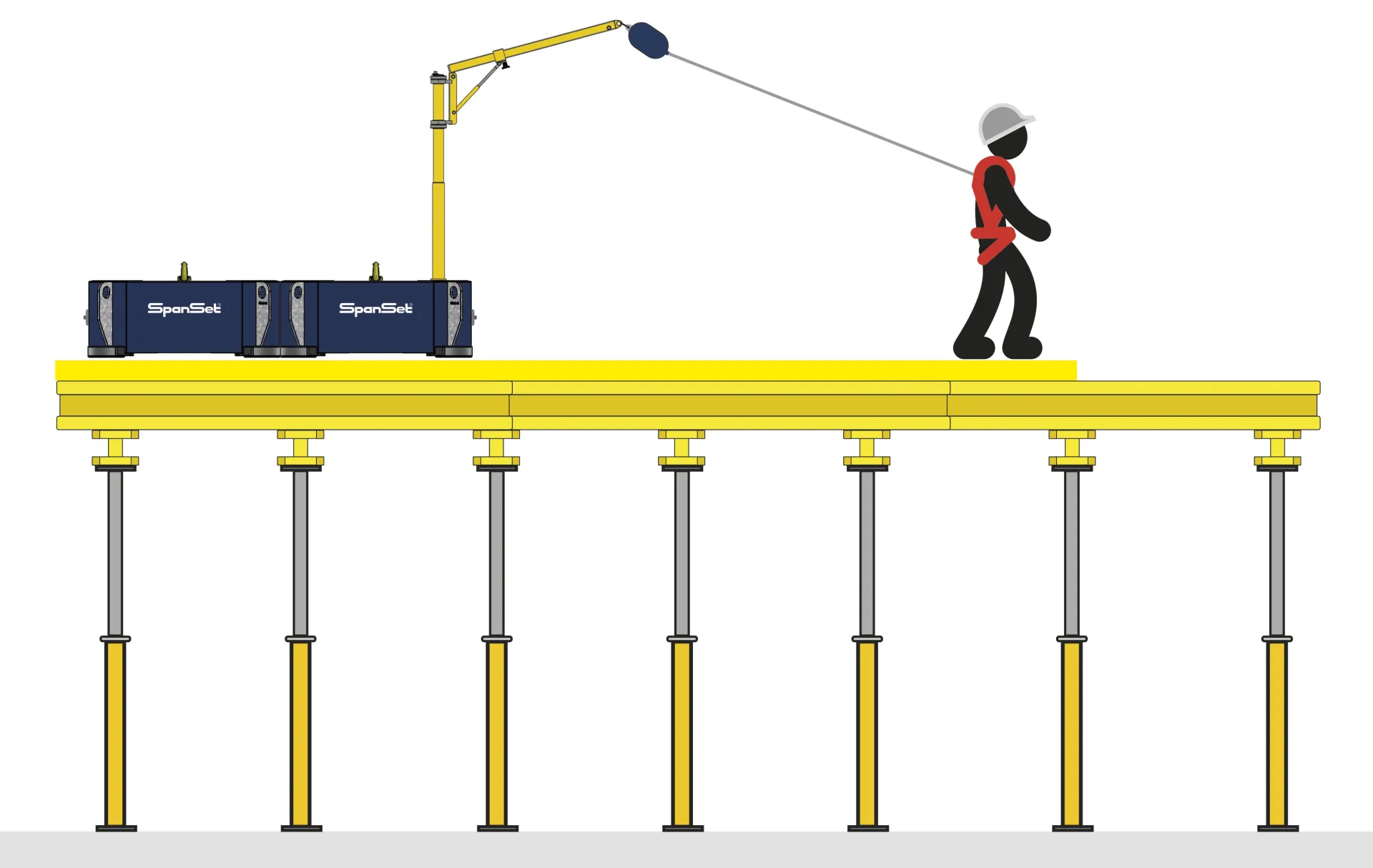

For one user

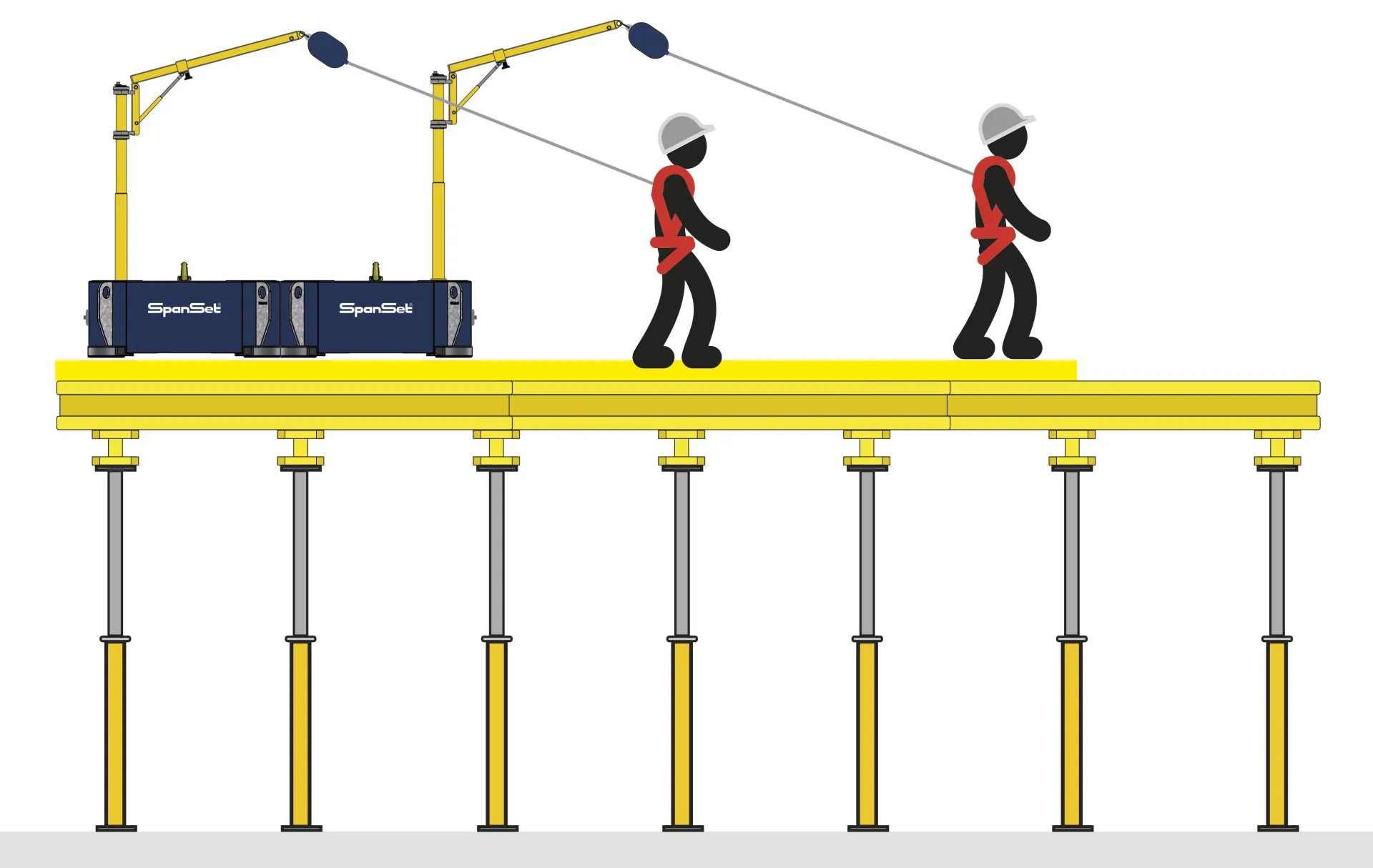

For two users
NEW Alpha Anchor-W
- Innovative wall mount for ceiling formworks. The permanently installed anchorage device Alpha Anchor-W offers construction companies a durable and efficient solution.
- Tested according to EN 795:2012, Type A, and EN ISO 12100:2010.
- Very robust and easy to install – installation is simple using bolt anchors.
- The jib is rotatable 360 degrees, with a weight of 19 kg.
-
It can also be used as a rescue system.
For one user
Permissible Substrates
For the installation of Alpha Anchor-W, a clean and stable substrate with sufficient strength is required. Alpha Anchor-W, in combination with Alpha Anchor-D, has been tested on the following substrates:
- Reinforced concrete Class A
- Masonry
- Facades
- Sheet piling
- Wall formwork
What Enthusiastic Customers Who Have Already Used Alpha Anchor Say
Since its launch in spring 2023, dozens of leading construction companies have trusted the proven SpanSet quality and appreciate the quick installation and great flexibility.
"At first, we were still skeptical about how the Alpha Anchor would perform in practice, so we only purchased one system. After the first uses, the foremen on the site quickly said that more systems were needed and that they would prefer to replace other systems with the Alpha Anchor."
"It's easy to move with the crane, and the size of the individual parts is easy to handle in logistics."
"The maintenance costs are very low, and the maintenance is simple."
"The system is self-explanatory and easy to assemble."
"The system can be used individually, according to needs and conditions, and there's no need to purchase a second or additional system."
"Individual fall protection devices can be used, and you are not dependent on a specific manufacturer."
"We are very pleased that certain individual parts can be reordered and assembled ourselves."
"The big advantage of the system with two arms is that two people can be secured at the same time."
"The acquisition cost per person for the 2-person system is the most cost-effective compared to similar systems on the market."
"A major advantage is that Alpha Anchor can also be used for rescue, and this can be included in the safety concept. This way, costs for an additional rescue system can be saved."
