Ratchet Lashing 400daN-800daN 25mm
Ratchet Lashing 400daN-800daN 25mm
Versatile lashing for multiple loads on vehicles or trailers
Item Number: 2003026
RL1802 LC800/25 1pc 4m
- Ideal for Panel Vans (e.g. Mercedes Sprinter/Ford Transit)
- Lashing Capacity 800 daN on One-piece or 400 daN on Two-Piece
- Standard Tension Force [Stf] 140 daN
- Label that is resistant to being pulled out, protected by webbing insert
- Tensioning device is yellow chrome-plated or coated with epoxy resin
Select Model
Folded label
Protect against damage with information sewn inside
Label is made shorter by the fold to protect the information from abrasion and is thus exposed less to wind and shearing forces.
Product Technical Information
-
Surface Coating
Epoxy -
Standard Tension Force
140 daN -
Norms
EN 12195-2: 2001 -
Dimension L1
4 m -
Webbing Width B
25 mm -
Label Protection
Yes -
Colour
Orange -
Webbing Material
Polyester -
Ratchet Type
Push-up -
Tension Force Indicator (TFI)
No -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1 -
Private Label
Yes -
Anti Belt Slip (ABS)
No -
Handle Type
Short Narrow
Product downloads and manuals
Datasheet
Download
Download
Technical Drawings
Variants information
| Item Number | Item Name | Dimension L2 | Dimension L3 | Lashing End Fitting Component | Lashing Type | Lashing Capacity |
|---|---|---|---|---|---|---|
| 2003026 | RL1802 LC800/25 1pc 4m |

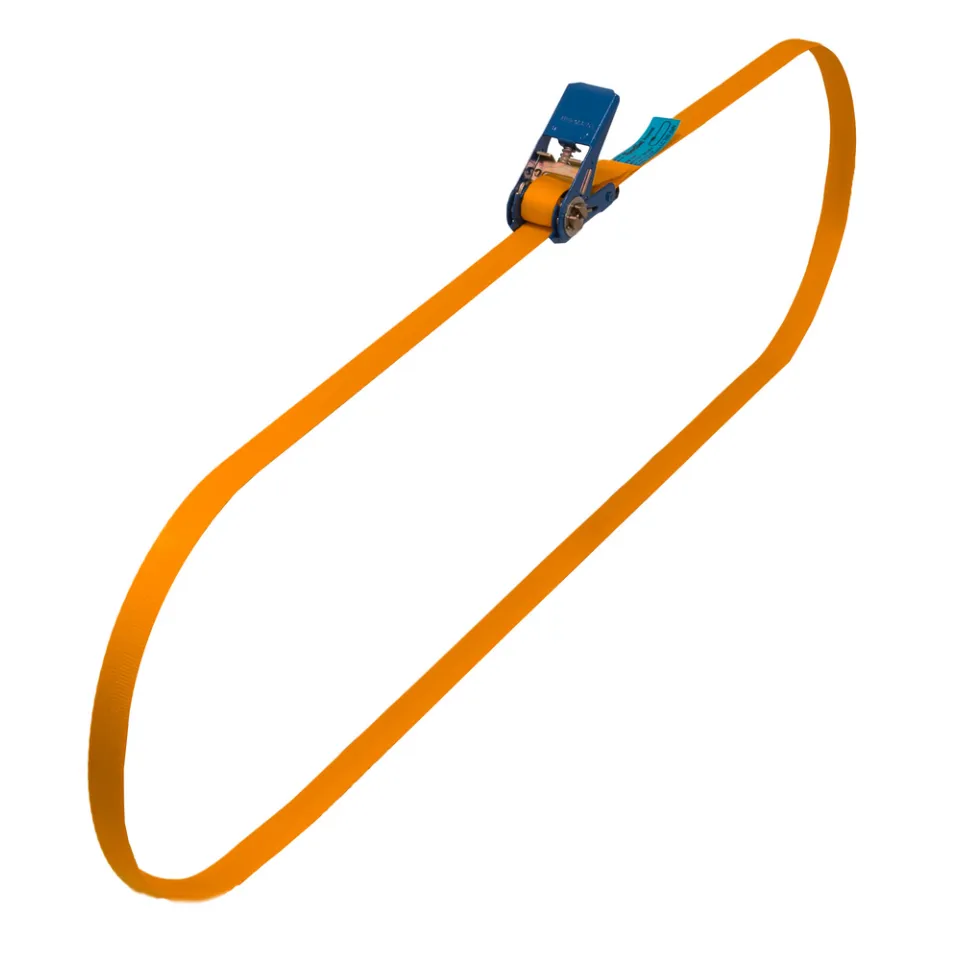

One-Piece lashing |
One-piece | 800 daN | ||
| 2003534 | RL1802 LC400/25/STF140 2pc 4m SH | 0.3 m | 3.7 m |

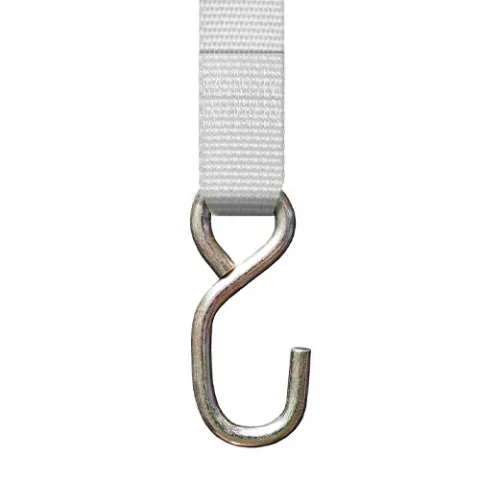

S-Hook |
Two-piece | 400 daN |
| 2003535 | RL1802 LC400/25/STF140 2pc 4m DJH | 0.3 m | 3.7 m |
Double J-Hook |
Two-piece | 400 daN |
