SpannFix RL1807 2500daN 50mm

SpannFix RL1807 2500daN 50mm

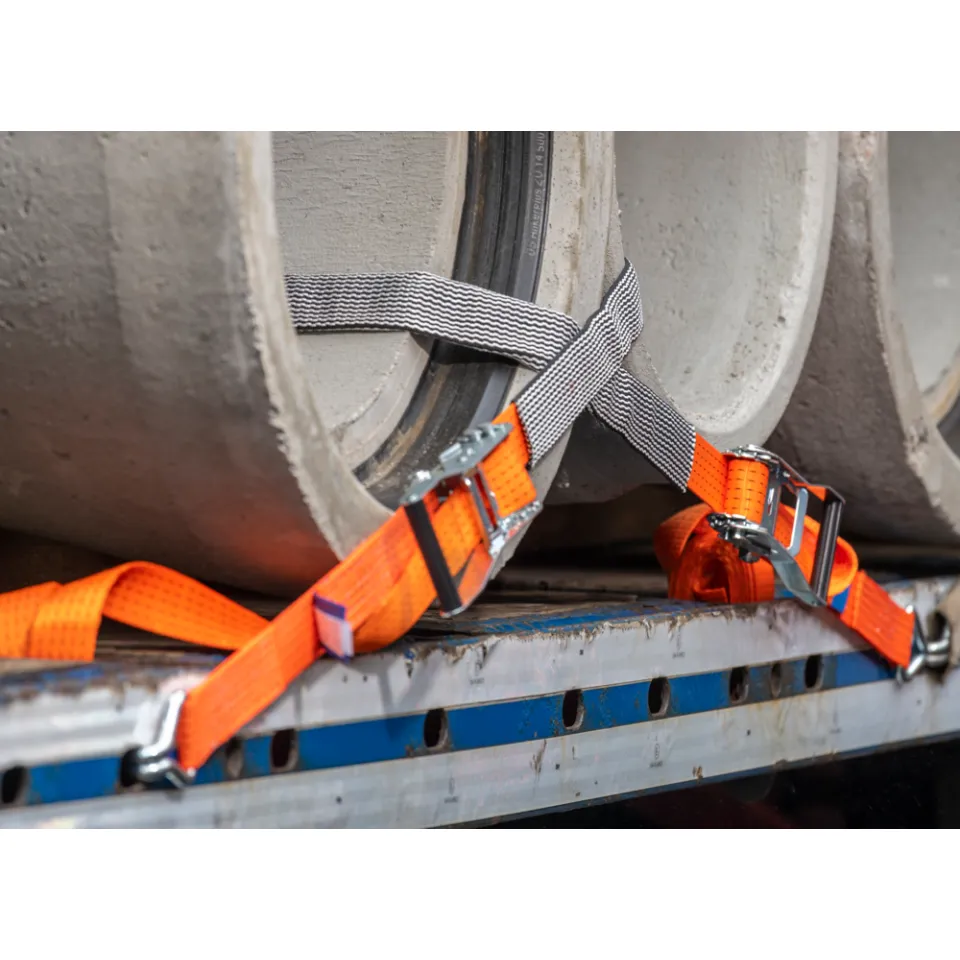

Robust webbing ratchet strap with tear-resistant label protected by webbing overlap

Item Number: 2024237
RL1807ECO 5000/50 1pc 8m
  • Robust webbing with identification stripes.
  • Tear-resistant label protected by webbing overlap.

Select Model

Product Technical Information

  • Surface Coating
    Chromated
  • Standard Tension Force
    350 daN
  • Norms
    EN 12195-2: 2001
  • Webbing Width B
    50 mm
  • Label Protection
    Yes
  • Colour
    Orange
  • Webbing Material
    Polyester
  • Ratchet Type
    Push-up
  • Tension Force Indicator (TFI)
    No
  • Packaging Unit (PU)
    pcs
  • Packaging Unit (PU) Content
    1
  • Private Label
    Yes
  • Anti Belt Slip (ABS)
    No
  • Handle Type
    Long Wide

Technical Drawings

Item Number Item Name Weight Net Dimension L1 Lashing End Fitting Component Lashing Type Lashing Capacity
2024237 RL1807ECO 5000/50 1pc 8m 2.1 kg 8 m One-Piece lashing
 One-piece 5000 daN
2024239 RL1807ECO 2500/50 2pc 8m DJHS 2.8 kg 8 m Double J-Hook Safety Latch
 Two-piece 2500 daN
2024240 RL1807ECO 2500/50 2pc 10m DJHS 3.1 kg 10 m Double J-Hook Safety Latch
 Two-piece 2500 daN
2024241 RL1807ECO 2500/50 2pc 8m DJH 2.5 kg 8 m Double J-Hook
Two-piece 2500 daN
2024242 RL1807ECO 2500/50 2pc 10m DJH 2.8 kg 10 m Double J-Hook
Two-piece 2500 daN
2030329 RL1807ECO 5000/50 1pc 9m 2.35 kg 9 m One-Piece lashing
 One-piece 5000 daN
