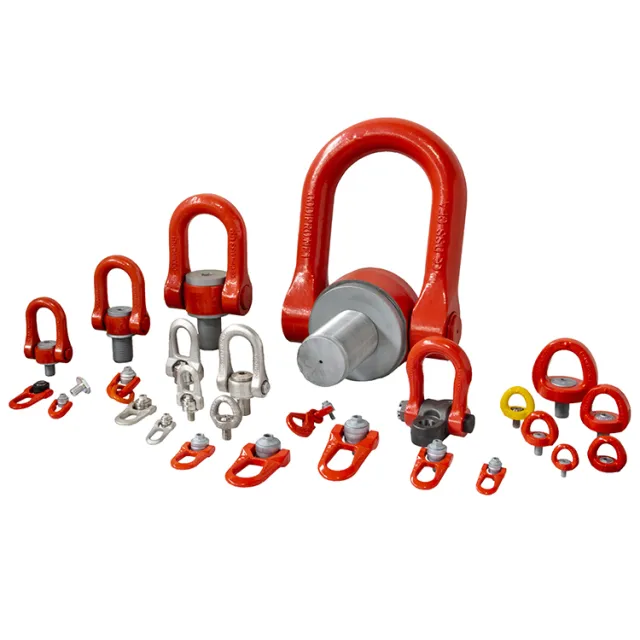

The DSR lifting ring is a double swivel ring. It is composed of a GRADUP lifting ring designed for rotations under load. Its double swivel ensures perfect alignment with the sling. The lifting ring can swivel 180° but has a rotating range of 360°. It can be used for any lifting configuration (straigt lift, with angle, tilting, rotating).

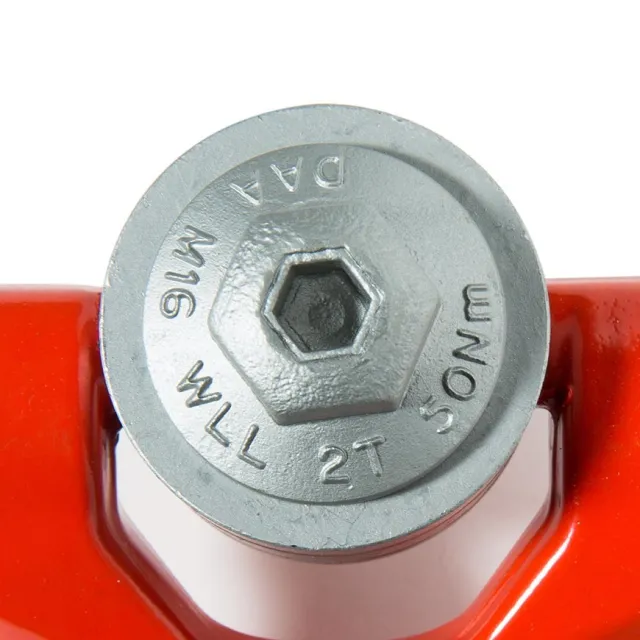

The DSR lifting ring is equipped with a protective crossbar and is approved for all lifting configurations from 0° to 90°. The DSR is designed for use in a temperature range from -20°c to +200°c and carries various markings, including CE, WLL and tightening torque. It is manufactured in compliance with the REACH regulation and is also available as female and stainless-steel, quick lift and welding version.
Product Technical Information
-
Safety Factor:
4:1
-
Norms:
ISO 12100
EN 1677-1
-
Temperature Range:
-40°C bis +100°C
-
Colour:
Red
-
Main Material:
Steel
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
Variants information
Item Number | Item Name | Weight Net | Dimension D | Dimension G | Dimension F | Dimension C | Dimension H | Dimension A | Dimension B | Dimension E | WLL kg Angle 0° | WLL t Angle 0° | WLL kg Angle 90° | WLL t Angle 90° |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2027664 | DSR-M6 | 0.3 kg | 38 | 53 | 14 | 30 | 9.5 | 33 | 30 | 27 | 200 kg | 0.2 t | 200 kg | 0.2 t |
2027665 | DSR-M8 | 0.3 kg | 38 | 53 | 14 | 30 | 9.5 | 33 | 30 | 27 | 500 kg | 0.5 t | 500 kg | 0.5 t |
2027666 | DSR-M10 | 0.3 kg | 38 | 53 | 14 | 30 | 9.5 | 33 | 30 | 27 | 900 kg | 0.9 t | 900 kg | 0.9 t |
2027667 | DSR-M12 | 0.3 kg | 38 | 53 | 14 | 30 | 9.5 | 33 | 30 | 27 | 1500 kg | 1.5 t | 1500 kg | 1.5 t |
2027668 | DSR-M16 | 0.9 kg | 53 | 76 | 17 | 45 | 13 | 45 | 40 | 38 | 2300 kg | 2.3 t | 2300 kg | 2.3 t |
2027669 | DSR-M20 | 0.9 kg | 53 | 76 | 17 | 45 | 13 | 45 | 40 | 38 | 2500 kg | 2.5 t | 2500 kg | 2.5 t |
2027670 | DSR-M24 | 2.6 kg | 83 | 115 | 25 | 60 | 19 | 62 | 55 | 55 | 5500 kg | 5.5 t | 5500 kg | 5.5 t |
2028150 | DSR-M30 | 2.7 kg | 83 | 115 | 25 | 60 | 19 | 62 | 55 | 55 | 6300 kg | 6.3 t | 6300 kg | 6.3 t |
