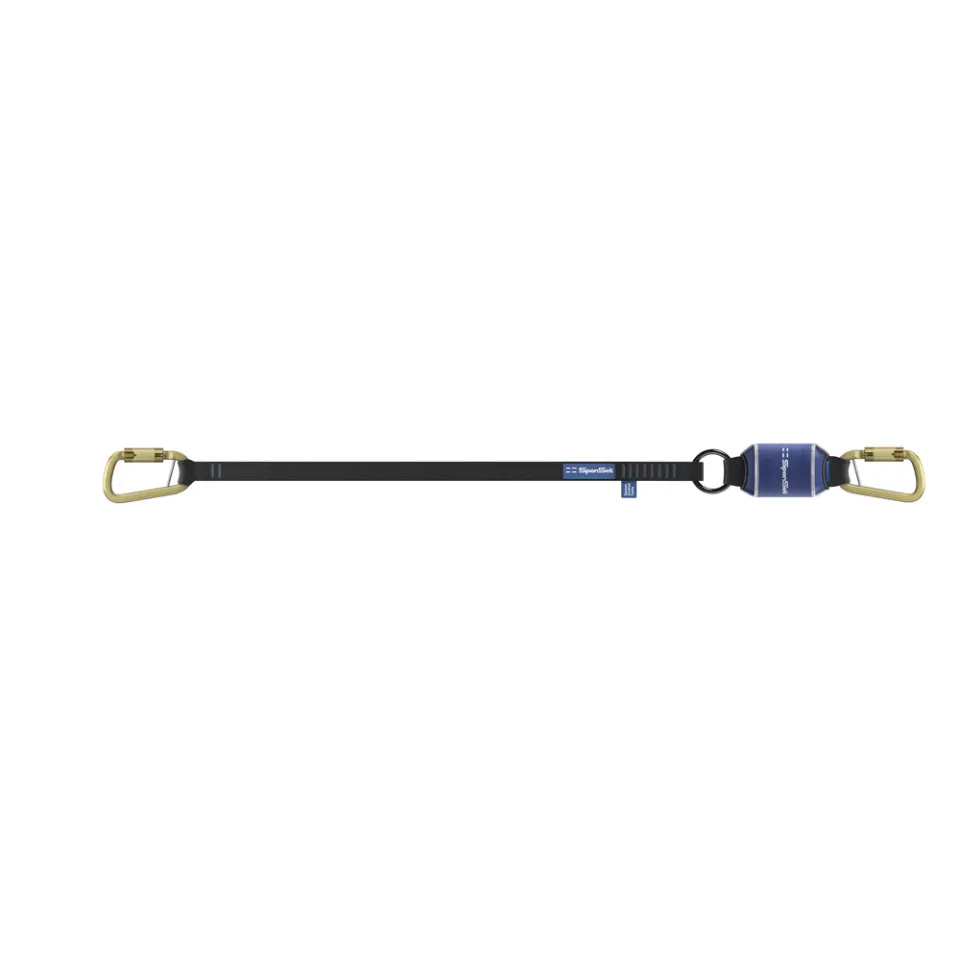

SP140 Single Fixed Length Energy Absorbing Lanyard

SP140 Single Fixed Length Energy Absorbing Lanyard

High Performance Energy Absorbing Lanyard for workers up to 140kg

Item Number: 2009963
SP140 S FW 2m 1DK2
  • Independently tested by EU Notified Body with 140kg body mass
  • Clearance height data published for 80kg, 100kg, 120kg, 140kg
  • Clearance height calculation App available for smart phones
  • Compact Energy Absorbing Pack for ease of movement in confined environments
  • Steel Ring provides a “clip-back” point for lanyard connectors
  • Fabric energy absorber cover with Velcro fastener for improved protection and ease of inspection
  • Duplex web construction leg for increased edge resistance during a fall

Select Model

...

Reducing fall distance

Reduce the risk of injury from colliding into nearby hazards

The shorter the fall distance, the lower the acceleration and kinetic energy of the fall.

...

Integrated ring

Lanyard leg can be clipped back to the shock absorbing pack

Keep the lanyard tucked away without obstructing the fall absorber.

...

Published clearance height data

For 80kg, 100kg, 120kg and 140kg workers

Knowing the clearance height allows the user to know the required fall distance for maximum safety.

Compact high performance energy absorbing lanyards providing fall protection for workers up to 140kg, while also reducing overall fall distance by minimising deployment.

Product Technical Information

  • Harness Connector
    29451 1DK2
  • Norms
    EN 355: 2002
  • Lifespan
    10 yr.
  • Energy Absorbing
    Yes
  • Maximum User Weight
    140 kg
  • Label Protection
    Yes
  • Colour
    Czarny
  • Main Material
    High-performance polyester
  • Individually Serial Numbered
    Yes
  • Individual Certificate
    Yes
  • Multilingual User Instruction Manual
    Yes
  • Inspection Guide
    Yes
  • Packaging Unit (PU)
    pcs
  • Packaging Unit (PU) Content
    1
  • Dimension L
    2 m

Product downloads and manuals

...
SP140 Lanyard User Manual
(de de_CH en en_US es fr it nl no pl)
Download

Technical Drawings

Item Number Item Name Anchor Connector EAN Code
2009963 SP140 S FW 2m 1DK2 Twistlock Carabiner
1DK2 		5056390703057

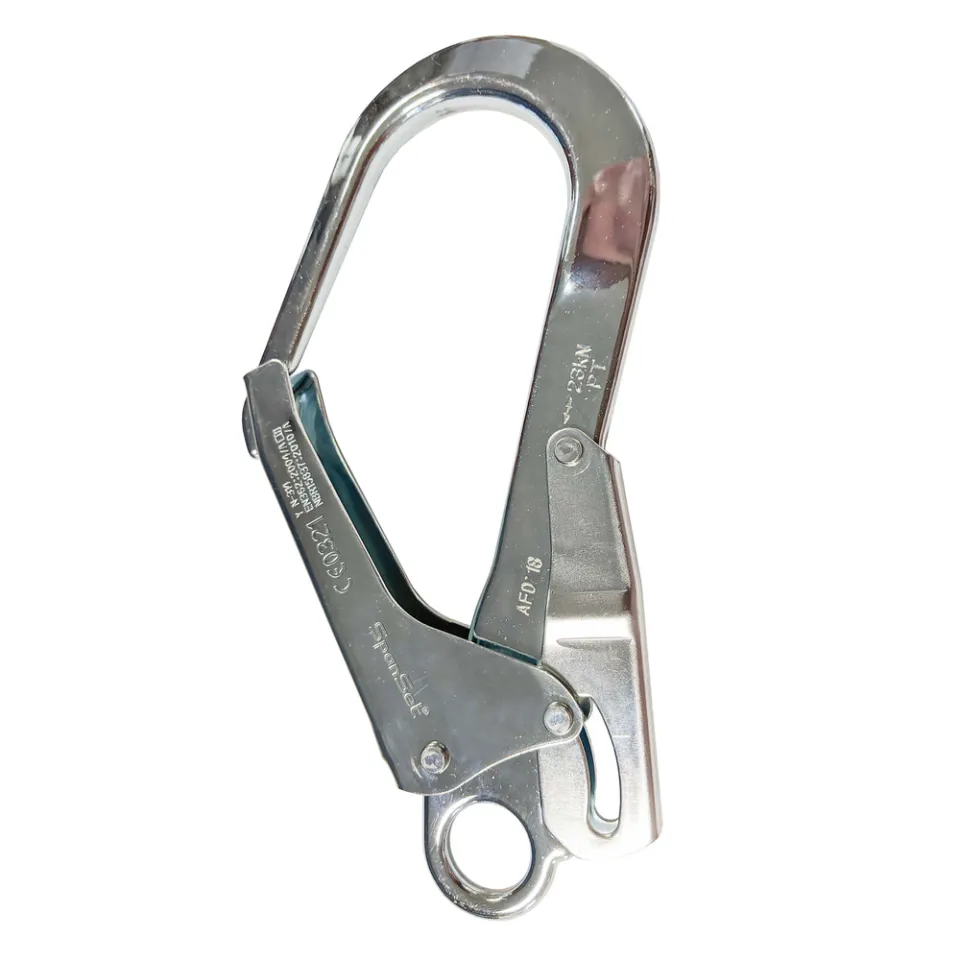

2009964 SP140 S FW 2m 1RH2 Steel Rebar Hook EN Double
1RH2 		5056390703088
