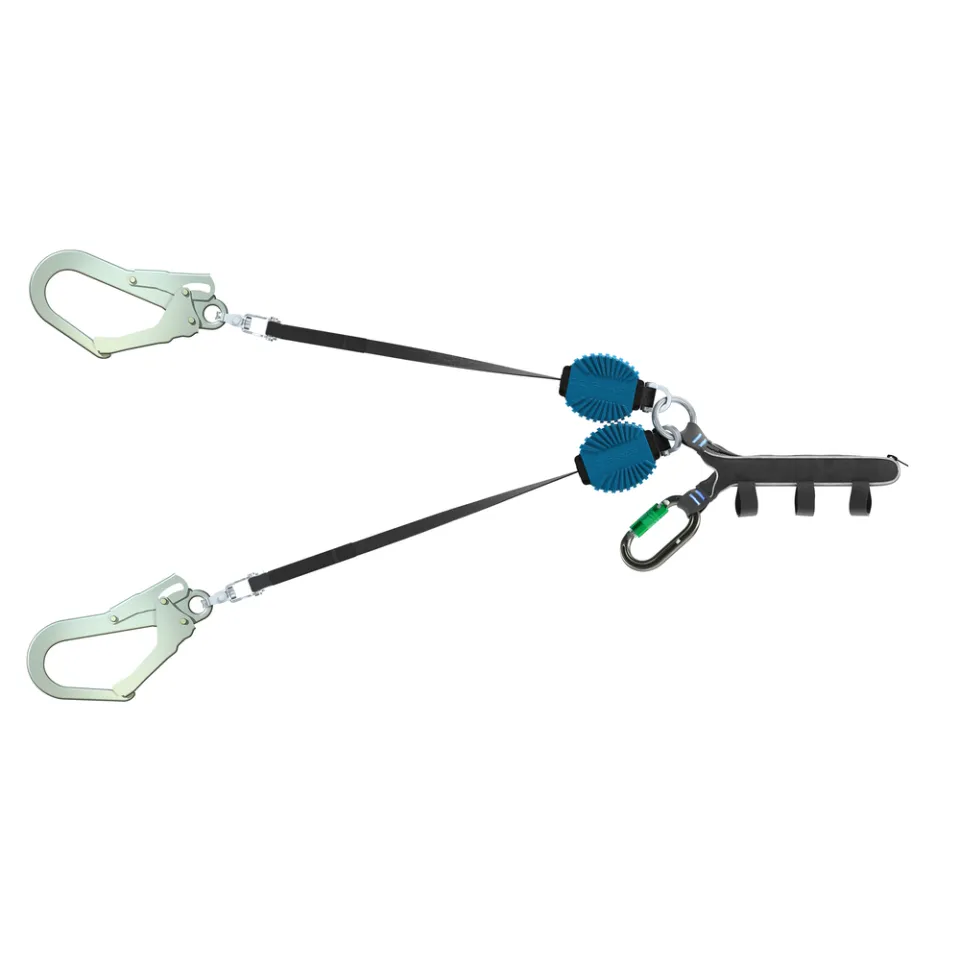

SP140 Twin Fixed Length Energy Absorbing Lanyard
SP140 Twin Fixed Length Energy Absorbing Lanyard
High Performance Energy Absorbing Lanyard for workers up to 140kg
- Independently tested by EU Notified Body with 140kg body mass
- Clearance height data published for 80kg, 100kg, 120kg, 140kg
- Clearance height calculation App available for smart phones
- Compact Energy Absorbing Pack for ease of movement in confined environments
- Steel Ring provides a “clip-back” point for lanyard connectors
- Fabric energy absorber cover with Velcro fastener for improved protection and ease of inspection
- Max-Span = Reduced effective length of energy absorber maximises the available working length of the lanyard legs when traversing
Select Model
Reducing fall distance
Reduce the risk of injury from colliding into nearby hazards
The shorter the fall distance, the lower the acceleration and kinetic energy of the fall.
Integrated ring
Lanyard leg can be clipped back to the shock absorbing pack
Keep the lanyard tucked away without obstructing the fall absorber.
Anchored at or below floor level
Maximum lanyard working applications
Safe application even below foor level, allows the user to secure himself at height without compromising his safety.
Published clearance height data
For 80kg, 100kg, 120kg and 140kg workers
Knowing the clearance height allows the user to know the required fall distance for maximum safety.
Compact high performance energy absorbing lanyards providing fall protection for workers up to 140kg, while also reducing overall fall distance by minimising deployment.
Product Technical Information
-
Harness Connector:
29451 1DK2
-
Norms:
EN 355: 2002
-
Lifespan:
10 yr.
-
Energy Absorbing:
Yes
-
Lanyard Leg Type:
Twin Fixed Length
-
Maximum User Weight:
140 kg
-
Label Protection:
Yes
-
Colour:
Czarny
-
Main Material:
Polyester
-
Individually Serial Numbered:
Yes
-
Individual Certificate:
Yes
-
Multilingual User Instruction Manual:
Yes
-
Inspection Guide:
Yes
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Dimension L:
1.5 m
Product downloads and manuals
Technical Drawings
Variants information
| Item Number | Item Name | Anchor Connector | EAN Code |
|---|---|---|---|
| 2009967 | SP140 TW FW 1.5m 1RH2 |

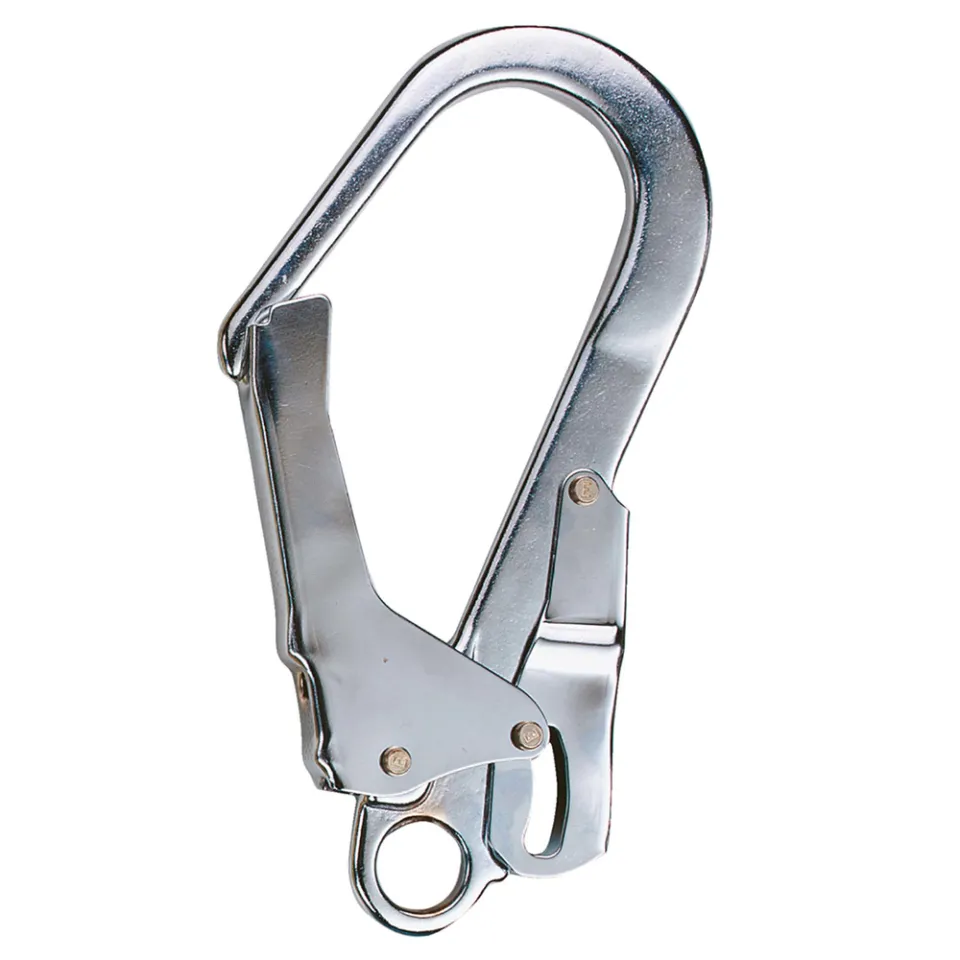

Steel Rebar Hook EN Double 1RH2 |
5056390703101 |
| 2010104 | SP140 TW FW 1.5m 1DK2 |

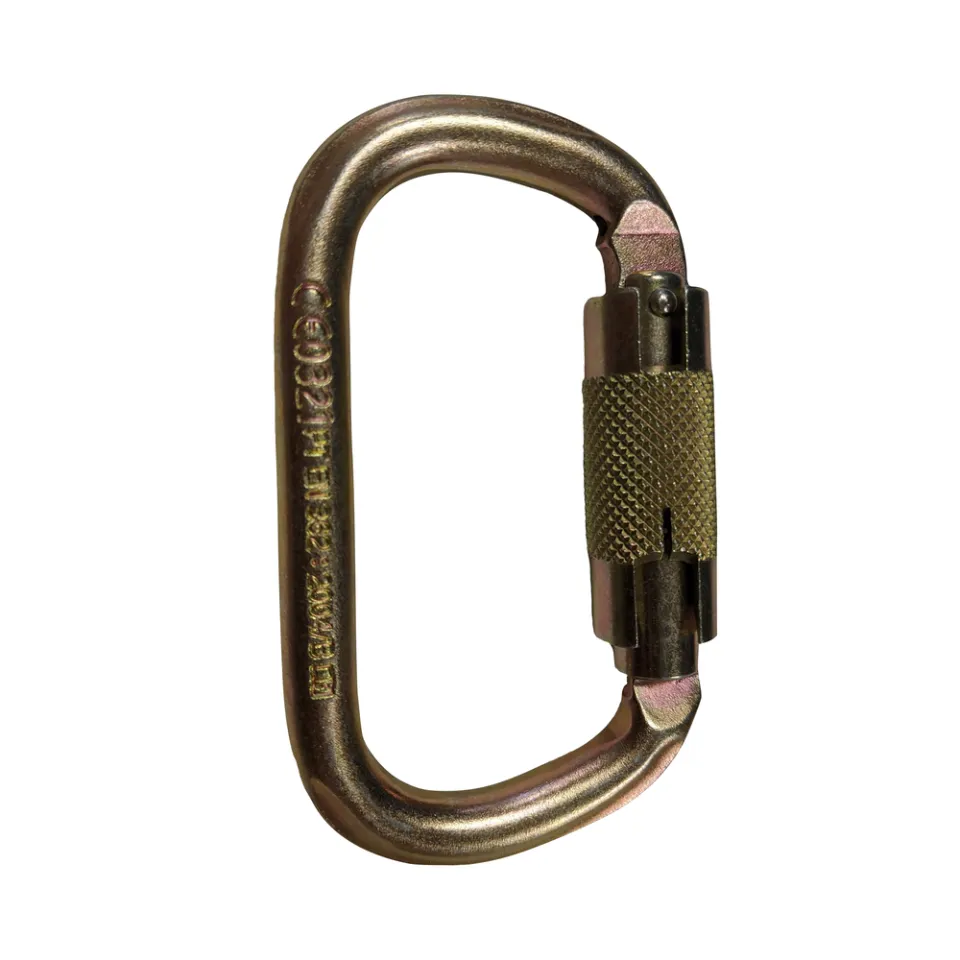

Twistlock Carabiner 1DK2 |
5056390703118 |
