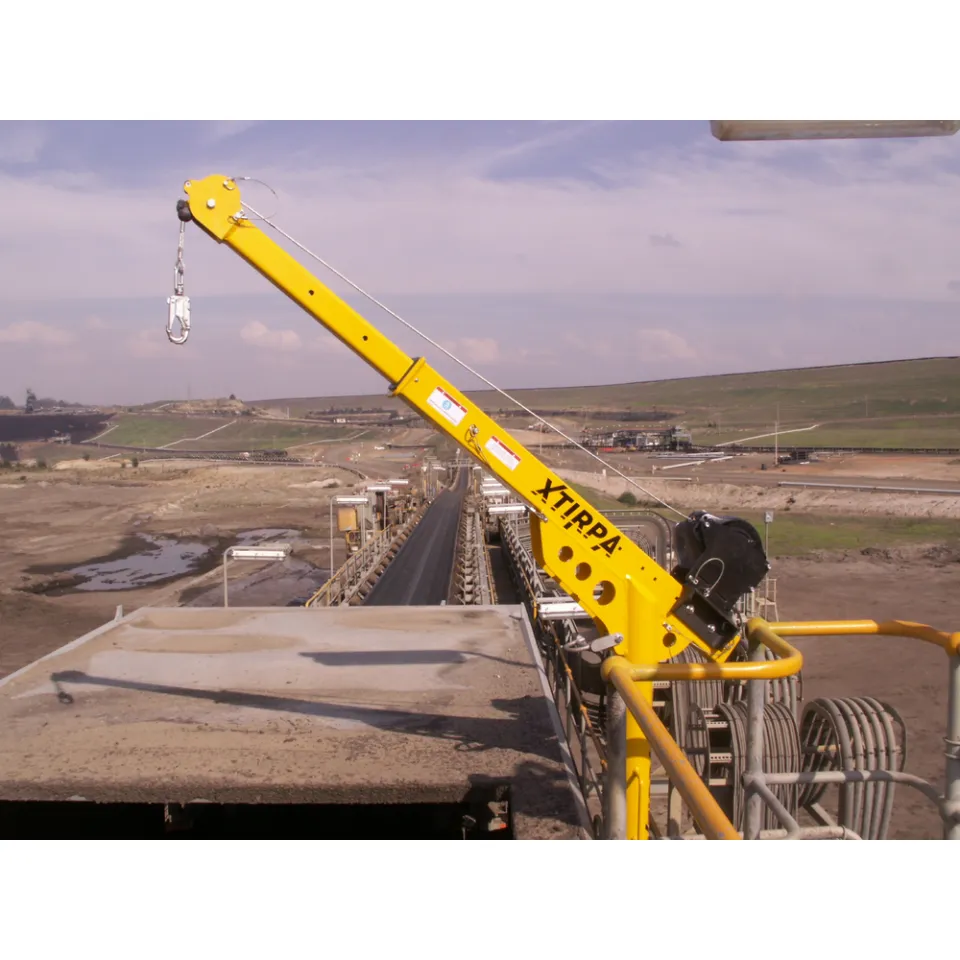

1219 mm Reach - Fixed Base Davit Kit
1219 mm Reach - Fixed Base Davit Kit
Safe access into a wide variety of confined spaces with adjustable reach from 775mm, 915mm and 1219mm
- Adjustable height and reach davit.
- 16kN rated davit at full extension.
- Easy cable routing for SRL around pulley.
- Push-pin locking bolts for quick assembly.
- Mounting positions for SRL and Winch to allow work positioning.
- Removable Davit and Mast.
Please contact customer service for purchase or more information customerservices@spanset.co.uk
1219 mm Reach - Fixed Base Davit Kit.
Main Components:

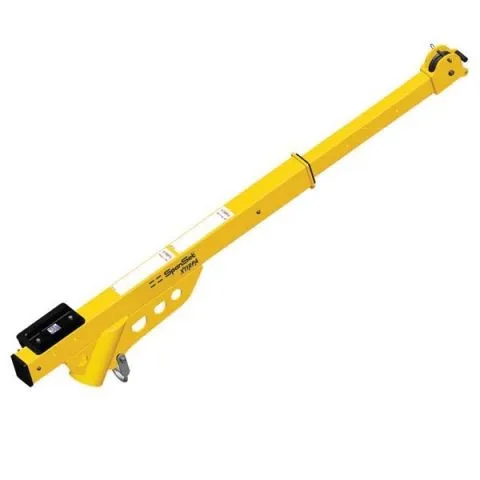

- XTIN2237 - 1219mm (48" ) davit arm
- Equipped with bracket for self-retracting lifeline to ease access to confined spaces. To be used with mast XTIN2426, XTIN2240 or XTIN2313 and an appropriate base. Extensible to 762 mm, 914 mm and 1219 mm. Equipped with a 22kN anchor point.
- Material: aluminum
- Dimensions: L 1422-1965mm x W 165mm x H 977-1326mm
- Weight: 23 kg
- XTIN2426, XTIN2240, XTIN2313 - Mast
- To be used with davit arm XTIN2237 and corresponding adapters or with a counterweight system.
- Material: aluminum
- XTIN2426 - Length 508mm (5 kg)
- XTIN2240 - Length 1067mm (10 kg)
- XTIN2313 - Length 1521mm (15 kg)
- XTIN2238 - Floor adapter for concrete and steel
- To be used with mast XTIN2426, XTIN2240 or XTIN2313 and 1219 mm davit arm XTIN2237 on existing concrete or steel structures. Increases the range of the system by installing it near the edge of the structure. Anchor bolts not included.
*Allowable working angle. - Material: AISI 304 stainless steel Also available in zinc plated steel (XTIN2302).
- Dimensions: L 368mm x W 254mm x H 235mm
- Weight: 15 kg
- To be used with mast XTIN2426, XTIN2240 or XTIN2313 and 1219 mm davit arm XTIN2237 on existing concrete or steel structures. Increases the range of the system by installing it near the edge of the structure. Anchor bolts not included.
