Ergo 2500daN 50mm
GBP 50.03
VAT not included
Ergo 2500daN 50mm
Pull-down ratchet for ergonomic force transmission, perfect for load securing on flatbeds, curtainsiders, and trailers
GBP 50.03
VAT not included
Estimated delivery time: 1 to 3 Days
- Pull-down principle and extended ratchet lever for ergonomic and improved transmission of force
- Self-locking ratchet lever
- Label that is resistant to being pulled out, protected by webbing insert
Select Model
GBP 50.03
VAT not included
Estimated delivery time: 1 to 3 Days
Pull-down Ratchet
More tension force, less muscle force
Allows greater pretension force to be achieved with significantly less muscle power.
Self-locking ratchet lever
Prevents unintetional opening
The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.
Extended Ratchet Lever
Better power transmission and more ergonomic
The extended lever not only allows the user to achieve increased pre-tensioning forces can be achieved with markedly less muscle power.
Typically used in Flat bed and Curtainsider vehicles and trailers to secure and contain the load using the anchor rings in the bed of the vehicle / attachment points within the side rave TT style or direct to the chassis.
Product Technical Information
-
Surface Coating:
Galvanized
-
Standard Tension Force:
500 daN
-
Norms:
EN 12195-2: 2001
-
Webbing Width B:
50
-
Label Protection:
No
-
Colour:
Orange
-
Webbing Material:
Polyester
-
Main Material:
Polyester
-
Ratchet Type:
Pull-down
-
Tension Force Indicator (TFI):
No
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Private Label:
Yes
-
Lashing Capacity:
2500 daN
-
Anti Belt Slip (ABS):
No
-
Handle Type:
Long Wide
Technical Drawings
Variants information
| Item Number | Item Name | Dimension L1 | Dimension L2 | Dimension L3 | Lashing End Fitting Component |
|---|---|---|---|---|---|
| 2024581 | Ergo LC2500/50/STF500 2pc 7.85m 0.15M DJHS | 8 m | 0.15 m | 7.85 m |

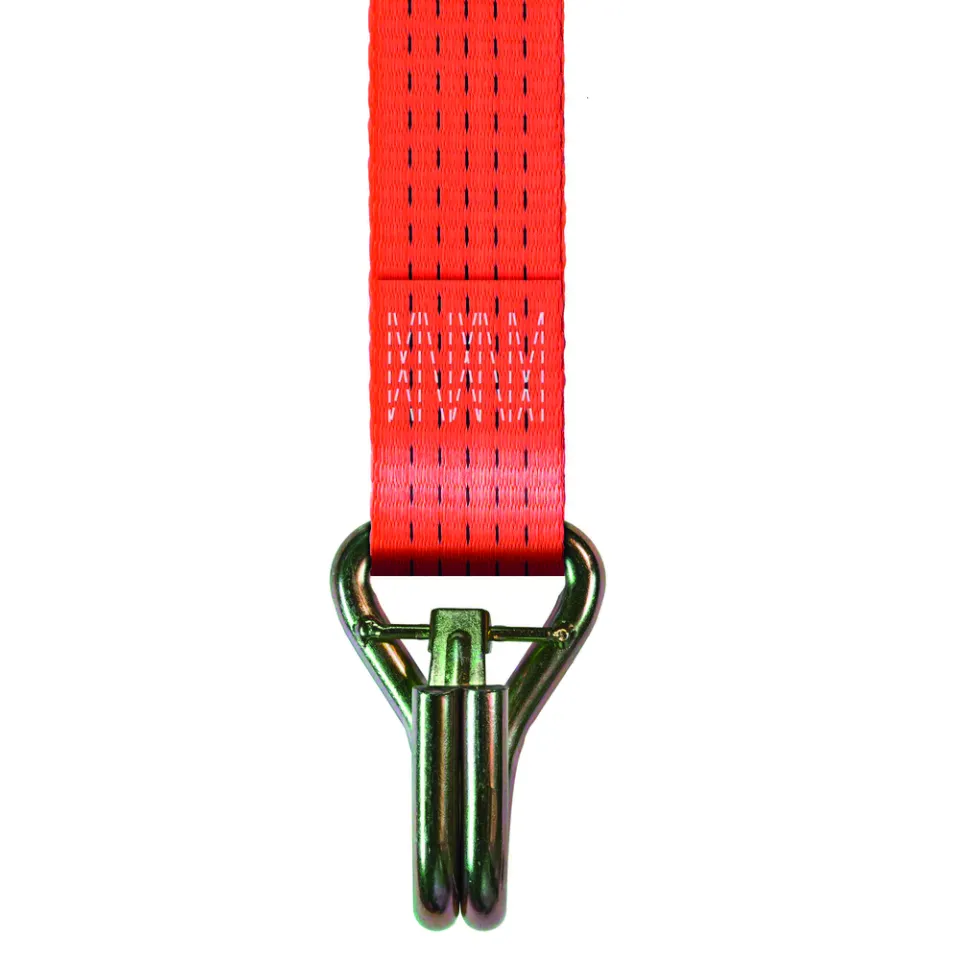

Double J-Hook Safety Latch DJHS-50 |
| 2024788 | Ergo LC2500/50 2pc 9.7m 0.3m DJH | 10 m | 0.3 m | 9.7 m |
Double J-Hook DJH-50 |
| 2024789 | Ergo LC2500/50 2pc 9.7m 0.3m CLR | 10 m | 0.3 m | 9.7 m |
Closed Rave Hook CLR-50 |
| 2024794 | Ergo LC2500/50 2pc 11.7m 0.3m CLR | 12 m | 0.3 m | 11.7 m |
Closed Rave Hook CLR-50 |
