ErgoABS 2500daN 50mm Pull-down Ratchet Strap

Pull-down Ratchet

More tension force, less muscle force

Allows greater pretension force to be achieved with significantly less muscle power.

"Anti-Belt-Slip" procedure

Controlled tension liberation

The ABS system was developed for loads with a risk of tipping and allows the user to release the pretension in small steps. The lashing can also be opened completely.

Tension Force Indicator

Show the pre-tensioning force achieved

With the TFI you can read off the pre-tensioning forces achieved in the lashing system when tying down loads and use this information in load control calculations.

Self-locking ratchet lever

Prevents unintetional opening

The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.

Double Slider

Safe in the intermediate phase when tensing

Secures in the intermediate stage when tensioning the webbing. Two sliders engage in an existing sprocket in "smaller steps".

Extended Ratchet Lever

Better power transmission and more ergonomic

The extended lever not only allows the user to achieve increased pre-tensioning forces can be achieved with markedly less muscle power.

Reinforced edges

Longer service life and lower costs!

Webbing with the reinforced edge is more resistant to wear and abrasion.

Precision strap

Low elasticity of the strap

Less stretch maintains more tension and reduces the need for tension readjustment.

Protective sleeve label

optimally protected, reinforced with selvedge

In addition to the tear-resistant design with a fabric lining, a robust plastic sleeve perfectly protects the writing from abrasion and dirt. The webbing insert, equipped as standard, also prolongs the service life.

ErgoABS pull-down ratchet

Makes your work easier and makes checking security quick and simple

ERGO - High pre-tensioning forces using much less muscle power!
Pull-down ratchet with longer handle protects your back and help you getting high pre-tensioning.
“Anti-Belt-Slip” procedure
The ABS system lets you release the pre-tension force in small steps. This gives you the opportunity to use a fork-lift truck to straighten up any loads that threaten to tip and are leaning into the lashing, helping prevent damage and accidents.
Tension Force Indicator
Patented TFI, you can verify the pre-tension force in the system quickly and easily. When the jaws of the TFI are closed, it indicates the maximum pre-tensioning force that can be achieved of 750 daN. Intermediate stages can also be read off.
Optional integrated edge protection
Straps by SpanSet are available with a low elasticity of max. 4%. Thanks to the additional wear-resistant selvedge, they won’t wear away, even on rough loads, meaning you have a tough partner on your side to achieve load security.
Protected Safety label
Always check whether the ratchet lashing strap is suitable for the load to be secured, each lashing strap is equipped with a patented safety label that cannot be torn out. The lashing strap may not be used without its label.

Product Technical Information

Standard Tension Force: 350 daN
Standard Tension Force (with TFI): 750 daN
Norms: EN 12195-2: 2001
Webbing Width B: 50
Webbing Thickness: 4 mm
Ratchet Component: 927 RB ERGO ABS LC25kN 50mm BL
Label Protection: Yes
Colour: Yellow
Webbing Material: 100% Polyester, thermofixed and low-stretch
Ratchet Type: Pull-down
Tension Force Indicator (TFI): Yes
Packaging Unit (PU): pcs
Packaging Unit (PU) Content: 1

Technical Drawings

Variants information

Item Number	Item Name	Surface Coating	Dimension L1	Dimension L2	Dimension L3	Lashing End Fitting Component	Lashing Type	Lashing Capacity
2004022	ErgoABS LC2500/50 2pc 0.5m 7.5m DJH	Epoxy	8 m	0.5 m	7.5 m	Double J-Hook DJH-50	Two-piece	2500 daN
2004475	ErgoABS LC2500/50 2pc 7.5m 0.5m DJHS	Epoxy	8 m	0.5 m	7.5 m	Double J-Hook Safety Latch DJHS-50	Two-piece	2500 daN
2020330	ErgoABS LC2500/50 2pc 5.5m 0.5m DJH	Epoxy	6 m	0.5 m	5.5 m	Double J-Hook DJH-50	Two-piece	2500 daN
2020331	ErgoABS LC2500/50 2pc 0.5m 9.5m DJH	Epoxy	10 m	0.5 m	9.5 m	Double J-Hook DJH-50	Two-piece	2500 daN
2020333	ErgoABS LC2500/50 2pc 9.5m 0.5m DJHS	Epoxy	10 m	0.5 m	9.5 m	Double J-Hook Safety Latch DJHS-50	Two-piece	2500 daN
2024610	ErgoABS LC2500/50 2pc 7.7m 0.3m DJH	Epoxy	8 m	0.3 m	7.7 m	Double J-Hook DJH-50	Two-piece	2500 daN
2024611	ErgoABS LC2500/50 2pc 9.7m 0.3m DJH	Epoxy	10 m	0.3 m	9.7 m	Double J-Hook DJH-50	Two-piece	2500 daN
2024612	ErgoABS LC2500/50 2pc 7.7m 0.3m DJHS	Epoxy	8 m	0.3 m	7.7 m	Double J-Hook Safety Latch DJHS-50	Two-piece	2500 daN
2024613	ErgoABS LC2500/50 2pc 9.7m 0.3m DJHS	Epoxy	10 m	0.3 m	9.7 m	Double J-Hook Safety Latch DJHS-50	Two-piece	2500 daN

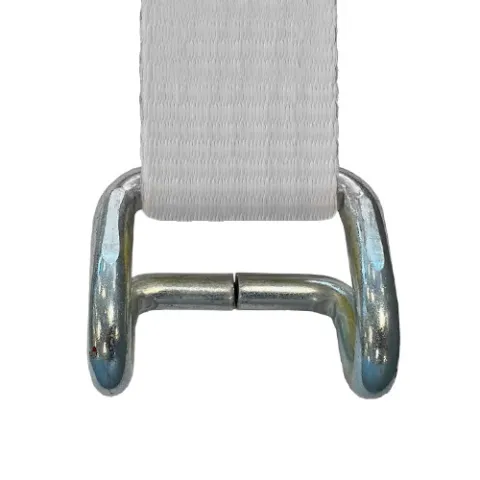

2024614	ErgoABS LC2500/50 2pc 7.7m 0.3m CLR	Epoxy	8 m	0.3 m	7.7 m	Closed Rave Hook CLR-50	Two-piece	2500 daN
2024615	ErgoABS LC2500/50 2pc 9.7m 0.3m CLR	Epoxy	10 m	0.3 m	9.7 m	Closed Rave Hook CLR-50	Two-piece	2500 daN
2026998	ErgoABS LC5000/50 1pc 6m	Epoxy	6 m			One-Piece lashing No	One-piece	5000 daN
2027001	ErgoABS LC5000/50 1pc 10m	Epoxy	10 m			One-Piece lashing No	One-piece	5000 daN
2027002	ErgoABS LC5000/50 1pc 12m	Epoxy	12 m			One-Piece lashing No	One-piece	5000 daN
2027003	ErgoABS LC5000/50 1pc 15m	Epoxy	15 m			One-Piece lashing No	One-piece	5000 daN
2027004	ErgoABS LC2500/50 2pc 3.5m 0.5m DJHS	coated	4 m	0.5 m	3.5 m	Double J-Hook Safety Latch DJHS-50	Two-piece	2500 daN
2028606	ErgoABS LC5000/50 1pc 4m	Epoxy	4 m			One-Piece lashing No	One-piece	5000 daN
