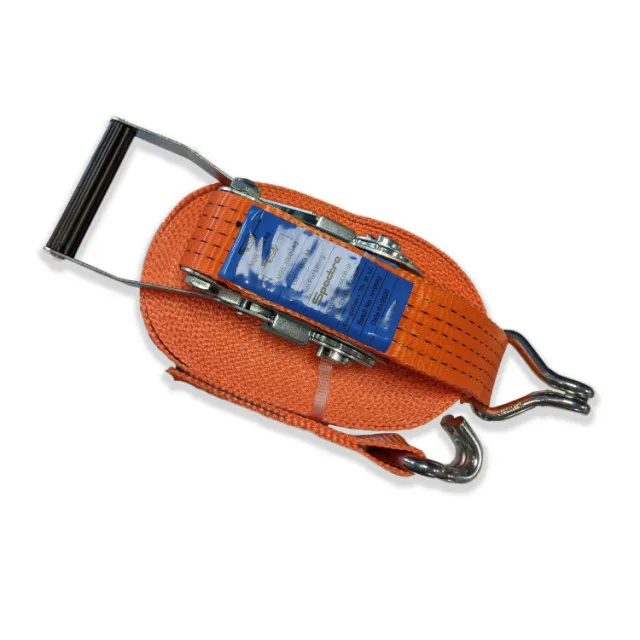

SpannFix 5000daN 50mm
SpannFix 5000daN 50mm
Ideal for use for general haulage applications on flat bed or curtainsided vehicles and trailers
- Push-up handle ratchet function with standard tension force 350daN
- Available in a selection of lengths (L1)
- Lashing Capacity 5000daN for 1-part endless assemblies
- Lashing Capacity 2500daN for 2-part assemblies
- 300mm webbing length sewn to the ratchet body (L2)
- Available with a choice of Claw or Rave hook end fittings
- Manufactured to BSEN12195 (2:1 Safety Factor)
Select Model
Self-locking ratchet lever
Prevents unintetional opening
The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.

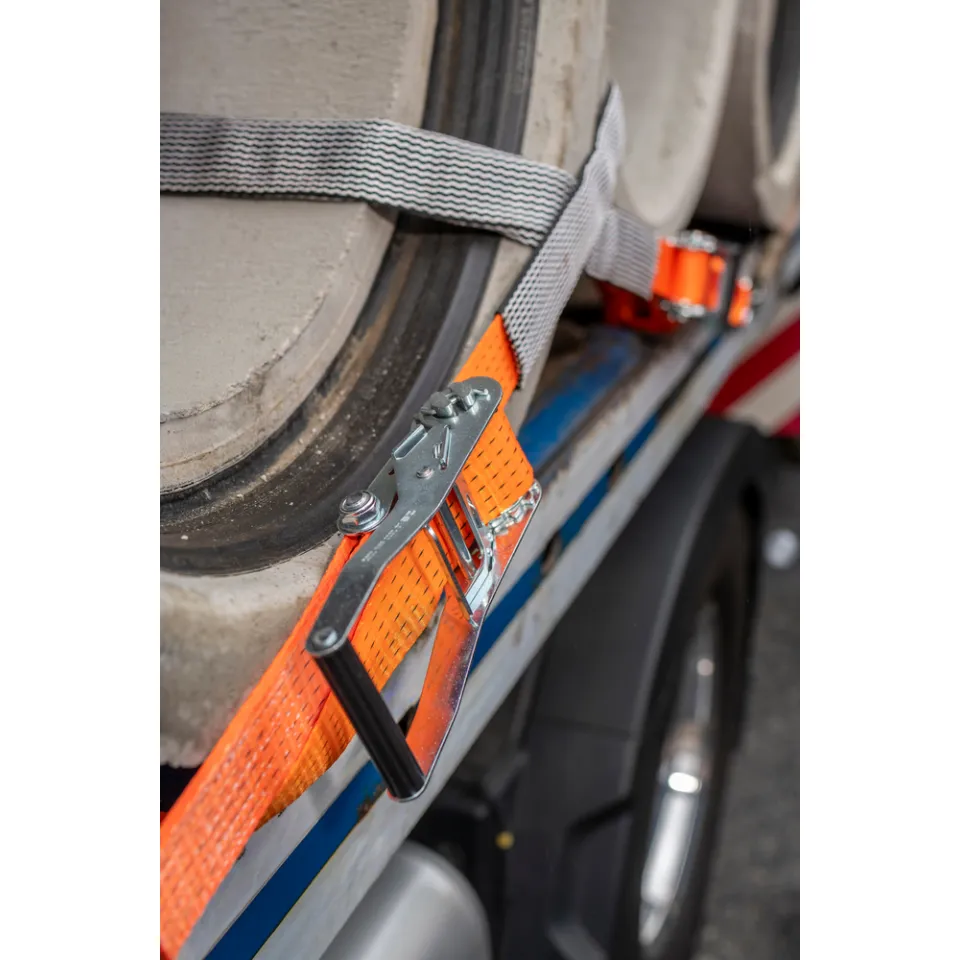

This economy ratchet lashing range is ideal for use for general haulage applications on flat bed or curtainsided vehicles and trailers.
The robust polyester web and steel ratchet proivde a long service life.
The 300mm webbing length fixed end ensures the handle remains in reach when tensioning ratchet from ground level.
Vehicles fitted with rave rails will require a rave hook end fitting.
When attaching to anchor rings, or directly to the vehicle chassis a claw hook end fitting will be needed.
Endless one-piece lashings are suitable for binding loose cargo together.
Product Technical Information
-
Surface Coating:
Chromated
-
Standard Tension Force:
350 daN
-
Webbing Width B:
50
-
Label Protection:
No
-
Colour:
Orange
-
Webbing Material:
Polyester
-
Ratchet Type:
Push-up
-
Tension Force Indicator (TFI):
No
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Private Label:
Yes
-
Anti Belt Slip (ABS):
No
-
Handle Type:
Long Wide
Technical Drawings
Variants information
| Item Number | Item Name | Dimension L1 | Dimension L2 | Dimension L3 | Lashing End Fitting Component | Lashing Type | Lashing Capacity |
|---|---|---|---|---|---|---|---|
| 2024785 | RL01857 2500/50 2pc 9.7m 0.3m DJH | 10 m | 0.3 m | 9.7 m |
Double J-Hook DJH-50 |
Two-piece | 2500 daN |
| 2024786 | RL01857 2500/50 2pc 8m DJH | 8 m | 0.3 m | 7.7 m |
Double J-Hook DJH-50 |
Two-piece | 2500 daN |
| 2024787 | RL01857 2500/50 2pc 5.7m 0.3m DJH | 6 m | 0.3 m | 5.7 m |
Double J-Hook DJH-50 |
Two-piece | 2500 daN |
| 2024790 | RL01857 5000/50 1pc 6m | 6 m |
One-Piece lashing No |
One-piece | 5000 daN | ||
| 2024791 | RL01857 LC5000/50 1pc 8m | 8 m |
One-Piece lashing No |
One-piece | 5000 daN | ||
| 2024792 | RL01857 5000/50 1pc 10m | 10 m |
One-Piece lashing No |
One-piece | 5000 daN | ||
| 2025130 | RL01857 2500/50 2pc 3.7m 0.3m DJH | 4 m | 0.3 m | 3.7 m |
Double J-Hook DJH-50 |
Two-piece | 2500 daN |
| 2025389 | RL01857 2500/50 2pc 11.7m 0.3m DJH | 12 m | 0.3 m | 11.7 m |
Double J-Hook DJH-50 |
Two-piece | 2500 daN |
| 2025390 | RL01857 2500/50 2pc 4.7m 0.3m DJH | 5 m | 0.3 m | 4.7 m |
Double J-Hook DJH-50 |
Two-piece | 2500 daN |
| 2027133 | RL01857 2500/50 2pc 14.7m 0.3m DJH | 15 m | 0.3 m | 14.7 m |
Double J-Hook DJH-50 |
Two-piece | 2500 daN |
| 2027153 | RL01857 5000/50 1pc 4m | 4 m |
One-Piece lashing No |
One-piece | 5000 daN | ||
| 2027987 | RL01857 2500/50 2pc 1.7m 0.3m DJH | 2 m | 0.3 m | 1.7 m |
Double J-Hook DJH-50 |
Two-piece | 2500 daN |
| 2028317 | RL01857 2500/50 2pc 19.7m 0.3m DJH | 20 m | 0.3 m | 19.7 m |
Double J-Hook DJH-50 |
Two-piece | 2500 daN |
| 2029140 | RL01857 2500/50 2pc 0.7m 0.3m DJH | 1 m | 0.3 m | 0.7 m |
Double J-Hook DJH-50 |
Two-piece | 2500 daN |
