What is it?

CAPCHA Workshop is a high tension permanently installed overhead horizontal lifeline utilising 8mm aircraft grade stainless steel cable and suitable for work restraint or fall arrest. It is designed to accommodate long continuous unsupported spans, high pretensions, and inclines of up to 15 degrees when correctly installed onto a suitable structure.  Tested to EN 795:2012 Type C.

CAPCHA Workshop applies a high pre-tensile force to reduce cable deflection and maximise the efficiency of the system providing optimal certified safety.

The system has been carefully designed to provide snag free travel along the installed lifeline and due to the rigid nature of the CAPCHA Workshop system, it can support heavier retractable type fall arrest devices without causing excessive sag in the lifeline under the device weight.

For more information contact our Customer Support team on 01606 737494 or leave a message here. Please quote CAPCHA Workshop.

Main picture Harness Extension Lanyard
Harness Extension Lanyard
Connecting Lanyard for use with SRLs and Adjustable Restraint Lines
From GBP 27.14
Main picture X Harnesses
X Harnesses
The trusted choice of trades people
From GBP 64.00
Main picture Tool Tethers
Tool Tethers
Securing tools and materials at height
From GBP 21.64
Main picture Tool Catch Attachment Points
Tool Catch Attachment Points
Securing tools and materials at height
From GBP 2.42
Main picture TALGAR High Performance Helmets
TALGAR High Performance Helmets
Protection of falling items
From GBP 83.48
Main picture Gotcha 2
Gotcha 2
Ultra-lightweight Rescue kit
From GBP 939.75
Main picture Bolt Bag
Bolt Bag
Tool and Material security solutions for work at height
From GBP 58.00
Main picture Carabiner for tools
Carabiner for tools
Aluminium carabiner

Why use CAPCHA Workshop?



  • Designed to be installed in continuous unsupported spans of up to 40m!
  • Unique patented shock absorber allows the system performance
  • Can be finely matched to the requirements of the application and building structure

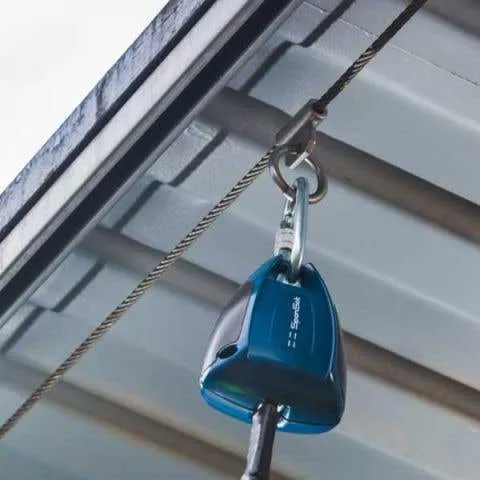

  • Pulley travelers using sealed stainless steel bearings in the sheave wheels to prolong life and reduce the need for maintenance
  • Hands free traversing along the full length of the lifeline
  • Brackets and accessory components designed to ensure suitability of mounting onto a wide range of structures



  • Designed to provide comprehensive safety of 140kg body mass and up to a team of 4 workers
  • Maximises worker access for work at height operations
  • Components are predominantly manufactured from marine grade stainless steel and polished to improve corrosion resistance
  • Externally tested at a notified body. Tested and certified to EN795:2012 Type C Anchor Devices and exceeds the requirements of PD CEN/TS 16415:2013 for systems

Who is CAPCHA Workshop intented for?

The CAPCHA Workshop lifeline was designed primarily to meet the needs of Industrial and Transportation customers including:

Workshops
Vehicle loading bays
Aircraft hangers
Vehicle Maintenance & MOT bays
Steel Fabrication and Galvanizing plants
Overhead "Bridge" Cranes
Mechanical engineering plants
Other large, unsupported span Installations





For more information contact our Customer Support team on 01606 737494 or leave a message here. Please quote CAPCHA Workshop.

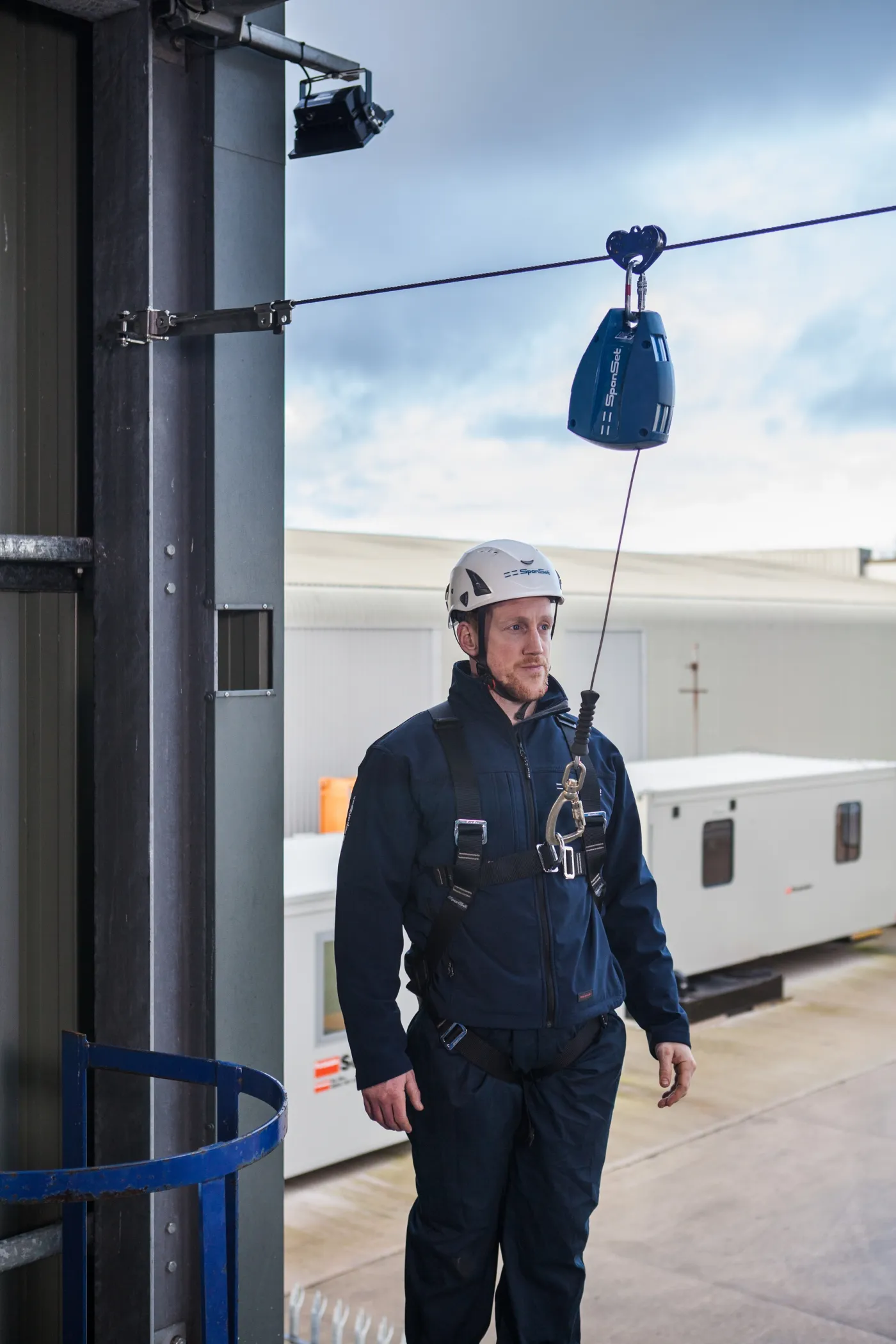

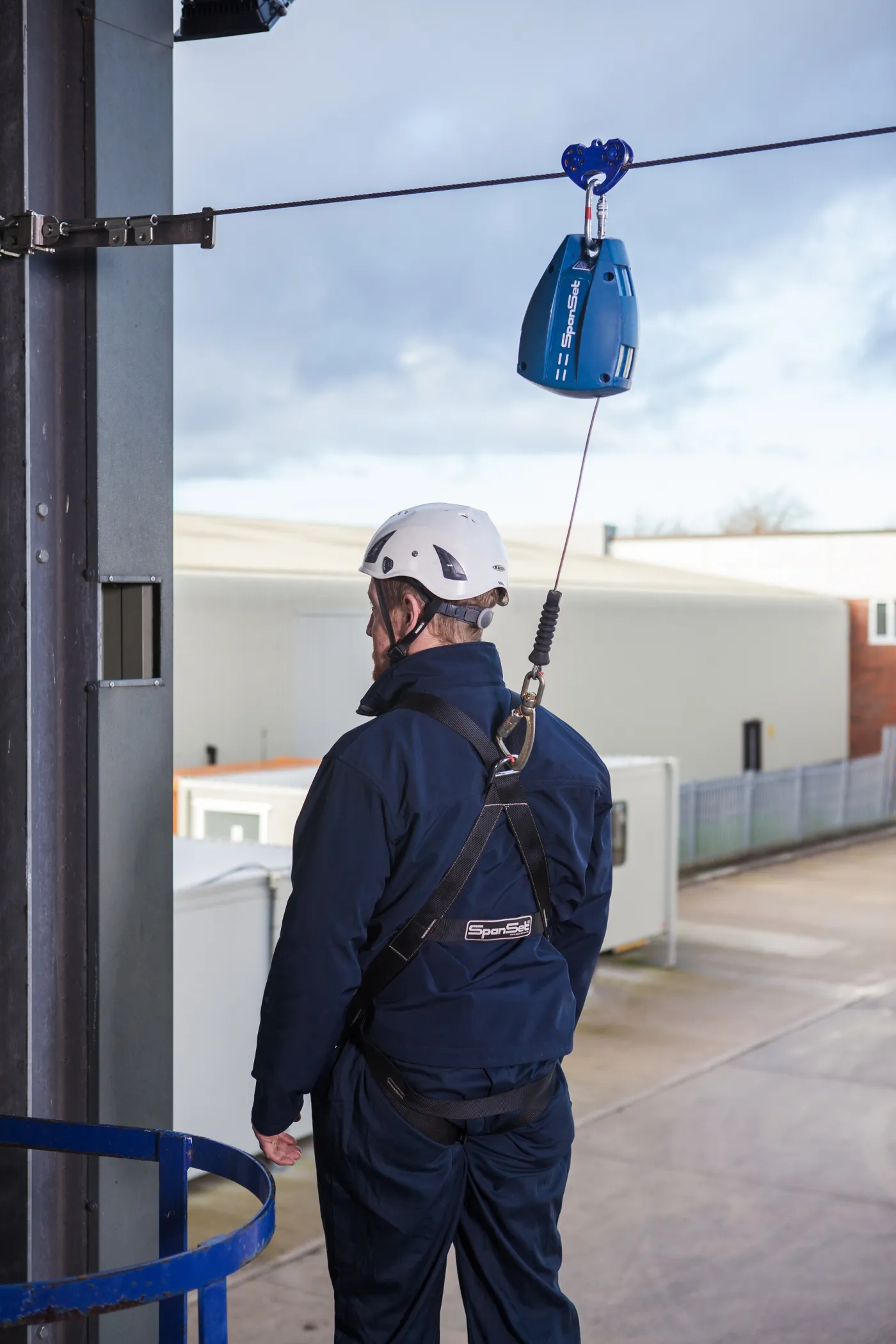

The ease of travel along the CAPCHA Workshop highly tensioned cable ensures that the retractable fall arrest device will always follow the worker during work at height operations, and that any dynamic fall arrest event would be within the operating cone of the retractable device, reducing the chance of injury caused by swing falls, or failure of the device to arrest the fall correctly.

The Complete Service from SpanSet:  Survey, Design, Installation, Training and Inspection.

SpanSet have for 25 years offered a Safety System Installation service like no other.  We are the only company in the UK who design, manufacture and install a wide range of safety Systems and also Train workers how to use them.  We produce a range of compatible Personal Fall Protection Equipment and provide specialist Inspection Services to complete our unique offering.

By dealing directly with SpanSet, both manufacturer and service provider (Trainer, Inspector and Installer) you can be confident in our comprehensive warranty, support and technical expertise.

Survey, Design & Installation – SpanSet’s in-house Service Team conduct thorough surveys and risk assessments to ensure a fully compliant SecureClimb vertical safety system is installed to customer requirements.   With our unrivalled experience and breadth of service we can provide a documented Safe Systems of Work, advise on rescue plans, specify and supply PPE and training and implement a maintenance and inspection regime.
Training - For 20+ years SpanSet have been at the forefront of providing Work at Height Training courses in the UK. In 2008 we were the first Training company to be accredited to BS8454 – the code of practice for the Delivery of Training and Education for Working at Height and Rescue.  You can be confident in SpanSet’s experienced Instructor Team and the market leading Work at Height and Rescue Training they provide.  Our purpose-built Training Facility based in Cheshire offers exceptional Training Structures and facilities including a Lattice Mast, Open Faced Tower and Monopole, both indoor and outdoor Training Structures and Rooftops together with state of the art classrooms and smartboard technology.
Inspection – SpanSet’s Inspection Team have extensive industry experience in a wide range of sectors from Telecoms to Construction and provide trusted independent Inspection Services to a wide range of companies.  We offer a comprehensive range of Inspection Services to keep your workforce safe - from Inspection On Demand to a Fully Managed Inspection Service or a Subscription Service for those requirements in between.
