Secutex Lifting Product Guide

Prolong the service life of your lifting gear significantly!

Made of an outstanding polyurethane elastomer with particularly favourable physical and chemical properties.

Material properties

Heat resistance
Hydrolysis
Mechanical stability
Abrasion
Damping effect / Buffer Pad
Chemical resistance

Corner Protection

Lifting loads with sharp-edges.

Protection level: Critical points.
Protection for: Load, sling, chain and wire ropes.
Suitable for: Textile, Chain, and Wire Rope Slings.
Options: Articulated and with Magnets.

View products >

Protective Sleeves

Lifting and Turning loads with sharp edges.

Protection level: Made to measure.
Protection for: Load and sling.
Suitable for: Flat Sling, Wire Rope and Chain.
Options: Protection one side or both sides and Clip version.

View products >

Full coating Slings

Lifting and Turning abrasive loads and sharp edges.

Protection level: Complete.
Protection for: Load and sling.
Suitable for: Textile Slings.
Options: One side or both sides coated and different terminals.

View products >

Identify sharp edges for safe lifting of loads

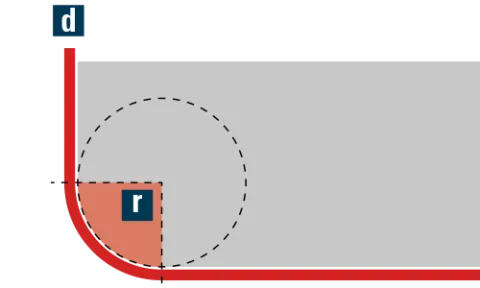

If the edge radius "r" is smaller than the thickness of the flat sling/round sling "d" , the edge is con-sidered „sharp“. Lateral movements or surface pressure can already be enough to sever the lifting gear.

Sharp edge = r < d

All Secutex Lifting solutions

	Description	Benefits	Edge Type	Suitable for turning
Corner Protection See products >	Protection fixed to the load on Localised critical points.	Extremely robust Versatile to use	All types of edges	No
SF-1 and SF-2 See products >	Robust sleeve one-side [SF-1] or SF-2 both sides protection.	Robust [SF-1 more flexible]. Easy to position.	Broken edge Sharp Edge r > 2 mm	Yes
Secutex Clip See product >	Robust sleeve protection with clip open can be removed at any time.	Clip open Robust Easy to position	Broken edge Sharp edge r > 2 mm	Yes
VeloxClip See product >	Flexible sleeve protection with clip open on one side	Clip open Flexible Easy to position	Very sharp edge r > 1 mm	Yes
Secuwave See product >	Protective sleeve with perforated sheet to maintain the form of the load.	Adapt to the load Easy to position	Very sharp edge r > 1 mm	Yes
PowerFlex See products >	Web Sling with abrasion resistance coating on both sides.	High abrasion resistance High flexibility	Rough edge Not sharp! Raw Surfaces	Yes
Secutex S2 See products >	Web Sling with cut resistance coating on both sides.	Full protection Extremely cut-resistant Nearly indestructible	Sharp Rolling edge r > 2 mm	Yes
SecuFlex See products >	Web Sling with abrasion and cut resistance coating.	Robust Cut-resistant Abrasion resistance Full protection Nearly indestructible	Sharp Rolling edge r > 2 mm	Yes
