US1104

US1104

Confident and comfortable harness with sternal and dorsal anchorage

GIN: 2012825
SSUS ERP Code: US1104
US1104 - One Size (Universal)
  • Versatile for most Fall Protection applications
  • Breathable mesh panel helps keep harness from getting tangled allowing for easy donning
  • Sternal and dorsal anchorage
  • 5 adjustment points
  • Rescue attachment points
This product is not currently available for online purchases. For more information or to place an order, please call our customer service team at 800-334-7505 or email ssales@spanset-usa.com
...

Safeguard for Sling Ends

Prevents excess webbing causing discomfort to the operator.

...

Label Protection

Compliance label with details secured in protection pouch.

When working at height it is important for the user to be both confident and comfortable in their equipment. SpanSet's harnesses have been designed, taking into account the demands of the different types of work and the environments in which they are used.

For most Fall Protection applications the rear attachment on the harness is used. On some occasions it may be necessary to attach to the front as with connection to a permanent ladder system or to undertake a rescue.

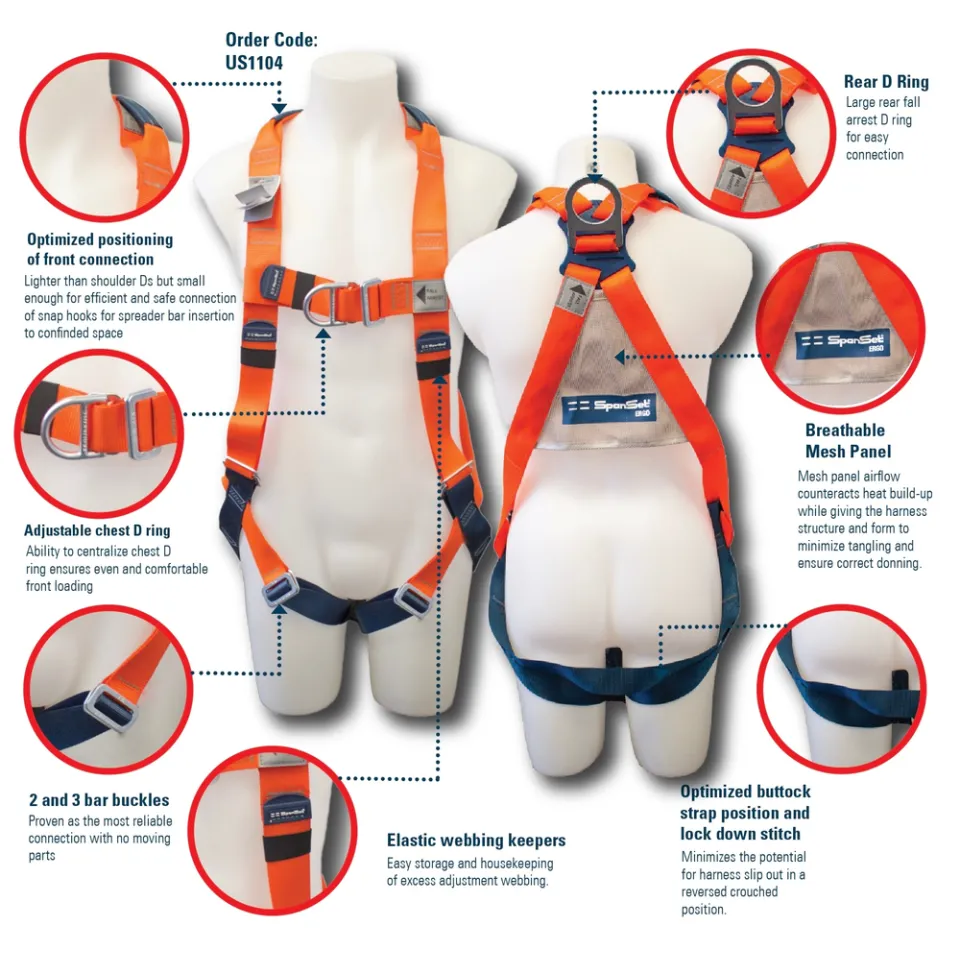

  • Adjustable tongue and buckle leg straps for quick and easy on - easy off
  • Breathable mesh panel helps keep harness from getting tangled allowing for easy donning
  • Lightweight construction
  • Buttock strap position and lock down stitch minimizes the potential for harness slip out in a reversed crouched position.
  • Large rear fall arrest D ring for easy connection
  • Lighter than shoulder Ds but small enough for efficient and safe connection of snap hooks for spreader bar insertion to confinded space
  • Adjustable chest D ring ability to centralize chest D ring ensures even and comfortable front loading
  • 2 and 3 bar buckles proven as the most reliable connection with no moving parts

Product Technical Information

  • Norms
    ANSI Z359.14-2014
  • Lifespan
    10 yr.
  • Harness Webbing Material
    Polyester
  • Hardware Material
    Carbon / Alloy Steel
  • Label Protection
    Yes
  • Color
    Orange
  • Individually Serial Numbered
    Yes
  • Individual Certificate
    Yes
  • Multilingual User Instruction Manual
    Yes
  • Inspection Guide
    Yes
  • Buckle Type
    29433 Harness 3 Bar Buckle 45mm 18kN
  • Packaging Unit (PU)
    pcs
  • Packaging Unit (PU) Content
    1
  • Private Label
    Yes
  • Temperature Range
    -40 °F to 120 °F
  • Sternal Anchorage
    Yes
  • Dorsal Anchorage
    Yes
  • Ventral Anchorage
    No
  • Padded Shoulders
    No
  • Positioning Belt
    No
  • Dorsal Extension
    No
  • Padded Leg straps
    No
  • Tool Attachments
    No
