Secutex Lifting Products Guide

Extend the service life of the lifting gear many times over!

Made of an outstanding polyurethane elastomer with particularly favourable physical and chemical properties.

Material properties

  • Heat resistance
  • Hydrolysis
  • Mechanical stability
  • Abrasion
  • Damping effect / Buffer Pad
  • Chemical resistance

Corner Protections

Lifting loads with sharp-edges.

Protection level: Critical points.
Protection for: Load, sling, chain and wire ropes.
Suitable for: Textile, Chain, and Wire Rope Slings.
Options: Articulated and with Magnets.

Protective Sleeves

Lifting and Turning loads with sharp edges.

Protection level: Made to measure.
Protection for: Load and sling.
Suitable for: Flat Sling, Wire Rope and Chain.
Options: Protection one side or both sides and Clip version.

Full coating Slings

Lifting and Turning abrasive loads and sharp edges.

Protection level: Complete.
Protection for: Load and sling.
Suitable for: Textile Slings.
Options: One side or both sides coated and different terminals.

Identify sharp edges for safe lifting of loads

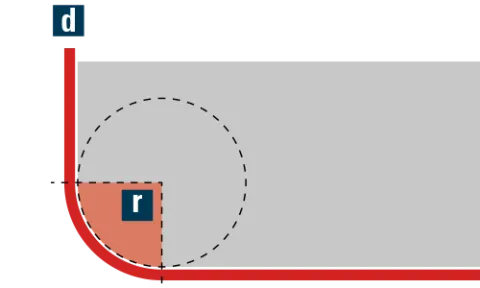

If the edge radius "r" is smaller than the thickness of the flat sling/round sling "d" , the edge is con-sidered „sharp“. Lateral movements or surface pressure can already be enough to sever the lifting gear.

Sharp edge = r < d

All Secutex Lifting solutions


Description
Benefits
Edge Type
Suitable for turning
Corner Protections



 Protection fixed to the load on Localised critical points.
  • Extremely robust
  • Versatile to use

All types of edges

 No
SF-1 and SF-2



 Robust sleeve one-side [SF-1] or SF-2 both sides protection.
  • Robust [SF-1 more flexible].
  • Easy to position.

Broken edge
Sharp Edge r > 2 mm

 Yes
Secutex Clip



 Robust sleeve protection with clip open can be removed at any time.
  • Clip open
  • Robust
  • Easy to position

Broken edge
Sharp edge r > 2 mm

 Yes
VeloxClip



 Flexible sleeve protection with clip open on one side
  • Clip open
  • Flexible
  • Easy to position
 Very sharp edge r > 1 mm

 Yes
Secuwave



 Protective sleeve with perforated sheet to maintain the form of the load.
  • Adapt to the load
  • Easy to position
 Very sharp edge r > 1 mm Yes
PowerFlex



 Web Sling with abrasion resistance coating on both sides.
  • High abrasion resistance
  • High flexibility
 Rough edge Not sharp!
Raw Surfaces
 Yes
Secutex S2



 Web Sling with cut resistance coating on both sides.
  • Full protection
  • Extremely cut-resistant
  • Nearly indestructible
 Sharp Rolling edge r > 2 mm Yes
PowerFlex



 Web Sling with abrasion and cut resistance coating.
  • Robust
  • Cut-resistant
  • Abrasion resistance
  • Full protection
  • Nearly indestructible
 Sharp Rolling edge r > 2 mm Yes
