ABS 2500daN 50mm
ABS 2500daN 50mm
Releases tension progressively, avoids the risk of load falling down
- Ratchet tension can be released gradually
- Self-locking handle and equipped with double slider mechanism
- Low-stretch, wear-resistant webbing with cord edge protection and marking stripes
- Fitted with TFI tension force indicator as standard, pre-tensioning force of 500 daN can be achieved and read off
"Anti-Belt-Slip" procedure
Controlled tension liberation
The ABS system was developed for loads with a risk of tipping and allows the user to release the pretension in small steps. The lashing can also be opened completely.

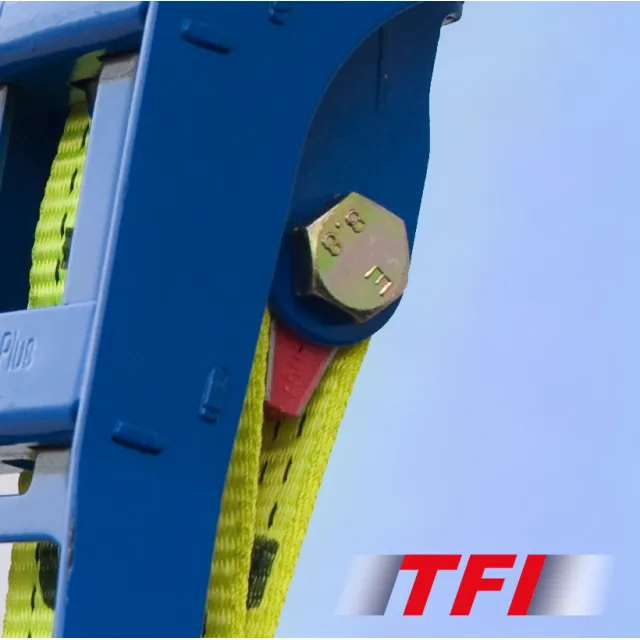

Tension Force Indicator
Show the pre-tensioning force achieved
With the TFI you can read off the pre-tensioning forces achieved in the lashing system when tying down loads and use this information in load control calculations.
Self-locking ratchet lever
Prevents unintetional opening
The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.
Double Slider
Safe in the intermediate phase when tensing
Secures in the intermediate stage when tensioning the webbing. Two sliders engage in an existing sprocket in "smaller steps".
Epoxy resin coating
Maximum ratchet protection
Ratchets are first zinc-plated, then chrome-plated and coated with a shock-resistant epoxy resin coat which additionally protects the ratchets from e.g. rust.
Product Technical Information
-
Surface Coating
Epoxy -
Standard Tension Force
600 daN -
Webbing Width B
50 -
Label Protection
Yes -
Colour
Yellow -
Webbing Material
Polyester, thermofixed and low-stretch <4% -
Ratchet Type
Push-up -

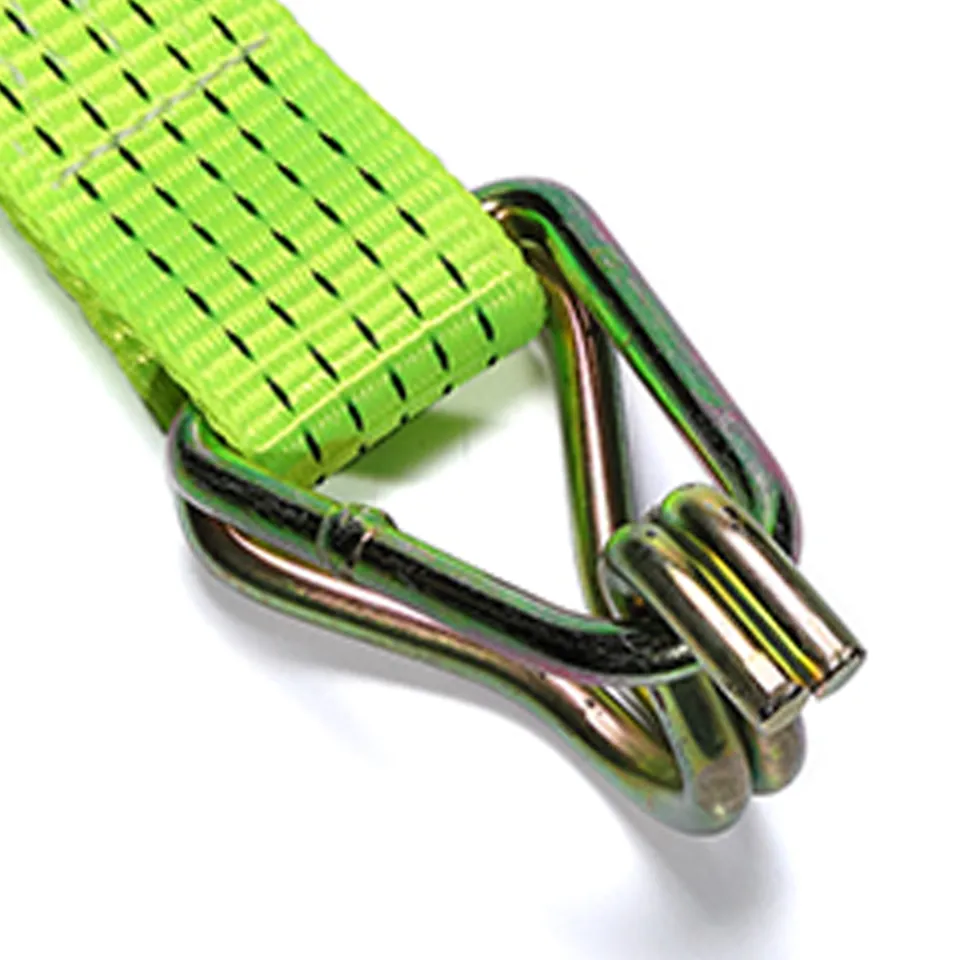

Lashing End Fitting Component
31523 CK-50 -
Tension Force Indicator (TFI)
Yes -
Lashing Type
Two-piece -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1 -
Private Label
Yes -
Lashing Capacity
2500 daN -
Length
9 m -
Anti Belt Slip (ABS)
Yes -
Handle Type
Standard
