CS-Series 4Ply Heavy Duty Flat Slings 12t - 25t
CS-Series 4Ply Heavy Duty Flat Slings 12t - 25t
More lifting power due to 4 layers / 4 ply construction
Item Number: 2029204
SSAUS ERP Code: CS12000-0x2.5

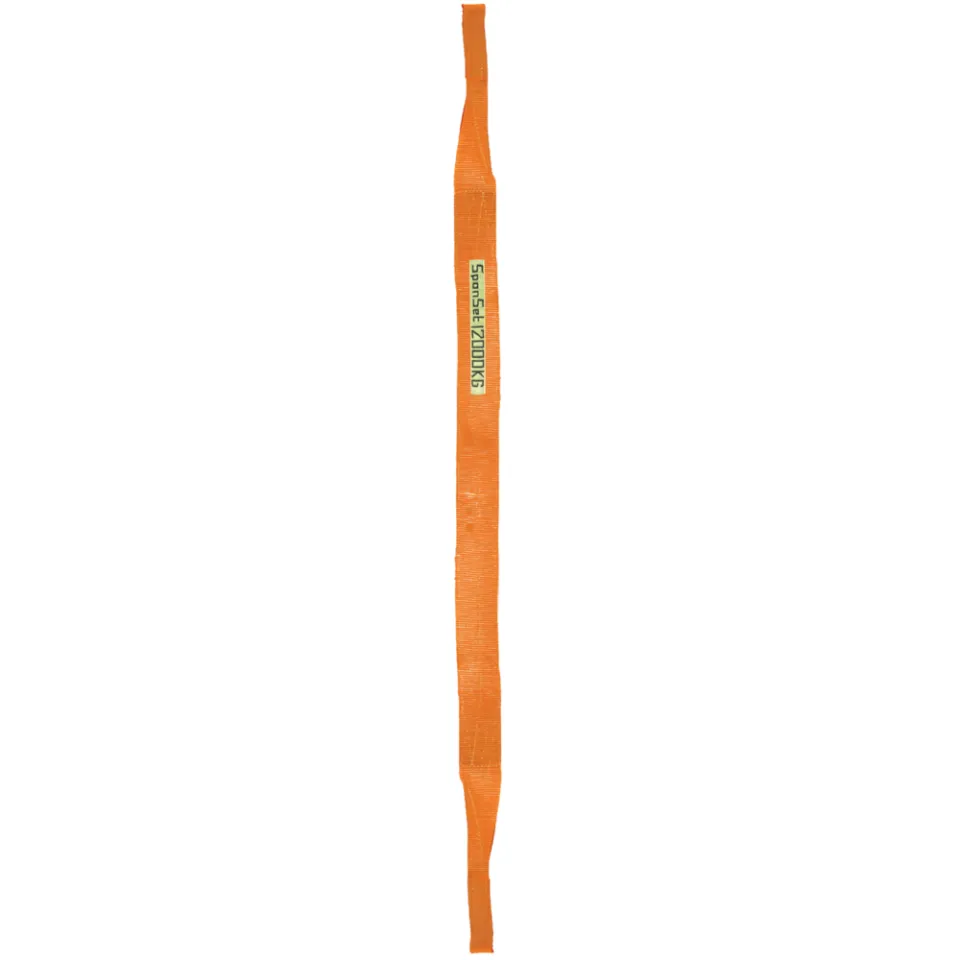

CS-Series 12000kg 2.5m
- Suitable for boat lifts when in basket configuration.
- Manufactured with reinforced eyes for greater durability.
- Flat wide load bearing surface to minimise damage to fragile loads.
- Excellent strength to weight ratio.
- Tuff Tag, webbing reinforced encapsulated compliance labels.
Select Model
Made in Australia
Made, Tested and Certified.
Product Technical Information
-
Safety Factor
8:1 -
Standards
AS 1353.1 -
Temperature Range
-40°C bis +100°C -
Dimension L1 max
50 m -
Colour
Orange -
Main Material
Polyester -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1 -
Number of layers
4
Technical Drawings
Variants information
| Item Number | Item Name | WLL kg | WLL t | Dimension L1 min | Dimension L1 | Loop Length |
|---|---|---|---|---|---|---|
| 2029204 | CS-Series 12000kg 2.5m | 12000 kg | 12 t | 2.5 m | 2.5 m | 800 mm |
| 2029205 | CS-Series 12000kg 3.0m | 12000 kg | 12 t | 2.5 m | 3 m | 800 mm |
| 2029206 | CS-Series 12000kg 4.0m | 12000 kg | 12 t | 2.5 m | 4 m | 800 mm |
| 2029207 | CS-Series 12000kg 5.0m | 12000 kg | 12 t | 2.5 m | 5 m | 800 mm |
| 2029208 | CS-Series 12000kg 6.0m | 12000 kg | 12 t | 2.5 m | 6 m | 800 mm |
| 2029209 | CS-Series 12000kg 7.0m | 12000 kg | 12 t | 2.5 m | 7 m | 800 mm |
| 2029210 | CS-Series 12000kg 8.0m | 12000 kg | 12 t | 2.5 m | 8 m | 800 mm |
| 2029211 | CS-Series 16000kg 3.0m | 16000 kg | 16 t | 3 m | 3 m | 1000 mm |
| 2029212 | CS-Series 16000kg 4.0m | 16000 kg | 16 t | 3 m | 4 m | 1000 mm |
| 2029213 | CS-Series 16000kg 5.0m | 16000 kg | 16 t | 3 m | 5 m | 1000 mm |
| 2029214 | CS-Series 160000kg 6.0m | 16000 kg | 16 t | 3 m | 6 m | 1000 mm |
| 2029215 | CS-Series 16000kg 8.0m | 16000 kg | 16 t | 3 m | 8 m | 1000 mm |
| 2029216 | CS-Series 20000kg 3.0m | 20000 kg | 20 t | 3.1 m | 3 m | 1200 mm |
| 2029217 | CS-Series 20000kg 4.0m | 20000 kg | 20 t | 3.1 m | 4 m | 1200 mm |
| 2029218 | CS-Series 20000kg 5.0m | 20000 kg | 20 t | 3.1 m | 5 m | 1200 mm |
| 2029219 | CS-Series 20000kg 6.0m | 20000 kg | 20 t | 3.1 m | 6 m | 1200 mm |
| 2029220 | CS-Series 20000kg 7.0m | 20000 kg | 20 t | 3.1 m | 7 m | 1200 mm |
| 2029221 | CS-Series 20000kg 8.0m | 20000 kg | 20 t | 3.1 m | 8 m | 1200 mm |
| 2029222 | CS-Series 25000kg 4.0m | 25000 kg | 25 t | 3.1 m | 4 m | 1200 mm |
