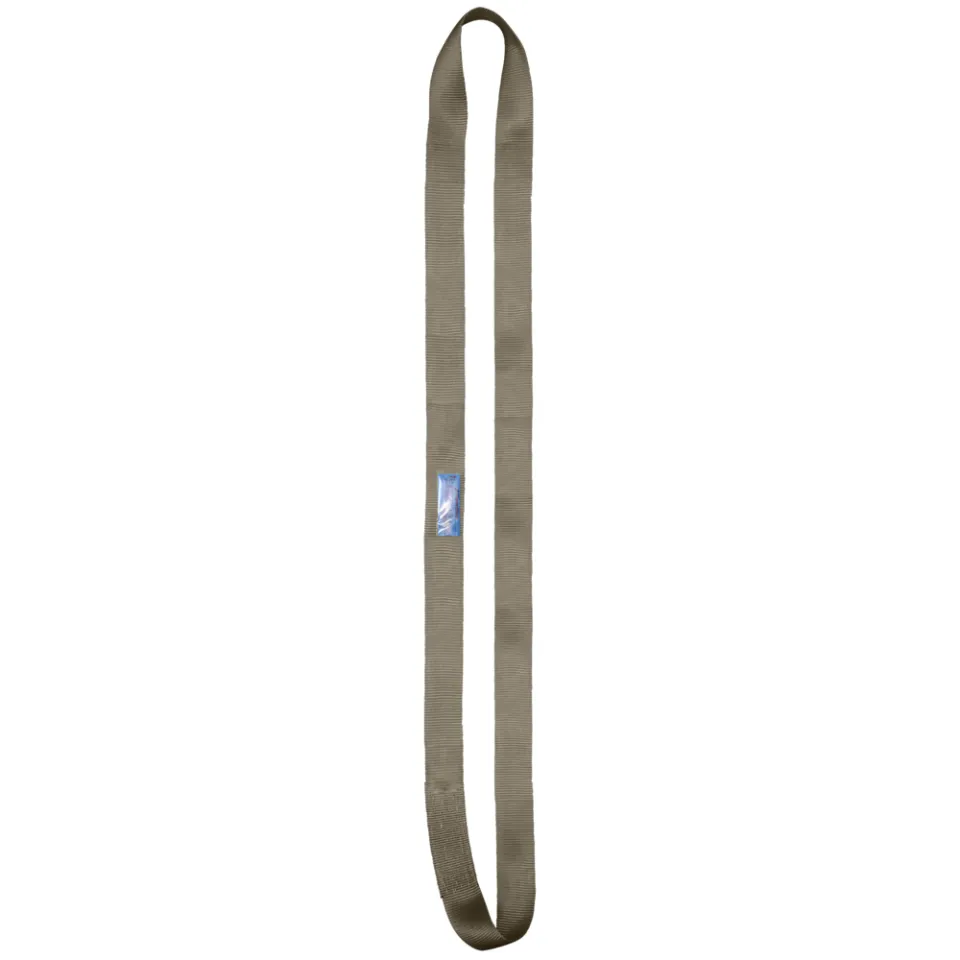

SpanSet D-Series Single Ply 250kg 1.5m Endless Flat Slings Main picture small
SpanSet D-Series Single Ply 250kg 1.5m Endless Flat Slings Small picture 1

D-Series 1Ply Flat Endless Slings

D-Series 1Ply Flat Endless Slings

Flat wide load bearing surface to minimise damage to fragile loads

Item Number: 2029223
SSAUS ERP Code: D0250-0x1.5
D-Series Single Ply 250kg 1.5m
  • Manufactured with Hi-Tech webbing for greater durability.
  • Lightweight for enhanced manual handling safety.
  • Excellent strength to weight ratio.
  • Tuff Tag, webbing reinforced encapsulated compliance labels.

Select Model

...

Made in Australia

Made, Tested and Certified.

Product Technical Information

  • Safety Factor
    8:1
  • Standards
    AS 1353.1
  • Temperature Range
    -40⁰C to 100⁰C
  • Dimension L1 max
    50 m
  • Main Material
    Polyester
  • Packaging Unit (PU)
    pcs
  • Packaging Unit (PU) Content
    1
  • Number of layers
    1

Technical Drawings

Item Number Item Name WLL kg WLL t Dimension L1 min Dimension L1 Webbing Width B Webbing Thickness Colour Minimum Load Edge Radius
2029223 D-Series Single Ply 250kg 1.5m 250 kg 25 t 0.3 m 1.5 m 25 2 mm Olive 6 mm
2029224 D-Series SinglePly 250kg 2.0m 250 kg 25 t 0.3 m 2 m 25 2 mm Olive 6 mm
2029225 D-Series SinglePly 250kg 2.5m 250 kg 25 t 0.3 m 2.5 m 25 2 mm Olive 6 mm
2029226 D-Series SinglePly 250kg 3.0m 250 kg 25 t 0.3 m 3 m 25 2 mm Olive 6 mm
2029227 D-Series SinglePly 250kg 6.0m 250 kg 25 t 0.3 m 6 m 25 2 mm Olive 6 mm
2029228 D-Series SinglePly 250kg 8.0m 250 kg 25 t 0.3 m 8 m 25 2 mm Olive 6 mm
2029229 D-Series Single Ply 500kg 1.5m 500 kg 0.5 t 0.3 m 1.5 m 35 2 mm Olive 6 mm
2029230 D-Series Single Ply 500kg 2.0m 500 kg 0.5 t 0.3 m 2 m 35 2 mm Olive 6 mm
2029231 D-Series Single Ply 500kg 2.5m 500 kg 0.5 t 0.3 m 2.5 m 35 2 mm Olive 6 mm
2029236 D-Series Single Ply 500kg 3.0m 500 kg 0.5 t 0.3 m 3 m 35 2 mm Olive 6 mm
2029237 D-Series Single Ply 500kg 4.0m 500 kg 0.5 t 0.3 m 4 m 35 2 mm Olive 6 mm
2029238 D-Series Single Ply 500kg 6.0m 500 kg 0.5 t 0.3 m 6 m 35 2 mm Olive 6 mm
2029239 D-Series SinglePly 1000kg 1.5m 1000 kg 1 t 0.3 m 1.5 m 50 3 mm Purple 9 mm
2029240 D-Series SinglePly 1000kg 2.0m 1000 kg 1 t 0.3 m 2 m 50 3 mm Purple 9 mm
2029241 D-Series SinglePly 1000kg 2.5m 1000 kg 1 t 0.3 m 2.5 m 50 3 mm Purple 9 mm
2029242 D-Series SinglePly 1000kg 3.0m 1000 kg 1 t 0.3 m 3 m 50 3 mm Purple 9 mm
2029243 D-Series SinglePly 1000kg 4.0m 1000 kg 1 t 0.3 m 4 m 50 3 mm Purple 9 mm
2029244 D-Series SinglePly 1000kg 5.0m 1000 kg 1 t 0.3 m 5 m 50 3 mm Purple 9 mm
2029245 D-Series SinglePly 1000kg 6.0m 1000 kg 1 t 0.3 m 6 m 50 3 mm Purple 9 mm
2029246 D-Series SinglePly 1000kg 8.0m 1000 kg 1 t 0.3 m 8 m 50 3 mm Purple 9 mm
2029247 D-Series SinglePly 2000kg 1.5m 2000 kg 2 t 0.4 m 1.5 m 75 4 mm Green 12 mm
2029248 D-Series SinglePly 2000kg 2.0m 2000 kg 2 t 0.4 m 2 m 75 4 mm Green 12 mm
2029249 D-Series SinglePly 2000kg 2.5m 2000 kg 2 t 0.4 m 2.5 m 75 4 mm Green 12 mm
2029250 D-Series SinglePly 2000kg 3.0m 2000 kg 2 t 0.4 m 3 m 75 4 mm Green 12 mm
2029251 D-Series SinglePly 2000kg 4.0m 2000 kg 2 t 0.4 m 4 m 75 4 mm Green 12 mm
2029252 D-Series SinglePly 2000kg 5.0m 2000 kg 2 t 0.4 m 5 m 75 4 mm Green 12 mm
2029253 D-Series SinglePly 2000kg 6.0m 2000 kg 2 t 0.4 m 6 m 75 4 mm Green 12 mm
2029254 D-Series SinglePly 2000kg 7.0m 2000 kg 2 t 0.4 m 7 m 75 4 mm Green 12 mm
2029255 D-Series SinglePly 3000kg 1.5m 3000 kg 3 t 0.6 m 1.5 m 100 4 mm Yellow 12 mm
2029256 D-Series SinglePly 3000kg 2.0m 3000 kg 3 t 0.6 m 2 m 100 4 mm Yellow 12 mm
2029257 D-Series SinglePly 3000kg 2.5m 3000 kg 3 t 0.6 m 2.5 m 100 4 mm Yellow 12 mm
2029258 D-Series SinglePly 3000kg 3.0m 3000 kg 3 t 0.6 m 3 m 100 4 mm Yellow 12 mm
2029259 D-Series SinglePly 3000kg 4.0m 3000 kg 3 t 0.6 m 4 m 100 4 mm Yellow 12 mm
2029260 D-Series SinglePly 3000kg 5.0m 3000 kg 3 t 0.6 m 5 m 100 4 mm Yellow 12 mm
2029261 D-Series SinglePly 3000kg 6.0m 3000 kg 3 t 0.6 m 6 m 100 4 mm Yellow 12 mm
2029262 D-Series SinglePly 3000kg 7.0m 3000 kg 3 t 0.6 m 7 m 100 4 mm Yellow 12 mm
2029263 D-Series SinglePly 4000kg 1.5m 4000 kg 4 t 0.6 m 1.5 m 140 4 mm Grey 12 mm
2029264 D-Series SinglePly 4000kg 2.0m 4000 kg 4 t 0.6 m 2 m 140 4 mm Grey 12 mm
2029265 D-Series SinglePly 4000kg 2.5m 4000 kg 4 t 0.6 m 2.5 m 140 4 mm Grey 12 mm
2029266 D-Series SinglePly 4000kg 3.0m 4000 kg 4 t 0.6 m 3 m 140 4 mm Grey 12 mm
2029267 D-Series SinglePly 4000kg 4.0m 4000 kg 4 t 0.6 m 4 m 140 4 mm Grey 12 mm
2029268 D-Series SinglePly 4000kg 5.0m 4000 kg 4 t 0.6 m 5 m 140 4 mm Grey 12 mm
2029269 D-Series SinglePly 4000kg 6.0m 4000 kg 4 t 0.6 m 6 m 140 4 mm Grey 12 mm
2029270 D-Series SinglePly 5000kg 1.5m 5000 kg 5 t 0.6 m 1.5 m 150 4 mm Red 12 mm
2029271 D-Series SinglePly 5000kg 2.0m 5000 kg 5 t 0.6 m 2 m 150 4 mm Red 12 mm
2029272 D-Series SinglePly 5000kg 2.5m 5000 kg 5 t 0.6 m 2.5 m 150 4 mm Red 12 mm
2029273 D-Series SinglePly 5000kg 3.0m 5000 kg 5 t 0.6 m 3 m 150 4 mm Red 12 mm
2029274 D-Series SinglePly 5000kg 4.0m 5000 kg 5 t 0.6 m 4 m 150 4 mm Red 12 mm
2029275 D-Series SinglePly 5000kg 6.0m 5000 kg 5 t 0.6 m 6 m 150 4 mm Red 12 mm
2029276 D-Series SinglePly 6000kg 2.0m 6000 kg 6 t 0.6 m 2 m 180 4 mm Brown 12 mm
2029277 D-Series SinglePly 6000kg 4.0m 6000 kg 6 t 0.6 m 4 m 180 4 mm Brown 12 mm
2029278 D-Series SinglePly 6000kg 5.0m 6000 kg 6 t 0.6 m 5 m 180 4 mm Brown 12 mm
2029279 D-Series Single Ply 8000kg 3.0m 8000 kg 8 t 0.6 m 3 m 240 5 mm Blue 15 mm
2029280 D-Series Single Ply 8000kg 5.0m 8000 kg 8 t 0.6 m 5 m 240 5 mm Blue 15 mm
2029281 D-Series Single Ply 10000kg 5.0m 10000 kg 10 t 0.7 m 5 m 300 5 mm Orange 15 mm
2029282 D-Series Single Ply 10000kg 6.0m 10000 kg 10 t 0.7 m 6 m 300 5 mm Orange 15 mm
