ERGO Harness with padded waist belt

ERGO Harness with padded waist belt

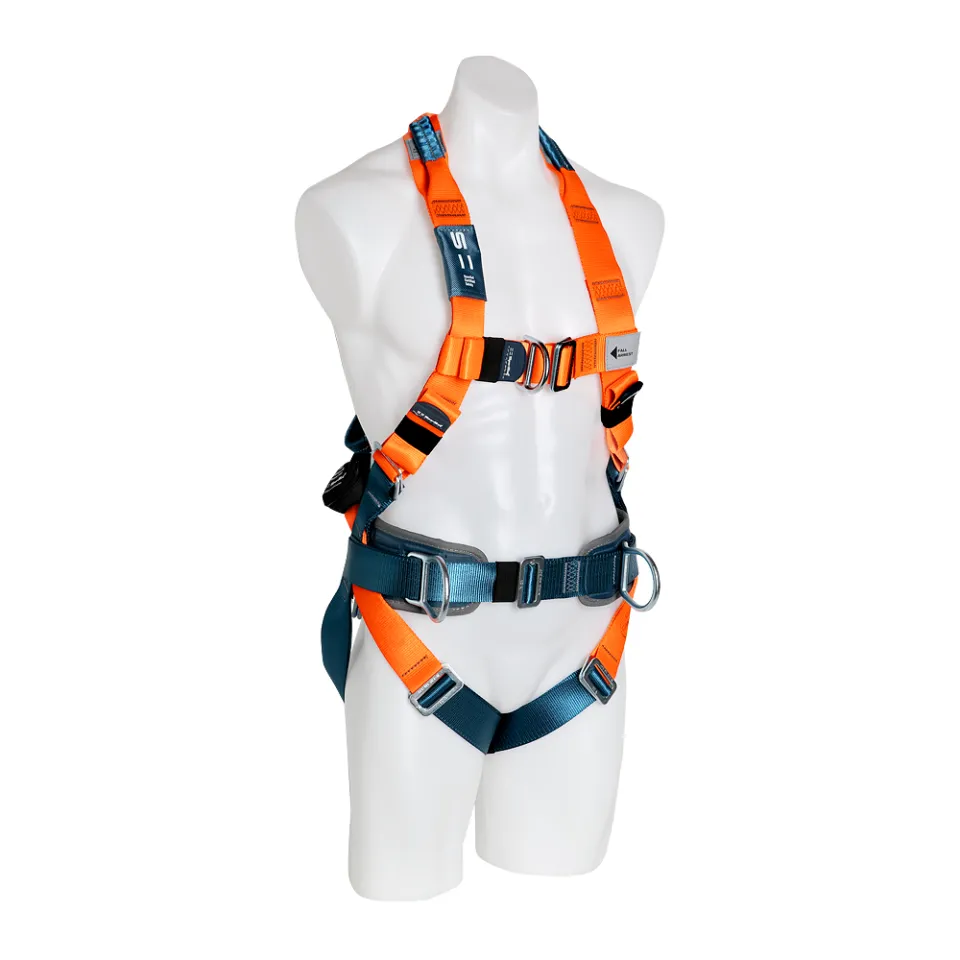

Full body fall arrest harness with front fall arrest D and rear fall arrest D with dorsal extension and padded waist belt

Item Number: 2026926
SSAUS ERP Code: 1107ERGO-S-0
1107ERGO-S-0
  • Front and rear fall arrest D with dorsal extension.
  • Padded waist belt with side D's for pole strap attachment.
  • Fully adjustable shoulder, chest and leg straps.
  • Suitable for roof work, ladder systems, EWP, maintenance and construction, ladder, tower and pole work.
  • Confined space entry loops.
  • Suspension trauma relief straps.
  • Breathable mesh panel at rear.

Select Model

...

Padded Waist Belt

Offers more comfort and back support for longer working tasks - with side D's for pole strap attachment

...

Dorsal Extension

Allow operator to visually connect lanyard

...

Label Protection

Compliance label with details secured in protection pouch.

...

Individual Serial Number

Clear and standard-compliant labelling with traceability code

...

Safeguard for Webbing Ends

Elastic web tidies to secure webbing ends

...

Strong yet supple polyester web

Adapts to the body shape ensuring the harness is comfortable to wear

...

Corrosion Resistance

Zinc Plated

Connectors and fittings are made of zinc plated hardened alloy steel and offer high corrosion resistance and easy adjustment.

The SpanSet ERGO harness is our compliant range that is most popular with tradies and construction workers.

A fully adjustable and easy to fit harness suitable for fall arrest applications and comes with SpanSet suspension trauma relief straps.

The 1107 harness style comes with dorsal extension to allow operator to visually connect a lanyard to rear attachment point and has a padded waist belt with side D's to allow the operator to connect a pole strap when working on ladders, towers and poles.

Product Technical Information

  • Standards: AS/NZS 1891.1:2020
  • Lifespan: 10 yr.
  • Maximum User Weight: 150 kg
  • Harness Webbing Material: High Tensile Polyester
  • Hardware Material: Zinc Plated Hardened Alloy Steel
  • Label Protection: Yes
  • Individually Serial Numbered: Yes
  • Individual Certificate: Yes
  • Inspection Guide: Yes
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1
  • Sternal Anchorage: Yes
  • Packaging Type: Drawstring bag

Product downloads and manuals

Height Safety User Manual
(en)
Download
Suspension Trauma Relief Straps
(en)
Download
Harness Sizing
(en)
Download
Fall Clearance distance
(en)
Download
Height Safety Product Selection Guide
(en)
Download

Item Number Item Name Shirt Size Weight Net
2026926 1107ERGO-S-0 S 1.94 kg
2026929 1107ERGO-0 M/2XL 1.98 kg
2026932 1107ERGO-L-0 L/3XL 2.02 kg
2026995 1107ERGO-XL-0 XL/4XL 2.06 kg
2026996 1107ERGO-XXL-0 2XL/5XL 2.1 kg
2026997 1107ERGO-XXXL-0 3XL/6XL 2.15 kg
