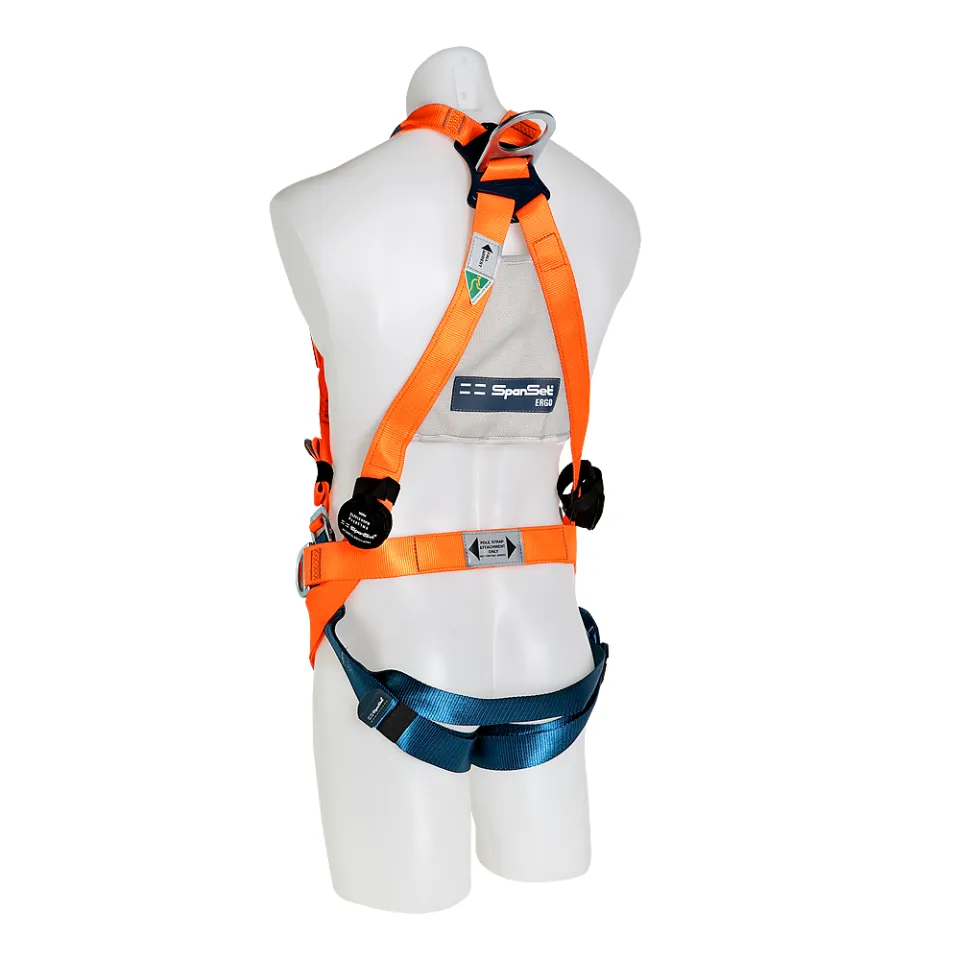

ERGO Harness with waist belt
ERGO Harness with waist belt
Full body fall arrest harness with front fall arrest D and rear fall arrest D with waist belt
- Front and rear fall arrest D.
- Waist belt with side D's for pole strap attachment.
- Fully adjustable shoulder, chest and leg straps.
- Suitable for roof work, ladder systems, EWP, maintenance and construction, ladder, tower and pole work.
- Confined space entry loops.
- Suspension trauma relief straps.
- Breathable mesh panel at rear.
Select Model

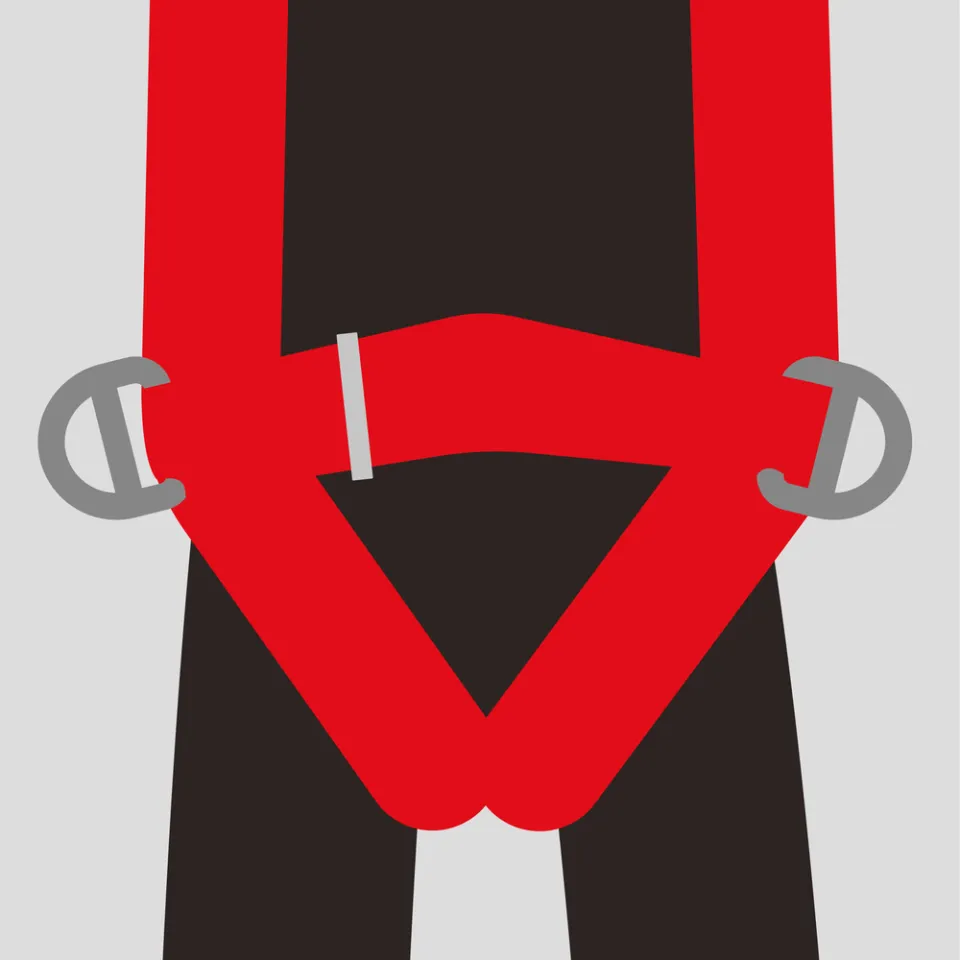

Waist Belt
With side D's for pole strap attachment
Label Protection
Compliance label with details secured in protection pouch.
Individual Serial Number
Clear and standard-compliant labelling with traceability code
Safeguard for Webbing Ends
Elastic web tidies to secure webbing ends
Strong yet supple polyester web
Adapts to the body shape ensuring the harness is comfortable to wear
Corrosion Resistance
Zinc Plated
Connectors and fittings are made of zinc plated hardened alloy steel and offer high corrosion resistance and easy adjustment.
The SpanSet ERGO harness is our compliant range that is most popular with tradies and construction workers.
A fully adjustable and easy to fit harness suitable for fall arrest applications and comes with SpanSet suspension trauma relief straps.
The 1300 style harness has a waist belt with side D's to allow the operator to connect a pole strap when working on ladders, towers and poles.
Product Technical Information
-
Standards
AS/NZS 1891.1:2020 -
Lifespan
10 yr. -
Maximum User Weight
150 kg -
Harness Webbing Material
Polyester -
Hardware Material
Zinc Plated Hardened Alloy Steel -
Label Protection
Yes -
Colour
Orange -
Individually Serial Numbered
Yes -
Individual Certificate
Yes -
Inspection Guide
Yes -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1 -
Private Label
Yes -
Sternal Anchorage
Yes -
Packaging Type
Drawstring bag -
Dorsal Anchorage
Yes -
Ventral Anchorage
No -
Padded Shoulders
No -
Positioning Belt
Yes -
Dorsal Extension
No -
Padded Leg straps
No -
Fixed Energy absorber
No -
Tool Attachments
No -
Relief Straps included
No
Variants information
| Item Number | Item Name | Shirt Size | Weight Net |
|---|---|---|---|
| 2026874 | 1300ERGO-S-0 | S | 1.88 kg |
| 2026875 | 1300ERGO-0 | M/2XL | 1.93 kg |
| 2026876 | 1300ERGO-L-0 | L/3XL | 1.97 kg |
| 2026877 | 1300ERGO-XL-0 | XL/4XL | 2 kg |
| 2026878 | 1300ERGO-XXL-0 | 2XL/5XL | 2.05 kg |
| 2026879 | 1300ERGO-XXXL-0 | 3XL/6XL | 2.09 kg |
