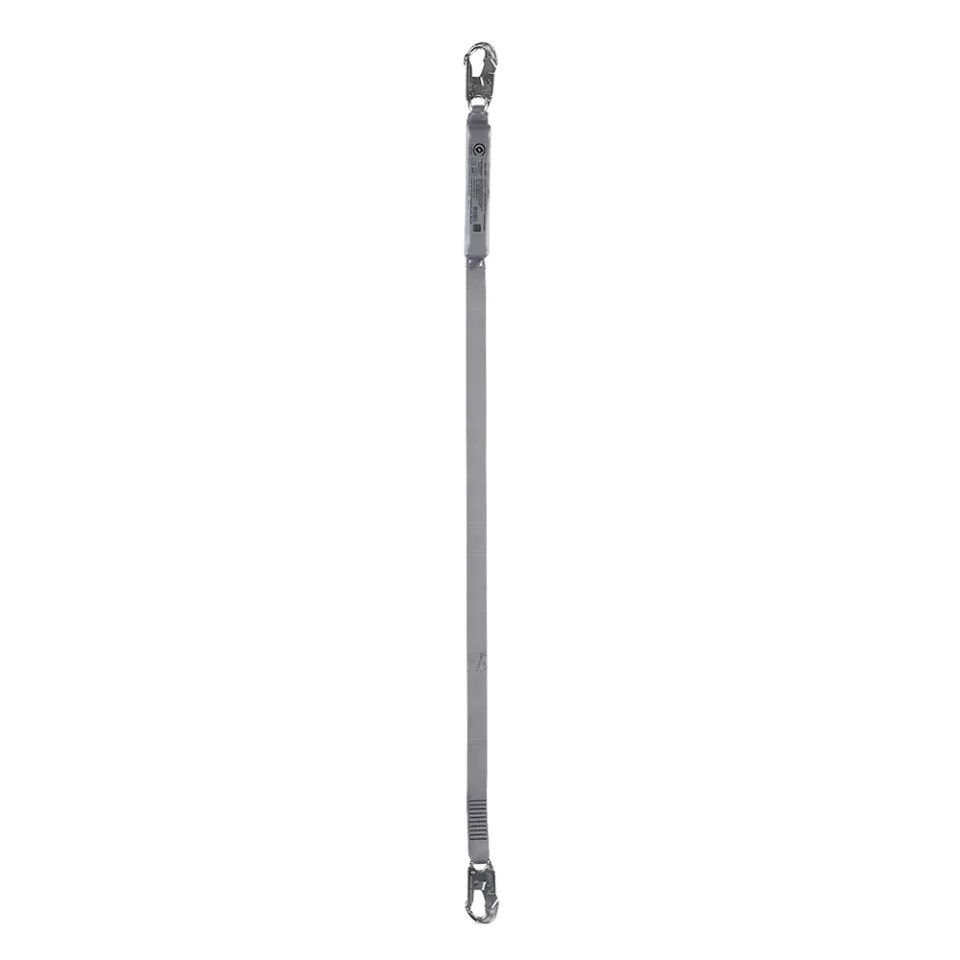

ERGO Plus Web Fixed - Single
ERGO Plus Web Fixed - Single
Premium fall arrest energy absorbing web lanyard
- Fixed length webbing - other lengths available.
- iWeb™ High tensile polyester inspection ready webbing.
- Xtreme Guard - water and oil resistant.
- High tensile contrasting stitching.
- Lightweight aluminium fittings.
- Tear web energy absorber with clear sleeve to allow inspection.
Select Model
SpanSet i-Web™
Inspection Ready Webbing
Red webbing core allows allows an objective inspection criteria for cuts and abrasions
Xtreme Guard Webbing
Abrasion, Water and Oil Resistant
Webbing is treated to offer abrasion, water and oil resistance
Individual Serial Number
Clear and standard-compliant labelling with traceability code
Corrosion Resistance
Aluminium
Connectors and fittings are made of aluminium and offer high corrosion resistance and easy adjustment.
Label Protection
Label with additional protective foil
SpanSet Premium ERGO Plus energy absorbing lanyards
Designed to minimise the forces endured by an operator should a fall occur.
- Back up straps should the tear web be fully deployed and all are compliant to AS1891.5:2020.
- SpanSet patented iWeb™ inspection ready webbing.
To inspect your lanyard with iWeb™ simply look for visible red yarn that clearly marks cuts and abrasions. If the inner red core is visible upon inspection, then the lanyard must be removed from service. - Lightweight aluminium corrision resistant connectors and high tenacity polyester webbing offering outstanding safety and value.
Product Technical Information
-
Standards:
AS/NZS 1891.5:2020
-
Lifespan:
10 yr.
-
Energy Absorbing:
Yes
-
Lanyard Leg Type:
Single Fixed Length
-
Maximum User Weight:
140 kg
-
Hardware Material:
Aluminium
-
Label Protection:
Yes
-
Colour:
Grey
-
Main Material:
iWeb High Tensile Polyester
-
Individually Serial Numbered:
Yes
-
Individual Certificate:
Yes
-
Inspection Guide:
Yes
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Packaging Type:
Drawstring bag
Variants information
| Item Number | Item Name | Weight Net | Anchor Connector | Harness Connector | Length |
|---|---|---|---|---|---|
| 2027604
SSAUS ERP Code: 3053-ERGOPLUS-0.9 |
3053-ERGOPLUS-0.9 | 0.72 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
0.9 m |
| 2027605
SSAUS ERP Code: 3053-ERGOPLUS-1.0 |
3053-ERGOPLUS-1.0 | 0.73 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
1 m |
| 2027606
SSAUS ERP Code: 3053-ERGOPLUS-1.3 |
3053-ERGOPLUS-1.3 | 0.75 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
1.3 m |
| 2027607
SSAUS ERP Code: 3053-ERGOPLUS-1.8 |
3053-ERGOPLUS-1.8 | 0.78 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
1.8 m |
| 2027608
SSAUS ERP Code: 3055-ERGOPLUS-0.7 |
3055-ERGOPLUS-0.7 | 1.07 kg |

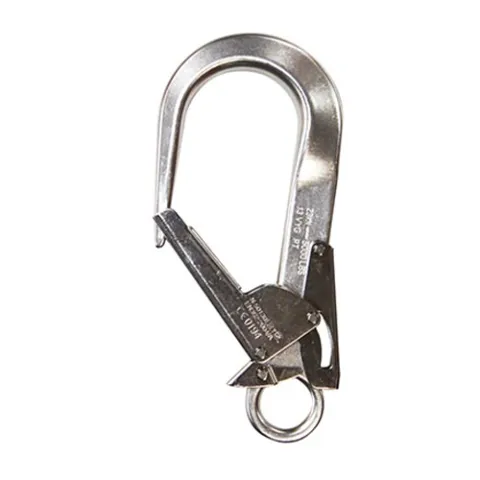

Double action scaff hook - Aluminium H3-ALU-GRY-1 |
Double action snap hook - Aluminium H1-ALU-GRY-1 |
0.7 m |
| 2027609
SSAUS ERP Code: 3055-ERGOPLUS-1.0 |
3055-ERGOPLUS-1.0 | 1.07 kg |
Double action scaff hook - Aluminium H3-ALU-GRY-1 |
Double action snap hook - Aluminium H1-ALU-GRY-1 |
1 m |
| 2027610
SSAUS ERP Code: 3055-ERGOPLUS-1.5 |
3055-ERGOPLUS-1.5 | 1.11 kg |
Double action scaff hook - Aluminium H3-ALU-GRY-1 |
Double action snap hook - Aluminium H1-ALU-GRY-1 |
1.5 m |
| 2027611
SSAUS ERP Code: 3055-ERGOPLUS-1.8 |
3055-ERGOPLUS-1.8 | 1.13 kg |
Double action scaff hook - Aluminium H3-ALU-GRY-1 |
Double action snap hook - Aluminium H1-ALU-GRY-1 |
1.8 m |
