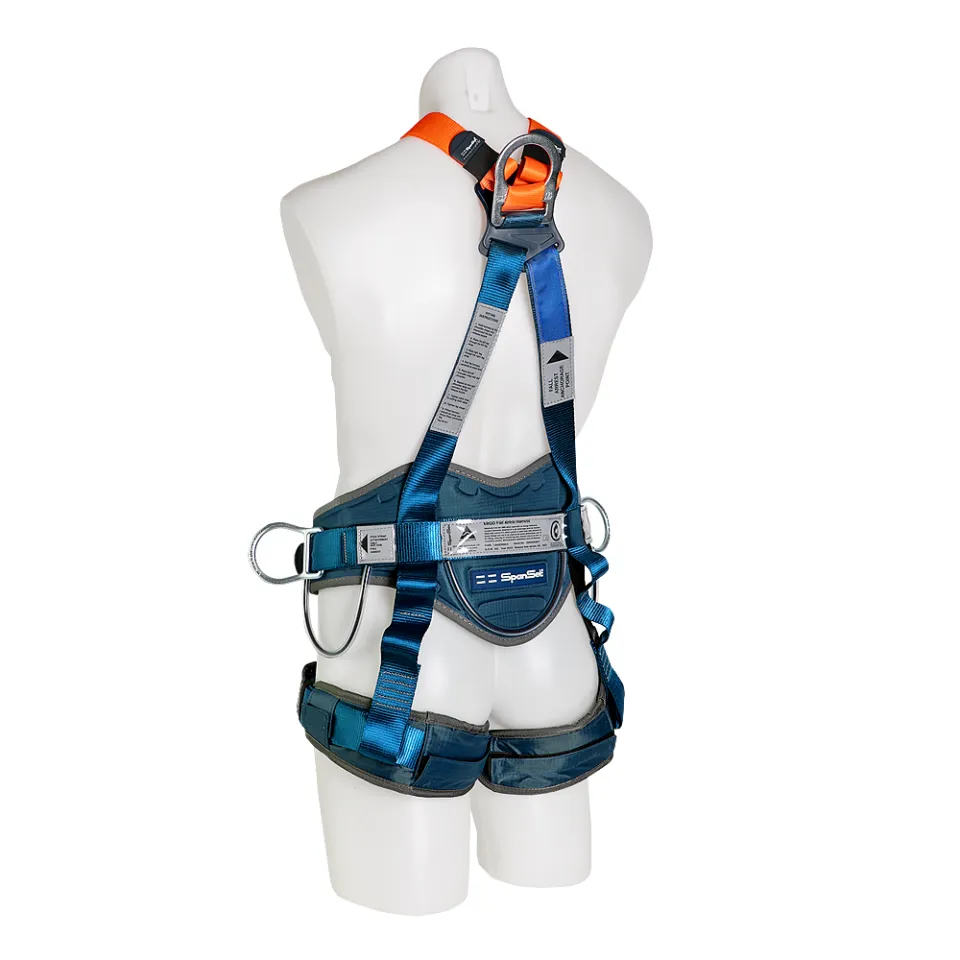

ERGO Rope Access Suspension Harness
ERGO Rope Access Suspension Harness
Full body fall arrest rope access suspension harness with front fall arrest D, secondary front fall arrest and suspension D, rear fall arrest D and padded waist belt with tool loops
- Front and rear fall arrest D.
- Secondary front fall arrest and suspension D.
- Fully adjustable shoulder and leg straps.
- Step in stlye harness with Quick Connect shoulder buckle.
- Padded waist belt with tool loops and side D's for pole strap attachment.
- Suitable for fall arrest, roof work, ladder systems, EWP, maintenance and construction, pole and tower work, rope access and suspension work.
Select Model

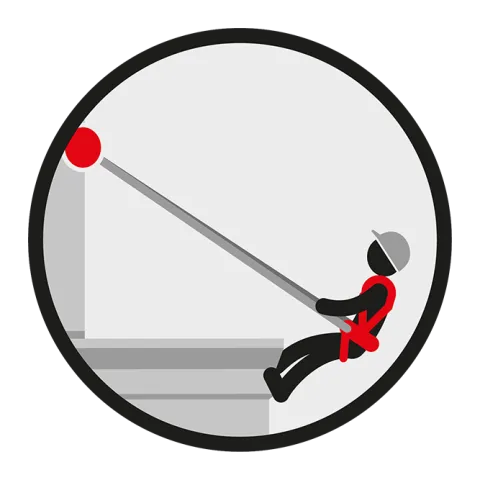

Specialist harness for
rope access applications
The SpanSet ERGO harness is our compliant range that is most popular with tradies and construction workers.
A fully adjustable and easy to fit harness suitable for fall arrest applications.
The 1800 harness is designed as a suspension harness and suited for Rope Access applications and comes with a padded waist belt with tool loops to allow all day use and side D's to allow the operator to connect a pole strap when working on ladders, towers and poles.

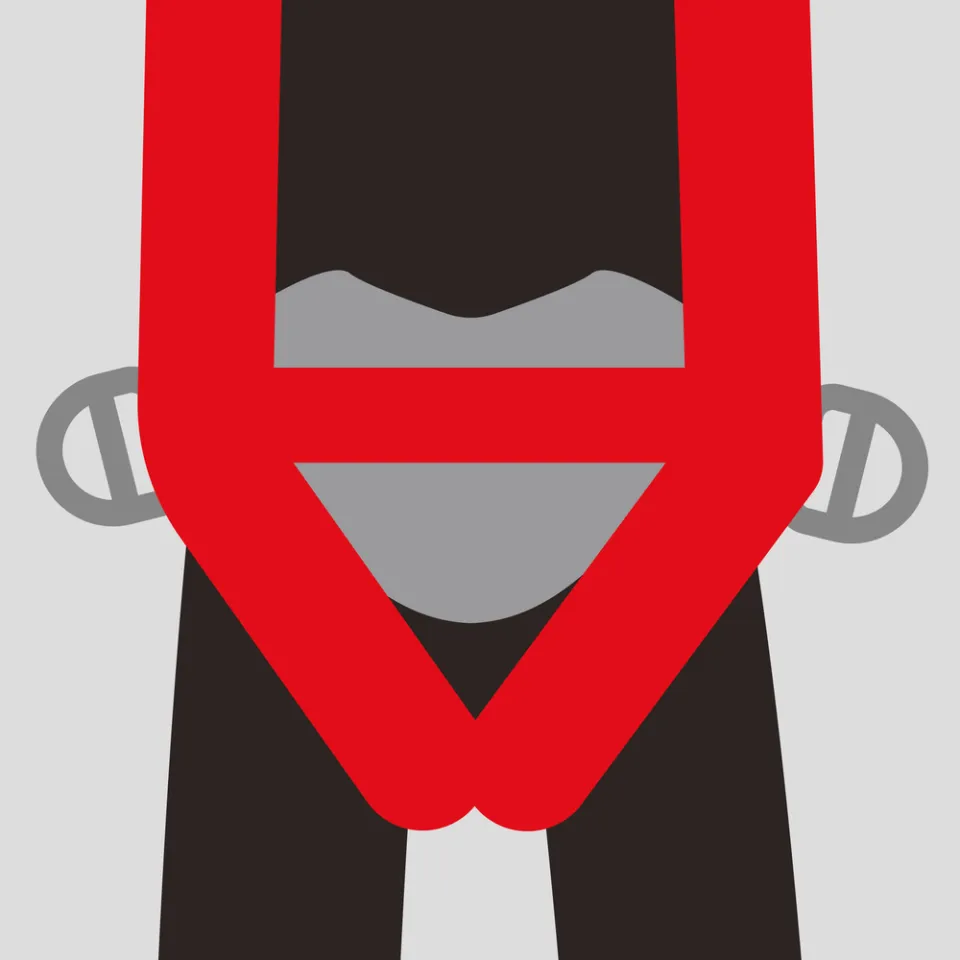

Padded Waist Belt
Offers more comfort and back support for longer working tasks - with side D's for pole strap attachment
Label Protection
Compliance label with details secured in protection pouch.
Individual Serial Number
Clear and standard-compliant labelling with traceability code
Safeguard for Webbing Ends
Elastic web tidies to secure webbing ends
Strong yet supple polyester web
Adapts to the body shape ensuring the harness is comfortable to wear
Corrosion Resistance
Zinc Plated
Connectors and fittings are made of zinc plated hardened alloy steel and offer high corrosion resistance and easy adjustment.
Product Technical Information
-
Standards
AS/NZS 1891.1:2020 -
Lifespan
10 yr. -
Maximum User Weight
150 kg -
Harness Webbing Material
Polyester -
Hardware Material
Zinc Plated Hardened Alloy Steel -
Label Protection
Yes -
Colour
Orange -
Individually Serial Numbered
Yes -
Individual Certificate
Yes -
Inspection Guide
Yes -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1 -
Private Label
Yes -
Sternal Anchorage
Yes -
Packaging Type
Drawstring bag -
Dorsal Anchorage
Yes -
Ventral Anchorage
Yes -
Padded Shoulders
Yes -
Positioning Belt
Yes -
Dorsal Extension
No -
Padded Leg straps
Yes -
Fixed Energy absorber
No -
Tool Attachments
Yes -
Relief Straps included
No
Variants information
| Item Number | Item Name | Shirt Size | Weight Net |
|---|---|---|---|
| 2026880 | 1800ERGO-S-0 | S | 2.15 kg |
| 2026881 | 1800ERGO-0 | M/2XL | 2.18 kg |
| 2026882 | 1800ERGO-L-0 | L/3XL | 2.22 kg |
| 2026883 | 1800ERGO-XL-0 | XL/4XL | 2.25 kg |
| 2026884 | 1800ERGO-2XL-0 | 2XL/5XL | 2.29 kg |
