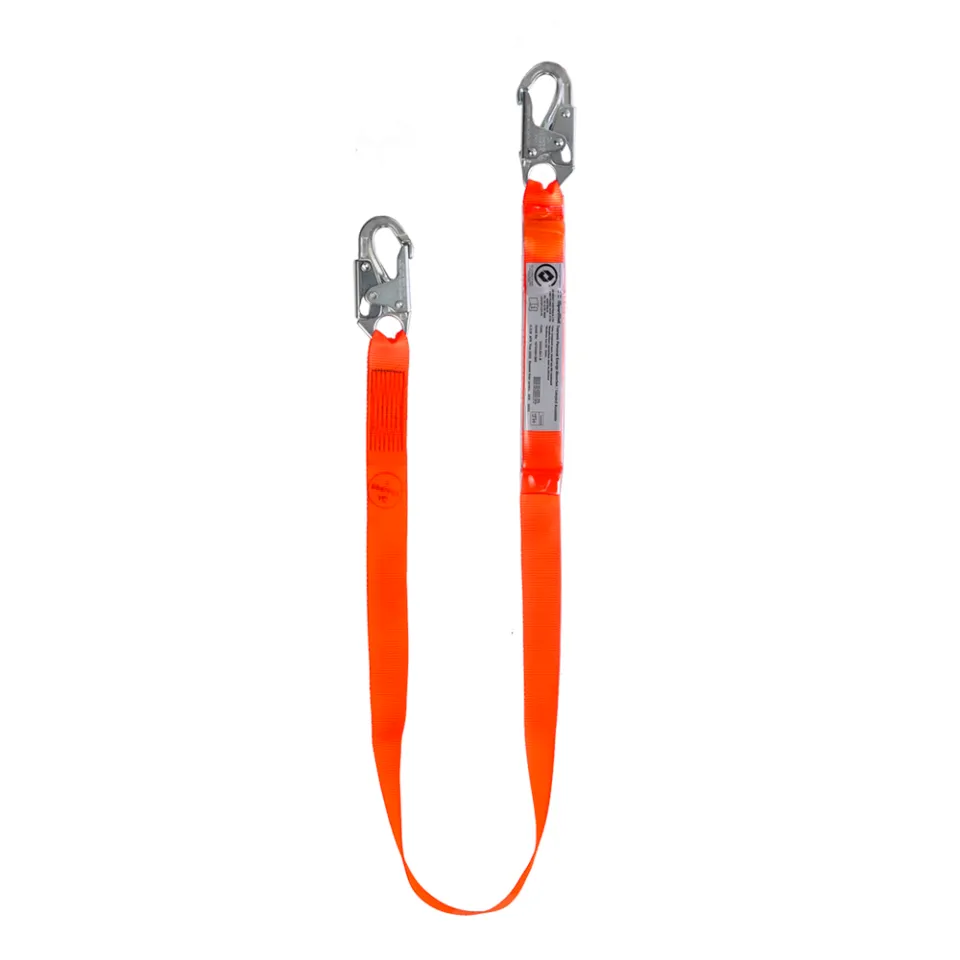

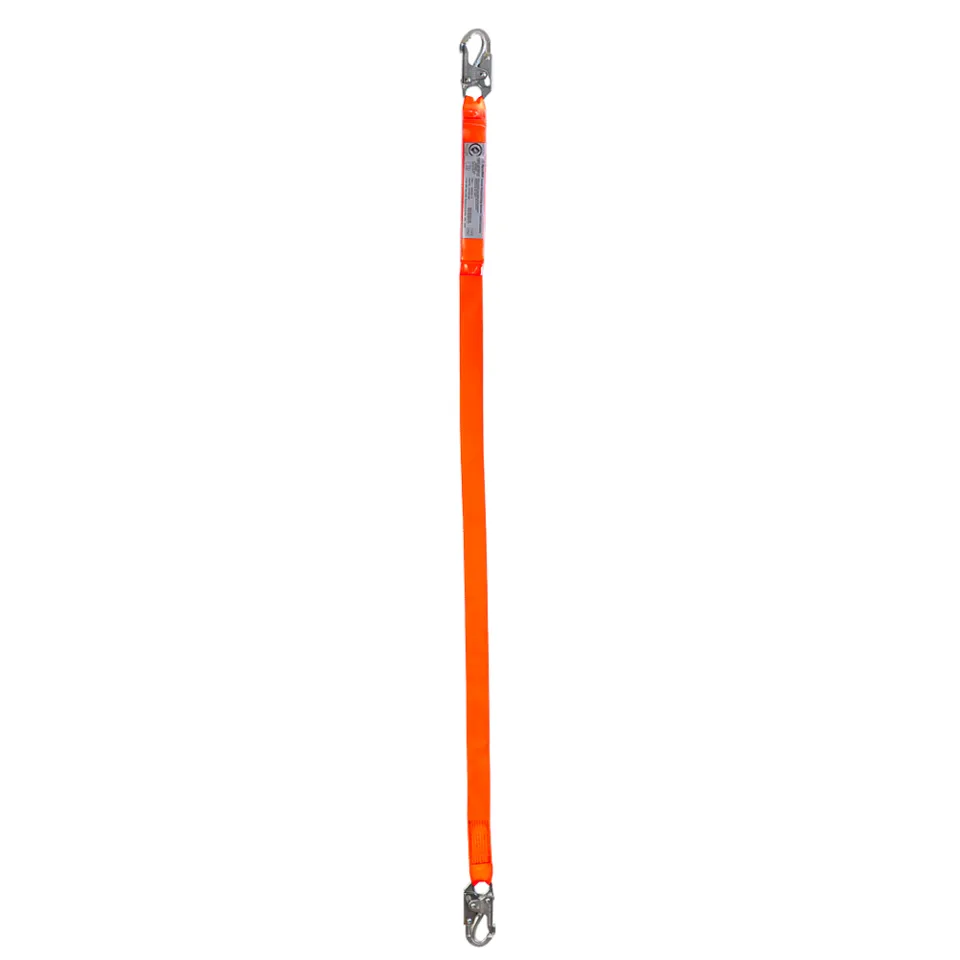

ERGO Web Fixed - Single
ERGO Web Fixed - Single
Fall arrest energy absorbing web lanyard
Item Number: 2024864
SSAUS ERP Code: 3053-0x0.6
3053-0x0.6
- Fixed length webbing - other lengths available.
- High tensile polyester webbing.
- High tensile contrasting stitching.
- Zinc plated hardened alloy steel fittings.
- Tear web energy absorber with clear sleeve to allow inspection.
Select Model
Label Protection
Label with additional protective foil
Individual Serial Number
Clear and standard-compliant labelling with traceability code
Corrosion Resistance
Zinc Plated
Connectors and fittings are made of zinc plated hardened alloy steel and offer high corrosion resistance and easy adjustment.
SpanSet Ergo Energy absorbing lanyard
Designed to minimise the forces endured by an operator should a fall occur.
- Single lanyard suits general purpose applications.
- Fixed Length webbing - other lengths available.
- Back up straps should the tear web be fully deployed and all are certified to AS1891.5:2020.
- Heavy duty, alloy steel, corrosion resistant components.
- High tenacity polyester webbing they offer outstanding safety and value.
Product Technical Information
-
Standards:
AS/NZS 1891.5:2020
-
Lifespan:
10 yr.
-
Energy Absorbing:
Yes
-
Lanyard Leg Type:
Single Fixed Length
-
Maximum User Weight:
140 kg
-
Hardware Material:
Zinc Plated Hardened Alloy Steel
-
Label Protection:
Yes
-
Colour:
orange
-
Main Material:
High Tensile Polyester
-
Individually Serial Numbered:
Yes
-
Individual Certificate:
Yes
-
Inspection Guide:
Yes
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
Variants information
Item Number | Item Name | Weight Net | Anchor Connector | Harness Connector | Length | Packaging Type |
---|---|---|---|---|---|---|
2024864
SSAUS ERP Code: 3053-0x0.6 |
3053-0x0.6 | 0.98 kg |

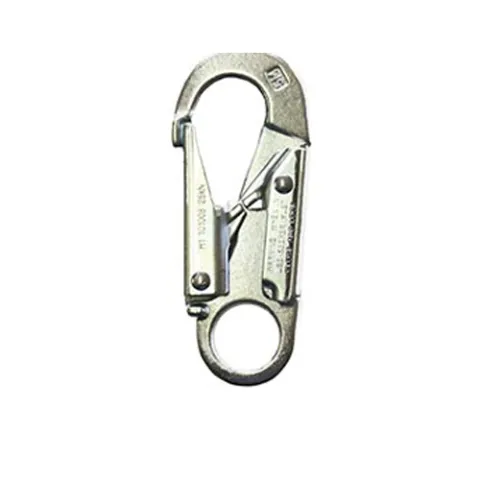

Double action snap hook H1-1 |
Double action snap hook H1-1 |
0.6 m | Drawstring bag |
2024865
SSAUS ERP Code: 3053-0x0.6-K4 |
3053-0x0.6-K4 | 0.88 kg |
Triple action karabiner K4-0 |
Triple action karabiner K4-0 |
0.6 m | Drawstring bag |
2027407
SSAUS ERP Code: 3053-0x0.7 |
3053-0x0.7 | 0.99 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
0.7 m | Drawstring bag |
2027408
SSAUS ERP Code: 3053-0x0.8 |
3053-0x0.8 | 1 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
0.8 m | Drawstring bag |
2027409
SSAUS ERP Code: 3053-0x0.9 |
3053-0x0.9 | 1 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
0.9 m | Drawstring bag |
2027410
SSAUS ERP Code: 3053-0x1.0 |
3053-0x1.0 | 1.01 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
1 m | Drawstring bag |
2027411
SSAUS ERP Code: 3053-0x1.3 |
3053-0x1.3 | 1.03 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
1.3 m | Drawstring bag |
2027412
SSAUS ERP Code: 3053-0x1.4 |
3053-0x1.4 | 1.04 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
1.4 m | Drawstring bag |
2027413
SSAUS ERP Code: 3053-0x1.5 |
3053-0x1.5 | 1.05 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
1.5 m | Drawstring bag |
2027414
SSAUS ERP Code: 3053-0x1.8 |
3053-0x1.8 | 1.07 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
1.8 m | Drawstring bag |
2027415
SSAUS ERP Code: 3053-GP |
3053-GP | 1.07 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
1.8 m | Retail box |
2027416
SSAUS ERP Code: 3053-0x2.0 |
3053-0x2.0 | 1.08 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
2 m | Drawstring bag |
2027417
SSAUS ERP Code: 3053-0x1.0-K4 |
3053-0x1.0-K4 | 0.91 kg |
Triple action karabiner K4-0 |
Triple action karabiner K4-0 |
1 m | Drawstring bag |
2027418
SSAUS ERP Code: 3053-0x1.2-K4 |
3053-0x1.2-K4 | 0.93 kg |
Triple action karabiner K4-0 |
Triple action karabiner K4-0 |
1.2 m | Drawstring bag |
2027419
SSAUS ERP Code: 3053-0x1.3-K4 |
3053-0x1.3-K4 | 0.94 kg |
Triple action karabiner K4-0 |
Triple action karabiner K4-0 |
1.3 m | Drawstring bag |
2027420
SSAUS ERP Code: 3053-0x1.5-K4 |
3053-0x1.5-K4 | 0.95 kg |
Triple action karabiner K4-0 |
Triple action karabiner K4-0 |
1.5 m | Drawstring bag |
2027421
SSAUS ERP Code: 3053-0x1.8-K4 |
3053-0x1.8-K4 | 0.97 kg |
Triple action karabiner K4-0 |
Triple action karabiner K4-0 |
1.8 m | Drawstring bag |
2027422
SSAUS ERP Code: 3053-0x2.0-K4 |
3053-0x2.0-K4 | 0.98 kg |
Triple action karabiner K4-0 |
Triple action karabiner K4-0 |
2 m | Drawstring bag |
2027450
SSAUS ERP Code: 3054-0x1.2 |
3054-0x1.2 | 1.03 kg |
Double action snap hook H1-1 |
Double action snap hook H1-1 |
1.2 m | Drawstring bag |
2027482
SSAUS ERP Code: 3055-0x0.6 |
3055-0x0.6 | 1.24 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
0.6 m | Drawstring bag |
2027483
SSAUS ERP Code: 3055-0x0.8 |
3055-0x0.8 | 1.25 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
0.8 m | Drawstring bag |
2027484
SSAUS ERP Code: 3055-0x0.9 |
3055-0x0.9 | 1.26 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
0.9 m | Drawstring bag |
2027485
SSAUS ERP Code: 3055-0x1.0 |
3055-0x1.0 | 1.26 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1 m | Drawstring bag |
2027486
SSAUS ERP Code: 3055-0x1.2 |
3055-0x1.2 | 1.28 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1.2 m | Drawstring bag |
2027487
SSAUS ERP Code: 3055-0x1.4 |
3055-0x1.4 | 1.29 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1.4 m | Drawstring bag |
2027488
SSAUS ERP Code: 3055-0x1.5 |
3055-0x1.5 | 1.3 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1.5 m | Drawstring bag |
2027489
SSAUS ERP Code: 3055-0x1.8 |
3055-0x1.8 | 1.32 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1.8 m | Drawstring bag |
2027490
SSAUS ERP Code: 3055-SCAFF |
3055-SCAFF | 1.32 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
1.8 m | Retail box |
2027491
SSAUS ERP Code: 3055-0x2.0 |
3055-0x2.0 | 1.33 kg |
Double action scaff hook H3-1 |
Double action snap hook H1-1 |
2 m | Drawstring bag |
