GrabiQ container hook positioning belt with magnet
Professional
GrabiQ container hook positioning belt with magnet
available for left and right
Professional
Item Number: 2015248

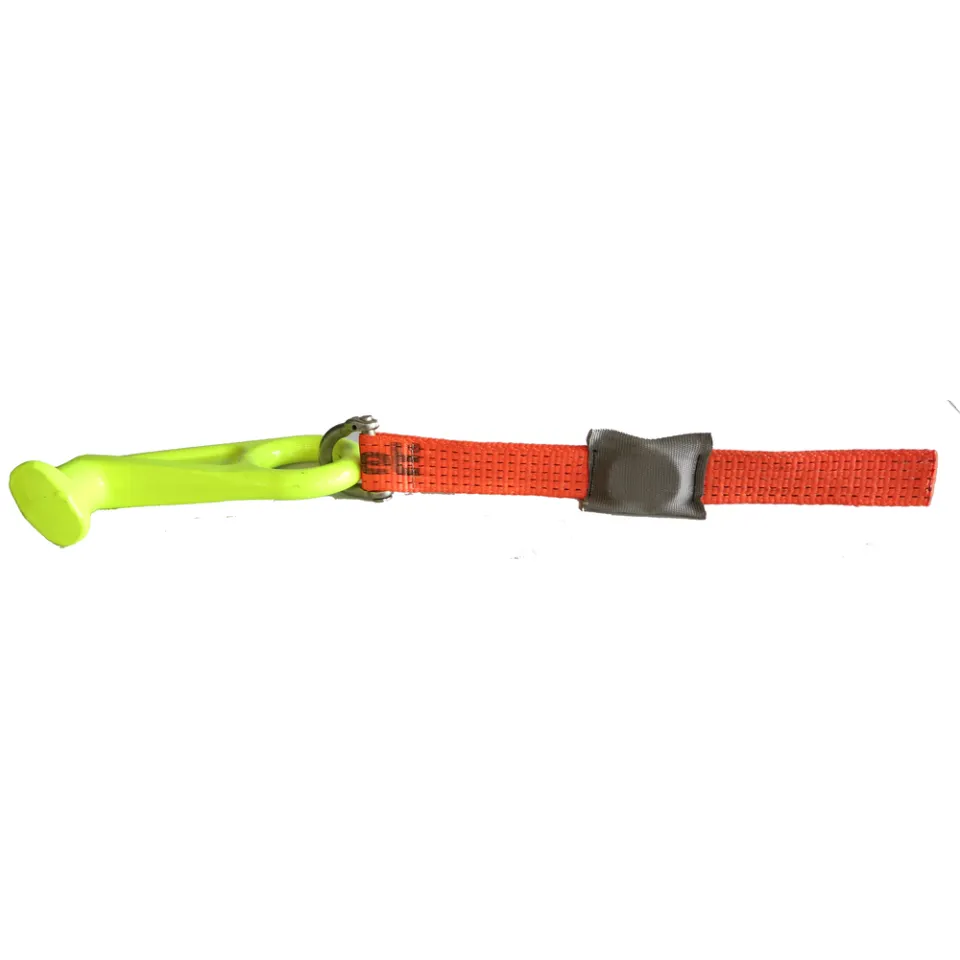

GrabiQ Container Hook with Belt 12.5t right
Container hook positioning belt, WLL 12500 kg, bright yellow, 45° right
- The GrabiQ grade 100 guarantees a 25% higher payload compared to grade 80
- Prevents unwanted unhooking of the container hooks
Select Model
Please contact customer service for purchase or more information
Steel grade 100
Made from steel grade 100 for enhanced strength and increased performance under extreme conditions.
+ 25% higher load capacity
Modular system
Easily replace individual parts
If parts become damaged, you do not have to replace the whole equipment. This minimises purchasing costs and increases safety.
Product Technical Information
-
WLL kg
12500 kg -
Weight Net
4.8 kg -
WLL t
12.5 t -
Grade
100 -
Safety Factor
4:1 -
Dimension L
187 mm -
Norms
EN 1677 -
Temperature Range
-40° C to + 100° C -
Dimension G
75 mm -
Dimension H
47 mm -
Dimension A
25 mm -
Dimension B
46 mm -
Dimension E
70 mm -
Colour
Neon yellow -
Main Material
Steel -
Connection Type
Eye -
Hook Type
Container Hook -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1

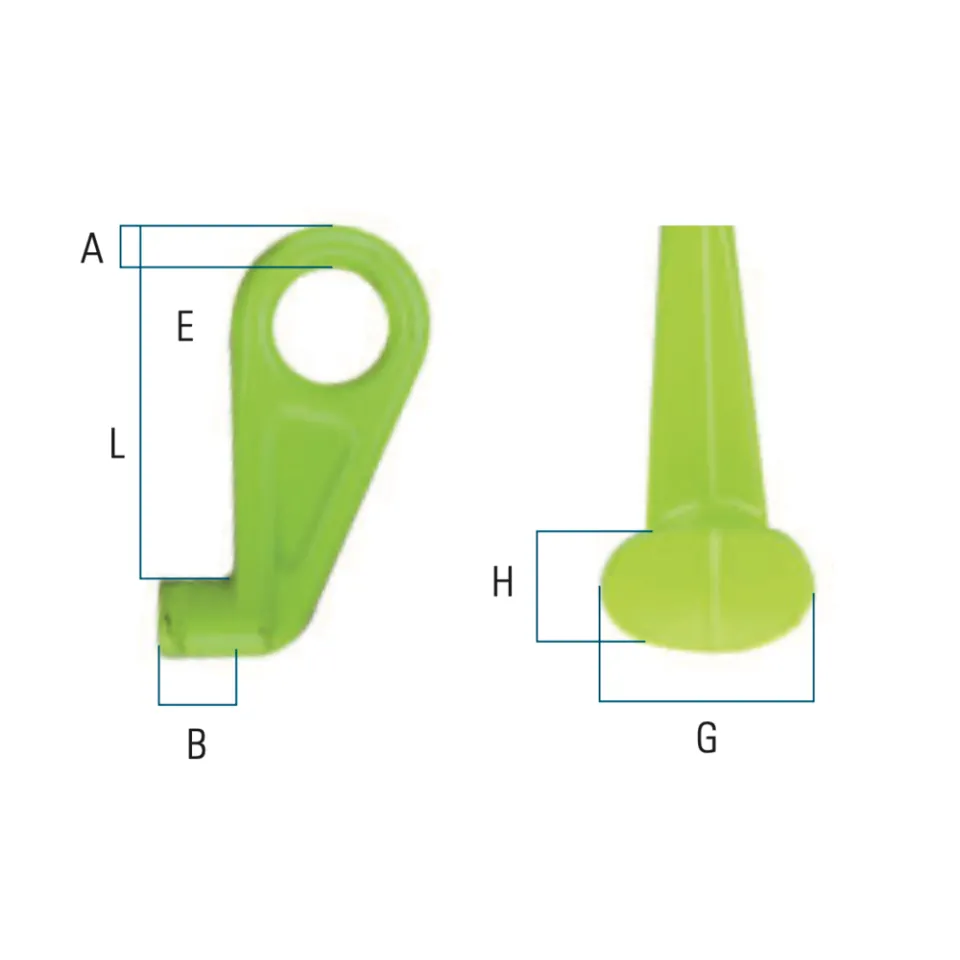

Technical Drawings
Variants information
| Item Number | Item Name | Container Hook Orientation |
|---|---|---|
| 2015248 | GrabiQ Container Hook with Belt 12.5t right | 45°, right |
| 2015249 | GrabiQ Container Hook with Belt 12.5t left | 45°, left |
