MaXafe 5000daN 55mm
EUR 188,90
VAT not included

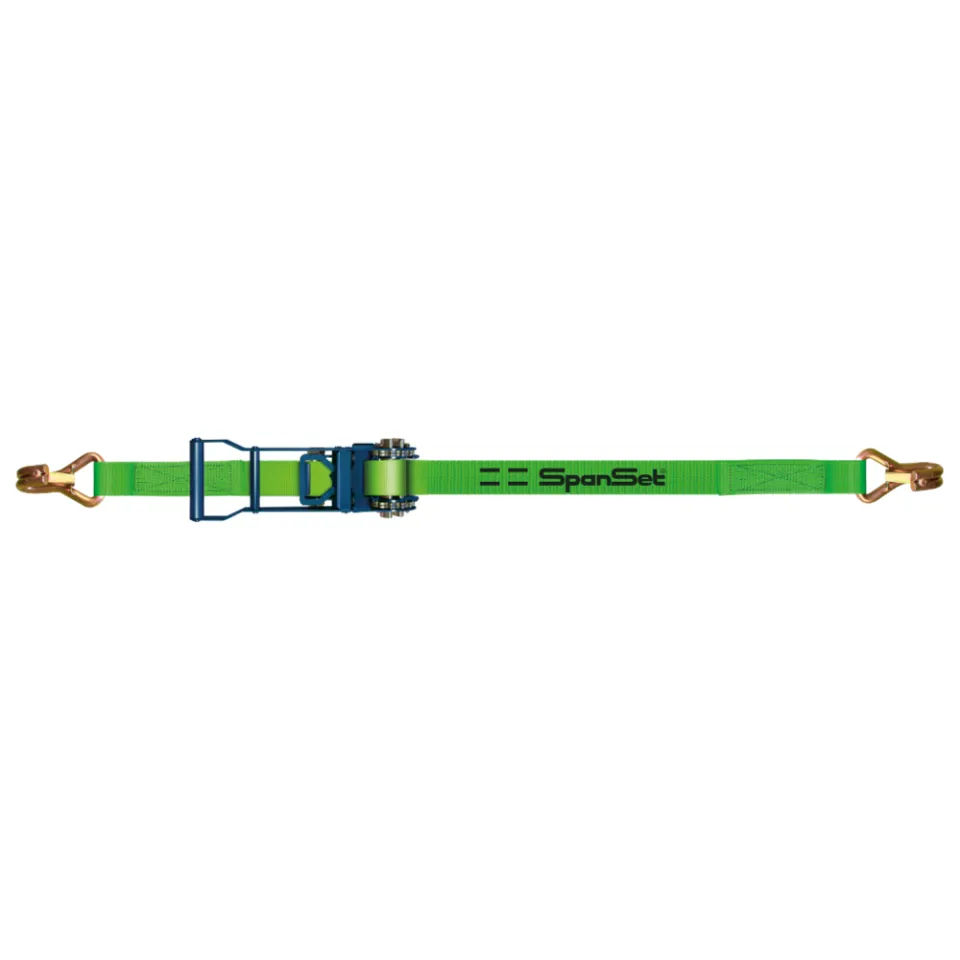

MaXafe 5000daN 55mm
High resistant webbing lashing strap, ideal for transverse and diagonal lashing of heavy vehicles and machines
EUR 188,90
VAT not included
Available within 10-15 Days
- Extremely low elongation of less than 2%.
- improved ergonomics
- Quality label with protective sleeve
Select Model
EUR 188,90
VAT not included
Available within 10-15 Days
Extended Ratchet Lever
Better power transmission and more ergonomic
The extended lever not only allows the user to achieve increased pre-tensioning forces can be achieved with markedly less muscle power.
Self-locking ratchet lever
Prevents unintetional opening
The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.
Webbing insert
protected label thanks to a "fabric shield"
The labels on all SpanSet ratchet lashing straps are addtionally protected by a webbing insert. The "fabric shield", combined with the advantages of the folded label, prolongs the service life of your lashing straps.
MaXafe - Heavy Duty 55mm lashing with 5.000 daN Lashing capacity
Ideal for transverse and diagonal lashing of heavy vehicles and machines
MaXafe is available to the user in two systems
The one-piece lashing belt designed according to the Carlash system principle is equipped with delta and J hooks and has a permissible lashing capacity of 10,000 daN. The two-piece version, with either J hook (JHS) or ExoSet delta hook (DH) at the loose and fixed ends, has a permissible lashing capacity of 5,000 daN. Both lashing systems are ideal for transverse / diagonal lashing.
Extremely low expansion of less than 2 %
High-performance webbing fibres ensure an exceptionally low expansion of less than 2 % - comparable to wire ropes or chains. The advantage: During emergency braking or evasive manoeuvres, the forces are applied directly to the lashing system thereby reducing slippage of heavy goods to a minimum.
Improved ergonomics
Thanks to the use of high-performance polyester, the approx. 50 mm wide MaXafe webbing already achieves the strength of a 75 mm wide polyester belt of conventional heavy duty ratchets. The advantage: Weight savings of about 24 % compared to a 75 mm lashing belt or similar chain offers a significant reduction in workload. MaXafe is handy and quick to install.
Robust webbing construction
The webbing design of the MaXafe Heavy Duty Lashing System is particularly resistant through the use of high-performance fibres, reducing webbing abrasion and cut injuries to the fabric. The advantage: Longer service life and lower costs.
Quality label with foil sleeve
The MaXafe heavy-duty lashing’s labels feature a strong and tear-proof design. Foil sleeve and webbing overlap also protect the label from dirt and abrasion. The advantage: Guaranteed long life.
Machined seam
The machined seam is precise and of high, consistent quality. The black seam thread contrasts strongly with the light green belt, which makes visual inspection much easier and faster. The advantage: Reduction of cost and effort.
Product Technical Information
-
Surface Coating:
Epoxy
-
Norms:
EN 12195-2: 2001
-
Dimension L1 min:
3 m
-
Dimension L1 max:
4 m
-
Webbing Width B:
55
-
Dimension L2:
0.7 m
-
Label Protection:
Yes
-
Colour:
Green
-
Ratchet Type:
Pull-down
-
Lashing Type:
Two-piece
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
Technical Drawings
Variants information
| Item Number | Item Name | Weight Net | Dimension L1 | Lashing End Fitting Component |
|---|---|---|---|---|
| 2005985 | MaXafe LC5000/55 2pc 3m DJHS | 4.5 kg | 3 m |

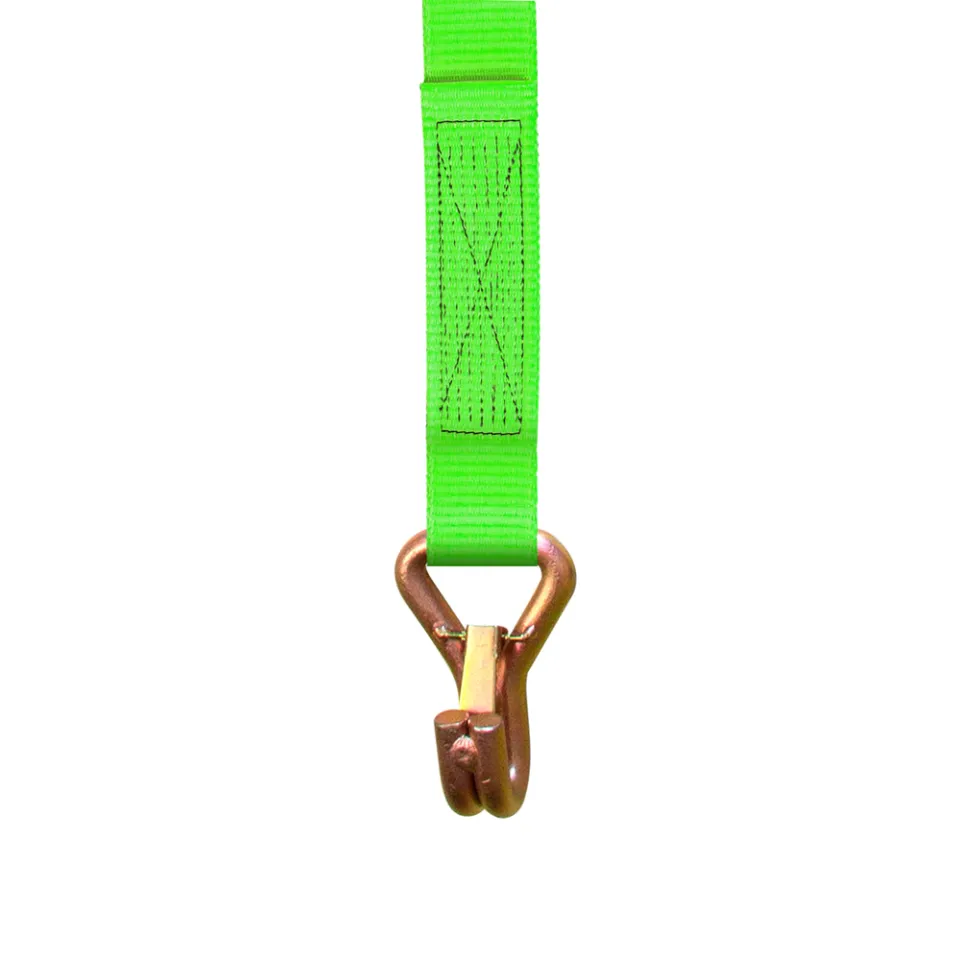

Double J-Hook Safety Latch DJHS-50 |
| 2005986 | MaXafe LC5000/55 2pc 4m DJHS | 4.7 kg | 4 m |
Double J-Hook Safety Latch DJHS-50 |
| 2005988 | MaXafe LC5000/55 2pc 3m DH | 6.5 kg | 3 m |
Delta and Hook DH-50 |
| 2005989 | MaXafe LC5000/55 2pc 4m DH | 6.7 kg | 4 m |
Delta and Hook DH-50 |
