ABS 10000daN 75mm

EUR 454,20

VAT not included

ABS 10000daN 75mm

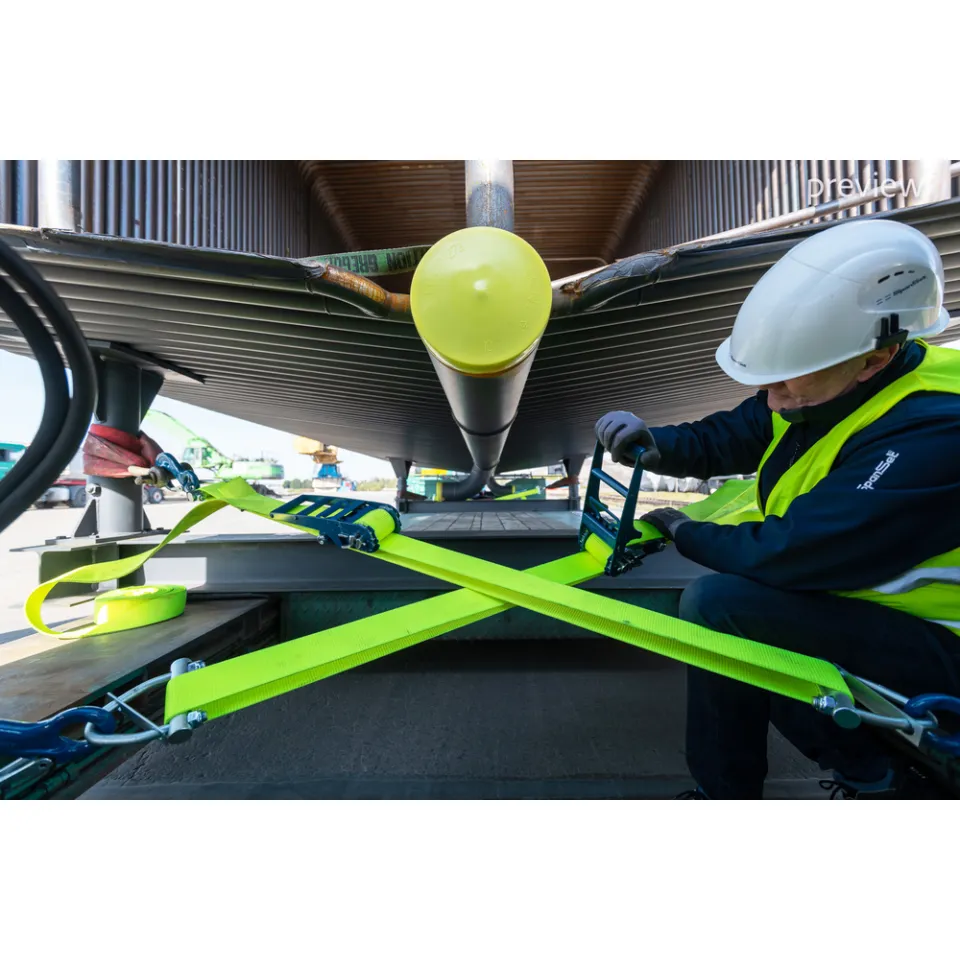

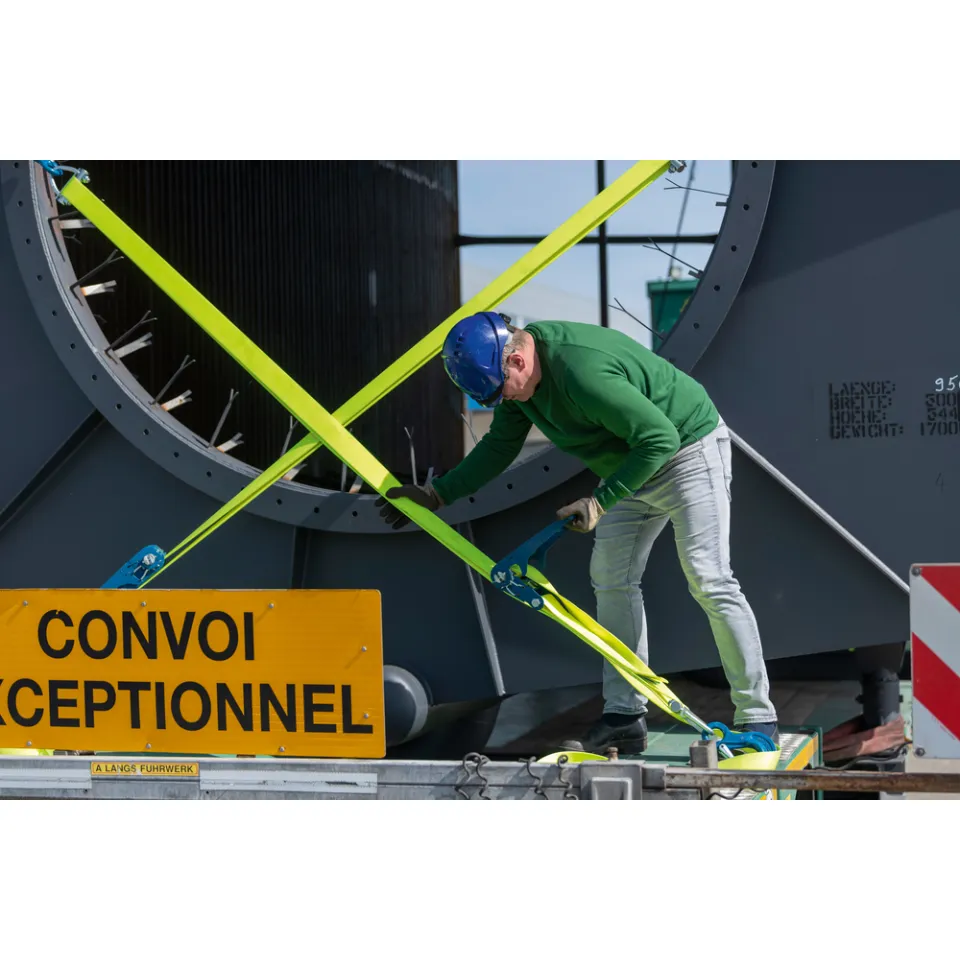

Ideal for diagonal lashing of heavy-duty vehicles and machinery

EUR 454,20

VAT not included


Available within 10-15 Days
Item Number: 2003005
SSDE ERP Code: D003618
ABS LC10000/75 carlash 4m DD
  • Ideal for diagonal lashing of vehicles and machinery
  • Tensioning device can be released gradually, self-locking and equipped with double slider
  • Reliable lashing force of up to 10,000 daN

Select Model

EUR 454,20

VAT not included


Available within 10-15 Days
...

"Anti-Belt-Slip" procedure

Controlled tension liberation

The ABS system was developed for loads with a risk of tipping and allows the user to release the pretension in small steps. The lashing can also be opened completely.

...

Self-locking ratchet lever

Prevents unintetional opening

The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.

...

Epoxy resin coating

Maximum ratchet protection

Ratchets are first zinc-plated, then chrome-plated and coated with a shock-resistant epoxy resin coat which additionally protects the ratchets from e.g. rust.

...

Double Slider

Safe in the intermediate phase when tensing

Secures in the intermediate stage when tensioning the webbing. Two sliders engage in an existing sprocket in "smaller steps".

Product Technical Information

  • Surface Coating: coated
  • Norms: EN 12195-2: 2001
  • Dimension L1: 4 m
  • Webbing Width B: 75
  • Dimension L2: 0.7 m
  • Dimension L3: 3.3 m
  • Webbing Thickness: 4.2 mm
  • Ratchet Component: 29441 RB ABS LC50kN 75mm BL
  • Label Protection: Yes
  • Webbing Material: 100% Polyester, thermofixed and low-stretch
  • Main Material: High-performance polyester
  • Ratchet Type: Pull-down
  • Tension Force Indicator (TFI): Yes
  • Lashing Type: Carlash
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1
  • Lashing Capacity: 10000 daN
  • Handle Type: Standard

Technical Drawings

Item Number Item Name Lashing End Fitting Component
2003005 ABS LC10000/75 carlash 4m DD Delta connector
DD-50
2003499 ABS LC10000/75 carlash 4m DH Delta and Hook
DH-50
