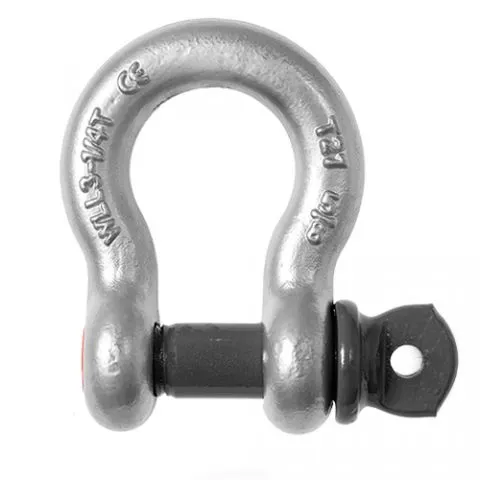

Grillete lira con pasador

Grillete lira con pasador

Código: 2025777
SSES ERP Code: C83G4100080050X
G4-1-005
  • Galvanización en caliente

Seleccionar modelo

Atributos comunes

  • Normas: EN 13889
  • Color: Gris
  • Material principal: Acero
  • Unidad de embalaje (PU): pcs
  • Unidad de embalaje (PU) Contiene: 1
  • Rango de temperatura: -20 °C to + 200 °C

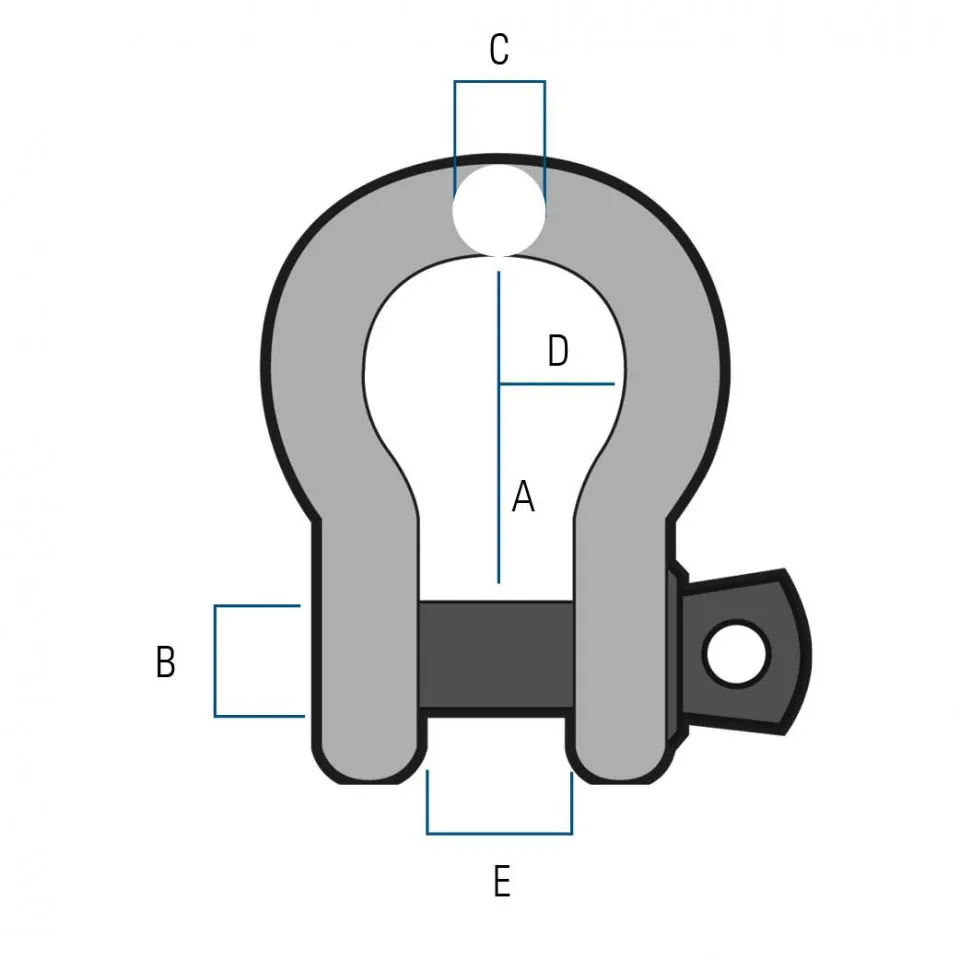

Código Referencia CMU CMU Dimensión D Dimensión C Dimensión A Dimensión B Dimensión E
2025777
SSES ERP Code: C83G4100080050X 		G4-1-005 500 kg 0.5 t 10 6 28.5 8 13
2025778
SSES ERP Code: C83G4100100070X 		G4-1-007 750 kg 0.75 t 10.5 8 31 10 14
2025785
SSES ERP Code: C83G4100110100X 		G4-1-010 1000 kg 1 t 13 10 37 11 17
2025786
SSES ERP Code: C83G4100130150X 		G4-1-015 1500 kg 1.5 t 14.5 11 43 13 18
2025787
SSES ERP Code: C83G4100160200X 		G4-1-020 2000 kg 2 t 16.5 13 48 16 21
2025788
SSES ERP Code: C83G4100190320X 		G4-1-032 3250 kg 3.25 t 21.5 16 60 19 27
2025789
SSES ERP Code: C83G4100220470X 		G4-1-047 4750 kg 4.75 t 25.5 19 71 22 32
2025790
SSES ERP Code: C83G4100250650X 		G4-1-065 6500 kg 6.5 t 29 22 84 25 37
2025791
SSES ERP Code: C83G4100280850X 		G4-1-085 8500 kg 8.5 t 34 25 95 28 43
2025792
SSES ERP Code: C83G4100320950X 		G4-1-095 9500 kg 9.5 t 37 30 108 32 46
2025793
SSES ERP Code: C83G4100351200X 		G4-1-120 12000 kg 12 t 41 32 119 35 51
2025794
SSES ERP Code: C83G4100381350X 		G4-1-135 13500 kg 13.5 t 45 35 132 38 57
2025795
SSES ERP Code: C83G4100400170X 		G4-1-170 17000 kg 17 t 49 40 146 40 60
2025796
SSES ERP Code: C83G4100452500X 		G4-1-250 25000 kg 25 t 63.5 45 178 45 73
2025797
SSES ERP Code: C83G4100573500X 		G4-1-350 35000 kg 35 t 73 50 197 50 83
2025798
SSES ERP Code: G4-1-550 		G4-1-550 55000 kg 55 t 90 65 230 65 105
