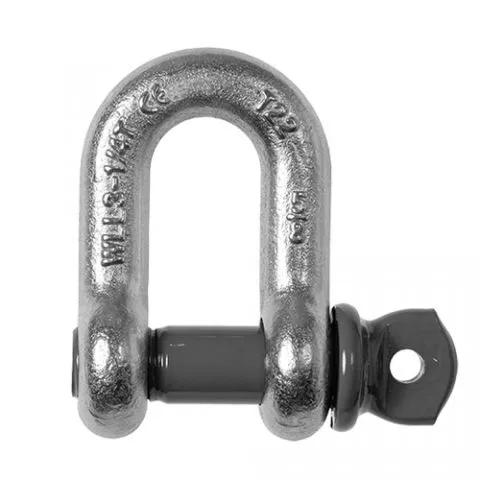

Manilha reta com cavilha

Standard

Manilha reta com cavilha

Enables quick (dis)assembly which makes the shackle perfect for rigging activities

Standard
Código: 2025799
SSES ERP Code: G4-2-003
G4-2-003
  • Screw pin for quick (dis)assembly
  • Galvanization assures long-term durability
  • Suitable for one-leg systems only
  • With embossed WLL and CE mark
  • US Fed Specification / Black Pin

Seleccione o modelo

...

Galvanizado

A galvanização garante uma longa vida útil.

D-Shackle with Screw Pin

The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

Due to the galvanization of the shackle its long-term durability is assured. Furthermore, the shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. The D- Shackle is suitable for one-leg lifting systems only and is available in a range with a working load limit from 0.5 up to 55 ton.

*Dimensions are given as an indication only.

Please contact customersupport@spanset.co.uk if you have specific dimensional requirements.

Informação técnica

  • Fator de segurança
    6:1
  • Tipo de manilha
    dee shackle
  • Parafuso da manilha
    screw collar pin
  • Normas
    EN 13889
  • Cor
    Cinza
  • Material principal
    Aço
  • Unidade de embalagem (PU)
    pcs
  • Unidade de embalagem (PU) Contém
    1
  • Gama de temperaturas
    -20 °C to + 200 °C

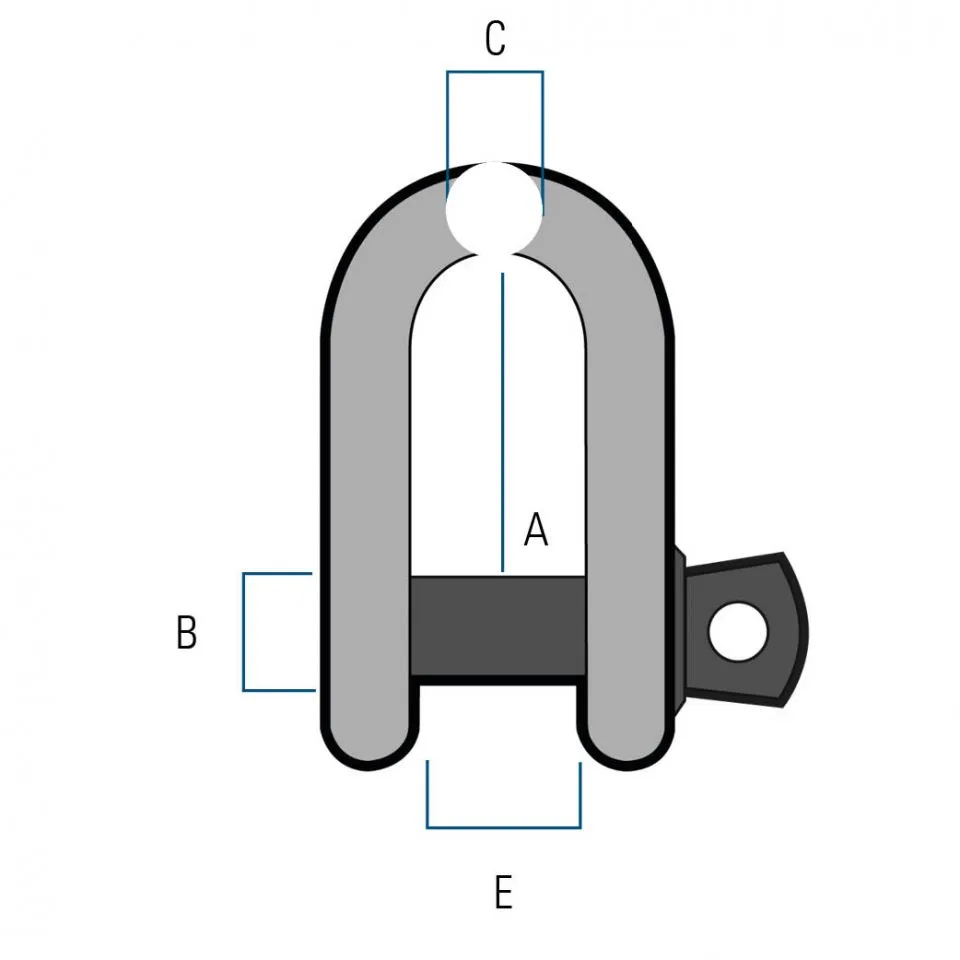

Código Referência CMU CMU Dimensão C Dimensão A Dimensão B Dimensão E
2025799 G4-2-003 330 kg 0.33 t 5 19 6 10
2025800 G4-2-005 500 kg 0.5 t 6 22 8 13
2025801 G4-2-007 750 kg 0.75 t 8 26 10 14
2025802 G4-2-010 1000 kg 1 t 10 32 11 17
2025803 G4-2-015 1500 kg 1.5 t 11 36.5 13 18
2025804 G4-2-020 2000 kg 2 t 16 51 19 27
2025805 G4-2-032 3250 kg 3.25 t 16 51 19 27
2025806 G4-2-047 4750 kg 4.75 t 19 60.5 22 32
2025807 G4-2-065 6500 kg 6.5 t 22 71.5 25 37
2025808 G4-2-085 8500 kg 8.5 t 25 81 28 43
2025809 G4-2-095 9500 kg 9.5 t 28 90 32 46
2025810 G4-2-120 12000 kg 12 t 32 100 35 51
2025812 G4-2-170 17000 kg 17 t 38 122 41 60
2025813 G4-2-250 25000 kg 25 t 45 146 50 73
2025814 G4-2-350 35000 kg 35 t 50 172 57 83
2025815 G4-2-550 55000 kg 55 t 65 203 70 105
