Manilha reta com cavilha e porca

Standard

Manilha reta com cavilha e porca

Double safety which prevents accidental unscrewing of the pin

Standard
Código: 2025818
SSES ERP Code: G4-7-005
G4-7-005
  • Double safety (cotter pin & safety bolt)
  • Galvanization assures long-term durability
  • Suitable for one-leg systems only
  • With embossed WLL and CE mark
  • US Fed Specification / Black Pin

Seleccione o modelo

...

Dupla segurança

Dupla segurança (cavilha e parafuso de segurança)

...

Galvanizado

A galvanização garante uma longa vida útil.

D-Shackle with Safety Bolt

The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Its long-term durability is assured due to galvanization. Dee Shackle is suitable for one-leg lifting systems only and is available in a range with a working load limit from 0.5 up to 55 ton.

*Dimensions are given as an indication only.

Please contact customersupport@spanset.co.uk if you have specific dimensional requirements.

Informação técnica

  • Fator de segurança
    6:1
  • Tipo de manilha
    dee shackle
  • Parafuso da manilha
    safety bolt
  • Normas
    EN 13889
  • Cor
    Cinza
  • Material principal
    Aço
  • Unidade de embalagem (PU)
    pcs
  • Unidade de embalagem (PU) Contém
    1
  • Gama de temperaturas
    -20 °C to + 200 °C

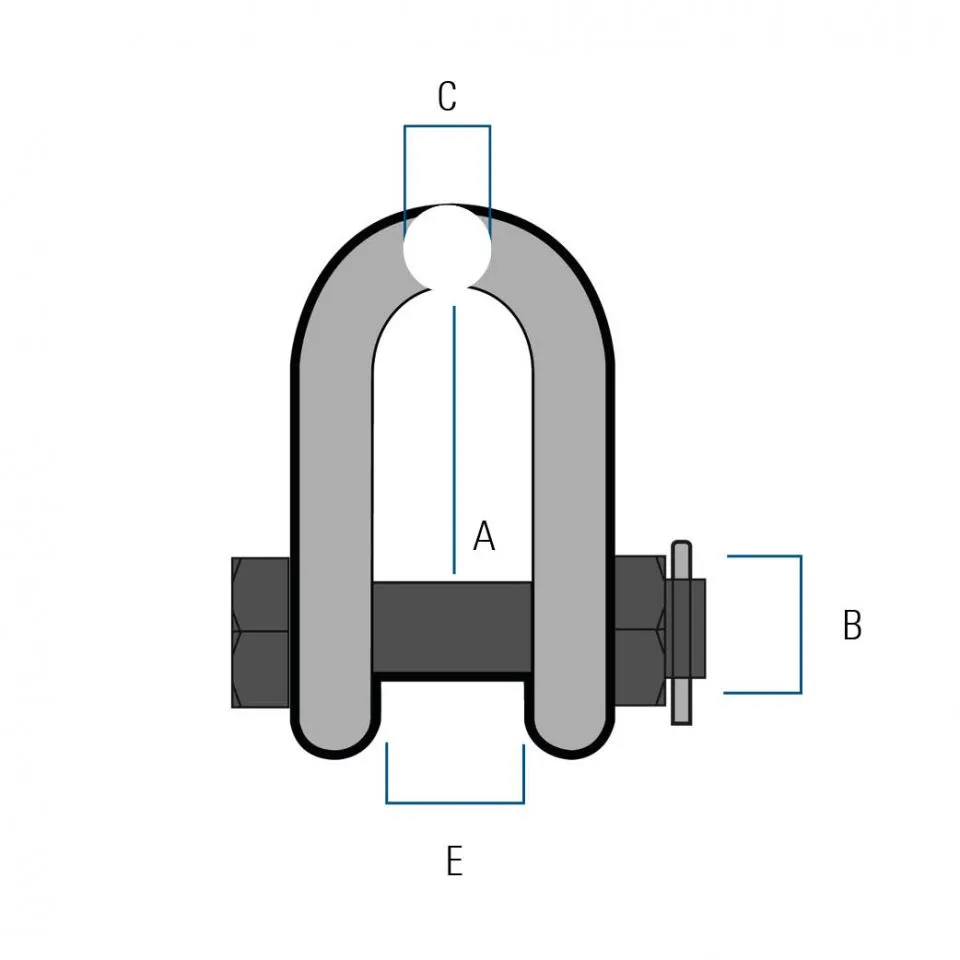

Código Referência CMU CMU Dimensão C Dimensão A Dimensão B Dimensão E
2025818 G4-7-005 500 kg 0.5 t 6 22 8 13
2025819 G4-7-007 750 kg 0.75 t 8 26 10 14
2025820 G4-7-010 1000 kg 1 t 10 32 11 17
2025821 G4-7-015 1500 kg 1.5 t 11 36.5 13 18
2025822 G4-7-020 2000 kg 2 t 13 41.5 16 21
2025823 G4-7-032 3250 kg 3.25 t 16 51 19 27
2025824 G4-7-047 4750 kg 4.75 t 19 60.5 22 32
2025825 G4-7-065 6500 kg 6.5 t 22 71.5 25 37
2025826 G4-7-085 8500 kg 8.5 t 25 81 28 43
2025827 G4-7-095 9500 kg 9.5 t 28 90 32 46
2025828 G4-7-120 12000 kg 12 t 32 100 35 51
2025829 G4-7-135 13500 kg 13.5 t 35 111 38 57
2025830 G4-7-170 17000 kg 17 t 38 122 41 60
2025831 G4-7-250 25000 kg 25 t 45 146 50 73
2025832 G4-7-350 35000 kg 35 t 50 172 57 83
2025833 G4-7-550 55000 kg 55 t 65 203 70 105
