From the originators of Temporary Webbing Safety Lines
NEW! SpanSet HSL2
Horizontal Safety Line
Take the guesswork out of temporary anchor lines -
know they are set up correctly and safe!
From the originators of Temporary Webbing Safety Lines
NEW! SpanSet HSL2
Horizontal Safety Line
Take the guesswork out of temporary anchor lines -
know they are set up correctly and safe!
Does your workforce use temporary horizontal anchor lines? Are you certain these webbing lines are installed, tensioned, and locked correctly, without the guesswork? Designed to enable clearance heights to be calculated correctly?
Are the components strong, robust and fit for purpose in the event of a fall? Are you sure?
Unlike anything else on the market the HSL2 is the first temporary horizontal webbing anchor line to allow the installer to be certain of the tension of the line and be confident the ratchet is loaded with the correct amount of webbing and locked securely.
For over 20 years, SpanSet have led the way with our iconic HSL 'Red SpanSet', often copied, never equalled!
Drawing from our Height Safety, Lifting and Load Control manufacturing expertise, we have combined innovative design with quality components to produce our best horizontal webbing anchor line yet.
The HSL2 allows your workforce to focus on the job in hand, confident their safety line is correctly set up, strong and will protect them when working near exposed edges.
When lives depend on it - Be sure with SpanSet
Does your workforce use temporary horizontal anchor lines? Are you certain these webbing lines are installed, tensioned, and locked correctly, without the guesswork? Designed to enable clearance heights to be calculated correctly?
Are the components strong, robust and fit for purpose in the event of a fall? Are you sure?
Unlike anything else on the market the HSL2 is the first temporary horizontal webbing anchor line to allow the installer to be certain of the tension of the line and be confident the ratchet is loaded with the correct amount of webbing and locked securely.
For over 20 years, SpanSet have led the way with our iconic HSL 'Red SpanSet', often copied, never equalled!
Drawing from our Height Safety, Lifting and Load Control manufacturing expertise, we have combined innovative design with quality components to produce our best horizontal webbing anchor line yet.
The HSL2 allows your workforce to focus on the job in hand, confident their safety line is correctly set up, strong and will protect them when working near exposed edges.
When lives depend on it - Be sure with SpanSet

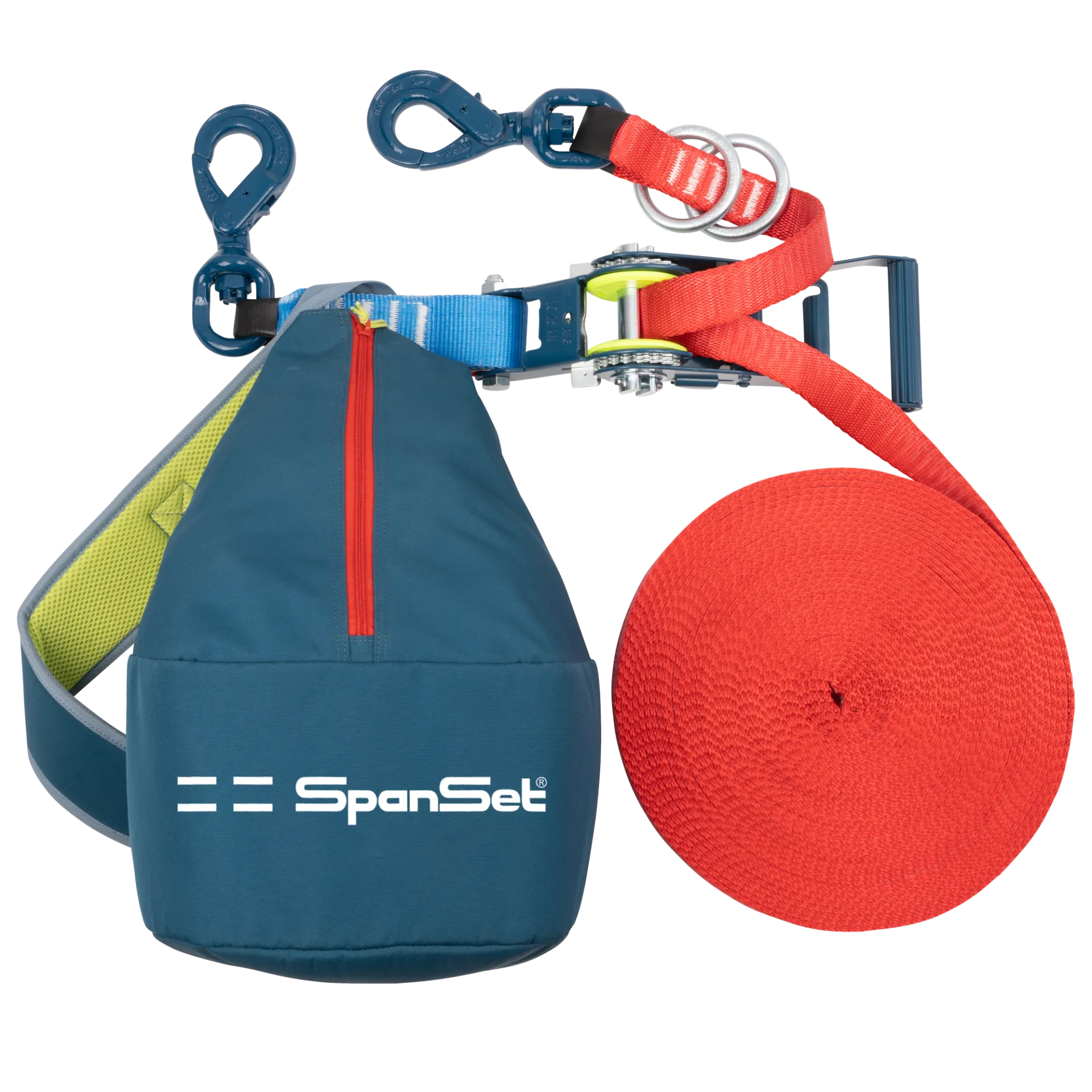

HSL2 - Temporary Horizontal Safety Line
A pre-assembled webbing anchor line for the attachment of fall arrest or work restraint equipment.
Protecting workers when accessing unprotected edges in a wide variety of industries from construction (eg. slab edge installation), nuclear, warehousing to marine.
HSL2 - Temporary Horizontal Safety Line
A pre-assembled webbing anchor line for the attachment of fall arrest or work restraint equipment.
Protecting workers when accessing unprotected edges in a wide variety of industries from construction (eg. slab edge installation), nuclear, warehousing to marine.
Straightforward to inspect.
Designed to ensure correct clearance
height calculation.
- an essential safety feature
Can be anchored at foot level.
Straightforward to inspect.
Designed to ensure correct clearance height calculation.
- an essential safety feature
Can be anchored at foot level.
Intuitive to set up, secure and tension correctly
No guesswork!
Step 1
First anchorage point

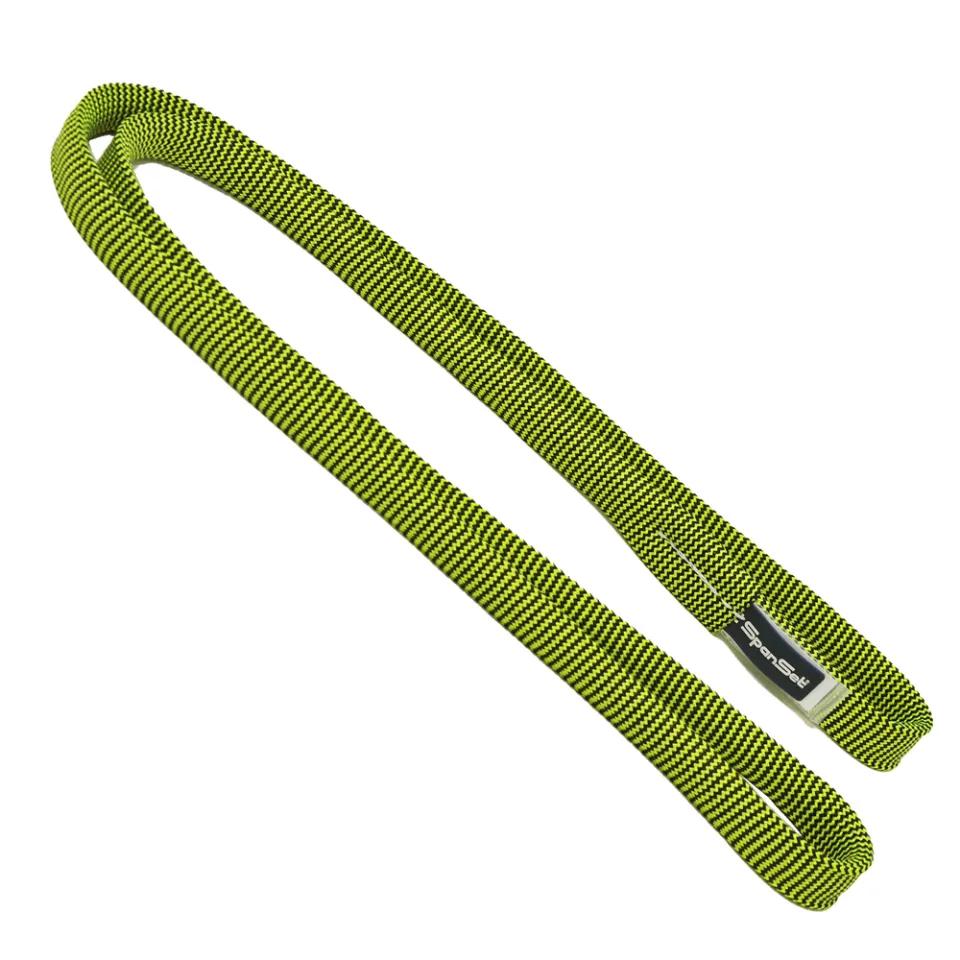

Connect the hook to anchor point. We recommend using a high quality anchor sling such as the SpanSet Viper Roundsling for strength and ease of handling.
Step 2
Release the lifeline
Contains up to 20m of adjustable lifeline. The safety swivel anchor hooks will prevent the webbing from twisting.
Step 3
Second anchorage point
Connect the second hook to the end of the section to be secured.
Step4
Apply the correct tension
The features on the specially designed ratchet will help you to ensure the line is secure and correctly tensioned.
Quality Components
Specifically designed to be fit for purpose

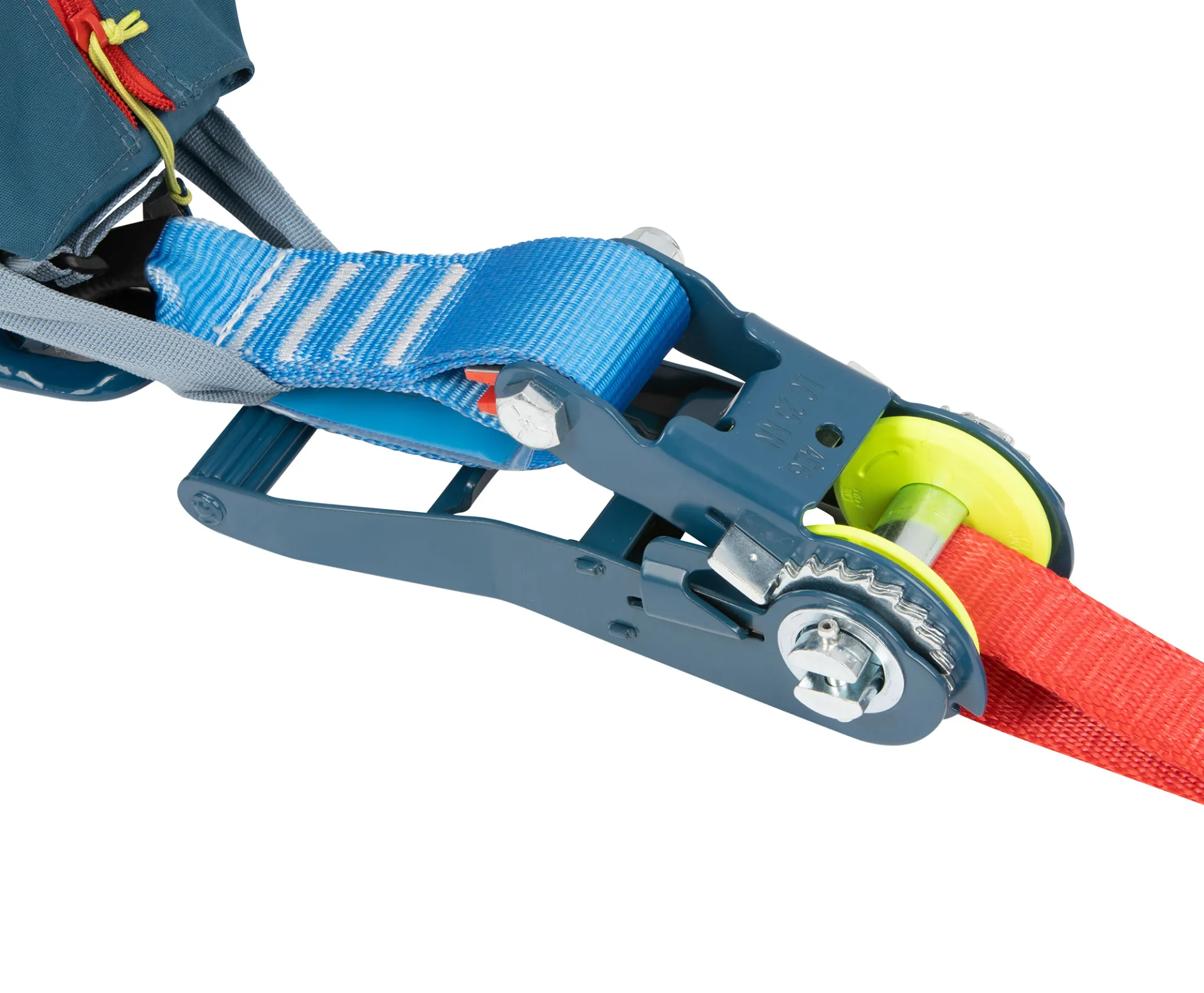

Quality SpanSet Ratchet
With patented "Tension Force Indicator" technology guarantees safe installation every time.
Ratchet also incorporates a unique 'fill line' indicator - confirming to the installer when the ratchet is loaded with the correct number of turns of webbing to lock it securely when under tension.
Improved ratchet mechanism allows finer adjustment - making it easier to achieve the correct tension in the line!

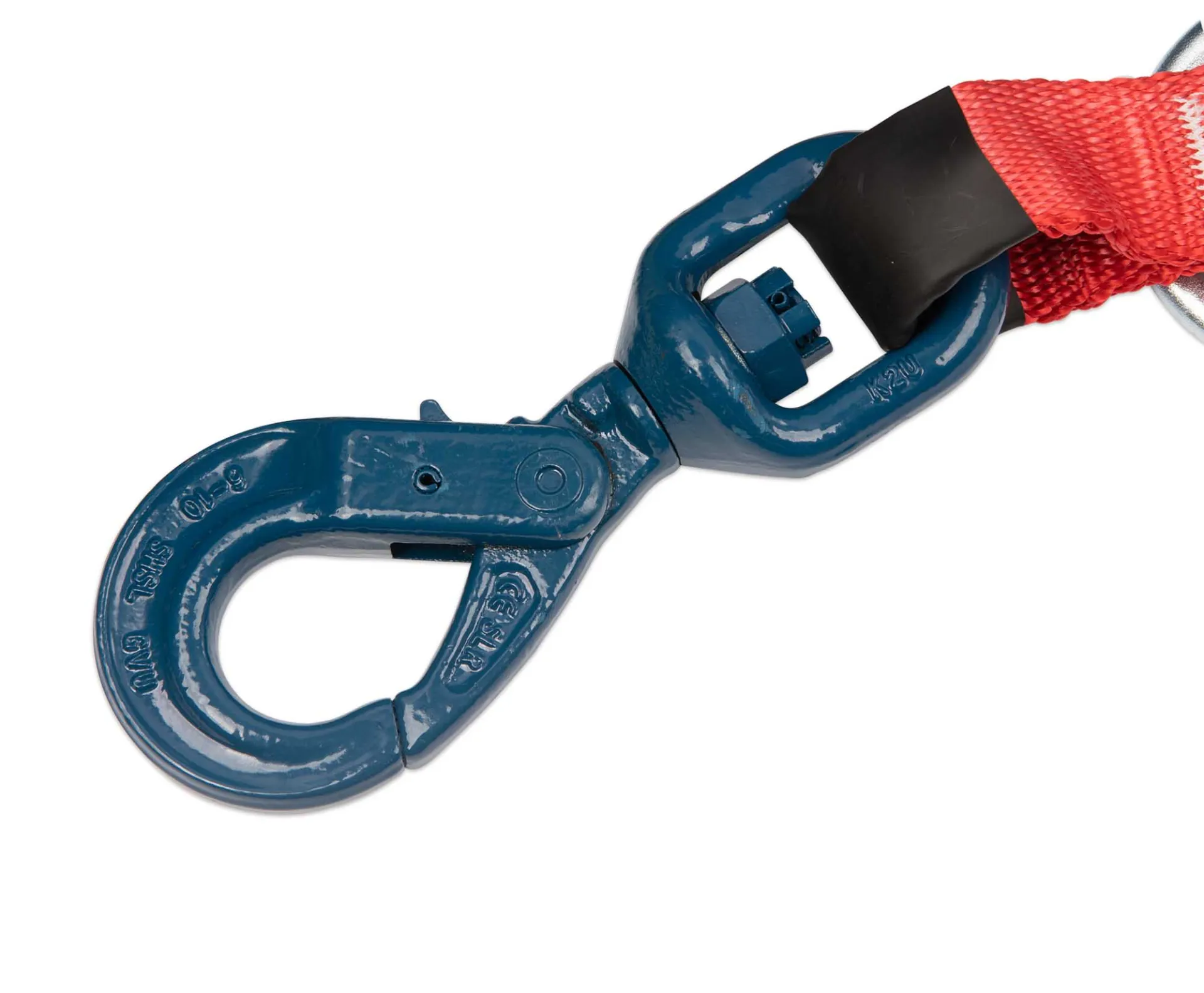

Anchor Hooks
Fitted with safety swivel anchor hooks - the swivel takes the twist out of the webbing during installation. The hooks always remain closed and secure under load.
Tested under cyclic loading conditions - to ensure they are suitable for windy conditions.
Wind can cause high frequency vibration in the line, this could cause a traditional karabiner to fail. Our safety swivel hooks will not fail in windy conditions.

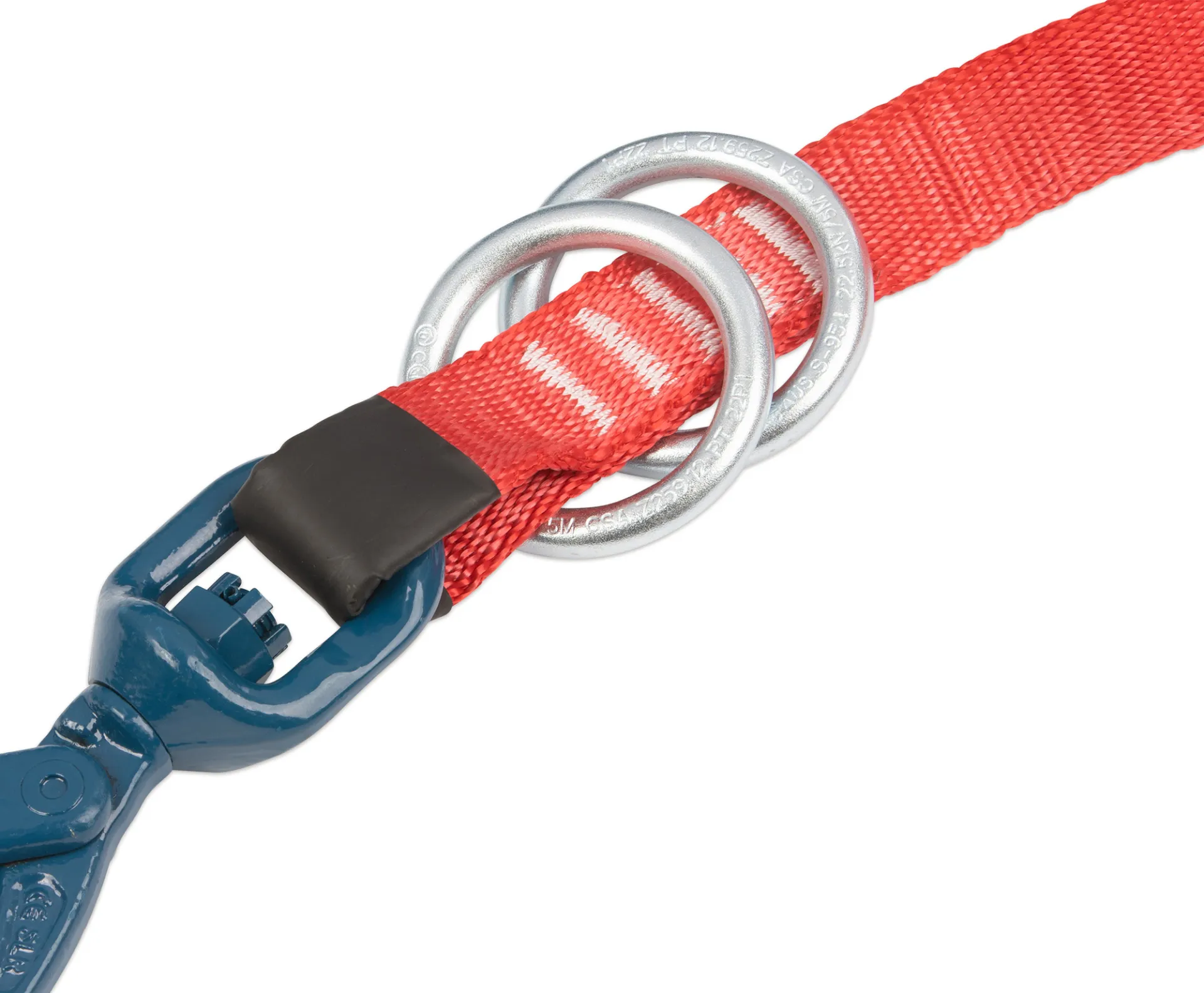

Connection Rings
Two in-line connection rings are fitted to the line. These ensure all lanyard karabiners and hooks are compatible. The rings slide freely along the line, allowing the worker to move easily and reducing wear and tear – no ill-fitting karabiners catching on the webbing.

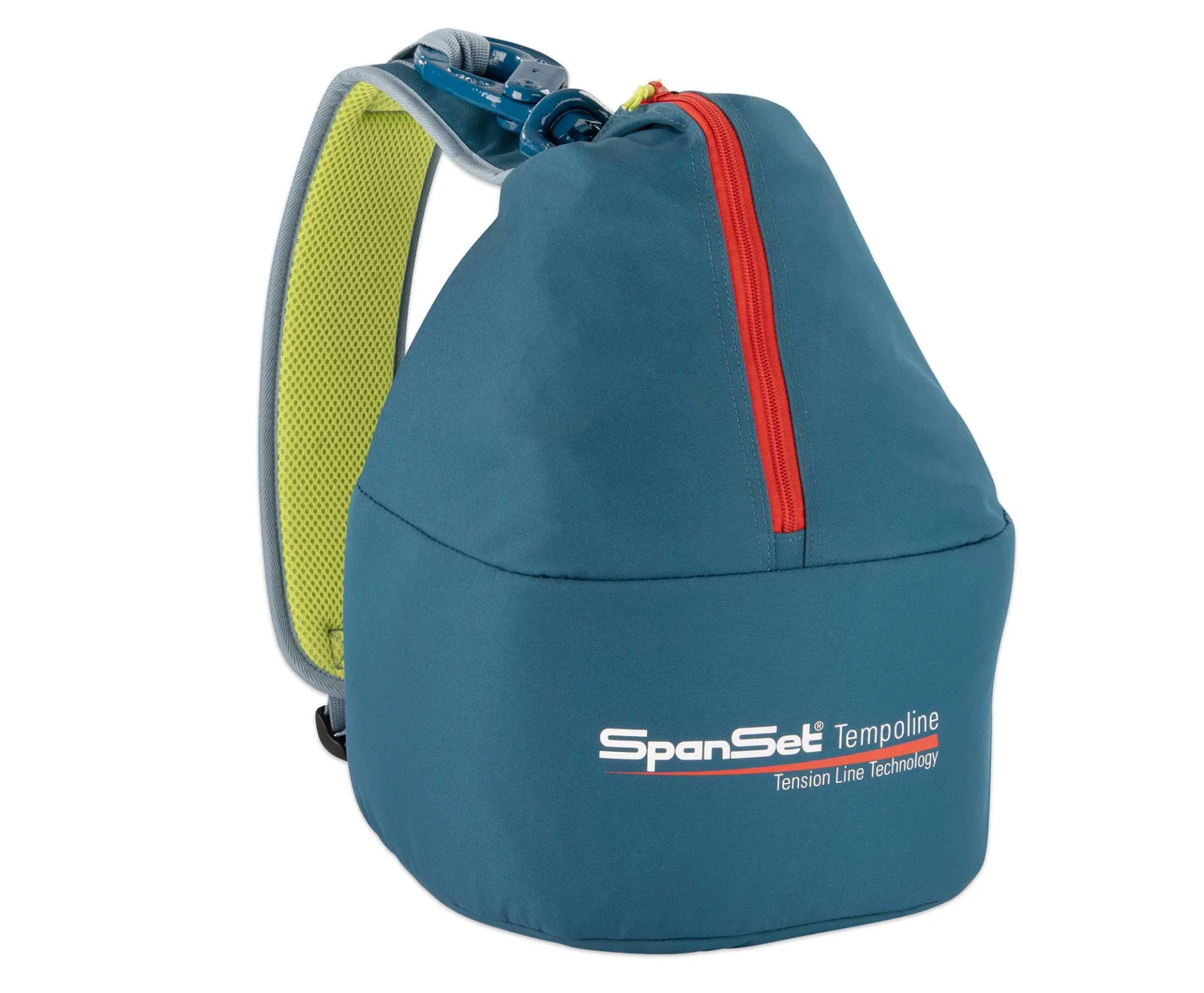

Integrated transport/storage bag -
Specifically designed to ensure set up of the line is intuitive, transport around site is straightforward and any spare adjustment webbing can be packed away in the bag reducing wear and tear.
Tension Force Indicator (TFI)
No guesswork!
When using a temporary horizontal anchor line, it is essential workers know how much the web would deflect in the event of a fall. This is critical for fall arrest applications where too much deflection of the line could mean there might not be enough clearance height.
The tension in the line must therefore not be left to chance.
Our patented Tension Torce Indicator (TFI) allows the worker to confirm the tension is applied by the ratchet to the line is correct - every time!
Instruction manual provides compehensive clearance height data taking into account bot the length of the web between anchor points and the height of the line above the worker.
HSL2 Horizontal Safety Line
Designed and manufactured in the UK by SpanSet - inventors of the original Horizontal webbing anchor line, often copied, never beaten and yet remains competitively priced!
Our best horizontal webbing anchor line yet, now available to buy online
