MagnumForce

MagnumForce

Heavy-Duty, High Capacity Performance

GIN: 2025025
SSUS ERP Code: RCHPE20X10
RCHPE20X10

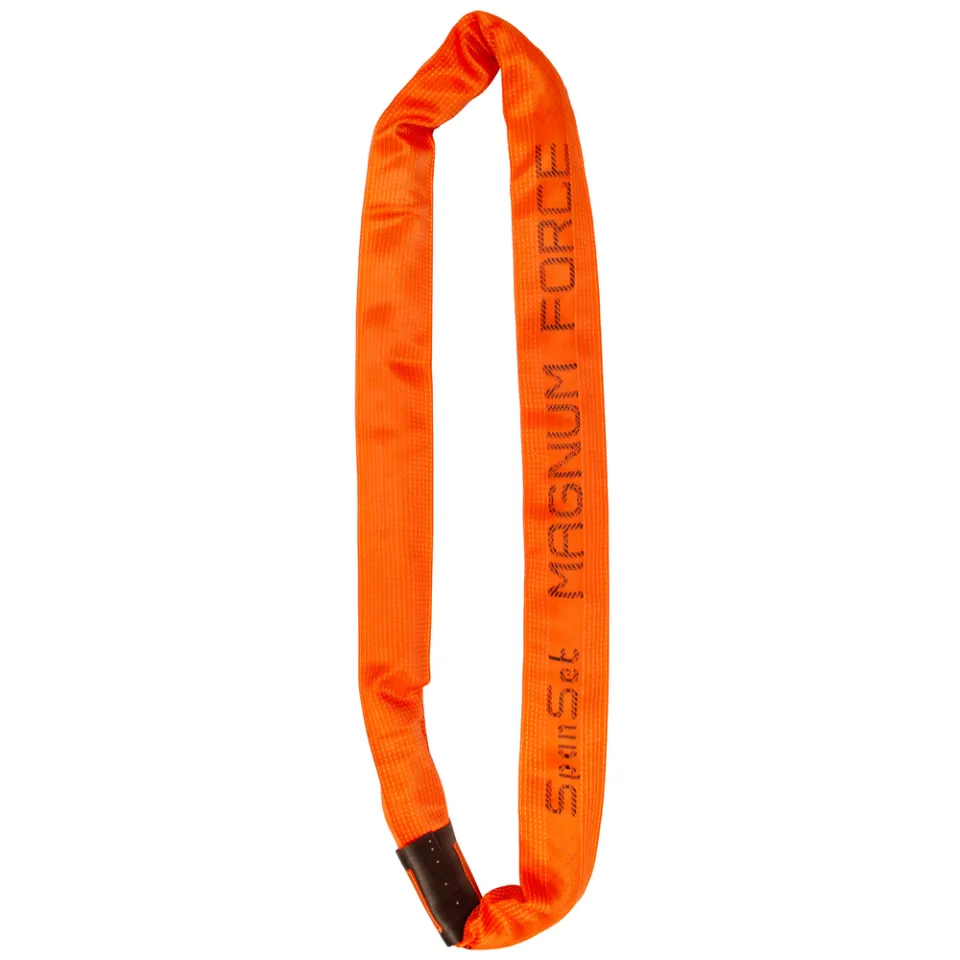

MagnumForce High Performance Roundslings
  • Up to 50% lighter than conventional roundslings for even better manual handling
  • Up to 50% slimmer than conventional roundslings
  • Can be used better against narrower edge sides than conventional PES slings
  • Shackles and other fasteners are therefore less affected
  • Variable load pick-up point for more even wear
  • Ideal for lifting into strangles without folding cylindrical objects

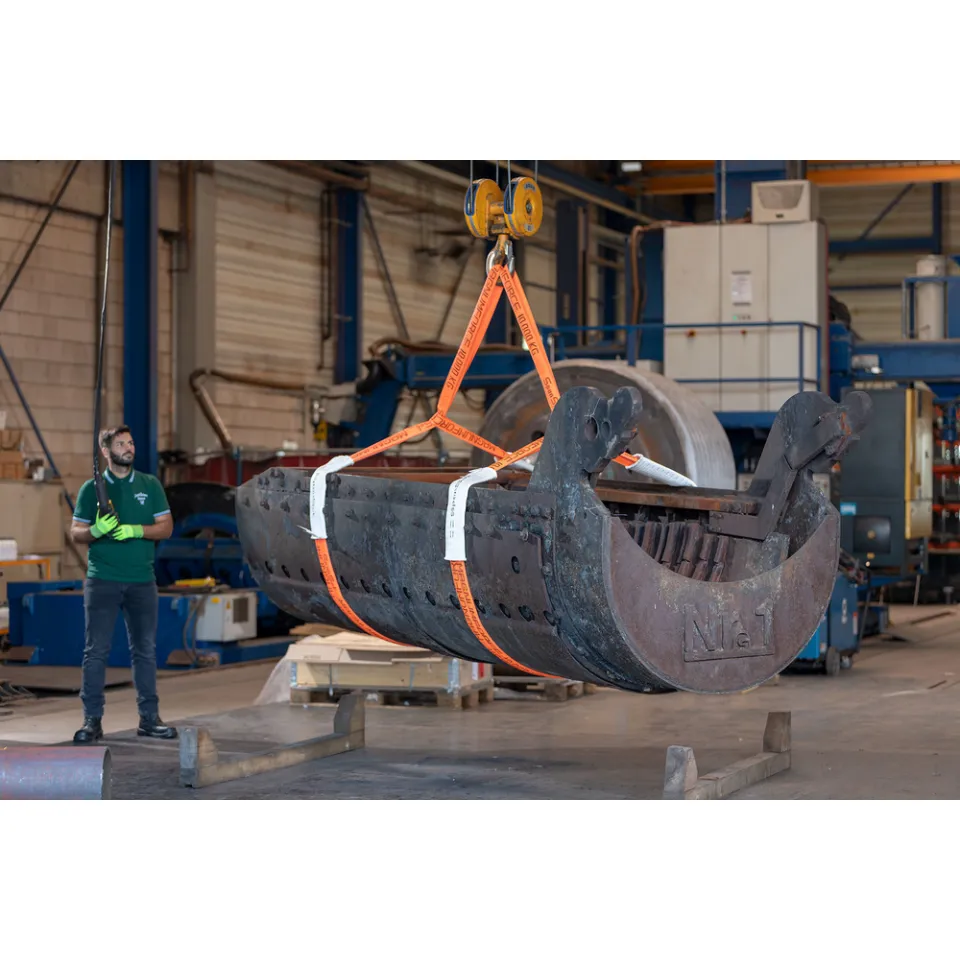

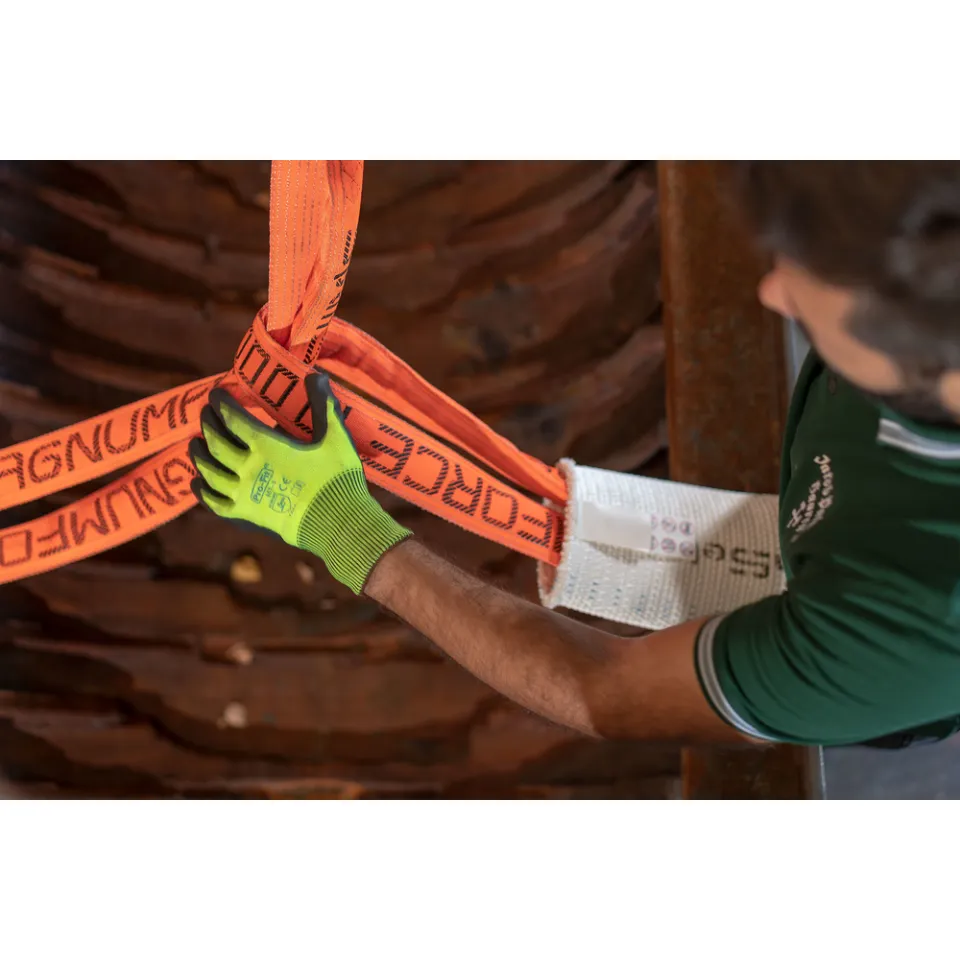

  • Ideal for choke lifting cylindrical objects without creasing; Less creasing means less wear; Lifts smooth objects without damage; High strength to weight ratio; Reinforced high performance woven cover; WLL data woven into sleeve for unmistakable capacity identification; Wide range of capacities from 10,000 to 600,000 lb (and larger upon request); Available in lengths up to 98 ft; Roundslings are repairable upon manufacturers inspection

Select Model

This product is not currently available for online purchases. For more information or to place an order, please call our customer service team at 800-334-7505 or email ssales@spanset-usa.com

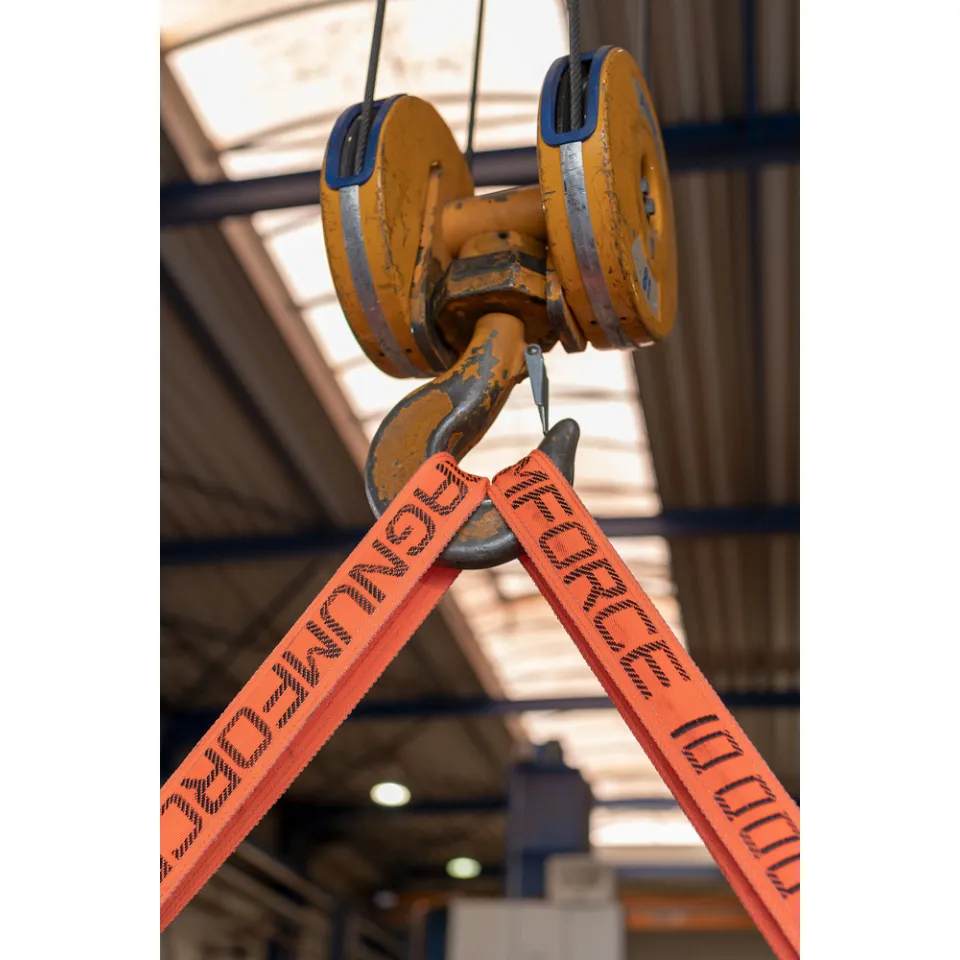

Compact - The innovative construction with a high performance polyester fiber and a compact protective cover partially woven with the same material make the MagnumForce® Roundsling up to 50% slimmer than comparable roundslings with the same load bearing capacity. At the same time, it produces greater stiffness within the sling along both axis. The roundsling is not bunched even in smaller crane hooks and attachment points and it is easy to suspend the sling overhead.

Wear Resistant - Outer protective cover is reinforced with an extremely abrasion and tear resistant high performance polyester. In addition, the special design reduces the formation of bunching at the attachment point, which again significantly improves the wear behavior. MagnumForce® exhibits the greatest reliability and longest durability even under the harshest operating conditions – an economic factor you can count on.

Resilient - The new, high performance fiber has a significantly greater capacity. Consequently, less material is needed in the fabric, which makes MagnumForce® up to 50% lighter than conventional roundslings. With the same load capacity, this high performance roundsling can be laid against tighter edge radii than conventional polyester slings. Work becomes more efficient, quicker and safer.

Compliant - The MagnumForce® inner load-bearing core is made from the same material as the outer sleeve. This is to ensure any chemical damage indications are consistent with both inner and outer materials. ASME B30.9-2014

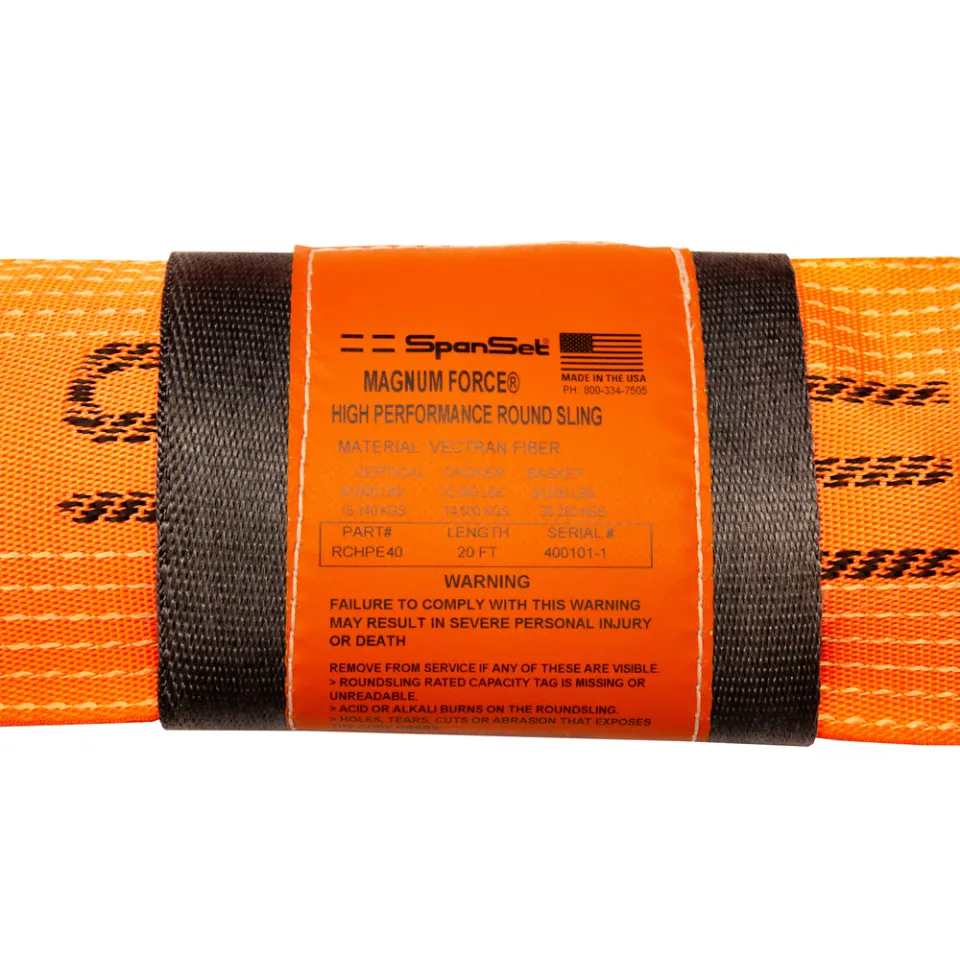

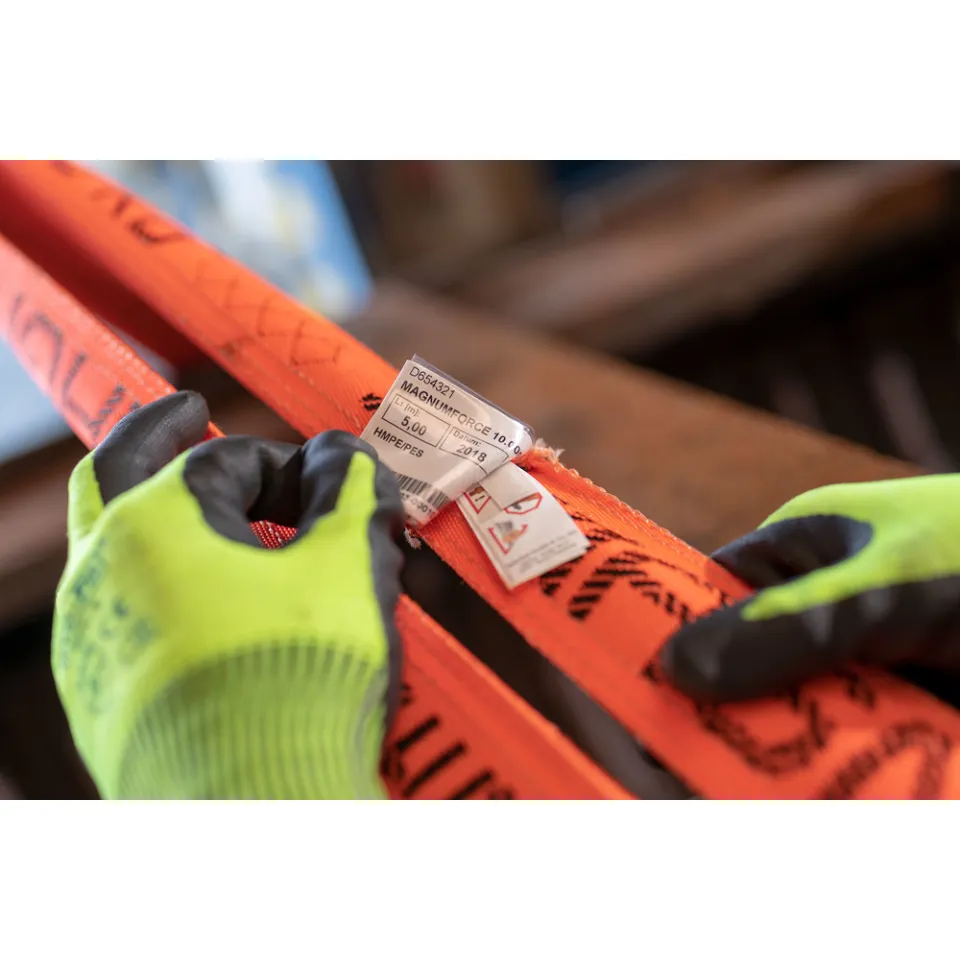

Identifiable - The MagnumForce® has an extra sleeve with a raised, woven-in load capacity indicator- a safety feature that has proven to be a success. The load capacity is clearly identifiable, even from a distance in the dirtiest conditions, preventing accidents and protecting people and materials.

Product Technical Information

  • Temperature Range: -40°C bis +100°C
  • Color: Orange
  • Main Material: High-performance polyester
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1

Technical Drawings

GIN Item Number Weight per Foot WLL Vertical WLL Choker WLL 90° Basket lbs Approx. Width At Load WLL 60° Basket lbs WLL 45° Basket lbs Weight Net Length
2025025
SSUS ERP Code: RCHPE20X10 		RCHPE20X10 0.6 lbs/ft 20000 lbs 16000 lbs 40000 lbs 1.85 in 34640 lbs 28280 lbs 6 lbs 10 ft.
2025026
SSUS ERP Code: RCHPE20X20 		RCHPE20X20 0.6 lbs/ft 20000 lbs 16000 lbs 40000 lbs 1.85 in 34640 lbs 28280 lbs 12 lbs 20 ft.
2025027
SSUS ERP Code: RCHPE20X30 		RCHPE20X30 0.6 lbs/ft 20000 lbs 16000 lbs 40000 lbs 1.85 in 34640 lbs 28280 lbs 18 lbs 30 ft.
2025028
SSUS ERP Code: RCHPE20X40 		RCHPE20X40 0.6 lbs/ft 20000 lbs 16000 lbs 40000 lbs 1.85 in 34640 lbs 28280 lbs 24 lbs 40 ft.
2025029
SSUS ERP Code: RCHPE30X10 		RCHPE30X10 0.85 lbs/ft 30000 lbs 24000 lbs 60000 lbs 2.2 in 51690 lbs 42420 lbs 8.5 lbs 10 ft.
2025030
SSUS ERP Code: RCHPE30X20 		RCHPE30X20 0.85 lbs/ft 30000 lbs 24000 lbs 60000 lbs 2.2 in 51690 lbs 42420 lbs 17 lbs 20 ft.
2025031
SSUS ERP Code: RCHPE30X30 		RCHPE30X30 0.85 lbs/ft 30000 lbs 24000 lbs 60000 lbs 2.2 in 51690 lbs 42420 lbs 25.5 lbs 30 ft.
2025032
SSUS ERP Code: RCHPE30X30 		RCHPE30X30 0.85 lbs/ft 30000 lbs 24000 lbs 60000 lbs 2.2 in 51690 lbs 42420 lbs 34 lbs 40 ft.
2025033
SSUS ERP Code: RCHPE40X10 		RCHPE40X10 1 lbs/ft 40000 lbs 32000 lbs 80000 lbs 2.7 in 69280 lbs 56560 lbs 10 lbs 10 ft.
2025034
SSUS ERP Code: RCHPE40X20 		RCHPE40X20 1 lbs/ft 40000 lbs 32000 lbs 80000 lbs 2.7 in 69280 lbs 56560 lbs 20 lbs 20 ft.
2025035
SSUS ERP Code: RCHPE40X30 		RCHPE40X30 1 lbs/ft 40000 lbs 32000 lbs 80000 lbs 2.7 in 69280 lbs 56560 lbs 30 lbs 30 ft.
2025036
SSUS ERP Code: RCHPE40X40 		RCHPE40X40 1 lbs/ft 40000 lbs 32000 lbs 80000 lbs 2.7 in 69280 lbs 56560 lbs 40 lbs 40 ft.
2025037
SSUS ERP Code: RCHPE50X20 		RCHPE50X20 1.15 lbs/ft 50000 lbs 40000 lbs 100000 lbs 2.8 in 86600 lbs 70700 lbs 23 lbs 20 ft.
2025038
SSUS ERP Code: RCHPE60X20 		RCHPE60X20 1.3 lbs/ft 60000 lbs 48000 lbs 120000 lbs 3 in 103920 lbs 84840 lbs 26 lbs 20 ft.
2025039
SSUS ERP Code: RCHPE80X20 		RCHPE80X20 1.6 lbs/ft 80000 lbs 64000 lbs 160000 lbs 3.7 in 138560 lbs 113120 lbs 32 lbs 20 ft.
2025040
SSUS ERP Code: RCHPE100X20 		RCHPE100X20 1.8 lbs/ft 100000 lbs 80000 lbs 200000 lbs 4 in 173200 lbs 141400 lbs 36 lbs 20 ft.
2025041
SSUS ERP Code: RCHPE125X20 		RCHPE125X20 2.5 lbs/ft 125000 lbs 100000 lbs 250000 lbs 5.1 in 216500 lbs 176750 lbs 50 lbs 20 ft.
2025042
SSUS ERP Code: RCHPE200X20 		RCHPE200X20 5.25 lbs/ft 200000 lbs 160000 lbs 400000 lbs 8 in 346400 lbs 282800 lbs 105 lbs 20 ft.
2025043
SSUS ERP Code: RCHPE250X20 		RCHPE250X20 5.85 lbs/ft 250000 lbs 200000 lbs 500000 lbs 9.1 in 433000 lbs 353500 lbs 117 lbs 20 ft.
2025044
SSUS ERP Code: RCHPE300X20 		RCHPE300X20 7 lbs/ft 300000 lbs 240000 lbs 600000 lbs 10.55 in 519600 lbs 424200 lbs 140 lbs 20 ft.
