ABS 2500daN 50mm

EUR 63,40

VAT not included

ABS 2500daN 50mm

Robust and durable ratchet with progressive release, for safe release of tension and no load tipping

EUR 63,40

VAT not included

Available within 10-15 Days

Item Number: 2004038

SSDE ERP Code: D001570

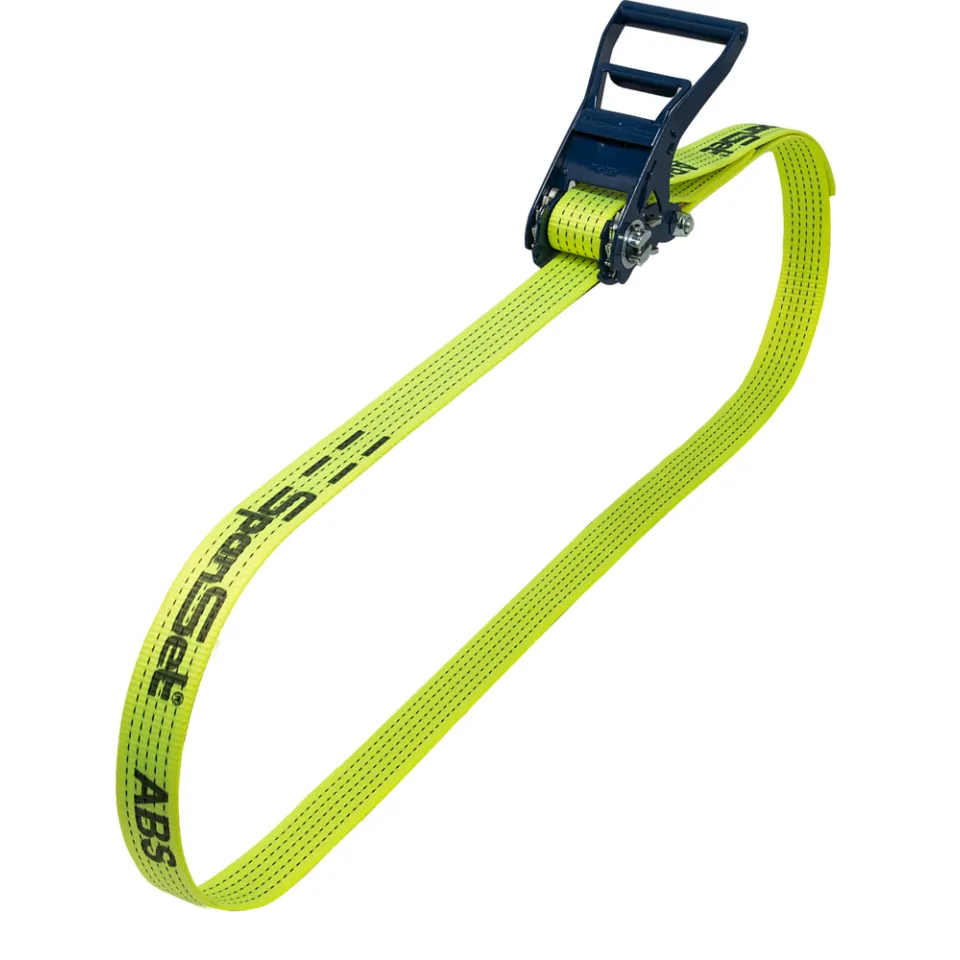

ABS LC5000/50 1pc 8m

Tensioning device with epoxy powder coating
Robust rip-proof label, protected by plastic sleeve and webbing insert
Ratchet tension can be released gradually, self-locking handle and equipped with double slider mechanism
Low-stretch, wear-resistant webbing with cord edge protection and marking stripes

Select Model

Lashing End Fitting Component

One-Piece lashing

Delta with Triangle hook

Double J-Hook

Double J-Hook Safety Latch

Rave hook

EUR 63,40

VAT not included

Available within 10-15 Days

Quantity

"Anti-Belt-Slip" procedure

Controlled tension liberation

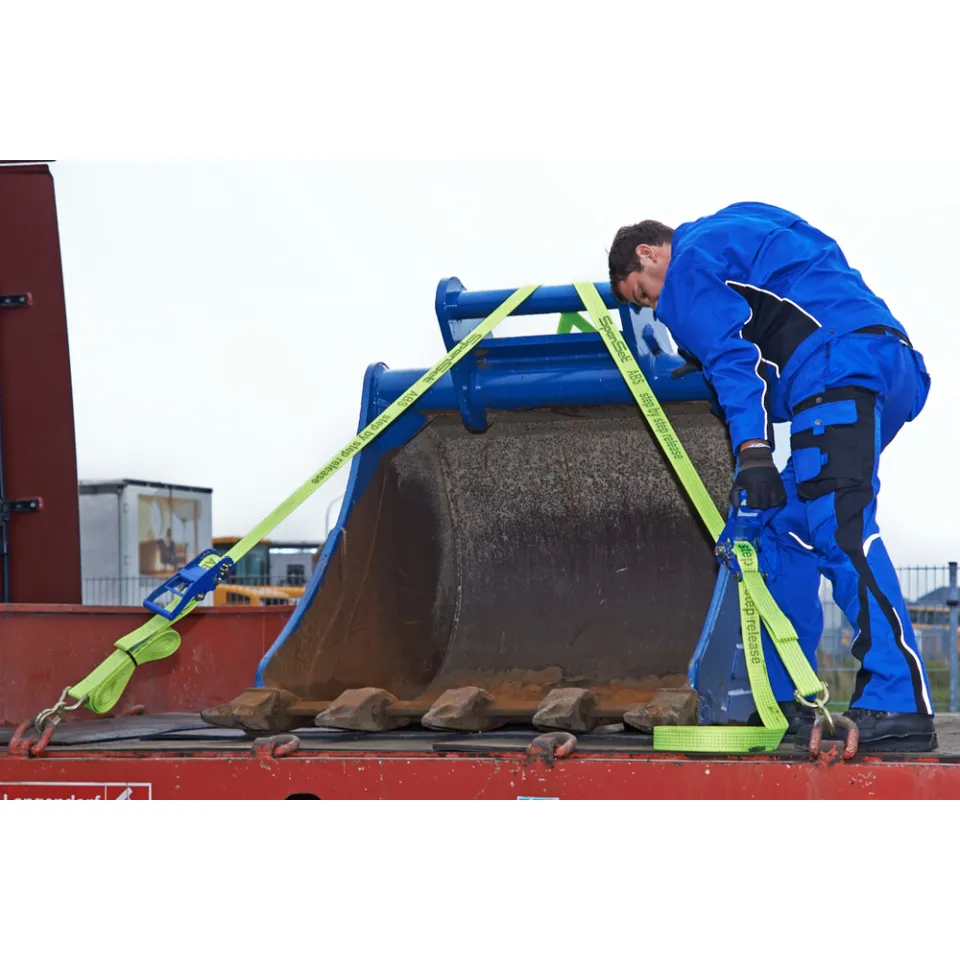

The ABS system was developed for loads with a risk of tipping and allows the user to release the pretension in small steps. The lashing can also be opened completely.

Self-locking ratchet lever

Prevents unintetional opening

The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.

Double Slider

Safe in the intermediate phase when tensing

Secures in the intermediate stage when tensioning the webbing. Two sliders engage in an existing sprocket in "smaller steps".

Epoxy resin coating

Maximum ratchet protection

Ratchets are first zinc-plated, then chrome-plated and coated with a shock-resistant epoxy resin coat which additionally protects the ratchets from e.g. rust.

Precision strap

Low elasticity of the strap

Less stretch maintains more tension and reduces the need for tension readjustment.

Reinforced edges

Longer service life and lower costs!

Webbing with the reinforced edge is more resistant to wear and abrasion.

Protective sleeve label

optimally protected, reinforced with selvedge

In addition to the tear-resistant design with a fabric lining, a robust plastic sleeve perfectly protects the writing from abrasion and dirt. The webbing insert, equipped as standard, also prolongs the service life.

Product Technical Information

Surface Coating: Epoxy
Standard Tension Force: 350 daN
Standard Tension Force (with TFI): 500 daN
Norms: EN 12195-2: 2001
Dimension L1: 8 m
Webbing Width B: 50
Dimension L2:
Dimension L3:
Ratchet Component: 29440 RB ABS LC25kN 50mm TFIG BL
Label Protection: Yes
Colour: Blue
Webbing Material: 100% Polyester, thermofixed and low-stretch
Ratchet Type: Push-up
Tension Force Indicator (TFI): Yes
Packaging Unit (PU): pcs
Packaging Unit (PU) Content: 1
Handle Type: Standard

Technical Drawings

Variants information

Item Number	Item Name	Lashing End Fitting Component	Lashing Type	Lashing Capacity
2004038	ABS LC5000/50 1pc 8m	One-Piece lashing No	One-piece	5000 daN
2004039	ABS LC2500/50 2pc 8m SHD	Delta with Triangle hook SHD-50	Two-piece	2500 daN
2004040	ABS LC2500/50 0.5m 7.5m DJH	Double J-Hook DJH-50	Two-piece	2500 daN
2004481	ABS LC2500/50 0.5m 7.5m DJHS	Double J-Hook Safety Latch DJHS-50	Two-piece	2500 daN
2004482	ABS LC2500/50 0.5m 7.5m RH	Rave hook RH-50	Two-piece	2500 daN
