ABS 5000daN 50mm
EUR 270,10
VAT not included
ABS 5000daN 50mm
Transport heavy loads safely with progressive release, for safe release of tension and no load tipping
EUR 270,10
VAT not included
Available within 10-15 Days
- Self-locking tensioning device, can be released gradually using ABS and equipped with double slider
- Low-stretch, wear-resistant webbing with cord edge and marking stripes
- Tensioning device with epoxy powder coating
- Robust label, resistant to being pulled out, protected by plastic sleeve and webbing insert
- Reliable lashing force of up to 5,000 daN

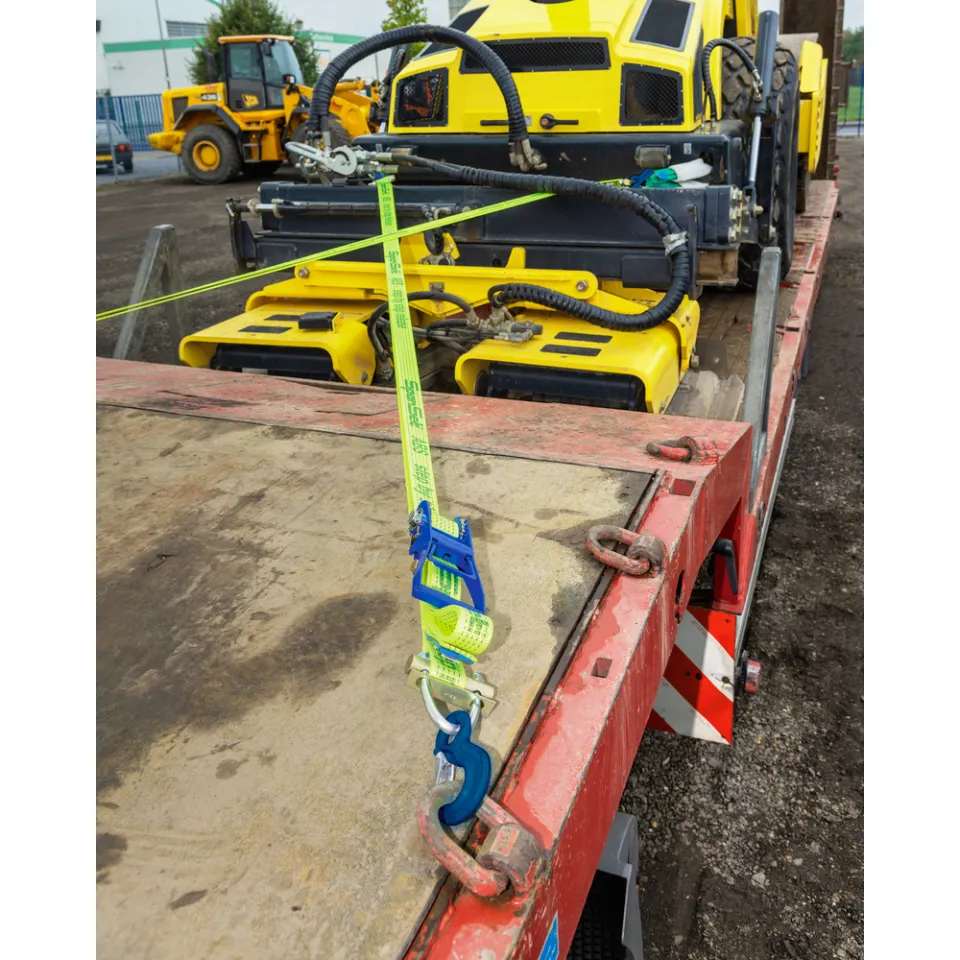

- Ideal for diagonal lashing of vehicles and machinery
Select Model
EUR 270,10
VAT not included
Available within 10-15 Days
"Anti-Belt-Slip" procedure
Controlled tension liberation
The ABS system was developed for loads with a risk of tipping and allows the user to release the pretension in small steps. The lashing can also be opened completely.
Self-locking ratchet lever
Prevents unintetional opening
The ratchet opening during transportation is thus effectively ruled out - eben when the load is exposed to strong vibrations and shaking.
Double Slider
Safe in the intermediate phase when tensing
Secures in the intermediate stage when tensioning the webbing. Two sliders engage in an existing sprocket in "smaller steps".
Epoxy resin coating
Maximum ratchet protection
Ratchets are first zinc-plated, then chrome-plated and coated with a shock-resistant epoxy resin coat which additionally protects the ratchets from e.g. rust.
Product Technical Information
-
Norms:
EN 12195-2: 2001
-
Dimension L1:
4 m
-
Webbing Width B:
50
-
Dimension L2:
0.5 m
-
Dimension L3:
3.5 m
-
Ratchet Component:
29440 RB ABS LC25kN 50mm TFIG BL
-
Label Protection:
Yes
-
Colour:
Blue
-
Webbing Material:
100% Polyester, thermofixed and low-stretch
-
Main Material:
High-Tenacity Polyester
-
Ratchet Type:
Push-up
-
Tension Force Indicator (TFI):
No
-
Lashing Type:
Carlash
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Lashing Capacity:
5000 daN
-
Handle Type:
Standard
Technical Drawings
Variants information
| Item Number | Item Name | Weight Net | Surface Coating | Lashing End Fitting Component |
|---|---|---|---|---|
| 2004013 | ABS LC5000/50 carlash 4m DH | 5.4 kg | no |

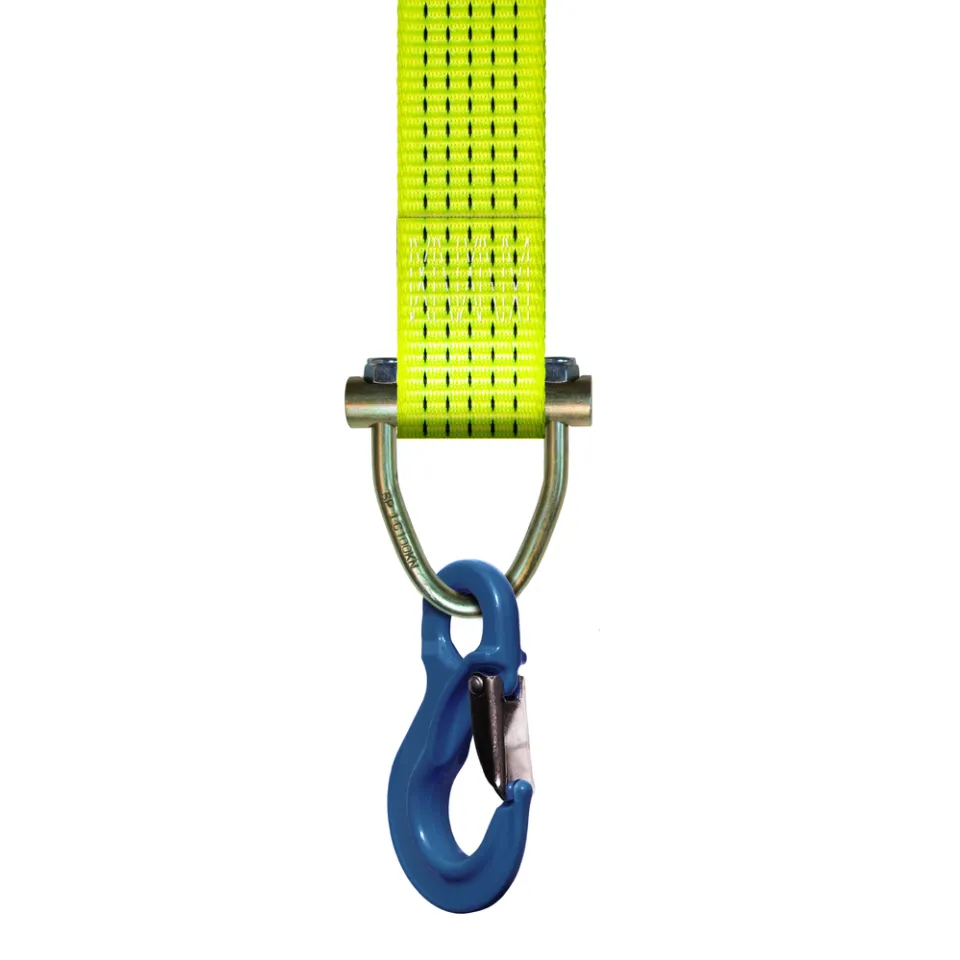

Delta and Hook DH-50 |
| 2004016 | ABS LC5000/50 carlash 4m DD b | 3.9 kg | Epoxy |

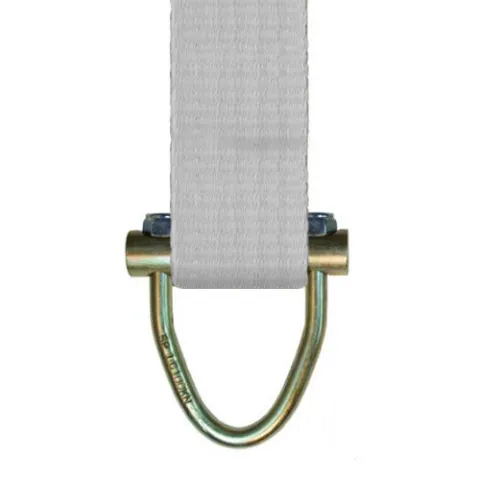

Delta connector DD-50 |
| 2004017 | ABS LC5000/50 carlash 4m DH b | 5.4 kg | Epoxy |
Delta and Hook DH-50 |
