Liftfix 2-ply
Liftfix 2-ply
Flat sling with solid basic equipment
Item Number: 2017234
SSID ERP Code: B1000-1M-21
B1000-1M-21

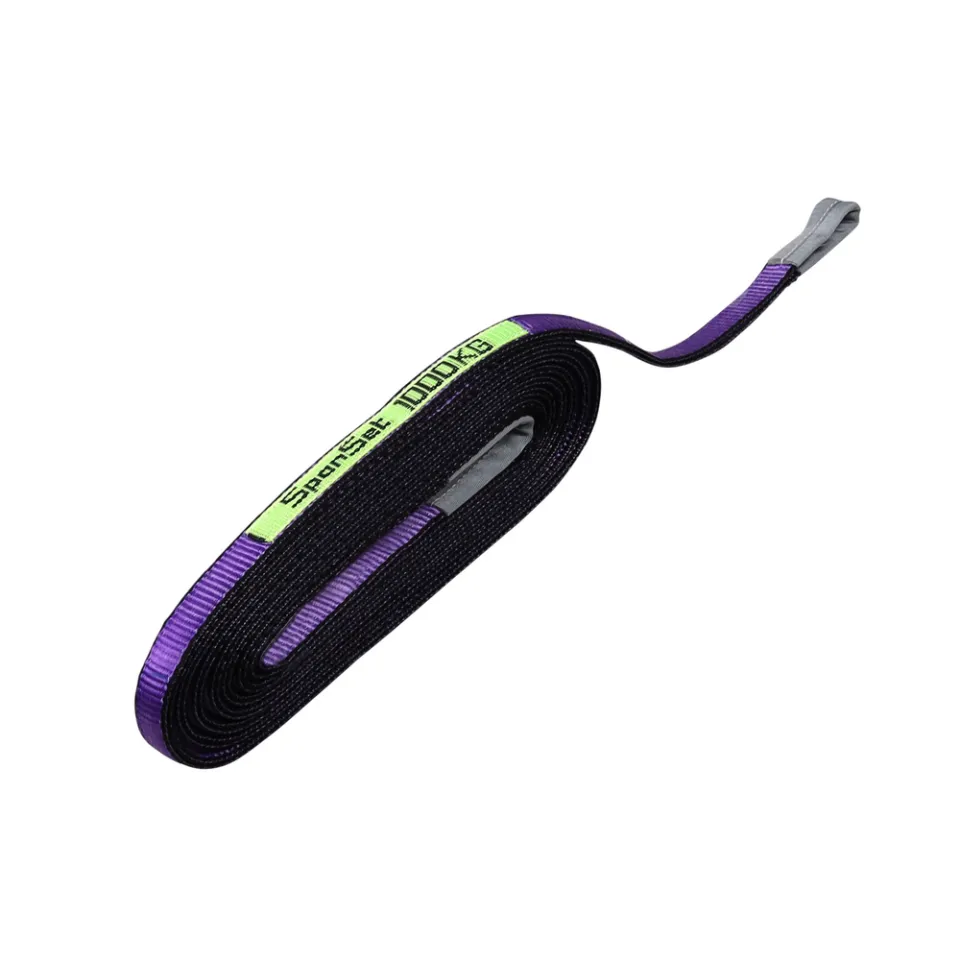

SpanSet Liftfix Websling Double Ply 1T, 1m, 7:1, Webbing Width 30mm, Color Violet.
- Manufactured in accordance to EN 1492-1 Standard
- Safety factor 7:1
- Sectional loop reinforcement
- 2-ply, tear-resistant label
- Complies with international color-coding for WLL (Working Load Limit) indicators
- Unique serial number on each product for traceability and inspection record
- Comes with a certificate of conformance, product identification label, and user manual book
Select Model
Folded label
Protect against damage with information sewn inside
Label is made shorter by the fold to protect the information from abrasion and is thus exposed less to wind and shearing forces.
Liftfix 2-ply — Flat sling with solid basic equipment
Standard Compliant
Liftfix is manufactured in accordance with the Euro 1492-1 Standard, ensuring it meets the highest safety and quality benchmarks. Its distinctive, line-shaped Lifting Capacity label, woven into the sleeve, ensures quick and accurate identification, streamlining your lifting operations with unmatched precision and reliability.
Tear-resistant Label
Designed with a focus on safety and longevity, the Liftfix Roundsling features a robust 2-ply sewn folded label. This tear-resistant label is crafted to endure harsh conditions, ensuring that crucial information remains legible over time.
Sectional Loop Reinforcement
The sling is equipped with reinforced sections at key stress points, particularly at the belt's eye where the sling attaches to the crane hook. This targeted reinforcement ensures extra strength and longevity, effectively preventing wear and tear in these critical areas.
Product Technical Information
-
Safety Factor:
7:1
-
Norms:
EN 1492-1: 2000
-
Temperature Range:
-40°C bis +100°C
-
Label Protection:
Yes
-
Belt Layers:
2
-
Main Material:
High-Tenacity Polyester
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
Technical Drawings
Variants information
| Item Number | Item Name | WLL | Weight per Meter | Weight Net | WLL | Weight Gross | Dimension L1 | Colour | Weight for 1m |
|---|---|---|---|---|---|---|---|---|---|
| 2017234
SSID ERP Code: B1000-1M-21 |
B1000-1M-21 | 1000 kg | 0.2 kg/m | 0.7 kg | 1 t | 0.29 kg | 1 m | Purple | 0.3 kg |
| 2017235
SSID ERP Code: B1000-2M-21 |
B1000-2M-21 | 1000 kg | 0.2 kg/m | 0.9 kg | 1 t | 0.49 kg | 2 m | Purple | 0.3 kg |
| 2017236
SSID ERP Code: B1000-3M-21 |
B1000-3M-21 | 1000 kg | 0.2 kg/m | 1.1 kg | 1 t | 0.68 kg | 3 m | Purple | 0.3 kg |
| 2017237
SSID ERP Code: B1000-4M-21 |
B1000-4M-21 | 1000 kg | 0.2 kg/m | 1.3 kg | 1 t | 0.87 kg | 4 m | Purple | 0.3 kg |
| 2017238
SSID ERP Code: B1000-5M-21 |
B1000-5M-21 | 1000 kg | 0.2 kg/m | 1.5 kg | 1 t | 1.06 kg | 5 m | Purple | 0.3 kg |
| 2017239
SSID ERP Code: B1000-6M-21 |
B1000-6M-21 | 1000 kg | 0.2 kg/m | 1.7 kg | 1 t | 1.25 kg | 6 m | Purple | 0.3 kg |
| 2017240
SSID ERP Code: B1000-8M-21 |
B1000-8M-21 | 1000 kg | 0.2 kg/m | 2.1 kg | 1 t | 1.63 kg | 8 m | Purple | 0.3 kg |
| 2017241
SSID ERP Code: B1000-10M-21 |
B1000-10M-21 | 1000 kg | 0.2 kg/m | 2.5 kg | 1 t | 2.01 kg | 10 m | Purple | 0.3 kg |
| 2017242
SSID ERP Code: B2000-1M-21 |
B2000-1M-21 | 2000 kg | 0.4 kg/m | 0.9 kg | 2 t | 0.54 kg | 1 m | Green | 0.5 kg |
| 2017243
SSID ERP Code: B2000-2M-21 |
B2000-2M-21 | 2000 kg | 0.4 kg/m | 1.2 kg | 2 t | 0.93 kg | 2 m | Green | 0.5 kg |
| 2017244
SSID ERP Code: B2000-3M-21 |
B2000-3M-21 | 2000 kg | 0.4 kg/m | 1.5 kg | 2 t | 1.3 kg | 3 m | Green | 0.5 kg |
| 2017245
SSID ERP Code: B2000-4M-21 |
B2000-4M-21 | 2000 kg | 0.4 kg/m | 1.8 kg | 2 t | 1.68 kg | 4 m | Green | 0.5 kg |
| 2017246
SSID ERP Code: B2000-5M-21 |
B2000-5M-21 | 2000 kg | 0.4 kg/m | 2.1 kg | 2 t | 2.05 kg | 5 m | Green | 0.5 kg |
| 2017247
SSID ERP Code: B2000-6M-21 |
B2000-6M-21 | 2000 kg | 0.4 kg/m | 2.4 kg | 2 t | 2.44 kg | 6 m | Green | 0.5 kg |
| 2017248
SSID ERP Code: B2000-8M-21 |
B2000-8M-21 | 2000 kg | 0.4 kg/m | 3 kg | 2 t | 3.21 kg | 8 m | Green | 0.5 kg |
| 2017249
SSID ERP Code: B2000-10M-21 |
B2000-10M-21 | 2000 kg | 0.4 kg/m | 3.6 kg | 2 t | 3.97 kg | 10 m | Green | 0.5 kg |
| 2017250
SSID ERP Code: B3000-1M-21 |
B3000-1M-21 | 3000 kg | 0.6 kg/m | 1.1 kg | 3 t | 0.82 kg | 1 m | Yellow | 0.8 kg |
| 2017251
SSID ERP Code: B3000-2M-21 |
B3000-2M-21 | 3000 kg | 0.6 kg/m | 1.6 kg | 3 t | 1.32 kg | 2 m | Yellow | 0.8 kg |
| 2017252
SSID ERP Code: B3000-3M-21 |
B3000-3M-21 | 3000 kg | 0.6 kg/m | 2.1 kg | 3 t | 2.05 kg | 3 m | Yellow | 0.8 kg |
| 2017253
SSID ERP Code: B3000-4M-21 |
B3000-4M-21 | 3000 kg | 0.6 kg/m | 2.6 kg | 3 t | 2.45 kg | 4 m | Yellow | 0.8 kg |
| 2017254
SSID ERP Code: B3000-5M-21 |
B3000-5M-21 | 3000 kg | 0.6 kg/m | 3.1 kg | 3 t | 2.95 kg | 5 m | Yellow | 0.8 kg |
| 2017255
SSID ERP Code: B3000-6M-21 |
B3000-6M-21 | 3000 kg | 0.6 kg/m | 3.6 kg | 3 t | 3.73 kg | 6 m | Yellow | 0.8 kg |
| 2017256
SSID ERP Code: B3000-8M-21 |
B3000-8M-21 | 3000 kg | 0.6 kg/m | 4.6 kg | 3 t | 5.13 kg | 8 m | Yellow | 0.8 kg |
| 2017257
SSID ERP Code: B3000-10M-21 |
B3000-10M-21 | 3000 kg | 0.6 kg/m | 5.6 kg | 3 t | 6.53 kg | 10 m | Yellow | 0.8 kg |
| 2017258
SSID ERP Code: B4000-2M-21 |
B4000-2M-21 | 4000 kg | 0.8 kg/m | 2.2 kg | 4 t | 1.75 kg | 2 m | Grey | 1 kg |
| 2017259
SSID ERP Code: B4000-3M-21 |
B4000-3M-21 | 4000 kg | 0.8 kg/m | 3 kg | 4 t | 2.47 kg | 3 m | Grey | 1 kg |
| 2017260
SSID ERP Code: B4000-4M-21 |
B4000-4M-21 | 4000 kg | 0.8 kg/m | 3.8 kg | 4 t | 3.31 kg | 4 m | Grey | 1 kg |
| 2017261
SSID ERP Code: B4000-5M-21 |
B4000-5M-21 | 4000 kg | 0.8 kg/m | 4.6 kg | 4 t | 4.03 kg | 5 m | Grey | 1 kg |
| 2017262
SSID ERP Code: B4000-6M-21 |
B4000-6M-21 | 4000 kg | 0.8 kg/m | 5.4 kg | 4 t | 4.85 kg | 6 m | Grey | 1 kg |
| 2017263
SSID ERP Code: B4000-8M-21 |
B4000-8M-21 | 4000 kg | 0.8 kg/m | 7 kg | 4 t | 6.35 kg | 8 m | Grey | 1 kg |
| 2017265
SSID ERP Code: B4000-10M-21 |
B4000-10M-21 | 4000 kg | 0.8 kg/m | 8.6 kg | 4 t | 7.85 kg | 10 m | Grey | 1 kg |
| 2017269
SSID ERP Code: B5000-2M-21 |
B5000-2M-21 | 5000 kg | 1 kg/m | 2.7 kg | 5 t | 2.28 kg | 2 m | Red | 1.3 kg |
| 2017273
SSID ERP Code: B5000-3M-21 |
B5000-3M-21 | 5000 kg | 1 kg/m | 3.7 kg | 5 t | 3.29 kg | 3 m | Red | 1.3 kg |
| 2017275
SSID ERP Code: B5000-4M-21 |
B5000-4M-21 | 5000 kg | 1 kg/m | 4.7 kg | 5 t | 4.22 kg | 4 m | Red | 1.3 kg |
| 2017277
SSID ERP Code: B5000-5M-21 |
B5000-5M-21 | 5000 kg | 1 kg/m | 5.7 kg | 5 t | 5.1 kg | 5 m | Red | 1.3 kg |
| 2017279
SSID ERP Code: B5000-6M-21 |
B5000-6M-21 | 5000 kg | 1 kg/m | 6.7 kg | 5 t | 6.11 kg | 6 m | Red | 1.3 kg |
| 2017281
SSID ERP Code: B5000-8M-21 |
B5000-8M-21 | 5000 kg | 1 kg/m | 8.7 kg | 5 t | 7.97 kg | 8 m | Red | 1.3 kg |
| 2017283
SSID ERP Code: B5000-10M-21 |
B5000-10M-21 | 5000 kg | 1 kg/m | 10.7 kg | 5 t | 9.83 kg | 10 m | Red | 1.3 kg |
| 2017287
SSID ERP Code: B6000-2M-21 |
B6000-2M-21 | 6000 kg | 1.2 kg/m | 3.1 kg | 6 t | 2.8 kg | 2 m | Brown | 1.7 kg |
| 2017311
SSID ERP Code: B6000-3M-21 |
B6000-3M-21 | 6000 kg | 1.2 kg/m | 4.3 kg | 6 t | 3.93 kg | 3 m | Brown | 1.7 kg |
| 2017312
SSID ERP Code: B6000-4M-21 |
B6000-4M-21 | 6000 kg | 1.2 kg/m | 5.5 kg | 6 t | 5.11 kg | 4 m | Brown | 1.7 kg |
| 2017313
SSID ERP Code: B600O-5M-21 |
B6000-5M-21 | 6000 kg | 1.2 kg/m | 6.7 kg | 6 t | 6.25 kg | 5 m | Brown | 1.7 kg |
| 2017314
SSID ERP Code: B6000-6M-21 |
B6000-6M-21 | 6000 kg | 1.2 kg/m | 7.9 kg | 6 t | 7.61 kg | 6 m | Brown | 1.7 kg |
| 2017315
SSID ERP Code: B6000-8M-21 |
B6000-8M-21 | 6000 kg | 1.2 kg/m | 10.3 kg | 6 t | 10.33 kg | 8 m | Brown | 1.7 kg |
| 2017316
SSID ERP Code: B6000-10M-21 |
B6000-10M-21 | 6000 kg | 1.2 kg/m | 12.7 kg | 6 t | 13.05 kg | 10 m | Brown | 1.7 kg |
| 2017317
SSID ERP Code: B8000-2M-21 |
B8000-2M-21 | 8000 kg | 1.7 kg/m | 3.9 kg | 8 t | 3.7 kg | 2 m | Blue | 2.3 kg |
| 2017318
SSID ERP Code: B8000-3M-21 |
B8000-3M-21 | 8000 kg | 1.7 kg/m | 5.5 kg | 8 t | 5.3 kg | 3 m | Blue | 2.3 kg |
| 2017319
SSID ERP Code: B8000-4M-21 |
B8000-4M-21 | 8000 kg | 1.7 kg/m | 7.1 kg | 8 t | 6.9 kg | 4 m | Blue | 2.3 kg |
| 2017320
SSID ERP Code: B8000-5M-21 |
B8000-5M-21 | 8000 kg | 1.7 kg/m | 8.7 kg | 8 t | 8.5 kg | 5 m | Blue | 2.3 kg |
| 2017321
SSID ERP Code: B8000-6M-21 |
B8000-6M-21 | 8000 kg | 1.7 kg/m | 10.3 kg | 8 t | 10.1 kg | 6 m | Blue | 2.3 kg |
| 2017322
SSID ERP Code: B8000-8M-21 |
B8000-8M-21 | 8000 kg | 1.7 kg/m | 13.5 kg | 8 t | 13.3 kg | 8 m | Blue | 2.3 kg |
| 2017323
SSID ERP Code: B8000-10M-21 |
B8000-10M-21 | 8000 kg | 1.7 kg/m | 16.7 kg | 8 t | 16.5 kg | 10 m | Blue | 2.3 kg |
| 2017324
SSID ERP Code: B10000-3M-21 |
B10000-3M-21 | 10000 kg | 2.1 kg/m | 7.5 kg | 10 t | 7.3 kg | 3 m | orange | 3.4 kg |
| 2017325
SSID ERP Code: B10000-4M-21 |
B10000-4M-21 | 10000 kg | 2.1 kg/m | 9.8 kg | 10 t | 9.6 kg | 4 m | orange | 3.4 kg |
| 2017326
SSID ERP Code: B10000-5M-21 |
B10000-5M-21 | 10000 kg | 2.1 kg/m | 12.1 kg | 10 t | 11.9 kg | 5 m | orange | 3.4 kg |
| 2017327
SSID ERP Code: B10000-6M-21 |
B10000-6M-21 | 10000 kg | 2.1 kg/m | 14.4 kg | 10 t | 14.2 kg | 6 m | orange | 3.4 kg |
| 2017328
SSID ERP Code: B10000-8M-21 |
B10000-8M-21 | 10000 kg | 2.1 kg/m | 19 kg | 10 t | 18.8 kg | 8 m | orange | 3.4 kg |
| 2017329
SSID ERP Code: B10000-10M-21 |
B10000-10M-21 | 10000 kg | 2.1 kg/m | 23.6 kg | 10 t | 23.4 kg | 10 m | orange | 3.4 kg |
