Nemag Rope Pear Socket Type S

Nemag Rope Pear Socket Type S

The Rope Pear Socket for compacted steel wire rope

Item Number: 2028584
SSID ERP Code: NEMAG 1232-31/33-PS
NEMAG 1232-31/33-PS
NEMAG Pear Socket (Type S) nr. 1232, v. kabel dia 31/33-werklast 17000kg
  • Especially designed for compacted steel wire rope
  • Increased safety
  • Less steel wire rope fatigue as a result of a better deflection angle of the steel wire rope upon passing over the cable sheave
  • Longer life span of the steel wire rope at the casting place
  • Optimal, new design of the Rope Pear Socket for improved sheave passage
  • Designed specifically for compacted steel wire rope
  • Long operating lifetime

Select Model

Please contact customer service for purchase or more information

Nemag Rope Pear Socket Type S— The Rope Pear Socket for compacted steel wire rope



Tailored for Compacted Steel Wire Rope

Specifically designed for 8-strand steel wire ropes like CASAR Turboplast, ensuring a perfect fit for specialized applications.

Enhanced Safety Features

Offers additional safety compared to existing ranges, aligning with the safety factor of compacted steel wire ropes.

Robust and Wear-Resistant Design

Crafted from high-grade austenitic manganese steel, known for its toughness and high resistance to wear, ensuring durability and longevity.

Optimized for Sheave Passage

The geometry of the Rope Pear Socket is adjusted for better wire deflection, reducing steel wire rope fatigue and enhancing lifespan.

High Load Capacities

Suitable for minimal breaking loads ranging from 70,000 to 215,000 kg and safe workloads from 11,000 to 36,000 kg, ideal for heavy-duty operations.

Long Life-Expectancy and Reliability

Designed for long-term use with simple, safe, and reliable operation, maximizing the service life of steel wire ropes.

Reusable and Versatile

Can be reused in various applications, suitable for both trolley and crane sheave passage.



Recommendations for Use

Do not use damaged wire ropes and slings with defects, such as wire breaks, bulges, bruises, kinks, severed core, heavy wear, rust damage or others. Do not exceed the specified load carrying capacity (WLL). Do not strike at a tilt angle exceeding 60°. Do not use wire ropes with broken strands. Do not use in contact with chemicals. Sling ropes may only be used for lifting and transporting loads and only by instructed persons. The regulation on the safe use of cranes (Crane Regulation) must be observed without fail (Suva-Form.1420. d).

Product Technical Information

  • Temperature Range: -40° C to + 100° C
  • Main Material: Steel
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1

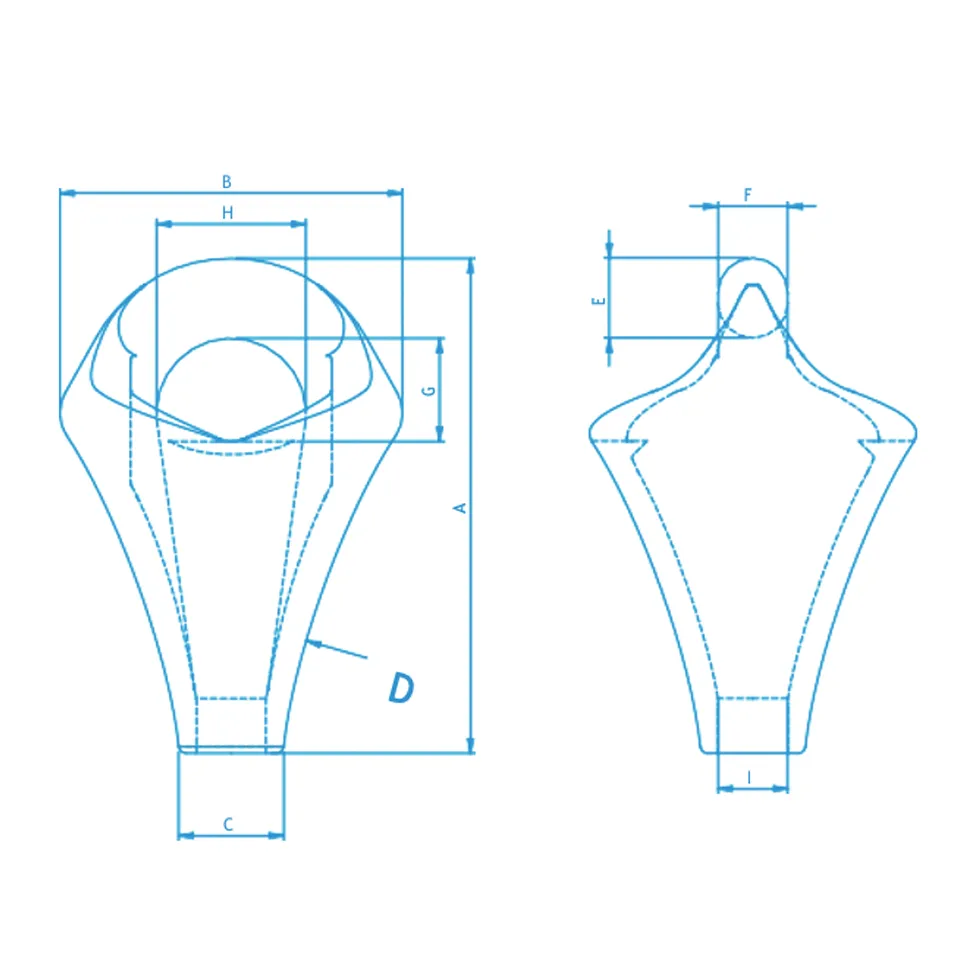

Technical Drawings

Item Number Item Name Weight Net WLL
2028584
SSID ERP Code: NEMAG 1232-31/33-PS 		NEMAG 1232-31/33-PS 7.5 kg 17 t
2028585
SSID ERP Code: NEMAG 1336-34/36-PS 		NEMAG 1336-34/36-PS 9.8 kg 21 t
2028586
SSID ERP Code: NEMAG 1440-37/40-PS 		NEMAG 1440-37/40-PS 12.1 kg 26 t
