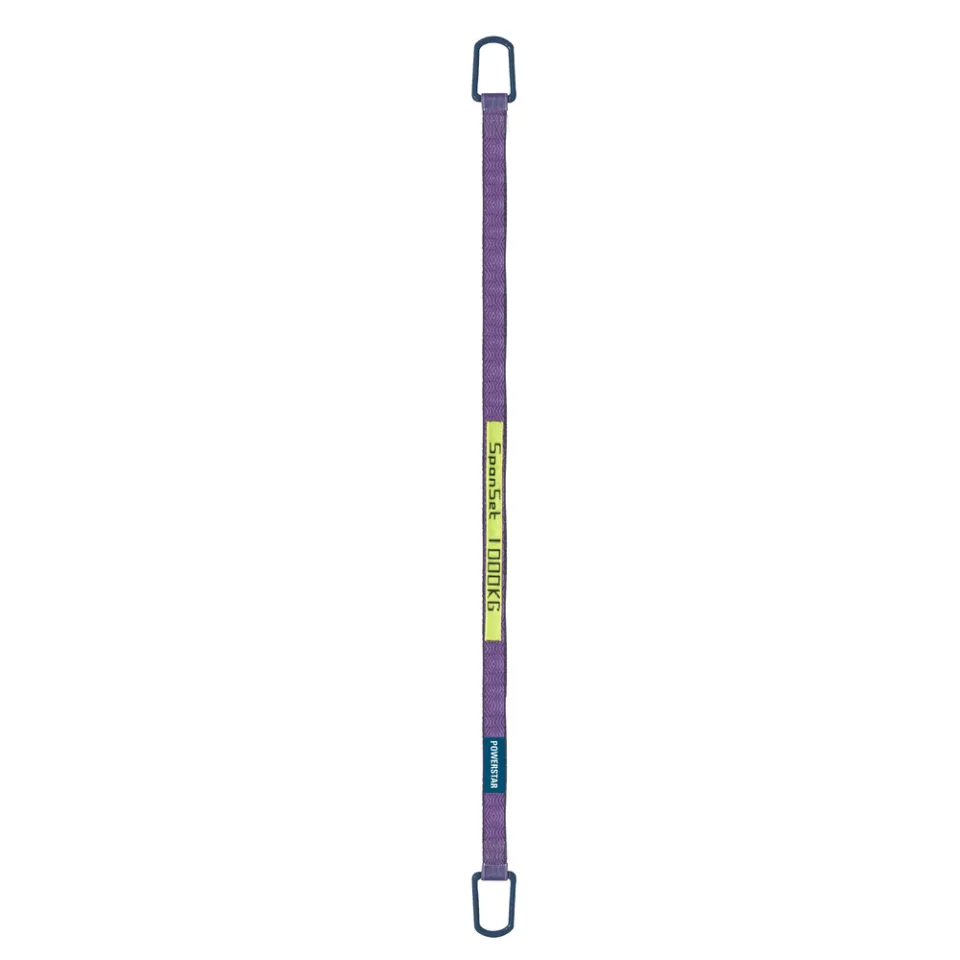

PowerStar 2Ply Webbing sling with D-links
PowerStar 2Ply Webbing sling with D-links
PowerStar Webbing sling 2-ply with D-links by SpanSet, built for added durability and load flexibility in challenging lifting operations.
- Manufactured in accordance to EN 1492-1 Standard
- Tear-resistant label covered with a protective sleeve
- Edge reinforcement with interwoven high-tech yarns to protect from wear
- All-round loop reinforcement protects from abrasion in the crane hook
- Special transparent PU coating that offers three times more protection against abrasion
- The herringbone weave of the webbing sling facilitates smoother and quicker feeding under loads
- Superior woven load capacity indication
Select Model
Measurable load capacity
With these flat slings it is possible to ‘measure’ the load capacity.
The weaving pattern of the strap changes every 30 mm, and each „strip“ indicates a nominal carrying capacity of 0.5 t per layer, e. g.: 2-ply flat sling, 90 mm wide = 3 x 30 mm x 2 layers = 3 t load capacity.
Protective sleeve label
Optimally protected, reinforced with a lining
In addition to the tear-resistant design with a fabric lining, a robust plastic sleeve perfectly protects the writing from abrasion and dirt. In lifting gear fitted with an RFID transponder, the transponder is integrated into the protective sleeve and is tear-resistant.
Reinforced edges
Resistant to wear and abrasion
Extremely hard-wearing high-tech black spun yarn is woven into the edges of the slings. They provide an easily recognisable protection against chafing on the edge of the strap. Your benefit: longer service life and lower costs!
Woven load capacity indicator
Easy to read even when dirty
Speed is often of the essence in everyday work. To make sure you always use the right round sling, the load capacity indicator is firmly woven into the sleeve and can be read even when the sling is very dirty.
Flat sling coating
Protects against cutting of the lifting gear
Flat slings can be coated with secutex on one or on two sides, which provides for one-sided or all-around protection of the flat slings. This makes them more robust and protects against sharp-edged loads.
RFID optional
Attachment strap for retrofitting
All SpanSet gear can be fitted with an RFID transponder for asset management with IDXpert.
Powerstar — Version with D-links
Enhanced Durability
Webbing Sling PowerStar boasts exceptional wear protection, with hard-wearing black filaments woven into the edges and additional fiber coating in the loops. It also features a special invisible coating that triples its abrasion resistance.
Efficient and Easy to Use
The herringbone weave prevents twisting, ensuring smooth and quick operation under loads, saving valuable time in your work routine.
Clear and Durable Capacity Indication
With a woven capacity indication, the PowerStar provides easy-to-read and long-lasting information, streamlining your lifting process with precision and reliability.

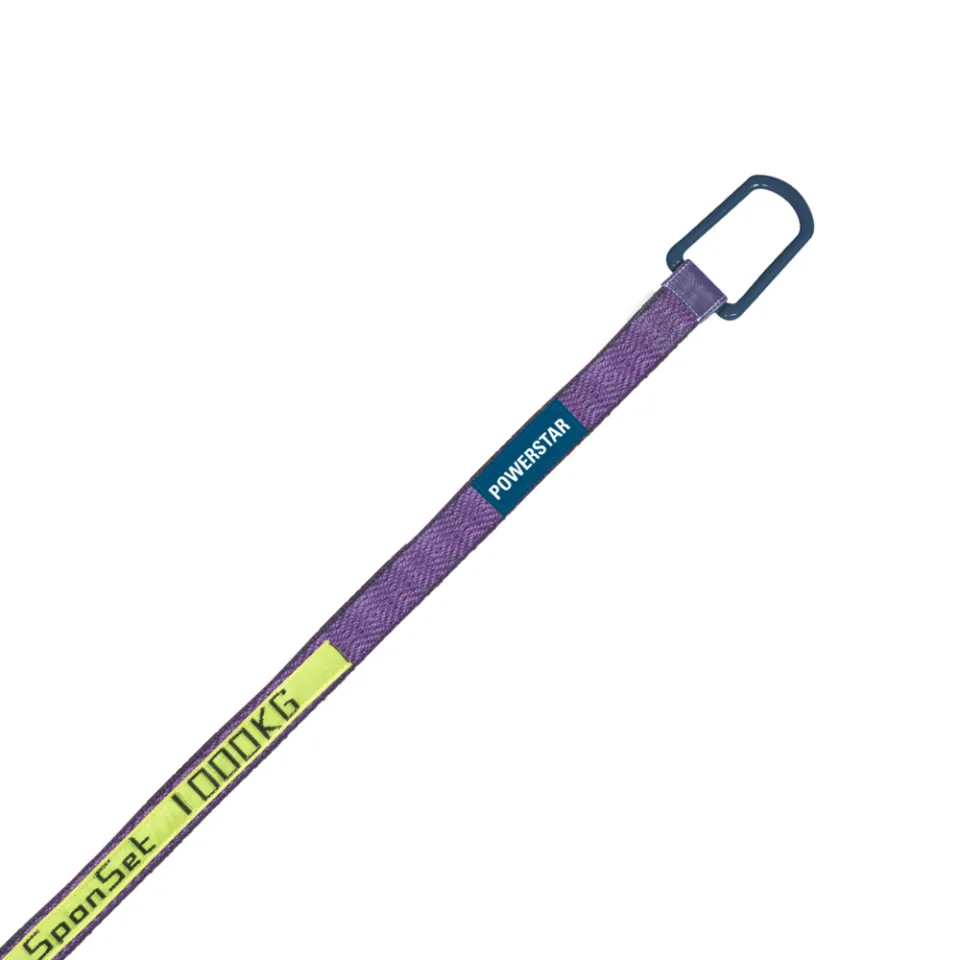

D-Link Attachments
The D-links are compatible with standard crane hooks and made of durable quality steel, ideal for noose-style lifting. Their easy threading and secure attachment to crane hooks prevent slippage of the webbing sling.
Sharp Edge Protection
Protective sleeves easily attach to 2-ply PowerStar slings for lifting sharp-edged loads.
Product Technical Information
-
Safety Factor
5:1 -
Norms
EN 1492-1: 2000 -
Temperature Range
-40° C to + 50° C -
Label Protection
Yes -
Belt Layers
2 -
Main Material
Polyester -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1
Technical Drawings
Variants information
| Item Number | Item Name | WLL kg | Weight per Meter | Weight Net | WLL t | Dimension L1 | Colour | Weight for 1m |
|---|---|---|---|---|---|---|---|---|
| 2017890 | PB1000-DD-2M-01 | 1000 kg | 0.2 kg/m | 2.1 kg | 1 t | 2 m | Purple | 1.4 kg |
| 2017891 | PB1000-DD-3M-01 | 1000 kg | 0.2 kg/m | 2.3 kg | 1 t | 3 m | Purple | 1.4 kg |
| 2017897 | PB1000-DD-4M-01 | 1000 kg | 0.2 kg/m | 2.5 kg | 1 t | 4 m | Purple | 1.4 kg |
| 2017898 | PB1000-DD-5M-01 | 1000 kg | 0.2 kg/m | 2.7 kg | 1 t | 5 m | Purple | 1.4 kg |
| 2017899 | PB1000-DD-6M-01 | 1000 kg | 0.2 kg/m | 2.9 kg | 1 t | 6 m | Purple | 1.4 kg |
| 2017900 | PB1000-DD-8M-01 | 1000 kg | 0.2 kg/m | 3.3 kg | 1 t | 8 m | Purple | 1.4 kg |
| 2017901 | PB2000-DD-2M-01 | 2000 kg | 0.4 kg/m | 3.1 kg | 2 t | 2 m | Green | 2.2 kg |
| 2017902 | PB2000-DD-3M-01 | 2000 kg | 0.4 kg/m | 3.5 kg | 2 t | 3 m | Green | 2.2 kg |
| 2017903 | PB2000-DD-4M-01 | 2000 kg | 0.4 kg/m | 3.9 kg | 2 t | 4 m | Green | 2.2 kg |
| 2017904 | PB2000-DD-5M-01 | 2000 kg | 0.4 kg/m | 4.3 kg | 2 t | 5 m | Green | 2.2 kg |
| 2017905 | PB2000-DD-6M-01 | 2000 kg | 0.4 kg/m | 4.7 kg | 2 t | 6 m | Green | 2.2 kg |
| 2017907 | PB3000-DD-2M-01 | 3000 kg | 0.6 kg/m | 5.3 kg | 3 t | 2 m | Yellow | 4.2 kg |
| 2017908 | PB3000-DD-3M-01 | 3000 kg | 0.6 kg/m | 5.9 kg | 3 t | 3 m | Yellow | 4.2 kg |
| 2017909 | PB3000-DD-4M-01 | 3000 kg | 0.6 kg/m | 6.5 kg | 3 t | 4 m | Yellow | 4.2 kg |
| 2017910 | PB3000-DD-5M-01 | 3000 kg | 0.6 kg/m | 7.1 kg | 3 t | 5 m | Yellow | 4.2 kg |
| 2017911 | PB3000-DD-6M-01 | 3000 kg | 0.6 kg/m | 7.7 kg | 3 t | 6 m | Yellow | 4.2 kg |
| 2017912 | PB3000-DD-8M-01 | 3000 kg | 0.6 kg/m | 8.9 kg | 3 t | 8 m | Yellow | 4.2 kg |
| 2017913 | PB8000-DD-3M-01 | 8000 kg | 1.6 kg/m | 26.3 kg | 8 t | 3 m | Blue | 22.6 kg |
| 2017914 | PB4000-DD-2M-01 | 4000 kg | 0.8 kg/m | 6.7 kg | 4 t | 2 m | Grey | 5.4 kg |
| 2017915 | PB4000-DD-3M-01 | 4000 kg | 0.8 kg/m | 7.5 kg | 4 t | 3 m | Grey | 5.4 kg |
| 2017916 | PB4000-DD-4M-01 | 4000 kg | 0.8 kg/m | 8.3 kg | 4 t | 4 m | Grey | 5.4 kg |
| 2017918 | PB4000-DD-6M-01 | 4000 kg | 0.8 kg/m | 9.9 kg | 4 t | 6 m | Grey | 5.4 kg |
| 2017919 | PB4000-DD-8M-01 | 4000 kg | 0.8 kg/m | 11.5 kg | 4 t | 8 m | Grey | 5.4 kg |
| 2017920 | PB5000-DD-2M-01 | 5000 kg | 1 kg/m | 10.5 kg | 5 t | 2 m | Red | 9 kg |
| 2017921 | PB5000-DD-3M-01 | 5000 kg | 1 kg/m | 11.5 kg | 5 t | 3 m | Red | 9 kg |
| 2017922 | PB5000-DD-4M-01 | 5000 kg | 1 kg/m | 12.5 kg | 5 t | 4 m | Red | 9 kg |
| 2017923 | PB5000-DD-5M-01 | 5000 kg | 1 kg/m | 13.5 kg | 5 t | 5 m | Red | 9 kg |
| 2017924 | PB5000-DD-6M-01 | 5000 kg | 1 kg/m | 14.5 kg | 5 t | 6 m | Red | 9 kg |
| 2017925 | PB5000-DD-8M-01 | 5000 kg | 1 kg/m | 16.5 kg | 5 t | 8 m | Red | 9 kg |
| 2017926 | PB6000-DD-2M-01 | 6000 kg | 1.2 kg/m | 16.9 kg | 6 t | 2 m | Brown | 15.2 kg |
| 2017927 | PB6000-DD-3M-01 | 6000 kg | 1.2 kg/m | 18.1 kg | 6 t | 3 m | Brown | 15.2 kg |
| 2017928 | PB6000-DD-4M-01 | 6000 kg | 1.2 kg/m | 19.3 kg | 6 t | 4 m | Brown | 15.2 kg |
| 2017929 | PB6000-DD-5M-01 | 6000 kg | 1.2 kg/m | 20.5 kg | 6 t | 5 m | Brown | 15.2 kg |
| 2017930 | PB6000-DD-6M-01 | 6000 kg | 1.2 kg/m | 21.7 kg | 6 t | 6 m | Brown | 15.2 kg |
| 2017931 | PB6000-DD-8M-01 | 6000 kg | 1.2 kg/m | 24.1 kg | 6 t | 8 m | Brown | 15.2 kg |
| 2017932 | PB8000-DD-4M-01 | 8000 kg | 1.6 kg/m | 27.9 kg | 8 t | 4 m | Blue | 22.6 kg |
| 2017933 | PB8000-DD-5M-01 | 8000 kg | 1.6 kg/m | 29.5 kg | 8 t | 5 m | Blue | 22.6 kg |
| 2017934 | PB8000-DD-6M-01 | 8000 kg | 1.6 kg/m | 31.1 kg | 8 t | 6 m | Blue | 22.6 kg |
| 2017935 | PB8000-DD-8M-01 | 8000 kg | 1.6 kg/m | 34.3 kg | 8 t | 8 m | Blue | 22.6 kg |
| 2017936 | PB10000-DD-3M-01 | 10000 kg | 2.2 kg/m | 40.1 kg | 10 t | 3 m | Orange | 35.2 kg |
| 2017938 | PB10000-DD-4M-01 | 10000 kg | 2.2 kg/m | 42.3 kg | 10 t | 4 m | Orange | 35.2 kg |
| 2017939 | PB10000-DD-5M-01 | 10000 kg | 2.2 kg/m | 44.5 kg | 10 t | 5 m | Orange | 35.2 kg |
| 2017940 | PB10000-DD-6M-01 | 10000 kg | 2.2 kg/m | 46.7 kg | 10 t | 6 m | Orange | 35.2 kg |
| 2017941 | PB10000-DD-8M-01 | 10000 kg | 2.2 kg/m | 51.1 kg | 10 t | 8 m | Orange | 35.2 kg |
