Ratchet Lashing 35mm, LC 500daN
Ratchet Lashing 35mm, LC 500daN
Item Number: 2021118
SSID ERP Code: 1804/2-A-2M-16
1804/2-A-2M-16

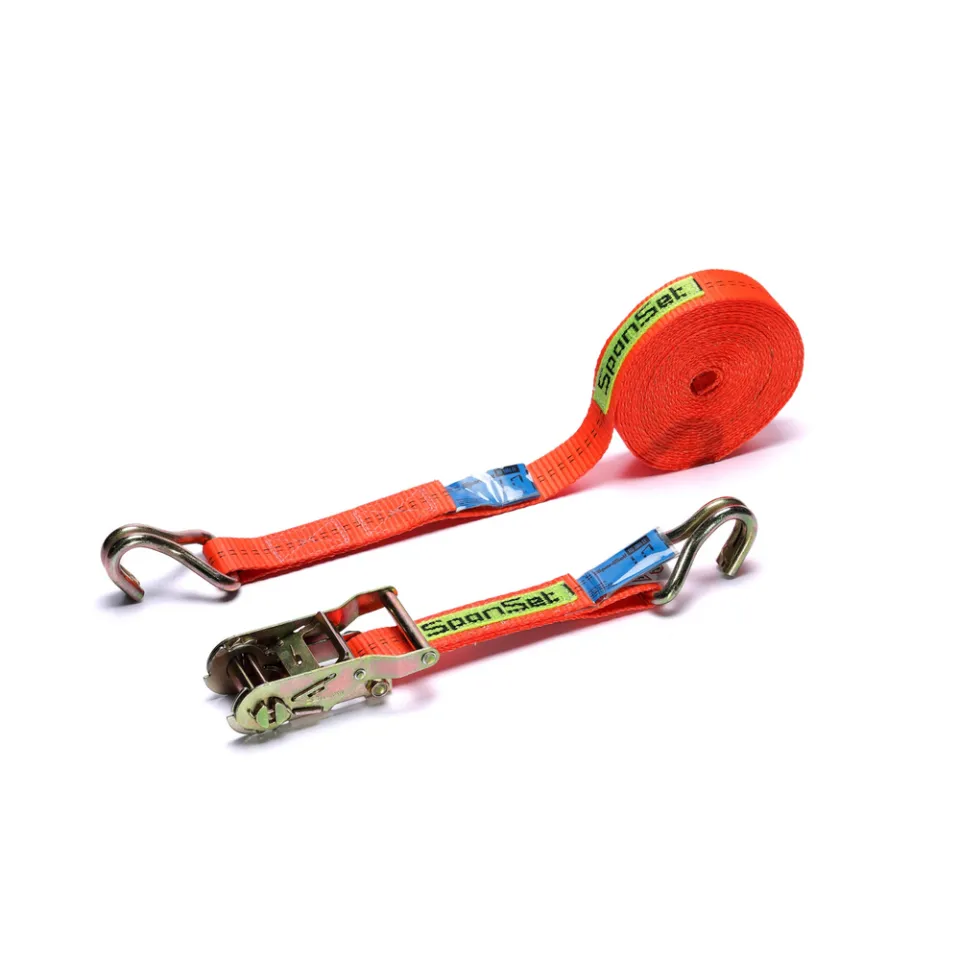

SpanSet Ratchet Lashing 1804 Claw, 2m. Webbing Width 35mm, Color Orange.
- Manufactured in accordance to EN 12195-2
- Made from highest grade material
- Unique Serial Number on each single product for traceability and inspection record
- Optional accessories are available to improve load securing application
- Supplied with Certificate of Conformance, Product Identification Label and User Manual book
- Available in standard and customized length
Select Model
Folded label
Protect against damage with information sewn inside
Label is made shorter by the fold to protect the information from abrasion and is thus exposed less to wind and shearing forces.
Product Technical Information
-
Norms:
EN 12195-2: 2001
-
Webbing Width B:
35
-
Label Protection:
Yes
-
Colour:
orange
-
Webbing Material:
100% Polyester, thermofixed and low-stretch
-
Main Material:
Polyester
-
Ratchet Type:
Push-up
-
Lashing Type:
Two-piece
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Lashing Capacity:
500 daN
Technical Drawings
Variants information
| Item Number | Item Name | Weight Net | Dimension L1 | Lashing End Fitting Component |
|---|---|---|---|---|
| 2021118
SSID ERP Code: 1804/2-A-2M-16 |
1804/2-A-2M-16 | 1.5 kg | 2 m |

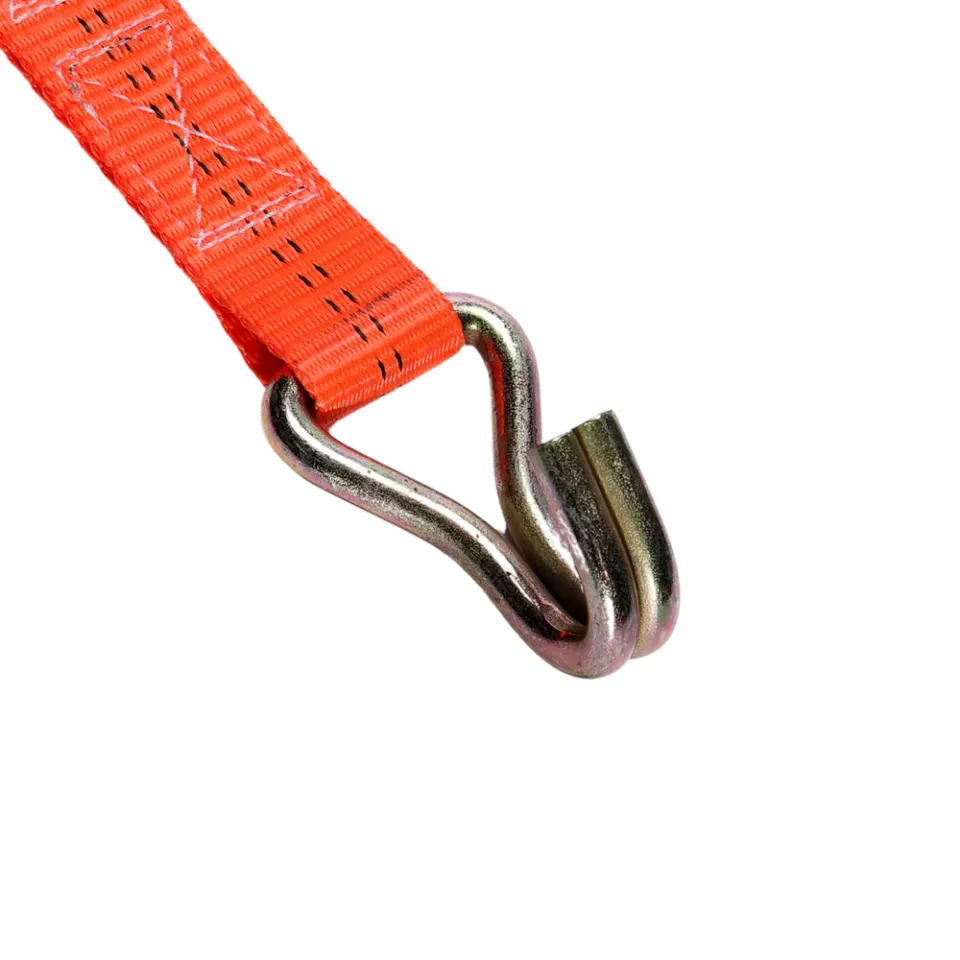

Claw Hook Claw Hook 35mm |
| 2021119
SSID ERP Code: 1804/2-A-4M-16 |
1804/2-A-4M-16 | 1.7 kg | 4 m |
Claw Hook Claw Hook 35mm |
| 2021120
SSID ERP Code: 1804/2-A-6M-16 |
1804/2-A-6M-16 | 1.9 kg | 6 m |
Claw Hook Claw Hook 35mm |
| 2021121
SSID ERP Code: 1804/2-A-8M-16 |
1804/2-A-8M-16 | 2.1 kg | 8 m |
Claw Hook Claw Hook 35mm |
| 2021122
SSID ERP Code: 1804/2-A-10M-16 |
1804/2-A-10M-16 | 2.3 kg | 10 m |
Claw Hook Claw Hook 35mm |
| 2021123
SSID ERP Code: 1804/2-A-12M-16 |
1804/2-A-12M-16 | 2.5 kg | 12 m |
Claw Hook Claw Hook 35mm |
| 2023568
SSID ERP Code: 1804/2-B-4M-16 |
1804/2-B-4M-16 | 1.8 kg | 4 m |
S-Hook S-Hook 35mm |
| 2023571
SSID ERP Code: 1804/2-B-6M-16 |
1804/2-B-6M-16 | 2 kg | 6 m |
S-Hook S-Hook 35mm |
| 2023573
SSID ERP Code: 1804/2-B-8M-16 |
1804/2-B-8M-16 | 2.2 kg | 8 m |
S-Hook S-Hook 35mm |
| 2023575
SSID ERP Code: 1804/2-B-10M-16 |
1804/2-B-10M-16 | 2.4 kg | 10 m |
S-Hook S-Hook 35mm |
| 2023578
SSID ERP Code: 1804/2-B-12M-16 |
1804/2-B-12M-16 | 2.6 kg | 12 m |
S-Hook S-Hook 35mm |
| 2023580
SSID ERP Code: 1804/2-C-4M-16 |
1804/2-C-4M-16 | 1.5 kg | 4 m |
Delta Ring D-35 |
| 2023584
SSID ERP Code: 1804/2-C-6M-16 |
1804/2-C-6M-16 | 1.7 kg | 6 m |
Delta Ring D-35 |
| 2023586
SSID ERP Code: 1804/2-C-8M-16 |
1804/2-C-8M-16 | 1.9 kg | 8 m |
Delta Ring D-35 |
| 2023588
SSID ERP Code: 1804/2-C-10M-16 |
1804/2-C-10M-16 | 2.1 kg | 10 m |
Delta Ring D-35 |
| 2023590
SSID ERP Code: 1804/2-C-12M-16 |
1804/2-C-12M-16 | 2.3 kg | 12 m |
Delta Ring D-35 |
