Ratchet Lashing ABS 75mm, LC 50kN

Ratchet Lashing ABS 75mm, LC 50kN

Item Number: 2020386
SSID ERP Code: 20040/1-4M-11
20040/1-4M-11

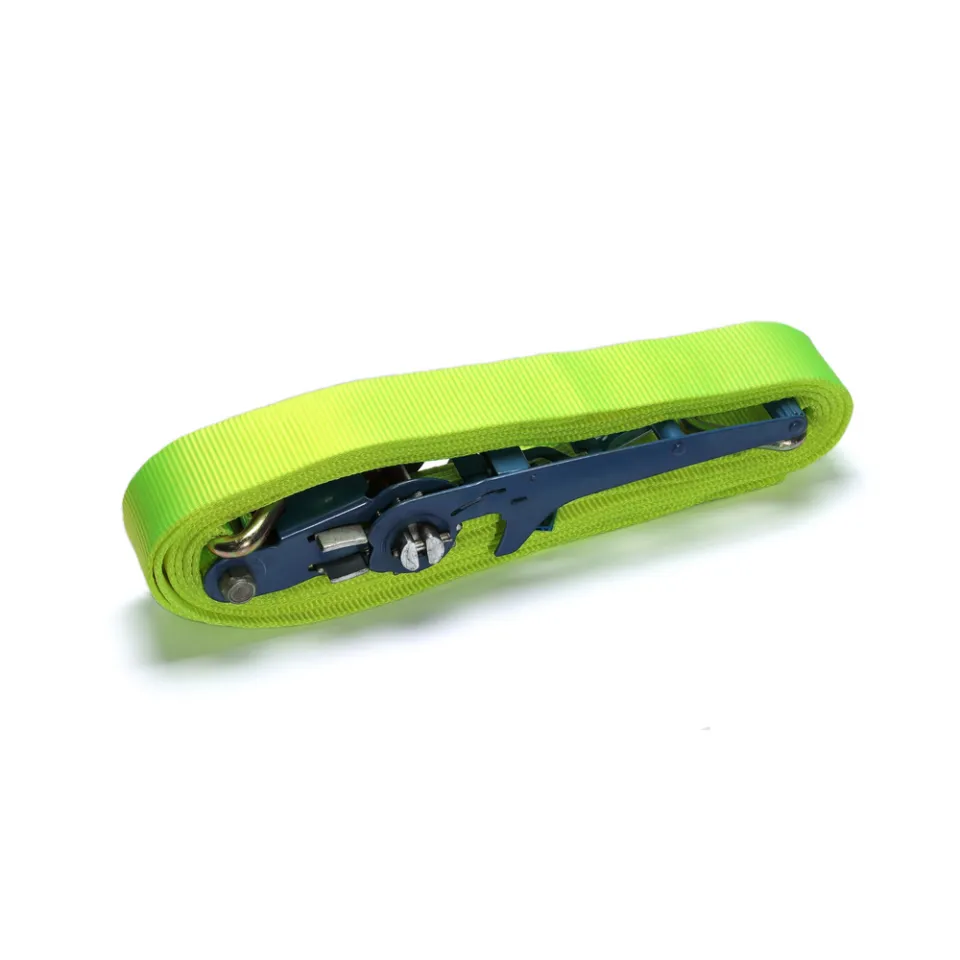

SpanSet Ratchet Lashing ABS 20040 Endless, 4m. Webbing Width 75mm, Color Yellow.
  • Tensioning device equipped with Anti Belt Slip (ABS) feature that make the ratchet released gradually
  • Tensioning Device coated with epoxy resin that effectively protects the ratchet from the effect of weather, prevent rust and ensures a long service life
  • Tensioning Device equipped with double slider for optimal power generation due to tensioning in small step
  • Tensioning Device equipped with self-locking feature that prevents unintentional opening while being transported and thereby increases the safety of all road users
  • Webbing equipped with edge protection to protect from wear, UV protection and webbing has maximum stretching 4%
  • This high-performance ratchet is further reinforced by a double bar, meaning that the load is distributed between three points rather than just two. This results in extremely high loading capacity and stability

Select Model

Please contact customer service for purchase or more information
...

Tension Force Indicator

Show the pre-tensioning force achieved

With the TFI you can read off the pre-tensioning forces achieved in the lashing system when tying down loads and use this information in load control calculations.

...

"Anti-Belt-Slip" procedure

Controlled tension liberation

The ABS system was developed for loads with a risk of tipping and allows the user to release the pretension in small steps. The lashing can also be opened completely.

...

Protective sleeve label

optimally protected, reinforced with selvedge

In addition to the tear-resistant design with a fabric lining, a robust plastic sleeve perfectly protects the writing from abrasion and dirt. The webbing insert, equipped as standard, also prolongs the service life.

...

Epoxy resin coating

Maximum ratchet protection

Ratchets are first zinc-plated, then chrome-plated and coated with a shock-resistant epoxy resin coat which additionally protects the ratchets from e.g. rust.

Product Technical Information

  • Norms: EN 12195-2: 2001
  • Webbing Width B: 75
  • Label Protection: Yes
  • Colour: Yellow
  • Webbing Material: 100% Polyester, thermofixed and low-stretch
  • Main Material: Polyester
  • Ratchet Type: Push-up
  • Tension Force Indicator (TFI): Yes
  • Lashing Type: One-piece
  • Packaging Unit (PU): pcs
  • Packaging Unit (PU) Content: 1
  • Lashing Capacity: 5000 daN

Product downloads and manuals

...
Instruction Manual
(en id)
Download
...
Instruction Manual_2
(en id)
Download

Technical Drawings

Item Number Item Name Weight Net Dimension L1
2020386 20040/1-4M-11 4.8 kg 4 m
2020388 20040/1-6M-11 5.3 kg 6 m
2020390 20040/1-8M-11 5.8 kg 8 m
2020391 20040/1-10M-11 6.3 kg 10 m
2020393 20040/1-12M-11 6.8 kg 12 m
