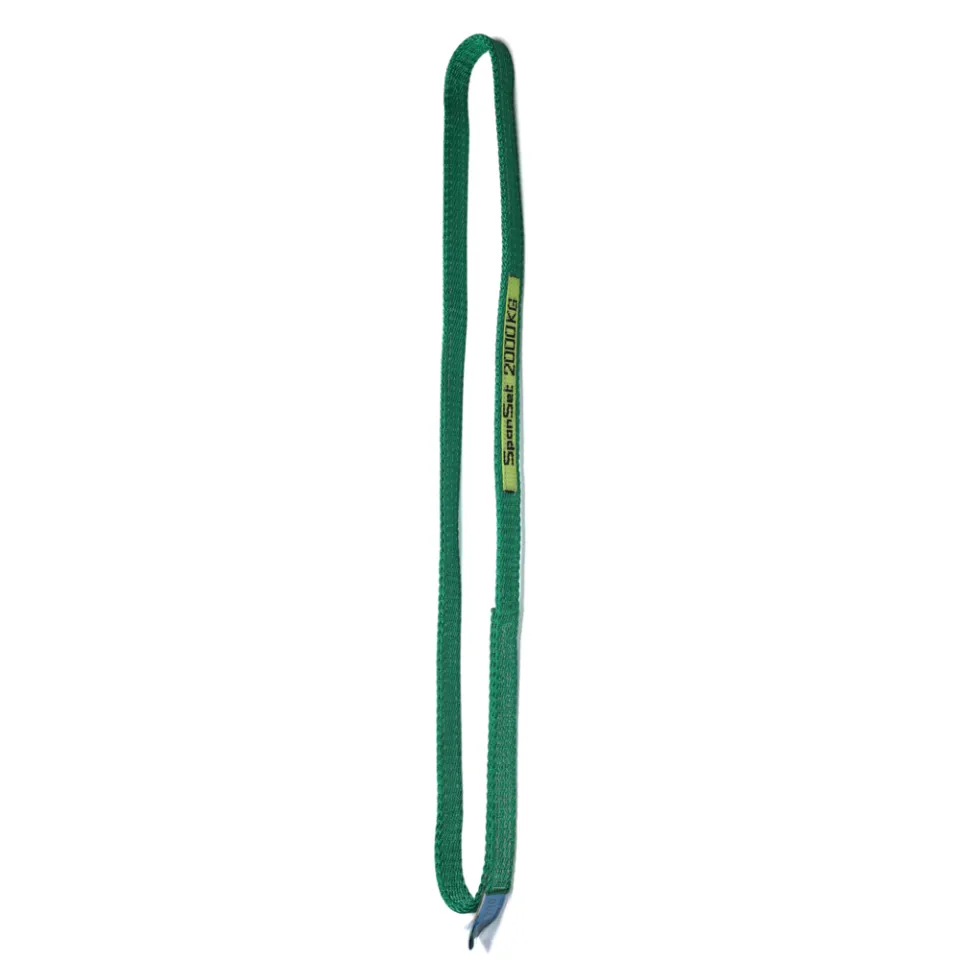

Endless Websling 2ply
Endless Websling 2ply
Flat Webbing Sling Endless Double
- Diproduksi sesuai dengan EN 1492-1.
- Diproduksi dengan teknologi kualitas tertinggi.
- Tenunan herringbone pada webbing sling memudahkan untuk memasukkannya di bawah beban.
- Indikasi kapasitas beban yang dianyam superior.
- Kode warna sesuai dengan standar internasional.
- Nomor serial unik pada setiap sling web untuk tujuan pelacakan.
- Dilengkapi dengan sertifikat kesesuaian, label, dan buku petunjuk manual.
Select Model
Bobot Rendah
Penanganan dan transportasi mudah
Label selongsong pelindung
dilindungi secara optimal, diperkuat dengan tepi tenunan yg dianyam
Selain desain tahan sobek dengan lapisan kain, selongsong plastik kokoh melindungi tulisan dengan sempurna dari abrasi dan kotoran. Sisipan Webbing, yang dilengkapi sebagai standar, juga memperpanjang masa pakai.
Indikator kapasitas beban yang dijahit
Mudah dibaca meskipun kotor
Untuk keamanan aplikasi yang lebih baik, indikasi kapasitas beban dijahit dengan kuat pada tali. Kapasitas muatan tetap terbaca dengan jelas meskipun alat pengangkat sangat kotor.

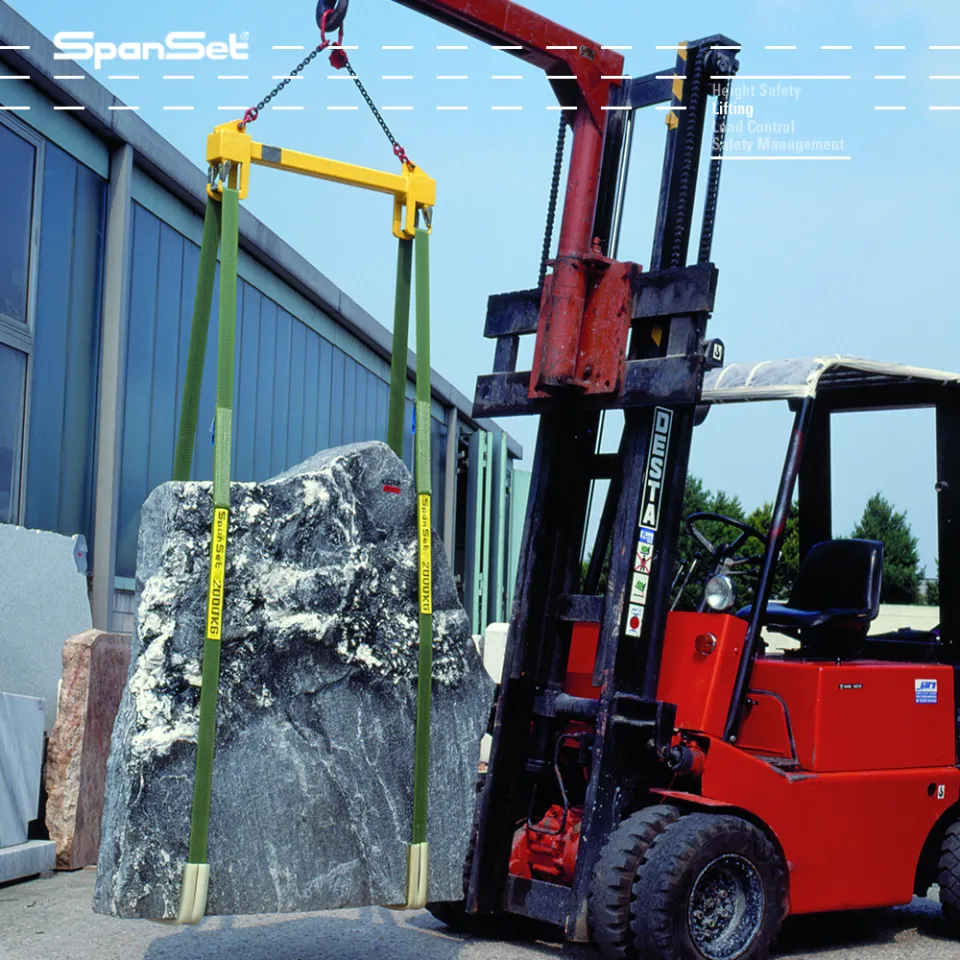

Webbing Sling Endless Double Ply dijahit menggunakan kain poliester berkekuatan tinggi. Ini menggabungkan keuntungan dari sling bulat dan tali: area kontak yang lembut pada beban, panjang kerja yang bervariasi dan dengan demikian ideal untuk digunakan dalam aplikasi yang sering berubah.
Webbing Sling Endless Single dan Double Ply juga dapat dengan mudah digunakan dengan balok beban dan judul bab pembubutan. Untuk memastikan bahwa Anda selalu mengetahui kapasitas muatan, label berwarna sinyal dengan cetakan superior dijahit secara permanen pada sling. Webbing Sling Endless Single dan Double Ply tahan terhadap tekanan yang besar dan tetap terbaca bahkan ketika sling sangat kotor.
Product Technical Information
-
Safety Factor
7:1 -
Norms
EN 1492-1: 2000 -
Temperature Range
-40°C bis +100°C -
Label Protection
Yes -
Belt Layers
2 -
Main Material
High-Tenacity Polyester -
Packaging Unit (PU)
pcs -
Packaging Unit (PU) Content
1
Technical Drawings
Variants information
| Item Number | Item Name | WLL kg | Weight per Meter | Weight Net | WLL t | Dimension L1 | Colour | Weight for 1m |
|---|---|---|---|---|---|---|---|---|
| 2017576 | C2000-2M-07 | 2000 kg | 0.4 kg/m | 1.7 kg | 2 t | 2 m | Green | 0.5 kg |
| 2017577 | C2000-3M-07 | 2000 kg | 0.4 kg/m | 1.8 kg | 2 t | 3 m | Green | 0.5 kg |
| 2017578 | C2000-4M-07 | 2000 kg | 0.4 kg/m | 1.9 kg | 2 t | 4 m | Green | 0.5 kg |
| 2017579 | C2000-5M-07 | 2000 kg | 0.4 kg/m | 2 kg | 2 t | 5 m | Green | 0.5 kg |
| 2017580 | C2000-6M-07 | 2000 kg | 0.4 kg/m | 2.1 kg | 2 t | 6 m | Green | 0.5 kg |
| 2017581 | C2000-8M-07 | 2000 kg | 0.4 kg/m | 2.3 kg | 2 t | 8 m | Green | 0.5 kg |
| 2017582 | C4000-2M-07 | 4000 kg | 0.8 kg/m | 2.3 kg | 4 t | 2 m | Grey | 1 kg |
| 2017583 | C4000-3M-07 | 4000 kg | 0.8 kg/m | 3.1 kg | 4 t | 3 m | Grey | 1 kg |
| 2017584 | C4000-4M-07 | 4000 kg | 0.8 kg/m | 3.9 kg | 4 t | 4 m | Grey | 1 kg |
| 2017585 | C4000-5M-07 | 4000 kg | 0.8 kg/m | 4.7 kg | 4 t | 5 m | Grey | 1 kg |
| 2017586 | C4000-6M-07 | 4000 kg | 0.8 kg/m | 5.5 kg | 4 t | 6 m | Grey | 1 kg |
| 2017587 | C4000-8M-07 | 4000 kg | 0.8 kg/m | 7.1 kg | 4 t | 8 m | Grey | 1 kg |
| 2017588 | C4000-10M-07 | 4000 kg | 0.8 kg/m | 8.7 kg | 4 t | 10 m | Grey | 1 kg |
| 2017589 | C6000-2M-07 | 6000 kg | 1.3 kg/m | 3.4 kg | 6 t | 2 m | Brown | 1.6 kg |
| 2017590 | C6000-3M-07 | 6000 kg | 1.3 kg/m | 4.7 kg | 6 t | 3 m | Brown | 1.6 kg |
| 2017591 | C6000-4M-07 | 6000 kg | 1.3 kg/m | 6 kg | 6 t | 4 m | Brown | 1.6 kg |
| 2017592 | C6000-5M-07 | 6000 kg | 1.3 kg/m | 7.3 kg | 6 t | 5 m | Brown | 1.6 kg |
| 2017593 | C6000-6M-07 | 6000 kg | 1.3 kg/m | 8.6 kg | 6 t | 6 m | Brown | 1.6 kg |
| 2017594 | C6000-8M-07 | 6000 kg | 1.3 kg/m | 11.2 kg | 6 t | 8 m | Brown | 1.6 kg |
| 2017595 | C8000-2M-07 | 8000 kg | 1.7 kg/m | 4.3 kg | 8 t | 2 m | Biru | 2 kg |
| 2017596 | C8000-3M-07 | 8000 kg | 1.7 kg/m | 6 kg | 8 t | 3 m | Biru | 2 kg |
| 2017597 | C8000-4M-07 | 8000 kg | 1.7 kg/m | 7.7 kg | 8 t | 4 m | Biru | 2 kg |
| 2017598 | C8000-5M-07 | 8000 kg | 1.7 kg/m | 9.4 kg | 8 t | 5 m | Biru | 2 kg |
| 2017599 | C8000-6M-07 | 8000 kg | 1.7 kg/m | 11.1 kg | 8 t | 6 m | Biru | 2 kg |
| 2017600 | C8000-8M-07 | 8000 kg | 1.7 kg/m | 14.5 kg | 8 t | 8 m | Biru | 2 kg |
| 2017601 | C10000-2M-07 | 10000 kg | 2.3 kg/m | 2.8 kg | 10 t | 2 m | Orange | 2.8 kg |
| 2017602 | C10000-3M-07 | 10000 kg | 2.3 kg/m | 3.8 kg | 10 t | 3 m | Orange | 2.8 kg |
| 2017603 | C10000-4M-07 | 10000 kg | 2.3 kg/m | 4.8 kg | 10 t | 4 m | Orange | 2.8 kg |
| 2017604 | C10000-5M-07 | 10000 kg | 2.3 kg/m | 5.8 kg | 10 t | 5 m | Orange | 2.8 kg |
| 2017605 | C10000-6M-07 | 10000 kg | 2.3 kg/m | 6.8 kg | 10 t | 6 m | Orange | 2.8 kg |
| 2017606 | C10000-8M-07 | 10000 kg | 2.3 kg/m | 8.8 kg | 10 t | 8 m | Orange | 2.8 kg |
| 2021485 | C12000-2M-07 | 12000 kg | 2.9 kg/m | 6.5 kg | 12 t | 2 m | Orange | 3.5 kg |
| 2021486 | C12000-3M-07 | 12000 kg | 2.9 kg/m | 8.9 kg | 12 t | 3 m | Orange | 3.5 kg |
| 2021487 | C12000-4M-07 | 12000 kg | 2.9 kg/m | 11.3 kg | 12 t | 4 m | Orange | 3.5 kg |
| 2021488 | C12000-5M-07 | 12000 kg | 2.9 kg/m | 13.7 kg | 12 t | 5 m | Orange | 3.5 kg |
| 2021489 | C12000-6M-07 | 12000 kg | 2.9 kg/m | 16.1 kg | 12 t | 6 m | Orange | 3.5 kg |
| 2021490 | C12000-8M-07 | 12000 kg | 2.9 kg/m | 20.9 kg | 12 t | 8 m | Orange | 3.5 kg |
| 2021491 | C12000-10M-07 | 12000 kg | 2.9 kg/m | 25.7 kg | 12 t | 10 m | Orange | 3.5 kg |
| 2021492 | C10000-10M-07 | 10000 kg | 2.3 kg/m | 10.8 kg | 10 t | 10 m | Orange | 2.8 kg |
| 2021493 | C16000-2M-07 | 16000 kg | 3.9 kg/m | 7.7 kg | 16 t | 2 m | Orange | 4.7 kg |
| 2021494 | C16000-3M-07 | 16000 kg | 3.9 kg/m | 10.9 kg | 16 t | 3 m | Orange | 4.7 kg |
| 2021495 | C16000-4M-07 | 16000 kg | 3.9 kg/m | 14.1 kg | 16 t | 4 m | Orange | 4.7 kg |
| 2021496 | C16000-5M-07 | 16000 kg | 3.9 kg/m | 17.3 kg | 16 t | 5 m | Orange | 4.7 kg |
| 2021497 | C16000-6M-07 | 16000 kg | 3.9 kg/m | 20.5 kg | 16 t | 6 m | Orange | 4.7 kg |
| 2021498 | C16000-8M-07 | 16000 kg | 3.9 kg/m | 26.9 kg | 16 t | 8 m | Orange | 4.7 kg |
| 2021499 | C16000-10M-07 | 16000 kg | 3.9 kg/m | 33.3 kg | 16 t | 10 m | Orange | 4.7 kg |
| 2021500 | C20000-2M-07 | 20000 kg | 4.2 kg/m | 11.9 kg | 20 t | 2 m | Orange | 5.7 kg |
| 2021501 | C20000-3M-07 | 20000 kg | 4.2 kg/m | 16.3 kg | 20 t | 3 m | Orange | 5.7 kg |
| 2021502 | C20000-4M-07 | 20000 kg | 4.2 kg/m | 20.7 kg | 20 t | 4 m | Orange | 5.7 kg |
| 2021503 | C20000-5M-07 | 20000 kg | 4.2 kg/m | 25.1 kg | 20 t | 5 m | Orange | 5.7 kg |
| 2021504 | C20000-6M-07 | 20000 kg | 4.2 kg/m | 29.5 kg | 20 t | 6 m | Orange | 5.7 kg |
| 2021505 | C20000-8M-07 | 20000 kg | 4.2 kg/m | 38.3 kg | 20 t | 8 m | Orange | 5.7 kg |
| 2021506 | C20000-10M-07 | 20000 kg | 4.2 kg/m | 47.1 kg | 20 t | 10 m | Orange | 5.7 kg |
| 2021507 | C30000-2M-07 | 30000 kg | 6.5 kg/m | 15.2 kg | 30 t | 2 m | Orange | 7.6 kg |
| 2021508 | C30000-3M-07 | 30000 kg | 6.5 kg/m | 21.9 kg | 30 t | 3 m | Orange | 7.6 kg |
| 2021509 | C30000-4M-07 | 30000 kg | 6.5 kg/m | 28.6 kg | 30 t | 4 m | Orange | 7.6 kg |
| 2021510 | C30000-5M-07 | 30000 kg | 6.5 kg/m | 35.3 kg | 30 t | 5 m | Orange | 7.6 kg |
| 2021511 | C30000-6M-07 | 30000 kg | 6.5 kg/m | 42 kg | 30 t | 6 m | Orange | 7.6 kg |
| 2021512 | C30000-8M-07 | 30000 kg | 6.5 kg/m | 55.4 kg | 30 t | 8 m | Orange | 7.6 kg |
| 2021513 | C30000-10M-07 | 30000 kg | 6.5 kg/m | 68.8 kg | 30 t | 10 m | Orange | 7.6 kg |
| 2021872 | C2000-10M-07 | 2000 kg | 0.4 kg/m | 2.5 kg | 2 t | 10 m | Green | 0.5 kg |
| 2021884 | C6000-10M-07 | 6000 kg | 1.3 kg/m | 13.8 kg | 6 t | 10 m | Brown | 1.6 kg |
| 2021887 | C8000-10M-07 | 8000 kg | 1.7 kg/m | 17.9 kg | 8 t | Biru | 2 kg |
