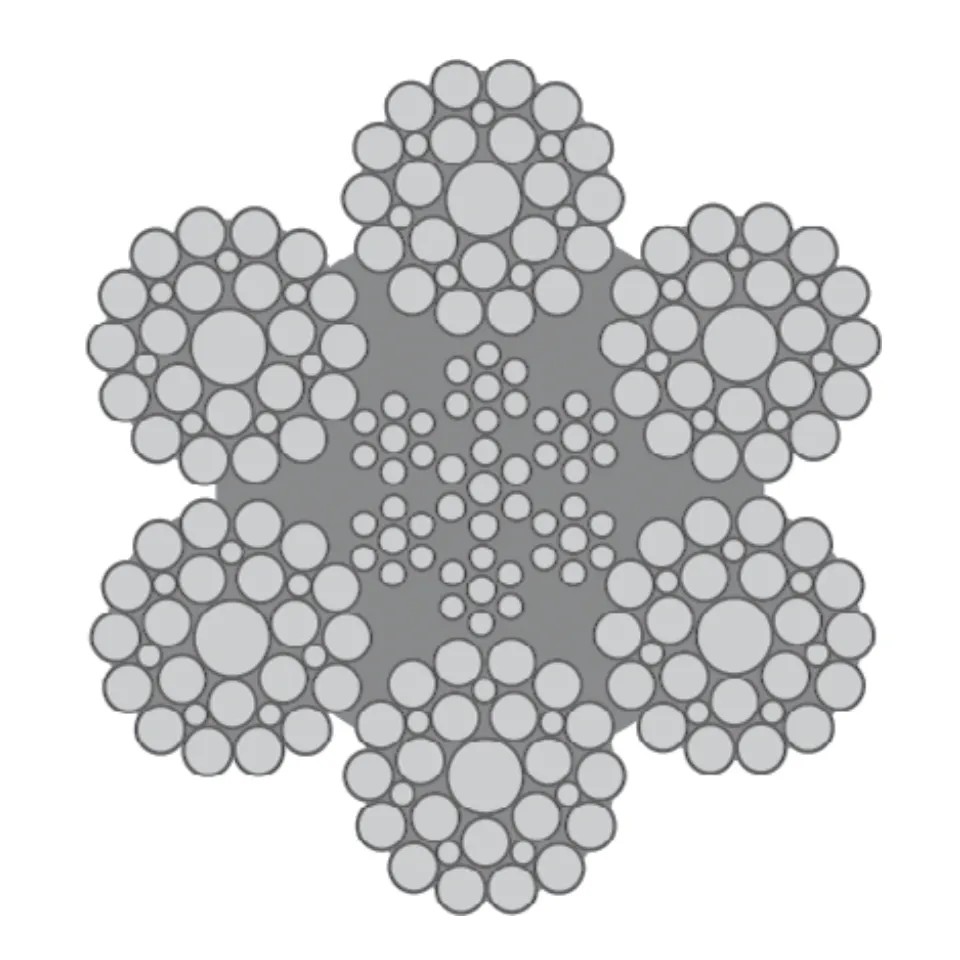

Hyflex 6x29Fi LHOL

Hyflex 6x29Fi LHOL

Tali Serbaguna 6 & 8 Strand Produk Konvensional

Item Number: 2023901
SSID ERP Code: UM6X29OO-IWd10.0ZS1960G
HYFLEX 6X29 10MM LHOL
  • Rope untuk crane yang fleksibel berkualitas tinggi serta untuk wire rope sling dengan desain dan kapasitas beban yang sesuai dengan EN 13414-1.
  • Performa tekukan yang bagus secara konsisten.
  • Uji tarik hingga putus untuk menjamin kekuatan
  • Sepenuhnya dilumasi.
  • LHOL - Left Hand Ordinary Lay.

Select Model

Please contact customer service for purchase or more information

All wire rope that we supply are only high quality and certified products according to International Standard of BS EN 12385, API Spec 9A, ISO 2408 and SNI.

These wire Rope are manufactured by a company that has ISO 9001:2015 certification and also have 3rd party certification from ABS, DNV-GL and Lloyds.

Recommendations for Use

Do not use damaged wire ropes and slings with defects, such as wire breaks, bulges, bruises, kinks, severed core, heavy wear, rust damage or others. Do not exceed the specified load carrying capacity (WLL). Do not strike at a tilt angle exceeding 60°. Do not use wire ropes with broken strands. Do not use in contact with chemicals. Sling ropes may only be used for lifting and transporting loads and only by instructed persons. The regulation on the safe use of cranes (Crane Regulation) must be observed without fail (Suva-Form.1420. d).

Product Technical Information

  • Temperature Range
    -40° C to + 100° C
  • Main Material
    Steel
  • Packaging Unit (PU)
    pcs
  • Packaging Unit (PU) Content
    1

Item Number Item Name Rope Diameter Minimum Breaking Force [Kn] Minimum Breaking Force [Tn]
2023901 HYFLEX 6X29 10MM LHOL 10 mm 69.8 kN 7.1 t
2023904 HYFLEX 6X29 14MM LHOL 14 mm 137 kN 14 t
2023905 HYFLEX 6X29 16MM LHOL 16 mm 179 kN 18.3 t
2023906 HYFLEX 6X29 18MM LHOL 18 mm 226 kN 23 t
2023907 HYFLEX 6X29 20MM LHOL 20 mm 279 kN 28.4 t
2023910 HYFLEX 6X29 28MM LHOL 28 mm 547 kN 55.8 t
2023918 HYFLEX 6X29 40MM LHOL 40 mm 1120 kN 114 t
2023924 HYFLEX 6X29 56MM LHOL 56 mm 2190 kN 256 t
2023925 HYFLEX 6X29 60MM LHOL 2510 kN 256 t
