Poweform 6P RHOL
Poweform 6P RHOL
High Performance Compacted Strands Products
Item Number: 2023411
SSID ERP Code: UM6X36CP-IWd10.0SZ1960G

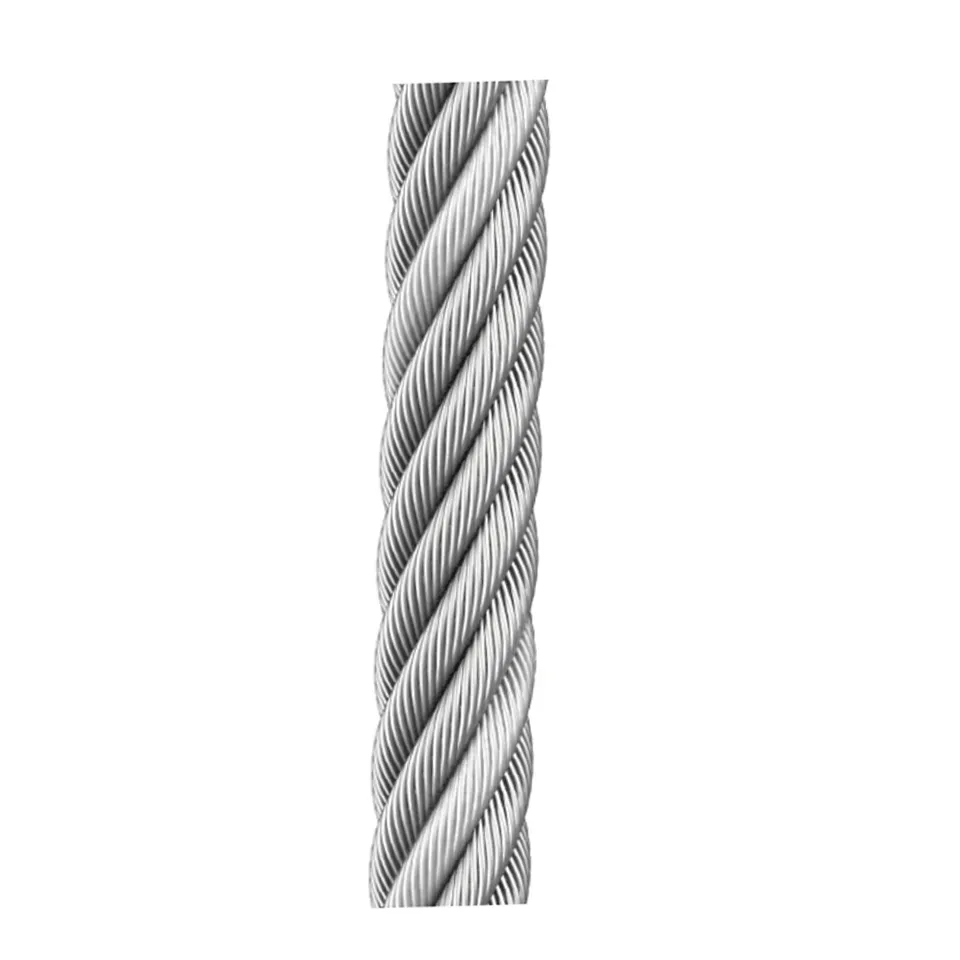

POWERFORM 6X36 10MM Pi RHOL
USHA 10MM POWERFORM 6X36 COMPACTED Pi IWRC RHOL 1960 GALV
- Stranded Ropes with Compacted Strands which giving properties improvement over Conventional Ropes.
- Excellent Fatigue Life due to good sheave contact.
- High Breaking Load.
- Crush resistant & low elongation.
- Plastic inside of rope covered the IWRC giving consistent core performance.
- RHOL - Right Hand Ordinary Lay.
Select Model
Please contact customer service for purchase or more information
All wire rope that we supply are only high quality and certified products according to International Standard of BS EN 12385, API Spec 9A, ISO 2408 and SNI.
These wire Rope are manufactured by a company that has ISO 9001:2015 certification and also have 3rd party certification from ABS, DNV-GL and Lloyds.
Recommendations for Use
Do not use damaged wire ropes and slings with defects, such as wire breaks, bulges, bruises, kinks, severed core, heavy wear, rust damage or others.
Do not exceed the specified load carrying capacity (WLL).
Do not strike at a tilt angle exceeding 60°.
Do not use wire ropes with broken strands.
Do not use in contact with chemicals.
Sling ropes may only be used for lifting and transporting loads and only by instructed persons. The regulation on the safe use of cranes (Crane Regulation) must be observed without fail (Suva-Form.1420. d).
Product Technical Information
-
Temperature Range:
-40° C to + 100° C
-
Main Material:
Steel
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
Variants information
Item Number | Item Name | Rope Diameter | Minimum Breaking Force [Kn] | Minimum Breaking Force [Tn] |
---|---|---|---|---|
2023411
SSID ERP Code: UM6X36CP-IWd10.0SZ1960G |
POWERFORM 6X36 10MM Pi RHOL | 10 mm | 85.7 kN | 8.7 t |
2023412
SSID ERP Code: UM6X36CP-IWd11.0SZ1960G |
POWERFORM 6X36 11MM Pi RHOL | 11 mm | 98.6 kN | 10.1 t |
2023413
SSID ERP Code: UM6X36CP-IWd12.0SZ1960G |
POWERFORM 6X36 12MM Pi RHOL | 12 mm | 114 kN | 11.6 t |
2023414
SSID ERP Code: UM6X36CP-IWd13.0SZ1960G |
POWERFORM 6X36 13MM Pi RHOL | 13 mm | 140 kN | 15 t |
2023415
SSID ERP Code: UM6X36CP-IWd14.0SZ1960G |
POWERFORM 6X36 14MM Pi RHOL | 14 mm | 147 kN | 17.3 t |
2023416
SSID ERP Code: UM6X36CP-IWd15.0SZ1960G |
POWERFORM 6X36 15MM Pi RHOL | 15 mm | 170 kN | 19.9 t |
2023417
SSID ERP Code: UM6X36CP-IWd16.0SZ1960G |
POWERFORM 6X36 16MM RHOL | 16 mm | 195 kN | 22.2 t |
2023418
SSID ERP Code: UM6X36CP-IWd17.0SZ1960G |
POWERFORM 6X36 17MM Pi RHOL | 17 mm | 218 kN | 25.1 t |
2023419
SSID ERP Code: UM6X36CP-IWd18.0SZ1960G |
POWERFORM 6X36 18MM Pi RHOL | 18 mm | 246 kN | 28.1 t |
2023420
SSID ERP Code: UM6X36CP-IWd19.0SZ1960G |
POWERFORM 6X36 19MM Pi RHOL | 19 mm | 276 kN | 31 t |
2023421
SSID ERP Code: UM6X36CP-IWd20.0SZ1960G |
POWERFORM 6X36 20MM Pi RHOL | 20 mm | 304 kN | 34.1 t |
2023422
SSID ERP Code: UM6X36CP-IWd22.0SZ1960G |
POWERFORM 6X36 22MM Pi RHOL | 22 mm | 335 kN | 40.8 t |
2023423
SSID ERP Code: UM6X36CP-IWd24.0SZ1960G |
POWERFORM 6X36 24MM Pi RHOL | 24 mm | 400 kN | 49.8 t |
2023424
SSID ERP Code: UM6X36CP-IWd26.0SZ1960G |
POWERFORM 6X36 26MM Pi RHOL | 26 mm | 489 kN | 58.9 t |
2023425
SSID ERP Code: UM6X36CP-IWd28.0SZ1960G |
POWERFORM 6X36 28MM Pi RHOL | 28 mm | 578 kN | 67 t |
2023426
SSID ERP Code: UM6X36CP-IWd30.0SZ1960G |
POWERFORM 6X36 30MM Pi RHOL | 30 mm | 657 kN | 77.2 t |
2023427
SSID ERP Code: UM6X36CP-IWd32.0SZ1960G |
POWERFORM 6X36 32MM Pi RHOL | 32 mm | 757 kN | 86.2 t |
2023428
SSID ERP Code: UM6X36CP-IWd34.0SZ1960G |
POWERFORM 6X36 34MM Pi RHOL | 34 mm | 846 kN | 93.4 t |
2023429
SSID ERP Code: UM6X36CP-IWd36.0SZ1960G |
POWERFORM 6X36 36MM Pi RHOL | 36 mm | 916 kN | 109 t |
2023430
SSID ERP Code: UM6X36CP-IWd38.0SZ1960G |
POWERFORM 6X36 38MM Pi RHOL | 38 mm | 1065 kN | 119 t |
2023431
SSID ERP Code: UM6X36CP-IWd40.0SZ1960G |
POWERFORM 6X36 40MM Pi RHOL | 40 mm | 1165 kN | 132 t |
2023432
SSID ERP Code: UM6X36CP-IWd42.0SZ1960G |
POWERFORM 6X36 42MM Pi RHOL | 42 mm | 1295 kN | 145 t |
2023433
SSID ERP Code: UM6X36CP-IWd44.0SZ1960G |
POWERFORM 6X36 44MM Pi RHOL | 44 mm | 1425 kN | 153 t |
2023434
SSID ERP Code: UM6X36CP-IWd46.0SZ1960G |
POWERFORM 6X36 46MM Pi RHOL | 46 mm | 1665 kN | 170 t |
2023435
SSID ERP Code: UM6X36CP-IWd48.0SZ1960G |
POWERFORM 6X36 48MM Pi RHOL | 48 mm | 1885 kN | 192 t |
2023436
SSID ERP Code: UM6X36CP-IWd50.0SZ1960G |
POWERFORM 6X36 50MM Pi RHOL | 50 mm | 1975 kN | 201 t |
2023437
SSID ERP Code: UM6X36CP-IWd52.0SZ1960G |
POWERFORM 6X36 52MM Pi RHOL | 52 mm | 2135 kN | 218 t |
2023438
SSID ERP Code: UM6X36CP-IWd54.0SZ1960G |
POWERFORM 6X36 54MM Pi RHOL | 54 mm | 2325 kN | 237 t |
2023439
SSID ERP Code: UM6X36CP-IWd56.0SZ1960G |
POWERFORM 6X36 56MM Pi RHOL | 56 mm | 2475 kN | 252 t |
2023440
SSID ERP Code: UM6X36CP-IWd58.0SZ1960G |
POWERFORM 6X36 58MM Pi RHOL | 58 mm | 2650 kN | 270 t |
2023441
SSID ERP Code: UM6X36CP-IWd60.0SZ1960G |
POWERFORM 6X36 60MM Pi RHOL | 60 mm | 2810 kN | 286 t |
