Powerform 8P LHOL
Powerform 8P LHOL
High Performance Compacted Strands Products
Item Number: 2023721
SSID ERP Code: UM8X26CP-IWd10.0ZS1960G
POWERFORM 8X26 10MM Pi LHOL
USHA 10MM POWERFORM 8X26 COMPACTED Pi IWRC LHOL 1960 GALV

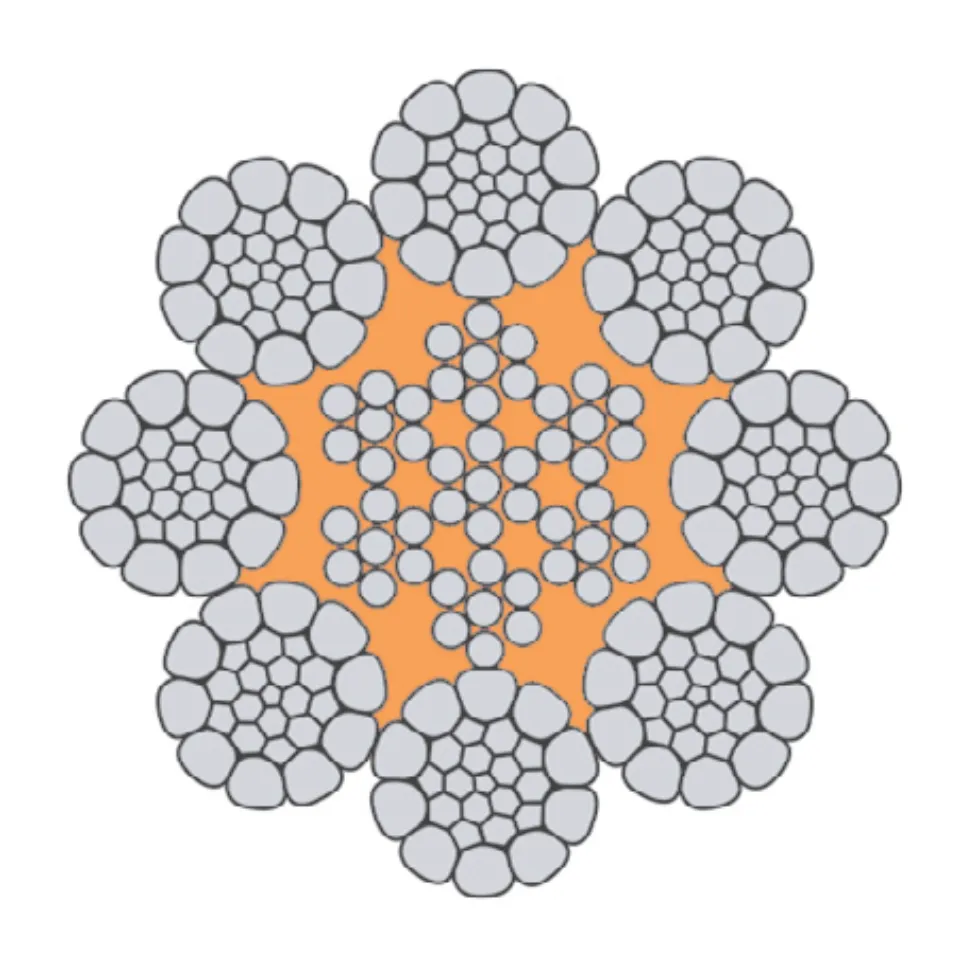

- Stranded Ropes with Compacted Strands which giving properties improvement over Conventional Ropes.
- Excellent Fatigue Life due to good sheave contact.
- High Breaking Load.
- Crush resistant & low elongation.
- Plastic inside of rope covered the IWRC giving consistent core performance.

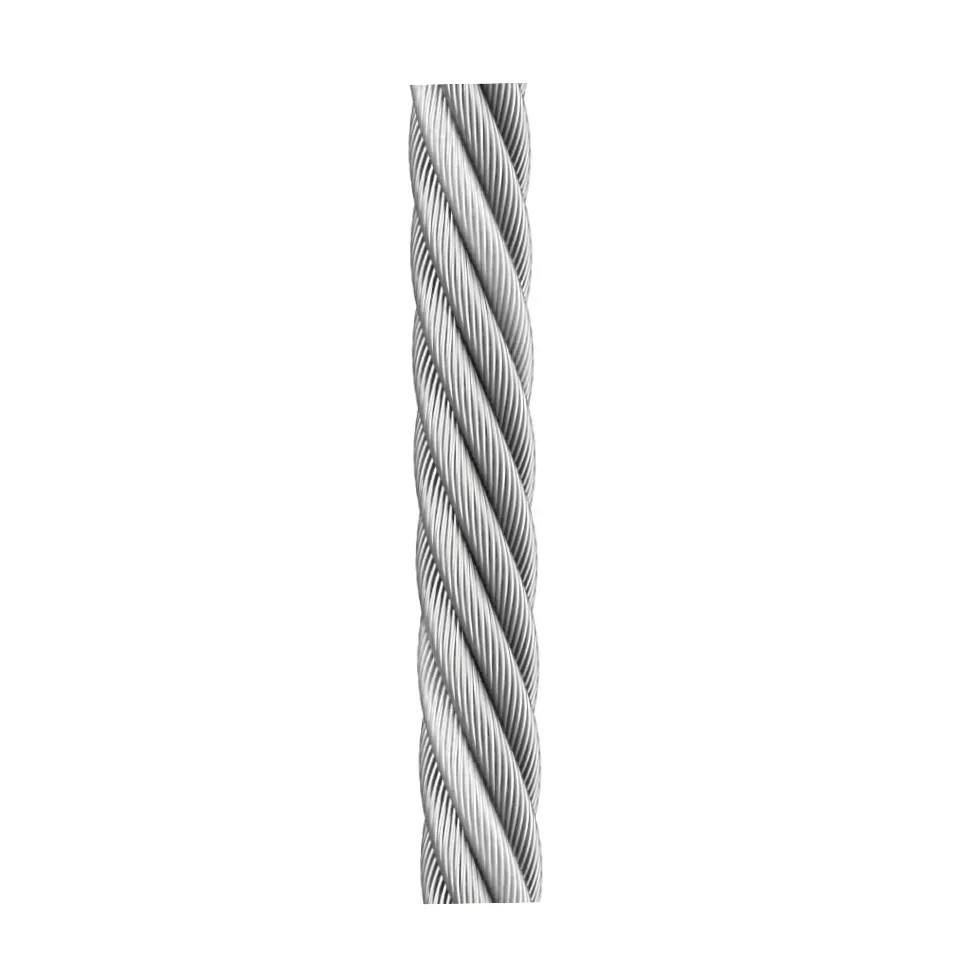

- LHOL - Left Hand Ordinary Lay.
Select Model
Please contact customer service for purchase or more information
All wire rope that we supply are only high quality and certified products according to International Standard of BS EN 12385, API Spec 9A, ISO 2408 and SNI.
These wire Rope are manufactured by a company that has ISO 9001:2015 certification and also have 3rd party certification from ABS, DNV-GL and Lloyds.
Recommendations for Use
Do not use damaged wire ropes and slings with defects, such as wire breaks, bulges, bruises, kinks, severed core, heavy wear, rust damage or others.
Do not exceed the specified load carrying capacity (WLL).
Do not strike at a tilt angle exceeding 60°.
Do not use wire ropes with broken strands.
Do not use in contact with chemicals.
Sling ropes may only be used for lifting and transporting loads and only by instructed persons. The regulation on the safe use of cranes (Crane Regulation) must be observed without fail (Suva-Form.1420. d).
Product Technical Information
-
Temperature Range:
-40° C to + 100° C
-
Main Material:
Steel
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
Variants information
Item Number | Item Name | Rope Diameter | Minimum Breaking Force [Kn] | Minimum Breaking Force [Tn] |
---|---|---|---|---|
2023721
SSID ERP Code: UM8X26CP-IWd10.0ZS1960G |
POWERFORM 8X26 10MM Pi LHOL | 10 mm | 87.8 kN | 9 t |
2023722
SSID ERP Code: UM8X26CP-IWd11.0ZS1960G |
POWERFORM 8X26 11MM Pi LHOL | 11 mm | 106 kN | 10.8 t |
2023723
SSID ERP Code: UM8X26CP-IWd12.0ZS1960G |
POWERFORM 8X26 12MM Pi LHOL | 12 mm | 126 kN | 12.8 t |
2023724
SSID ERP Code: UM8X26CP-IWd13.0ZS1960G |
POWERFORM 8X26 13MM Pi LHOL | 13 mm | 148 kN | 15.1 t |
2023725
SSID ERP Code: UM8X26CP-IWd14.0ZS1960G |
POWERFORM 8X26 14MM Pi LHOL | 14 mm | 172 kN | 17.5 t |
2023726
SSID ERP Code: UM8X26CP-IWd15.0ZS1960G |
POWERFORM 8X26 15MM Pi LHOL | 15 mm | 198 kN | 20.2 t |
2023727
SSID ERP Code: UM8X26CP-IWd16.0ZS1960G |
POWERFORM 8X26 16MM Pi LHOL | 16 mm | 225 kN | 22.9 t |
2023728
SSID ERP Code: UM8X26CP-IWd17.0ZS1960G |
POWERFORM 8X26 17MM Pi LHOL | 17 mm | 254 kN | 25.9 t |
2023729
SSID ERP Code: UM8X26CP-IWd18.0ZS1960G |
POWERFORM 8X26 18MM Pi LHOL | 18 mm | 284 kN | 29 t |
2023730
SSID ERP Code: UM8X26CP-IWd19.0ZS1960G |
POWERFORM 8X26 19MM Pi LHOL | 19 mm | 317 kN | 32.3 t |
2023731
SSID ERP Code: UM8X26CP-IWd20.0ZS1960G |
POWERFORM 8X26 20MM Pi LHOL | 20 mm | 351 kN | 35.8 t |
2023732
SSID ERP Code: UM8X26CP-IWd22.0ZS1960G |
POWERFORM 8X26 22MM Pi LHOL | 22 mm | 425 kN | 43.3 t |
2023733
SSID ERP Code: UM8X26CP-IWd24.0ZS1960G |
POWERFORM 8X26 24MM Pi LHOL | 24 mm | 506 kN | 51.6 t |
2023734
SSID ERP Code: UM8X26CP-IWd26.0ZS1960G |
POWERFORM 8X26 26MM Pi LHOL | 26 mm | 594 kN | 60.6 t |
2023735
SSID ERP Code: UM8X26CP-IWd28.0ZS1960G |
POWERFORM 8X26 28MM Pi LHOL | 28 mm | 688 kN | 70.1 t |
2023736
SSID ERP Code: UM8X26CP-IWd30.0ZS1960G |
POWERFORM 8X26 30MM Pi LHOL | 30 mm | 790 kN | 80.5 t |
2023737
SSID ERP Code: UM8X26CP-IWd32.0ZS1960G |
POWERFORM 8X26 32MM Pi LHOL | 32 mm | 899 kN | 91.6 t |
2023738
SSID ERP Code: UM8X26CP-IWd34.0ZS1960G |
POWERFORM 8X26 34MM Pi LHOL | 34 mm | 1013 kN | 103 t |
2023739
SSID ERP Code: UM8X26CP-IWd36.0ZS1960G |
POWERFORM 8X26 36MM Pi IWRC LHOL 1960 GALV | 36 mm | 1138 kN | 116 t |
2023740
SSID ERP Code: UM8X26CP-IWd38.0ZS1960G |
POWERFORM 8X26 38MM Pi LHOL | 38 mm | 1268 kN | 129 t |
2023741
SSID ERP Code: UM8X26CP-IWd40.0ZS1960G |
POWERFORM 8X26 40MM Pi LHOL | 40 mm | 1405 kN | 143 t |
2023742
SSID ERP Code: UM8X26CP-IWd42.0ZS1960G |
POWERFORM 8X26 42MM Pi LHOL | 42 mm | 1535 kN | 156 t |
2023743
SSID ERP Code: UM8X26CP-IWd44.0ZS1960G |
POWERFORM 8X26 44MM Pi LHOL | 44 mm | 1700 kN | 173 t |
2023744
SSID ERP Code: UM8X26CP-IWd46.0ZS1960G |
POWERFORM 8X26 46MM Pi LHOL | 46 mm | 1858 kN | 189 t |
2023745
SSID ERP Code: UM8X26CP-IWd48.0ZS1960G |
POWERFORM 8X26 48MM Pi LHOL | 48 mm | 2023 kN | 206 t |
2023746
SSID ERP Code: UM8X26CP-IWd50.0ZS1960G |
POWERFORM 8X26 50MM Pi LHOL | 50 mm | 2200 kN | 242 t |
2023747
SSID ERP Code: UM8X26CP-IWd52.0ZS1960G |
POWERFORM 8X26 52MM Pi LHOL | 52 mm | 2374 kN | 242 t |
