Pull Down Ratchet Lashing 50mm, LC 25kN
Pull Down Ratchet Lashing 50mm, LC 25kN
Item Number: 2022241
SSID ERP Code: 20045/2-A-4M
20045/2-A-4M

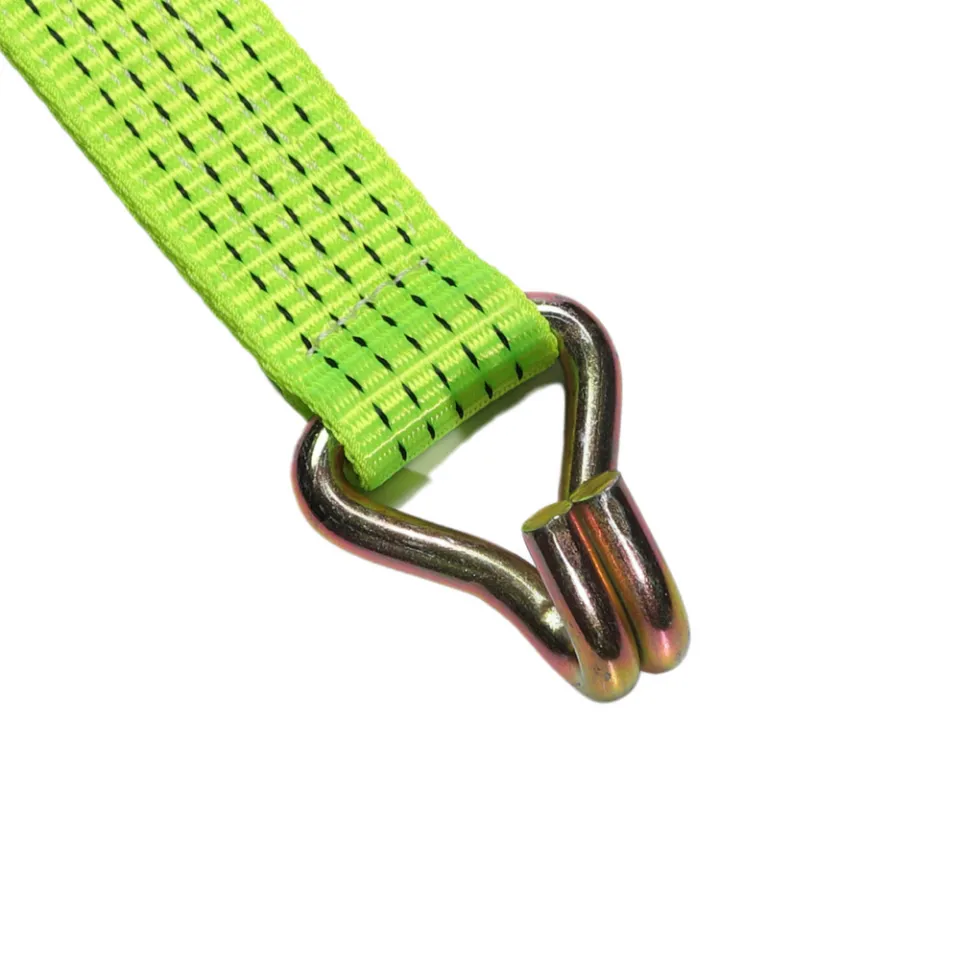

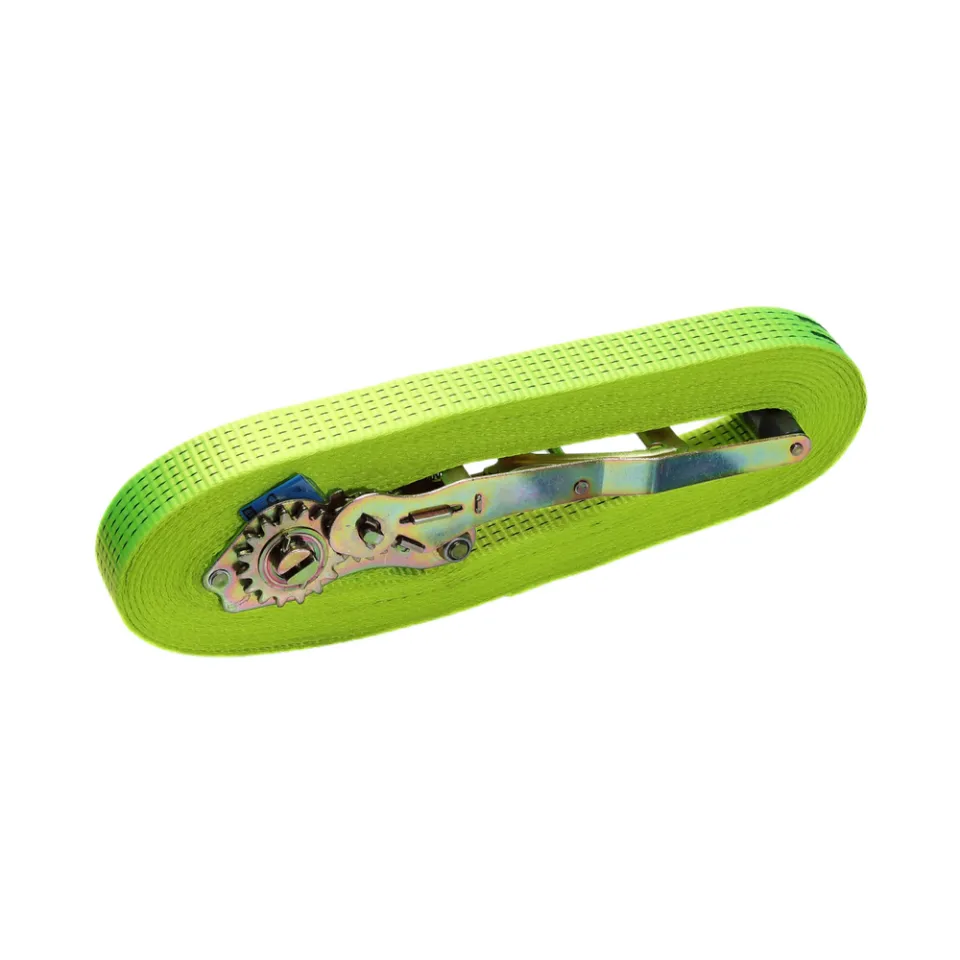

SpanSet Ratchet Lashing ABS 20045 Pull Down w/ Claw hook , 4m. Webbing Width 50mm, Color Yellow.
- Manufactured in accordance to EN 12195-2
- Made from highest grade material
- Unique Serial Number on each single product for traceability and inspection record
- Optional accessories are available to improve load securing application
- Supplied with Certificate of Conformance, Product Identification Label and User Manual book
- Available in standard and customized length
Select Model
Please contact customer service for purchase or more information
Product Technical Information
-
Standard Tension Force:
950 daN
-
Norms:
EN 12195-2: 2001
-
Webbing Width B:
50
-
Label Protection:
Yes
-
Colour:
Yellow
-
Webbing Material:
100% Polyester, thermofixed and low-stretch
-
Main Material:
Polyester
-
Ratchet Type:
Pull-down
-
Lashing Type:
Two-piece
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Lashing Capacity:
2500 daN
Technical Drawings
Variants information
| Item Number | Item Name | Weight Net | Dimension L1 | Lashing End Fitting Component |
|---|---|---|---|---|
| 2022241
SSID ERP Code: 20045/2-A-4M |
20045/2-A-4M | 3.8 kg | 4 m |

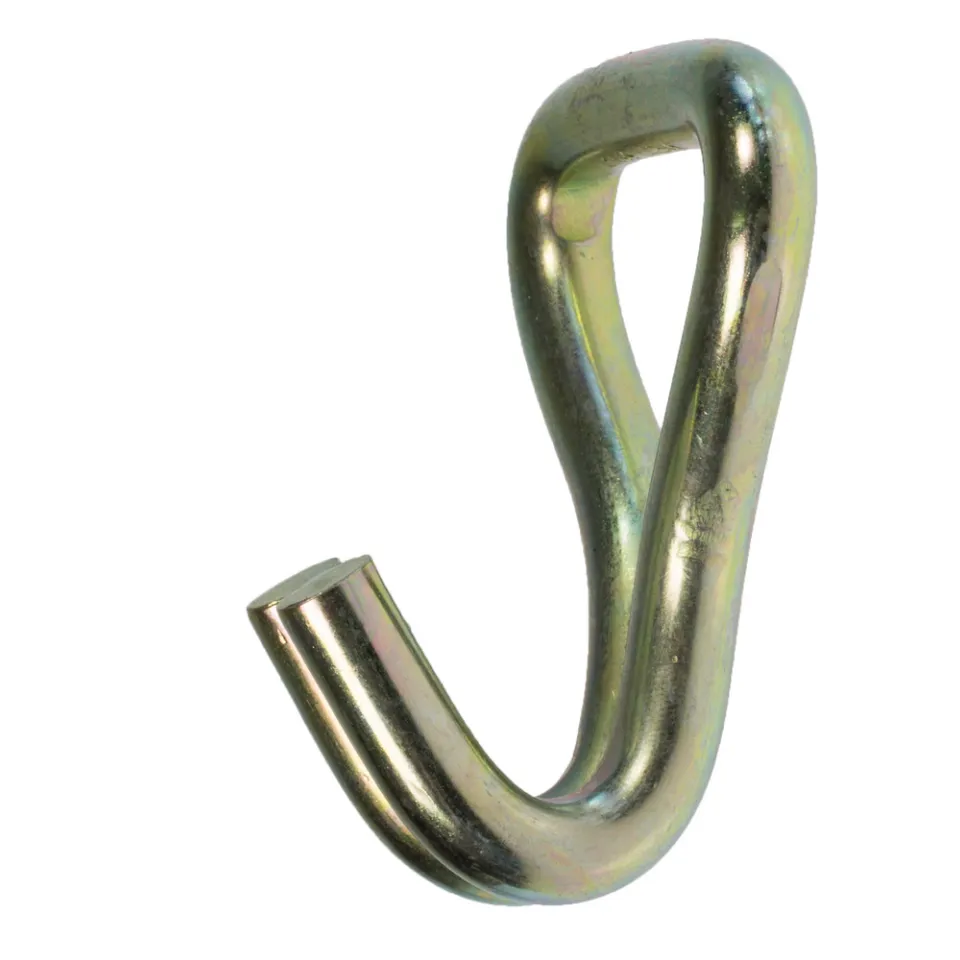

Claw Hook Claw Hook 50mm |
| 2022242
SSID ERP Code: 20045/2-A-6M |
20045/2-A-6M | 4.1 kg | 6 m |
Claw Hook Claw Hook 50mm |
| 2022243
SSID ERP Code: 20045/2-A-8M |
20045/2-A-8M | 4.4 kg | 8 m |
Claw Hook Claw Hook 50mm |
| 2022244
SSID ERP Code: 20045/2-A-10M |
20045/2-A-10M | 4.7 kg | 10 m |
Claw Hook Claw Hook 50mm |
| 2022245
SSID ERP Code: 20045/2-A-12M |
20045/2-A-12M | 5 kg | 12 m |
Claw Hook Claw Hook 50mm |
| 2022246
SSID ERP Code: 20045/2-B-4M |
20045/2-B-4M | 4.4 kg | 4 m |
Triangle Snap Hook 50mm TSH-50 |
| 2022247
SSID ERP Code: 20045/2-B-6M |
20045/2-B-6M | 4.7 kg | 6 m |
Triangle Snap Hook 50mm TSH-50 |
| 2022248
SSID ERP Code: 20045/2-B-8M |
20045/2-B-8M | 5 kg | 8 m |
Triangle Snap Hook 50mm TSH-50 |
| 2022249
SSID ERP Code: 20045/2-B-10M |
20045/2-B-10M | 5.3 kg | 10 m |
Triangle Snap Hook 50mm TSH-50 |
| 2022250
SSID ERP Code: 20045/2-B-12M |
20045/2-B-12M | 5.7 kg | 12 m |
Triangle Snap Hook 50mm TSH-50 |
| 2022251
SSID ERP Code: 20045/2-C-4M |
20045/2-C-4M | 3.9 kg | 4 m |
Claw Keep CK-50 |
| 2022252
SSID ERP Code: 20045/2-C-6M |
20045/2-C-6M | 4.2 kg | 6 m |
Claw Keep CK-50 |
| 2022253
SSID ERP Code: 20045/2-C-8M |
20045/2-C-8M | 4.8 kg | 8 m |
Claw Keep CK-50 |
| 2022254
SSID ERP Code: 20045/2-C-10M |
20045/2-C-10M | 5.3 kg | 10 m |
Claw Keep CK-50 |
| 2022255
SSID ERP Code: 20045/2-C-12M |
20045/2-C-12M | 5.1 kg | 12 m |
Claw Keep CK-50 |
| 2022256
SSID ERP Code: 20045/2-D-4M |
20045/2-D-4M | 3.6 kg | 4 m |
Delta Ring D-50 |
| 2022257
SSID ERP Code: 20045/2-D-6M |
20045/2-D-6M | 3.9 kg | 6 m |
Delta Ring D-50 |
| 2022258
SSID ERP Code: 20045/2-D-8M |
20045/2-D-8M | 4.2 kg | 8 m |
Delta Ring D-50 |
| 2022259
SSID ERP Code: 20045/2-D-10M |
20045/2-D-10M | 4.5 kg | 10 m |
Delta Ring D-50 |
| 2022260
SSID ERP Code: 20045/2-D-12M |
20045/2-D-12M | 4.8 kg | 12 m |
Delta Ring D-50 |
