Ratchet Lashing 75mm, Eco
Ratchet Lashing 75mm, Eco
Item Number: 2023525
SSID ERP Code: 20040E/3-4M/EF
20040E/3-4M/EF

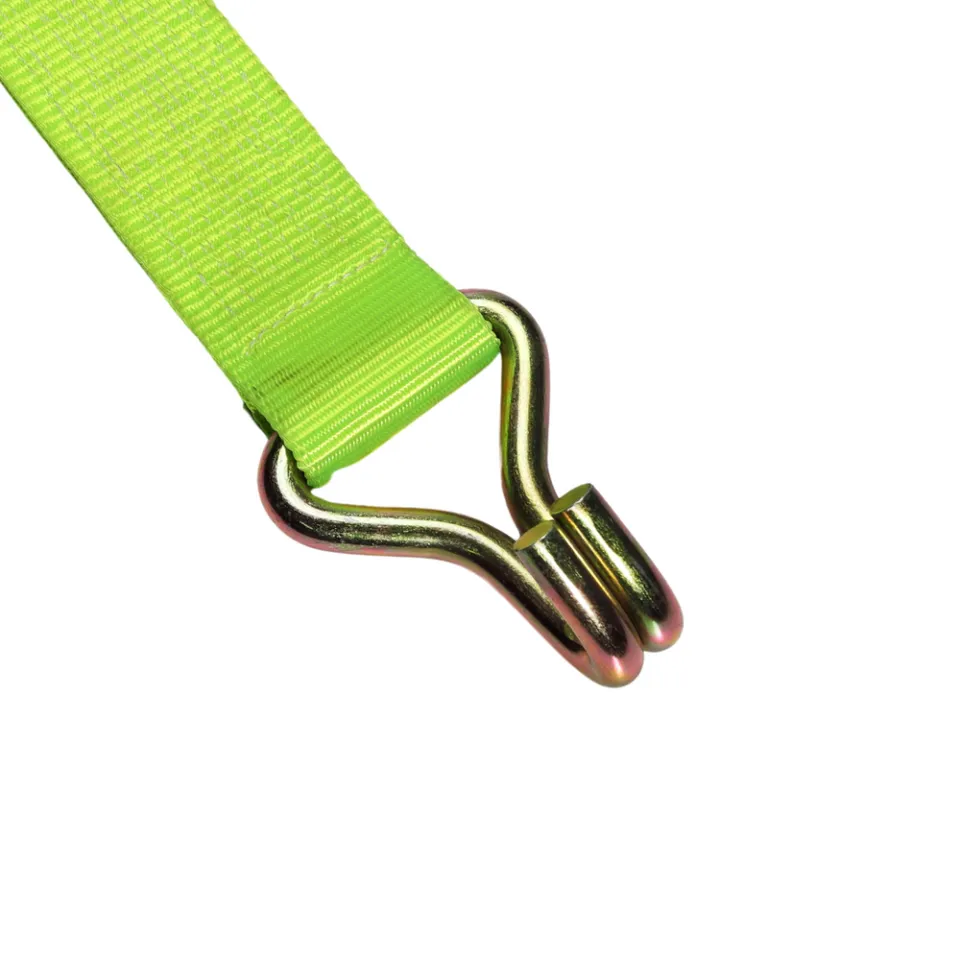

SpanSet Ratchet Lashing ABS 20040 Claw, 4m. Webbing Width 75mm, Color Yellow.
- Manufactured in accordance to EN 12195-2
- Made from highest grade material
- Unique Serial Number on each single product for traceability and inspection record
- Optional accessories are available to improve load securing application
- Supplied with Certificate of Conformance, Product Identification Label and User Manual book
- Available in standard and customized length
Select Model
Please contact customer service for purchase or more information
Product Technical Information
-
Norms:
EN 12195-2: 2001
-
Webbing Width B:
75
-
Label Protection:
Yes
-
Colour:
Yellow
-
Webbing Material:
100% Polyester, thermofixed and low-stretch
-
Main Material:
Polyester
-
Ratchet Type:
Push-up
-
Lashing Type:
Two-piece
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
Technical Drawings
Variants information
| Item Number | Item Name | Weight Net | Dimension L1 | Lashing End Fitting Component |
|---|---|---|---|---|
| 2023525 | 20040E/3-4M/EF | 7.2 kg | 4 m |
Claw Hook Claw Hook 75mm |
| 2023540 | 20040E/3-6M/EF | 7.9 kg | 6 m |
Claw Hook Claw Hook 75mm |
| 2023541 | 20040E/3-8M/EF | 8.5 kg | 8 m |
Claw Hook Claw Hook 75mm |
| 2023542 | 20040E/3-10M/EF | 9.1 kg | 10 m |
Claw Hook Claw Hook 75mm |
| 2023543 | 20040E/3-12M/EF | 9.8 kg | 12 m |
Claw Hook Claw Hook 75mm |
| 2023544 | 20040E/3-4M/D | 6.4 kg | 4 m |
Delta Ring D-75 |
| 2023551 | 20040E/3-6M/D | 7 kg | 6 m |
Delta Ring D-75 |
| 2023552 | 20040E/3-8M/D | 7.7 kg | 8 m |
Delta Ring D-75 |
| 2023553 | 20040E/3-10M/D | 8.3 kg | 10 m |
Delta Ring D-75 |
| 2023554 | 20040E/3-12M/D | 9 kg | 12 m |
Delta Ring D-75 |

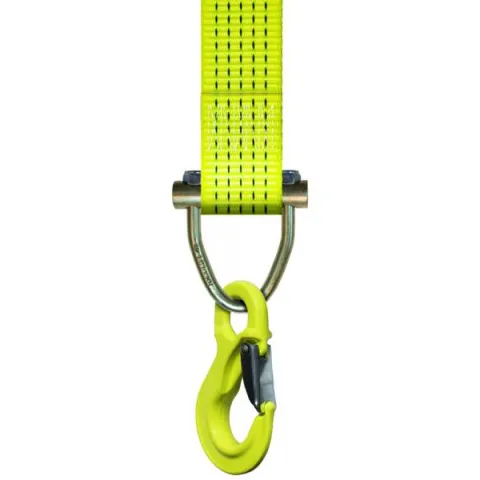

| 2023556 | 20040E/3-4M/DH | 11.6 kg | 4 m |
Delta Hook Delta Hook 75mm |
| 2023562 | 20040E/3-6M/DH | 12.3 kg | 6 m |
Delta Hook Delta Hook 75mm |
| 2023564 | 20040E/3-8M/DH | 12.9 kg | 8 m |
Delta Hook Delta Hook 75mm |
| 2023566 | 20040E/3-10M/DH | 13.5 kg | 10 m |
Delta Hook Delta Hook 75mm |
| 2023567 | 20040E/3-12M/DH | 14.2 kg | 12 m |
Delta Hook Delta Hook 75mm |
