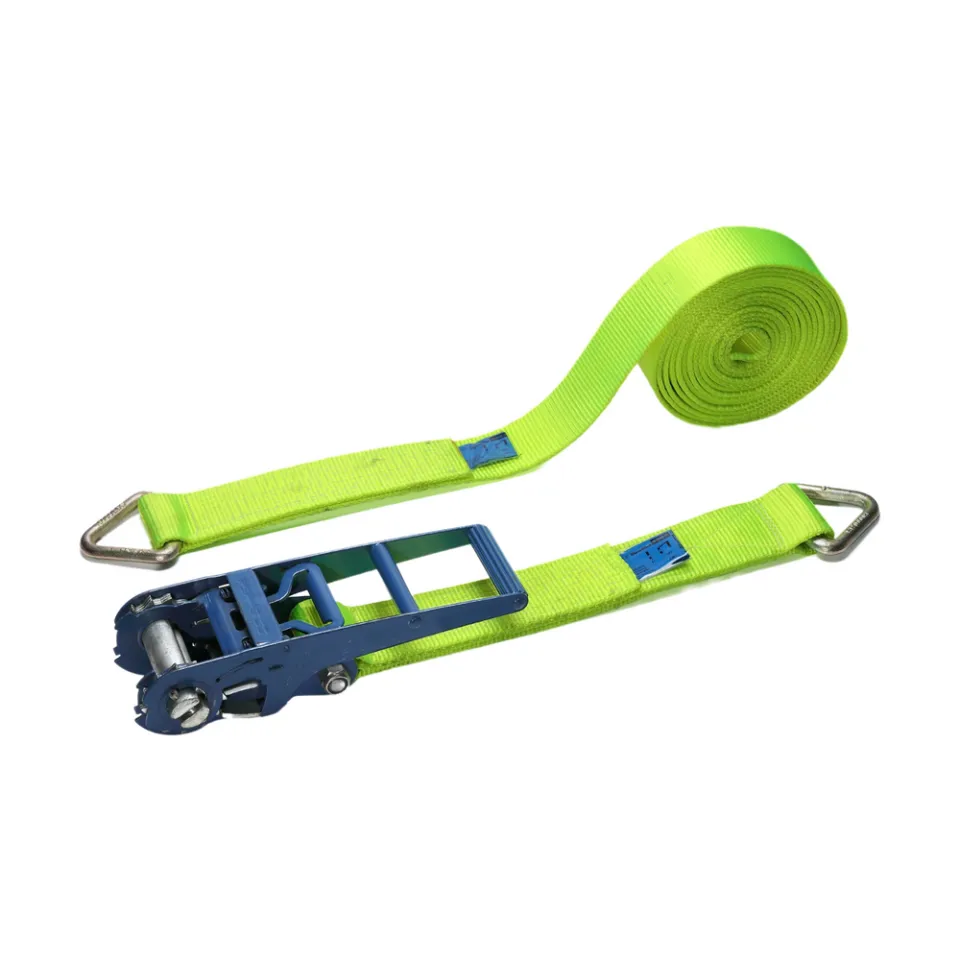

Ratchet Lashing ABS 75mm, LC 50kN
Ratchet Lashing ABS 75mm, LC 50kN
- Manufactured in according to EN 12195-2
- Tensioning device equipped with Anti Belt Slip (ABS) feature that make the ratchet released gradually
- Tensioning Device coated with epoxy resin that effectively protects the ratchet from the effect of weather, prevent rust and ensures a long service life
- Tensioning Device equipped with double slider for optimal power generation due to tensioning in small step
- Tensioning Device equipped with self-locking feature that prevents unintentional opening while being transported and thereby increases the safety of all road users
- Webbing equipped with edge protection to protect from wear, UV protection and webbing has maximum stretching 4%
- This high-performance ratchet is further reinforced by a double bar, meaning that the load is distributed between three points rather than just two. This results in extremely high loading capacity and stability
Select Model
Indikator Gaya Ketegangan
Menunjukkan gaya pra-tarik yang dicapai
Dengan TFI Anda dapat membaca gaya pra-tarik yang dicapai dalam sistem pengikatan saat mengikat beban dan menggunakan informasi ini dalam perhitungan kontrol beban.
Prosedur "Sabuk-Anti-Selip"
Pembebasan ketegangan yang terkendali
Sistem ABS yang dikembangkan untuk beban dengan risiko terjungkal dan memungkinkan pengguna melepaskan tekanan dalam langkah kecil. Tali pengikatnya juga bisa dibuka seluruhnya.
Label selongsong pelindung
Dilindungi secara optimal, diperkuat dengan lapisan
Selain desain tahan sobek dengan lapisan kain, selongsong plastik kokoh melindungi tulisan dengan sempurna dari abrasi dan kotoran. Pada alat pengangkat yang dilengkapi dengan transponder RFID, transponder diintegrasikan ke dalam selongsong pelindung dan tahan sobek.
Lapisan resin epoksi
Perlindungan ratchet yang maksimal
Ratchet pertama-tama dilapisi seng, kemudian dilapisi krom dan dilapisi dengan lapisan resin epoksi tahan guncangan yang juga melindungi ratchet dari misalnya. karat.
Product Technical Information
-
Norms:
EN 12195-2: 2001
-
Webbing Width B:
75
-
Label Protection:
Yes
-
Colour:
Yellow
-
Webbing Material:
100% Polyester, thermofixed and low-stretch
-
Main Material:
Polyester
-
Ratchet Type:
Push-up
-
Tension Force Indicator (TFI):
Yes
-
Lashing Type:
Two-piece
-
Packaging Unit (PU):
pcs
-
Packaging Unit (PU) Content:
1
-
Lashing Capacity:
5000 daN
Technical Drawings
Variants information
| Item Number | Item Name | Weight Net | Dimension L1 | Lashing End Fitting Component |
|---|---|---|---|---|
| 2018041
SSID ERP Code: 20040/2-A-4M-11 |
20040/2-A-4M-11 | 7.3 kg | 4 m |

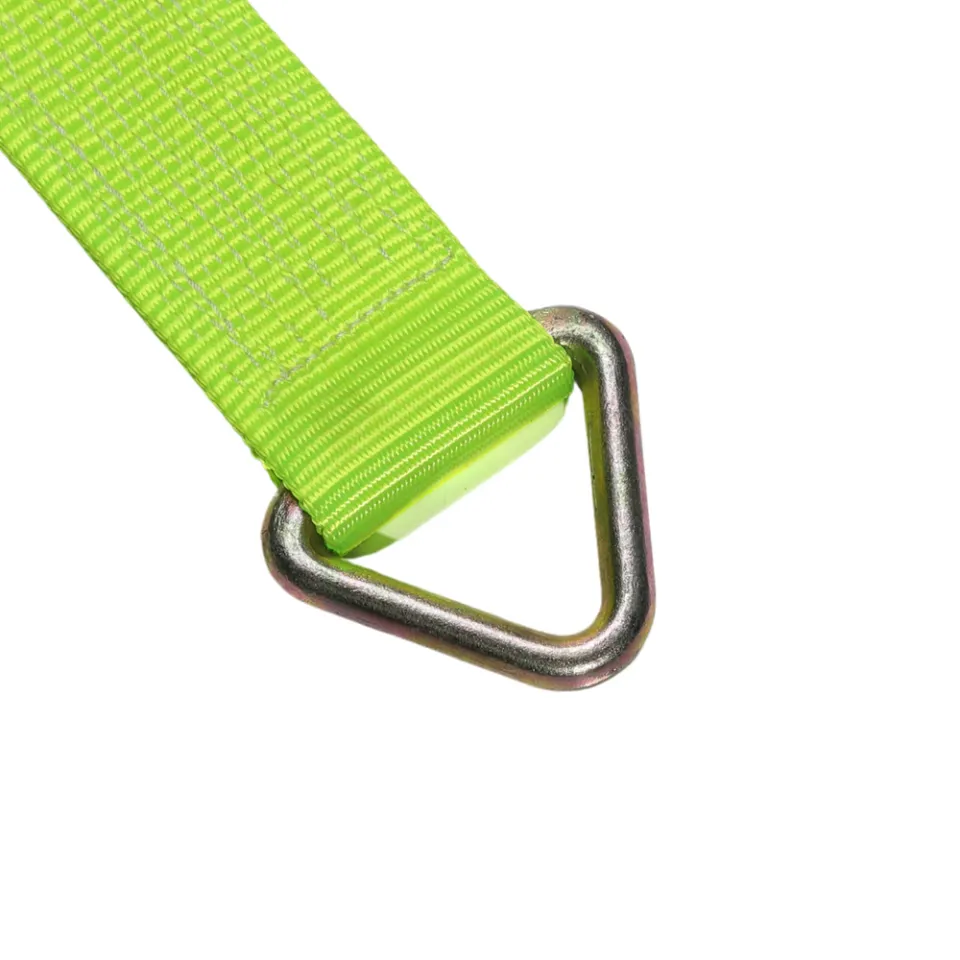

Delta Ring D-75 |
| 2018042
SSID ERP Code: 20040/2-A-6M-11 |
20040/2-A-6M-11 | 7.8 kg | 6 m |
Delta Ring D-75 |
| 2018043
SSID ERP Code: 20040/2-C-4M |
20040/2-C-4M-11 | 6.1 kg | 4 m |
Claw Hook Claw Hook 75mm |
| 2018044
SSID ERP Code: 20040/2-C-6M |
20040/2-C-6M-11 | 6.6 kg | 6 m |
Claw Hook Claw Hook 75mm |
| 2020373
SSID ERP Code: 20040/2-A-8M-11 |
20040/2-A-8M-11 | 8.3 kg | 8 m |
Delta Ring D-75 |
| 2020374
SSID ERP Code: 20040/2-A-10M-11 |
20040/2-A-10M-11 | 8.8 kg | 10 m |
Delta Ring D-75 |
| 2020375
SSID ERP Code: 20040/2-A-12M-11 |
20040/2-A-12M-11 | 9.3 kg | 12 m |
Delta Ring D-75 |
| 2020381
SSID ERP Code: 20040/2-C-8M |
20040/2-C-8M-11 | 7.1 kg | 8 m |
Claw Hook Claw Hook 75mm |
| 2020383
SSID ERP Code: 20040/2-C-12M |
20040/2-C-10M-11 | 7.6 kg | 10 m |
Claw Hook Claw Hook 75mm |
| 2020384
SSID ERP Code: 20040/2-C-10M |
20040/2-C-12M-11 | 8.1 kg | 12 m |
Claw Hook Claw Hook 75mm |
| 2023591
SSID ERP Code: 20040/2-D-4M-11 |
20040/2-D-4M-11 | 9.2 kg | 4 m |
Delta Hook Delta Hook 75mm |
| 2023592
SSID ERP Code: 20040/2-D-6M-11 |
20040/2-D-6M-11 | 9.7 kg | 6 m |
Delta Hook Delta Hook 75mm |
| 2023593
SSID ERP Code: 20040/2-D-8M-11 |
20040/2-D-8M-11 | 10.2 kg | 8 m |
Delta Hook Delta Hook 75mm |
| 2023594
SSID ERP Code: 20040/2-D-10M-11 |
20040/2-D-10M-11 | 10.7 kg | 10 m |
Delta Hook Delta Hook 75mm |
| 2023595
SSID ERP Code: 20040/2-D-12M-11 |
20040/2-D-12M-11 | 11.2 kg | 12 m |
Delta Hook Delta Hook 75mm |
